New

UMB202

Teams Rooms 3-in-1 Conference Camera

  • Sony 4K Ultra HD camera sensor for advanced image processing
  • Intelligent auto framing and DOA voice tracking technology
  • 6-mic array beamforming soundbar with an 11W speaker
Sales Enquiry  Share

OVERVIEW

The UMB202 Teams Rooms 3-in-1 Conference Camera is a key component of the ViewSonic Meeting Space Solution for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.

Your Meeting Space. Your Way.

SEE FULL SOLUTION

Elevate Your Presence in Every Interaction

Foster inclusivity and collaboration in meetings with the 3-in-1 Conference Camera, featuring an advanced 4K Sony sensor. Its intelligent framing technology detects individuals and their voices, while the 5x digital zoom with electronic pan and tilt ensures that your presence is felt in every interaction.

Exceptional Sound Quality

The 3-in-1 Conference Camera features a built-in beamforming 6-microphone array and an 11W front-facing speaker, guaranteeing exceptional sound quality for crystal-clear communication. Its LED light bar signals camera and microphone status, avoiding mishaps like a muted microphone or inactive camera during critical moments in a video call.

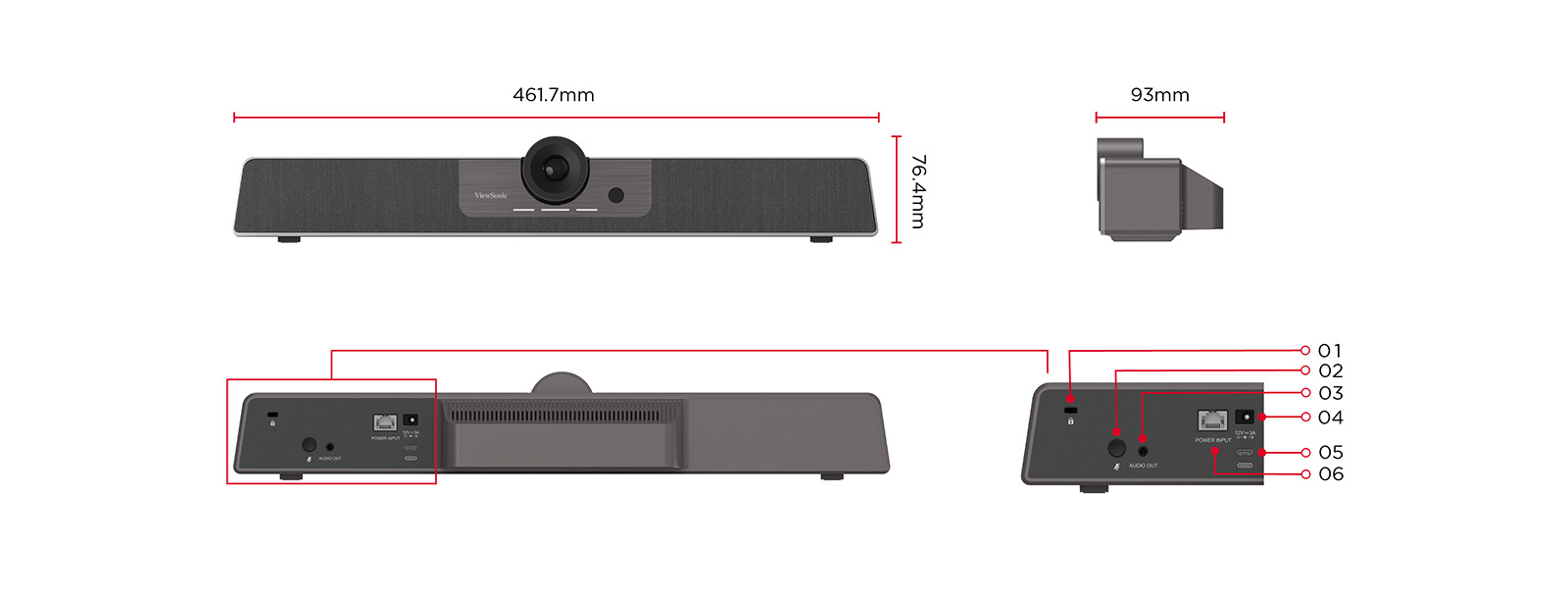

Dimension & I/O Ports

  1. Microphone Mute
  2. Audio Out
  3. PoE
  4. Power Input
  5. USB-C

SPECIFICATIONS


  • Camera
    Resolution: H.264/MJ: @30FPS
    (1)3840×2160 (2)2560×1440
    (3)1920×1080 (4)1280×720
    (5)1024×576 (6)960×540
    (7)800×600 (8)640×480
    (9)640×360 (10)480×270
    (11)352×288 (12)320×240
    NV12 / YUY2: @30FPS
    （1）1920×1080（2）1280×720
    （3）640×360
    Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel
    FOV: 117.8° (DFOV) ，109° (HFOV)，74.4° (VFOV)
    PTZ: EPTZ (5X digital Zoom)
    Digital Noise Reduction: Yes
    White Balance: Yes
    Exposure: Yes
  • Audio
    Microphone array: 6 element, 8 meters pickup range
    Speaker: treble module x1, mid-bass modulex1 in one box
    (Maximum output 8W)
    Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume
  • I/O
    USB-TypeC: 1
    Audio Out: 1
    DC 2.0 Power: 1
    RJ45: 1 (Only for power supply)
    IEEE 802.3 at，25.50W (max)
    Power Button: Power Button: In startup mode, press the power button to mute.
    In standby mode, press the power button to power on.
    MIC Mute Button: Yes
