Key Features
  • Sony 4K Ultra HD camera sensor for advanced image processing
  • Intelligent auto framing and DOA voice tracking technology
  • 6-mic array beamforming soundbar with an 11W speaker

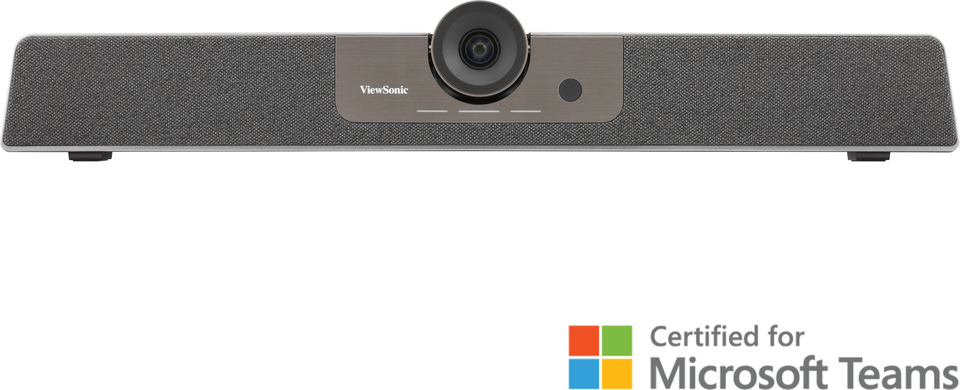

UMB202
Product Description
The UMB202 Teams Rooms 3-in-1 Conference Camera is a key component of the ViewSonic Meeting Space Solution for Microsoft Teams Rooms, optimizing collaboration in meeting rooms of diverse sizes. Boasting a 4K Sony camera sensor, 5x digital zoom, auto-framing, and DOA voice tracking, it delivers a premium visual experience. Complemented by six beamforming microphones, which cover an expansive 8-meter range, and an 11W speaker, the camera ensures crystal-clear audiovisual quality for seamless communication.
  1. Microphone Mute
  2. Audio Out
  3. PoE
  4. Power Input
  5. USB-C
Visit Us
  • www.viewsonic.com
  • CAMERA
    Resolution: H.264/MJ: @30FPS
    (1)3840×2160 (2)2560×1440
    (3)1920×1080 (4)1280×720
    (5)1024×576 (6)960×540
    (7)800×600 (8)640×480
    (9)640×360 (10)480×270
    (11)352×288 (12)320×240
    NV12 / YUY2: @30FPS
    （1）1920×1080（2）1280×720
    （3）640×360
    Sensor: IMX577 1/2.3 inch, CMOS, 12M pixel
    FOV: 117.8° (DFOV) ，109° (HFOV)，74.4° (VFOV)
    PTZ: EPTZ (5X digital Zoom)
    Digital Noise Reduction: Yes
    White Balance: Yes
    Exposure: Yes
  • AUDIO
    Microphone array: 6 element, 8 meters pickup range
    Speaker: treble module x1, mid-bass modulex1 in one box
    (Maximum output 8W)
    Output Power: 80 dBA @ 1000 Hz @ 1 meter at maximum volume
  • I/O
    USB-TypeC: 1
    Audio Out: 1
    DC 2.0 Power: 1
    RJ45: 1 (Only for power supply)
    IEEE 802.3 at，25.50W (max)
    Power Button: Power Button: In startup mode, press the power button to mute.
    In standby mode, press the power button to power on.
    MIC Mute Button: Yes
  • USB FEATURE
    Connection type: USB 3.0, downward compatible with USB2.0
    Video Compression: MJPEG /YUY2 / H.264 / NV12
    USB audio: 16K sampling rate, support UAC2.0
    USB video communication protocol: UVC 1.1
    UVC PTZ control: Support (Control Via Remote controller)
  • INTELLIGENT FUNCTION
    Auto Framing: Yes
    Voice tracking: Yes
  • SYSTEM COMPATIBILITY
    OS: Windows 7 /8.1/10/11 or higher
    macOS® 10.10 or higher
    Google ChromebookTM Version 29.0.1547.70 or higher
    Android
  • ACCESSORY (INBOX)
    USB Type-C cable: 1.8m typeC x1
    (include TypeC to A Plug adaptor)
    Remote Control: Yes
    Power adapter: 1
    Wall mount components: 1
    Screws: Yes
    Lens Cover: 1
    QSG: Yes
    Compliance statement: Yes
