ELITE RGB & TT RGB Plus
Easy Setup

Attivare l'RGB del monitor


1.) Collega il cavo USB 3.0 al monitor e al PC.


Il connettore di tipo A (rettangolo) si collega al PC.
Il connettore di tipo B (quadrato) si collega al monitor.


2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.


Disattivare il segnale di avviso

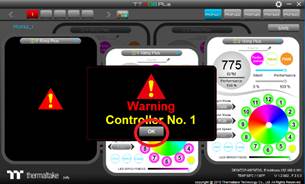

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.



2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.



Sincronizzazione di XG240R con il software TT RGB PLUS


1.) Click the square RGB button at the top, center of the program.


2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.



Controllo dei LED


**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).

Il tuo monitor eseguirà gli stessi comandi impartiti al dispositivo nella Porta 1.

1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

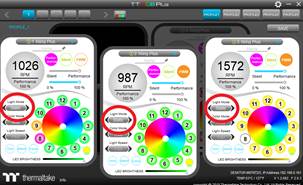

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

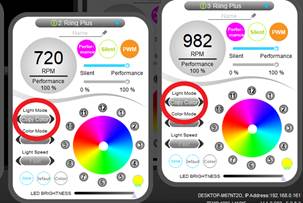

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.


4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.



RGB singolo



5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.



Frozen LED Units Unfrozen LED Units


Screen Follower (modalità giocatore)


1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.


2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.




Voice Control and Additional Info Link

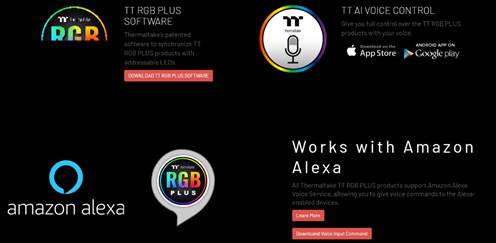

For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/

Compatible Products

La sincronizzazione dell'illuminazione d'accento RGB del tuo monitor ViewSonic Elite con l'ecosistema RGB di Thermaltake attualmente
funziona solo se possiedi uno dei seguenti prodotti TT "Must Have".

Consulta l'elenco dei prodotti compatibili qui sotto. Per maggiori informazioni, visita il sito web di Thermaltake.

Prodotto indispensabile¹ Prodotti sincronizzabili²
AIO Liquid Coolers
Floe Riing RGB 360 TT Edizione Premium
Floe Riing RGB 280 TT Edizione Premium
Floe Riing RGB 240 TT Edizione Premium
Pompa + serbatoio
Pacific PR22-D5 Plus
Radiatori
Pacific CL360 Plus Radiatore RGB
Pacific RL360 Plus Radiatore RGB
Blocchi d'acqua
Blocco ad acqua per CPU Pacific W4 Plus
Blocco ad acqua per CPU Pacific W5
Blocco ad acqua per CPU Pacific W6 (AMD Ryzen Threadripper TR4)
Pacific V-GTX 1080Ti Plus Trasparente (ASUS ROG)
Pacific V-GTX 1080Ti Plus Trasparente (MSI GAMING X)
Pacific V-RTX 2080 Plus Serie Founders Edition
Ventole del telaio
Riing Trio 12 LED RGB Radiator Fan TT Premium Edition (confezione da 3 ventole)
Riing Trio 14 LED RGB Radiator Fan TT Premium Edition (confezione da 3 ventole)
Riing Plus 20 TT Premium Edition (confezione singola con controller)
Riing Plus 14 TT Edizione Premium (confezione da 5 ventole)
Riing Plus 14 TT Edizione Premium (confezione da 3 ventole)
Riing Plus 12 TT Edizione Premium (confezione da 5 ventole)
Riing Plus 12 TT Edizione Premium (confezione da 3 ventole)
Riing Plus 12 TT Edizione Premium (confezione singola)
Pure Plus 12 TT Premium Edition (confezione da 3 ventole)
Pure Plus 14 LED RGB Radiator Fan TT Premium Edition (confezione da 3 ventole)
Chassis
View 91 Tempered Glass RGB Edition Super Tower Chassis
Level 20 Tempered Glass Edition Full Tower Chassis
Level Level 20 GT RGB Plus Edition Full Tower Chassis
Alimentatori
Toughpower iRGB PLUS 1250W Titanium
Toughpower iRGB PLUS 1200W Platinumm
Toughpower iRGB PLUS 1050W Platino
Toughpower iRGB PLUS 850W Platino
Accessori
Pacific Lumi Plus Striscia LED 3Pack
Pacific Rad Plus LED Panel
Tastiere
TT Premium X1 Tastiera Cherry MX Speed Silver
TT Premium X1 Tastiera RGB Cherry MX Blue
Livello 20 Tastiera da gioco RGB in titanio (Speed Silver)
Livello 20 Tastiera da gioco RGB in titanio (interruttore blu)
Livello 20 Tastiera da gioco RGB Cherry MX Blue
Livello 20 Tastiera da gioco RGB Cherry MX Speed Silver
Cuffie
Cronos Riing RGB 7.1 gaming headset (Coming Soon)
Supporto per cuffie in arrivo***
Mouse
Nemesis Switch RGB gaming mouse
Mouse da gioco Iris RGB

*Le variazioni di modalità, le funzioni di personalizzazione e qualsiasi altra funzione o utilizzo saranno basati e soggetti ai termini di utilizzo, al contratto di licenza con l'utente finale e alle funzionalità del software specificate o fornite nel software dei partner.

¹Per sincronizzare il monitor Viewsonic con i prodotti Thermaltake RGB,
gli utenti devono possedere XG240R o XG350R-C e uno dei prodotti Thermaltake contrassegnati come "must have".

Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
