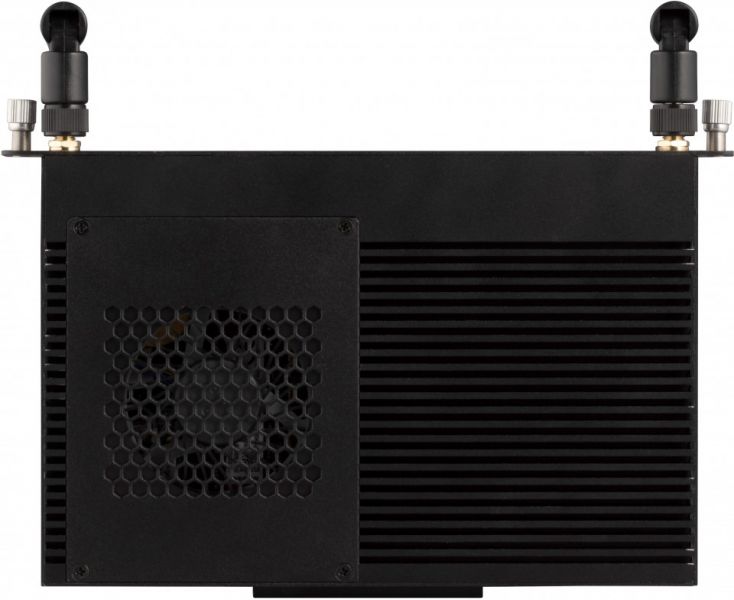

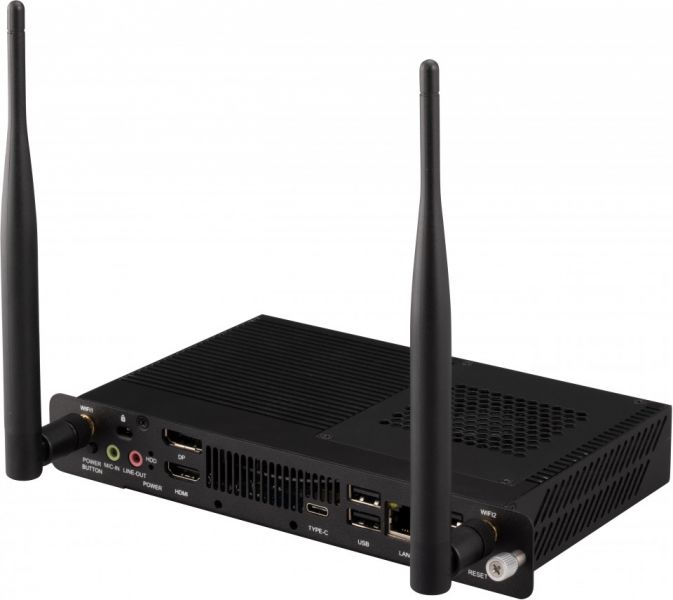

VPC27-W53-O1-1B

Slot-in PC for ViewBoard®

Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
Ideal Integrated Solution for ViewBoard® Interactive Displays & Commercial Displays
Powerful Intel® 10th Core Processors
Improved System Stability, Security, & Thermal Control

Sales Enquiry

GALLERY

OVERVIEW

Seize the power to get more done when you sync your ViewBoard® interactive displays and wireless presentation display with the ViewSonic VPC27-W53-O1-1B slot-in PC. Integrated with exceptional performance from Intel® 10th Gen Core™ processors, 16GB DDR4 memory, and up to 256GB of SSD storage, experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, DP1.2, USB 3.2, and Gigabit LAN RJ45 for faster workflows.

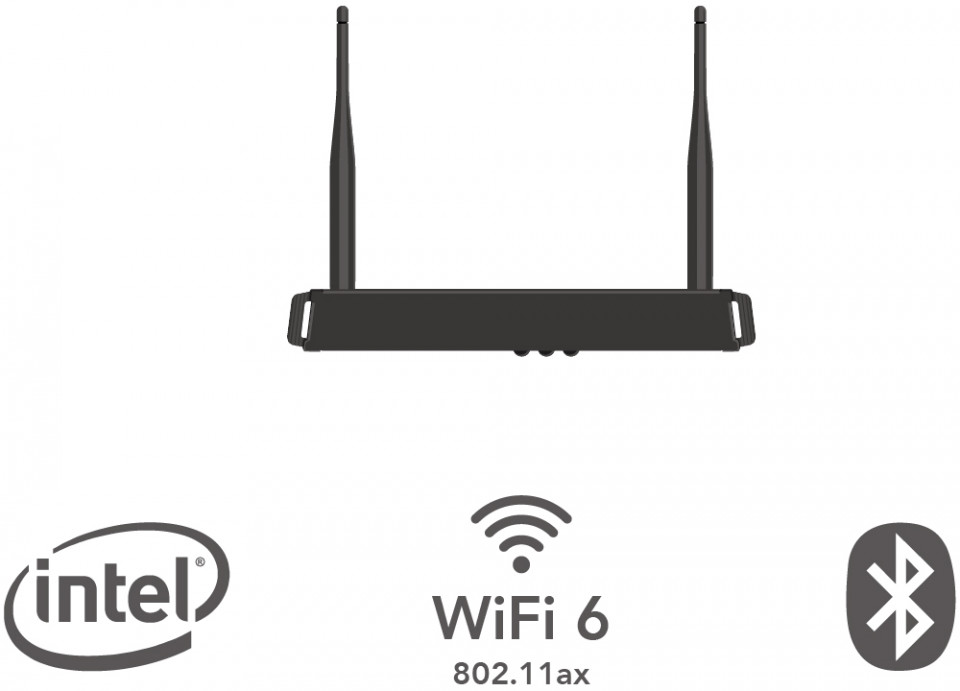

Tap into a productivity powerhouse

Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 10th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson

Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC27-W53-O1-1B intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.

Stay cool and blaze through classes

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.

Boot up with total security

Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.

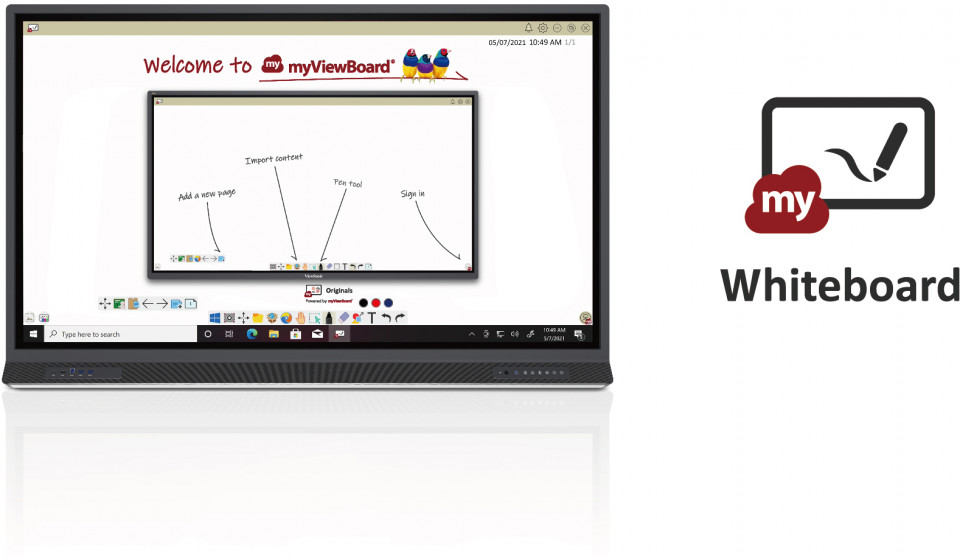

Efficient content management

Synced with myViewBoard, an intuitive suite of software applications, the VPC27-W53-O1-1B offers remote content sharing and engaging lesson delivery for enhanced interactivity and maximized productivity.

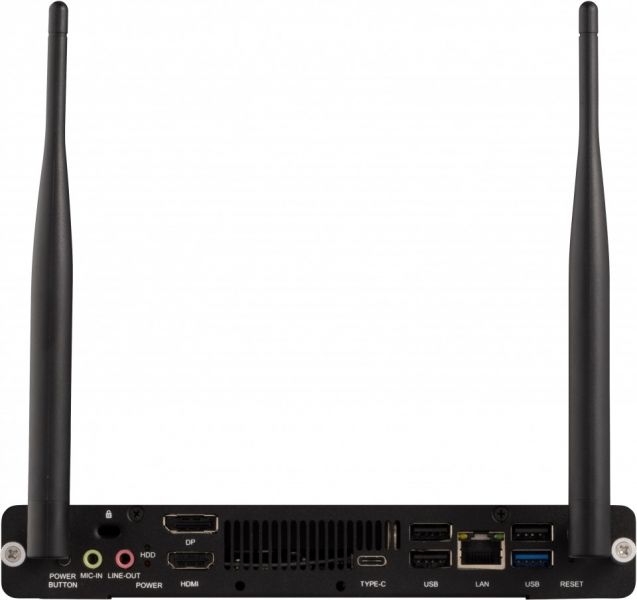

I/O Port

HDD/Power LED
LINE-OUT
MIC-IN
Power Button
HDMI
Type C
DP
USB 2.0
Reset
USB 3.2
LAN

SPECIFICATIONS

Perangkat lunak
Sistem operasi: Windows 11 Pro (Windows 10 Pro Downgrade preinstalled)
Core
CPU: Intel Core i7-10700T 2.0GHz Turbo boost 4.5GHz
Grafik: Integrated Intel® UHD graphic 630 Intel H510 chipset
Penyimpanan
Kapasitas: 16GB DDR4
Dimensi: M.2 2280 (22 x 80 mm)
Kapasitas: 256GB SSD
Interface: M.2 2280 NVMe PCIe Gen3 SSD

INPUT
MIC (Mikrofon): x1
OUTPUT
DisplayPort: x 1 (1.4, resolution 3840x2160@60Hz)
HDMI: x 1 (1.4, resolution 3840x2160@60Hz)
Audio: x 1 Line out
LAN
RJ45: GbE LAN Port
Nirkabel / Bluetooth
Intel AX200 WiFi 6 + BT5.2 Module dual band
USB
Tipe A: USB x 4 (USB 3.2 x 1, USB 2.0 x 3)
Tipe C: x 1 (data only)
Bundle Software
Adobe Reader /
myViewBoard WhiteBoard /
WatchDog /
Winflash
Power
Tegangan: DC in +12V~+19V @ 3.42A
Konsumsi: 65 W (Typical)
OPERATING CONDITIONS
Suhu (º C): -5~45°C
Kelembaban: 20% ~ 80% R.H. Non-Condensing
DIMENSI (W x H x D)
Fisik (inci / mm): 7.95” x 4.69” x 1.18” / 202 x 119 x 30 mm
Kemasan (inci / mm): 10.00” x 7.72” x 3.03”/254 x 196 x 77 mm
WEIGHT
Net (lb / kg): 2.205 lb/1 kg
Gross (lb / kg): 2.646 lb/1.2 kg
REGULATIONS
cTUVus, FCC-B w/ ICES003, FCC ID+SDOC, CA IC, IC VOC, NOM, COFETEL, CE EMC, CE RED, CE LVD, CB, RoHS, REACH, WEEE, BSMI, NCC, BIS, WPC, RCM, MIC, VCCI, VNTA, CCC, SRRC
ISI PAKET
1. VPC OPS
2. Quick Start Guide
3. Screw x 2
