Available Now

PS502W

4,000 ANSI Lumens WXGA Short Throw Business & Education Projector

4,000 ANSI Lumens offering clear images in any environment
0.52 Short throw ratio for minimal space consumption
Up to 300" ultra large screen with lower cost-per-inch
Easy and flexible connection: dual HDMI ports, USB Type-A port
Convenient software updates for projectors via USB connection

Sales Enquiry

GALLERY

OVERVIEW

The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.

High Brightness for Business & Education Environments

Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.

4,000 ANSI Lumens

High Brightness for Business & Education Environments 1

Big Screen for Small Spaces

The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.

0.52 Short Throw

Ultra-Large Screen with Lower Cost-per-inch

The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.

Up to 300"

Ultra-Large Screen with Lower Cost-per-inch 1

Easy and Flexible Connection

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.

Dual HDMI Ports

Vibrant Colors for Captivating Presentations

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

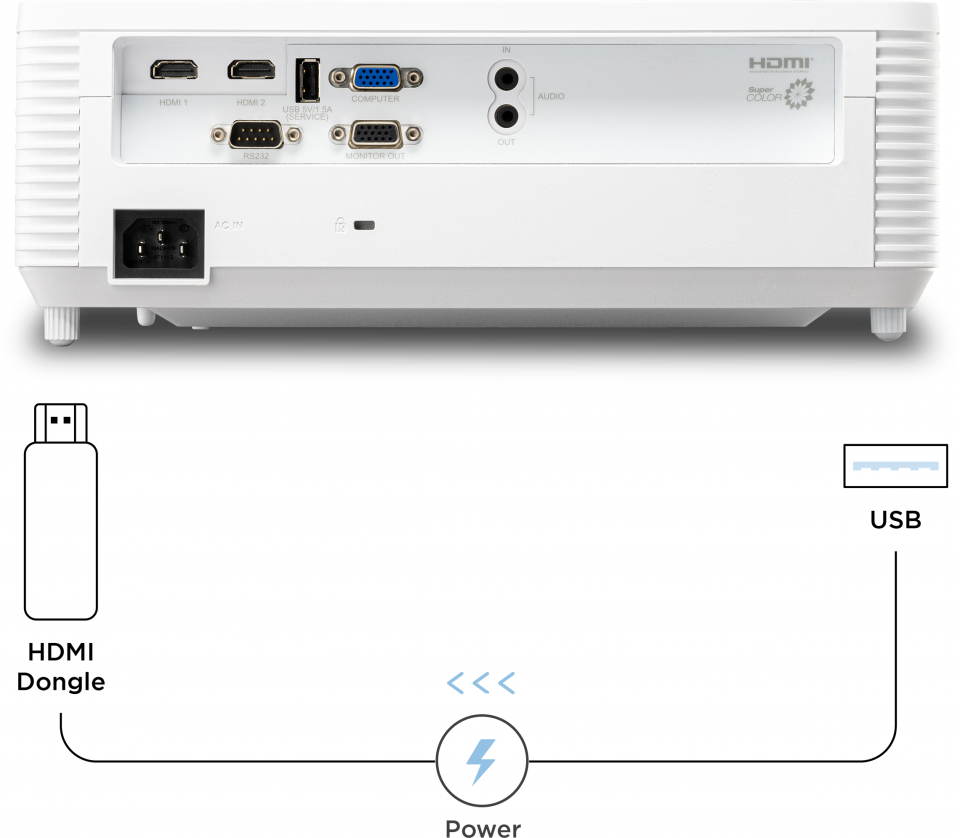

USB Type A Power Supply

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.

Audio Right Out of the Box

The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.

Built-in 16W Speakers

Dimensions & I/O Ports

Adjustment Foot
Lens
Front IR
HDMI 1
HDMI 2
USB-A(5V/1.5A, Service)
Computer In
Audio In
AC In
R232
Kensingtion Lock
Monitor Out
Audio Out
Focus Ring
LED Indicator
Keypad

SPECIFICATIONS

Spesifikasi
Sistem Proyeksi: 0.65" WXGA
Resolusi Asli: 1280x800
Kecerahan: 4000 (ANSI Lumens)
Rasio Kontras dengan Mode SuperEco: 15000:1
Display Color: 1.07 Billion Colors
Jenis Sumber Cahaya: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lensa: F=2.8, f=7.51mm
Proyeksi Offset: 112.4%+/-4%
Throw Ratio: 0.52
Zoom Optik: Fixed
Zoom Digital: 0.8x-2.0x
Ukuran gambar: 60"-300"
Throw Distance: 0.67m-3.36m
(87"@0.97m)
Keystone: +19°/-19° (V)
Audible Noise (Eco): 34dB
Audible Noise (Eco): 25dB
Input Lag: 33.2ms
Dukungan Resolusi: VGA(640 x 480) to FullHD(1920 x 1080)
Kompatibilitas HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Frekuensi Horizontal: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (berbagi dengan komponen): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio masuk (3,5 mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Tipe A (Daya): 1 (5V/1.5A)

Kontrol
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Lainnya
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Konsumsi daya: Normal: 295W
Standby: <0.5W
Suhu Operasional: 0~40℃
Carton: Brown
Berat bersih: 2.87kg
Gross Weight: 4.08Kg
Dimensi (WxDxH) dengan Kaki Penyesuaian: 309x234x115mm
Packing Dimensions: 400x337x168mm
Bahasa OSD: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
Standard Accessory
Power Cord: 1
Kabel VGA: 1
Kontrol Jarak Jauh: 1
QSG: Yes
Penutup Lensa: Yes
Air Filter: Yes (CN Only)
Warranty Card: Yes (CN Only)
Aksesori Opsional
Lampu / Sumber Cahaya: RLC-128
Air Filter: RSPL
Wall/Ceiling Mount: PJ-WMK-305
PJ-WMK-007
Carry Bag: PJ-CASE-008
