PD1013
A perfectly suited for efficient e-document workflow
- Implemented antimicrobial technology on pen and housing
- High Performance and e-Signature precision with 2048 pen pressure
- Ergonomic design, VESA-compliance, and Kensington lock security
- Windows® compatible and support e-Signature software
- 8H tempered glass with anti-scratch, anti-glare, and anti-fingerprint
- Ergonomic design in portrait and landscape mode
OVERVIEW

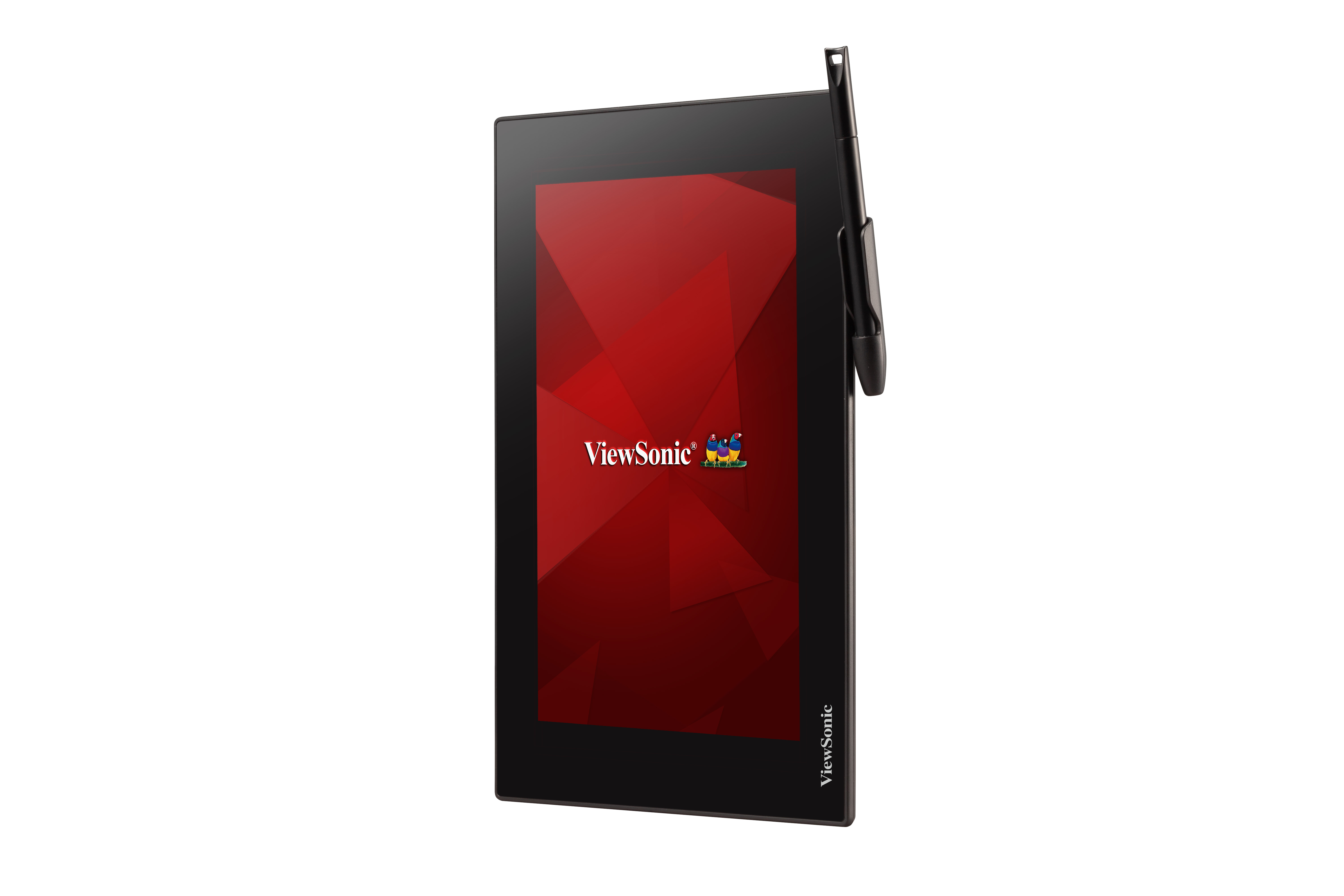

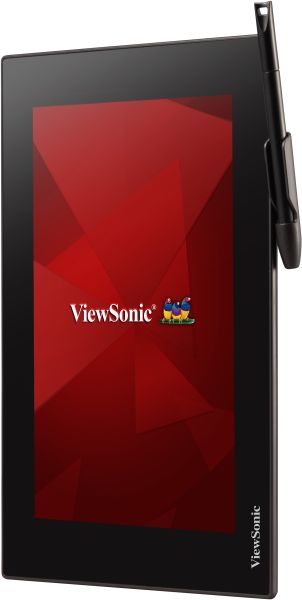

ViewSonic PD1013 is an ideal solution for optimizing user experience with streamlined service via Kiosk solution. 10.1- inch LCD pen display offers intuitive writing, annotating, and signage capabilities for organizations that need to let customers use in portrait and landscape mode, making it easier for the user to view and signed documents. It’s an ideal e-Signature solution for corporate, banking, finance, hospitality, insurance, and healthcare.A verified 99.9% antimicrobial solution
A verified 99.9 % antibacterial solution have been tested by SGS. Antibacterial technology implemented across all aspects of our product line including the pen, housing. *Option by request
A superior and intuitive handwriting experience
ViewSonic pen display delivers intuitive and accurate handwriting with 2048 levels of pen pressure sensitivity. The 250 pps response rate produces written text and highlighting on the screen without delays.
Ergonomic design for comfortable working

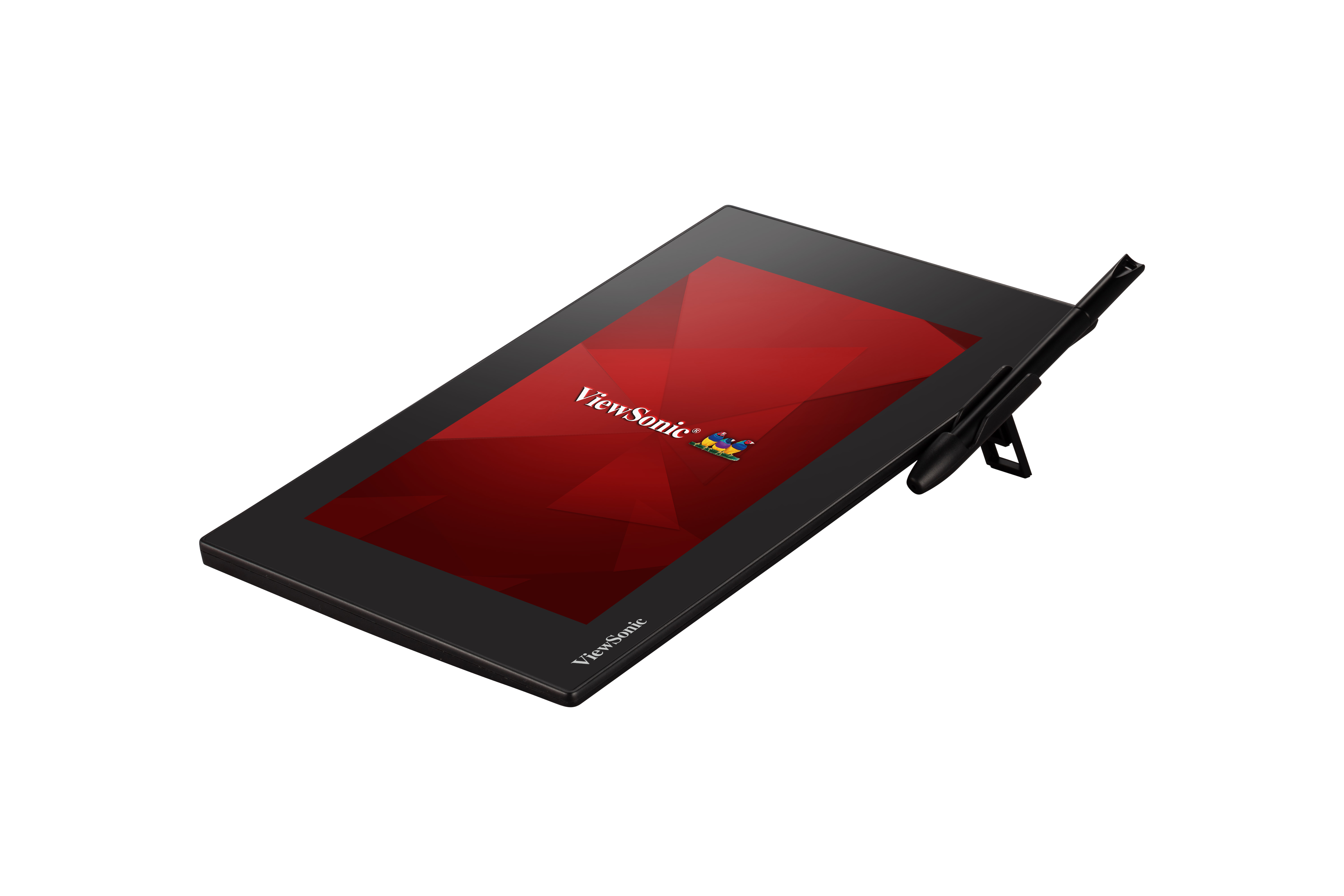

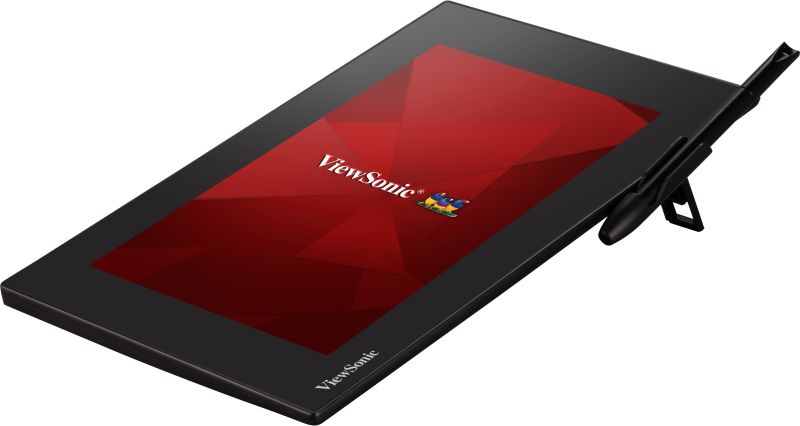

PD1013 can be displayed in portrait and landscape mode, making it easier for the user to view and signed documents.
Outstanding durability surface
Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.
Secured Encryption
Each signature signed on the pen display undergoes a hardware and software based encryption. All data is protected according to RSA2048 & AES256,the highest industry standards. *Option by request
Support for virtualized environment
ViewSonic pen display offers several options for virtualized, remote desktop, Citrix, VMWare, and RDS and thin client / zero client environments.
SPECIFICATIONS
- LCD PANELDisplay Area : 216.96 x 135.6 mm (10.1" TFT LCD)
Optimum Resolution: 1280 x 800 pixels
Kecerahan: 200 cd/m2
Rasio Kontras: 800:1
Backlight: LED Light-Bar
Sudut Pandang: H:170° (85°/ 85°) V:170° (85°/ 85°)
Panel Surface: Anti-glare, Hard coating (8H) - CONNECTORUSB: Micro USB 2.0 x 1
- TOUCHAccuracy: +/- 0.5mm(center)
- ERGONOMICSMemiringkan: Portrait : 0/ 15°/ 20°
Landscape: 0/ 9°/ 13° - COMPATIBILITYPC: Windows 10, 11 and later
- POWERTegangan: USB 5V
Konsumsi: 4.55W (Typ.) / 5.06W (Max.) - OPERATING CONDITIONSTemperature (º F / º C): 0℃ to 50℃
Kelembaban: 20%-80%(Max), Non-condensation - DIMENSIONS W x H x D (inch/mm)Physical (in / mm): 287.0 x 185.6 x 14.3 mm
Box (in / mm): 350.0 x 273.0 x 76.0 mm - WEIGHTNet (lb / kg): 0.66 kg
Gross (lb / kg): 1.09 kg - REGULATIONSCE/ FCC/ BSMI
- WARRANTY1 Year
- WHAT'S IN THE BOX1. PD1013 Pen display x 1
2. USB 2.0 2-in-1 Y-cable (Micro USB to Type A x 2) x 1
3. EMP-001 Pen x 1
4. Pen nib x 3
5. Pen tether x 1
6. Nib removal tool x 1
7. Screwdriver x 1
8. AC/DC Power adapter 5V/2A x 1
9. Quick start guide x 1
