New

TD2223-2

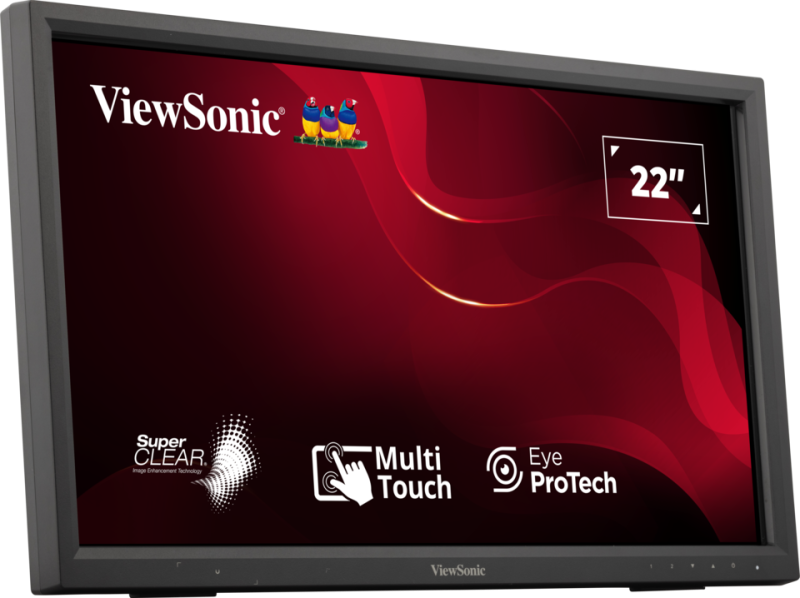

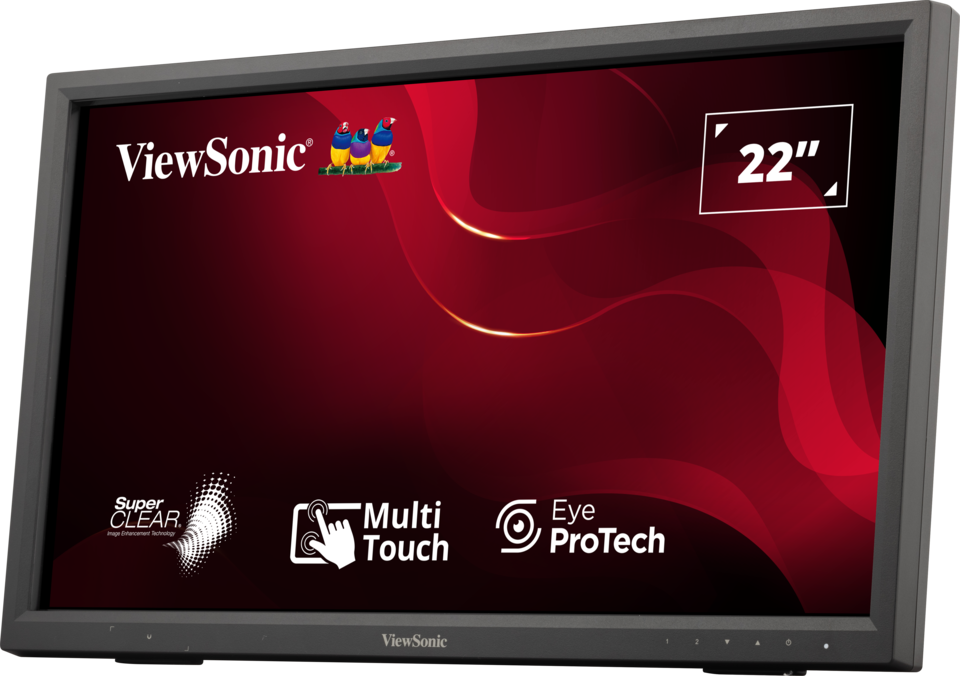

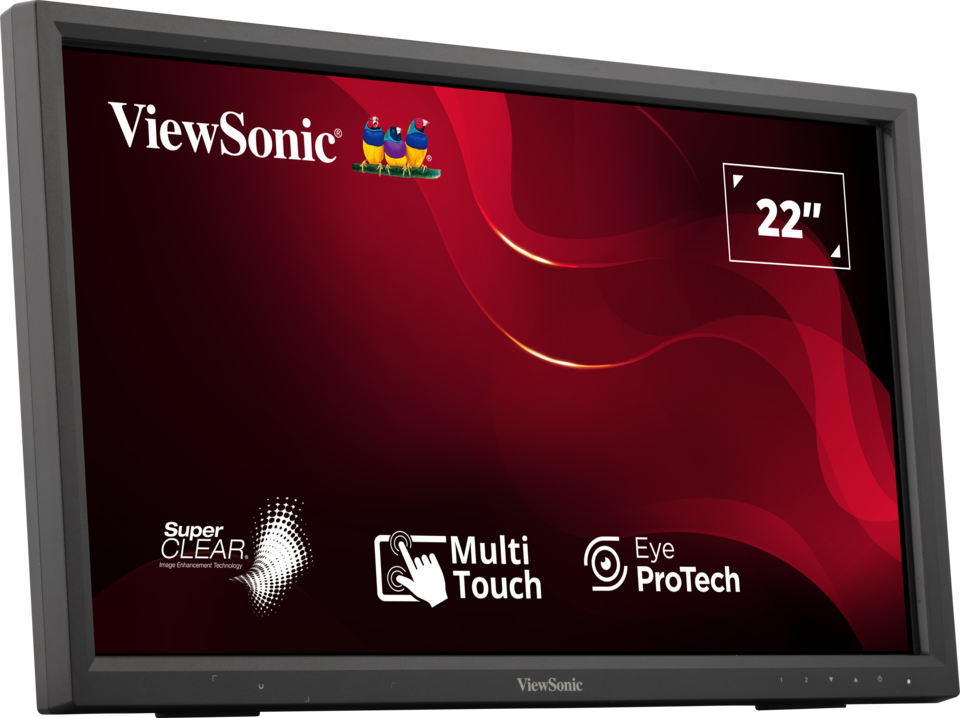

22” IR Touch Monitor

  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen
Sales Enquiry

OVERVIEW

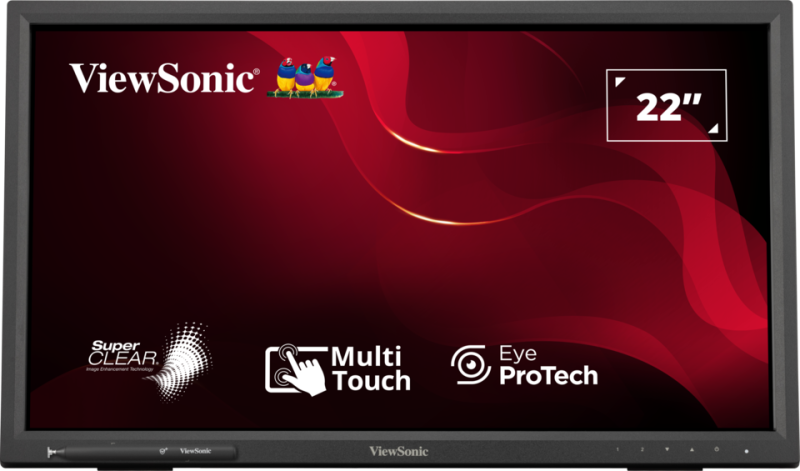

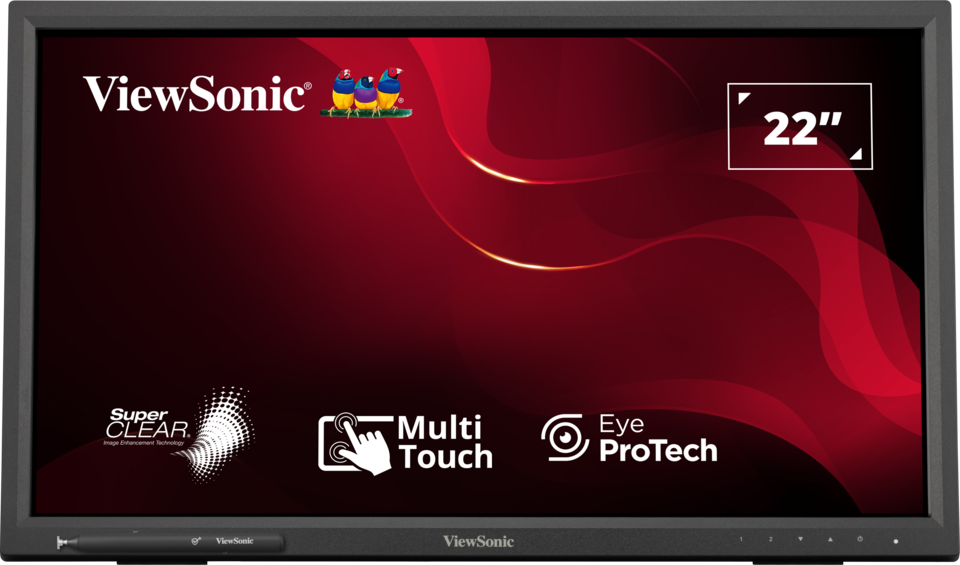

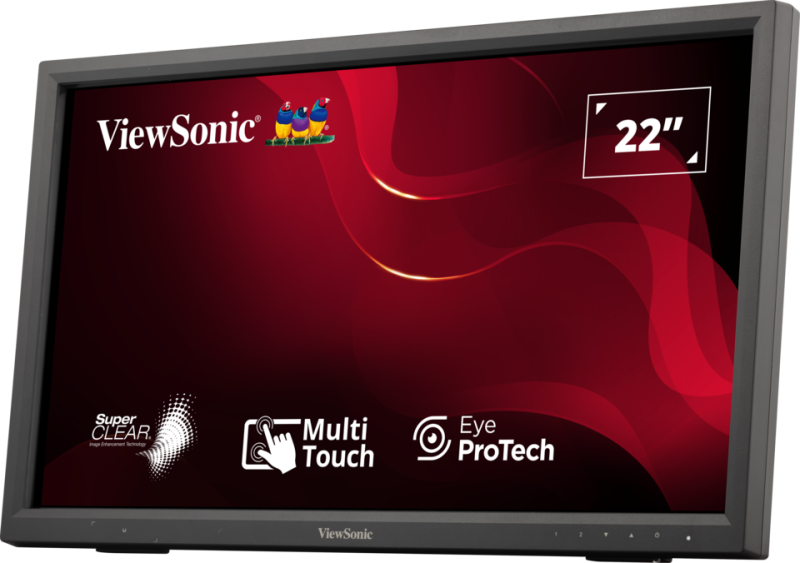

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
IR Touch Technology
Intuitive Multi-touch Experience 1

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
Operating System Support 1

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Simple and Safer Way to Interact 1

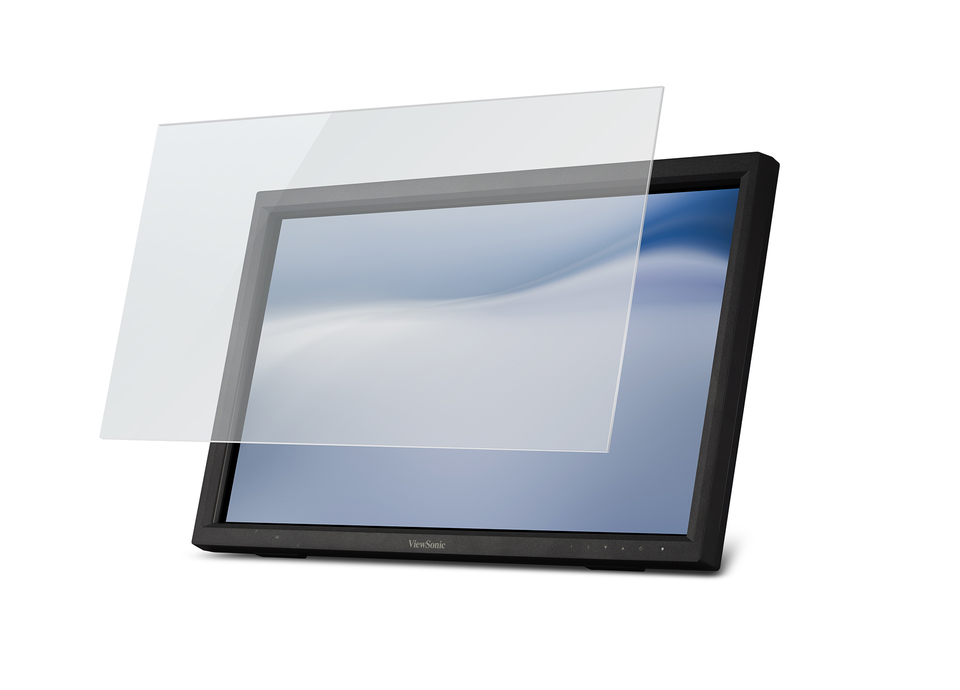

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Anti-scratch Touchscreen 1

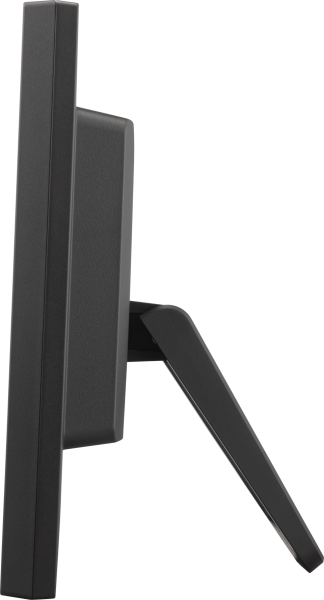

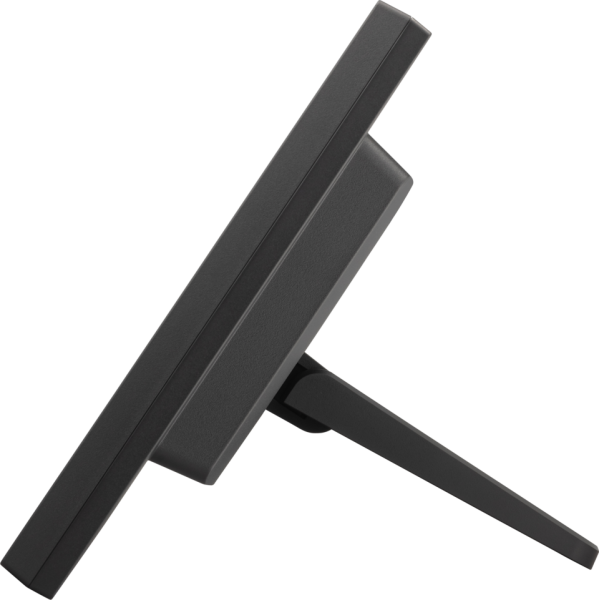

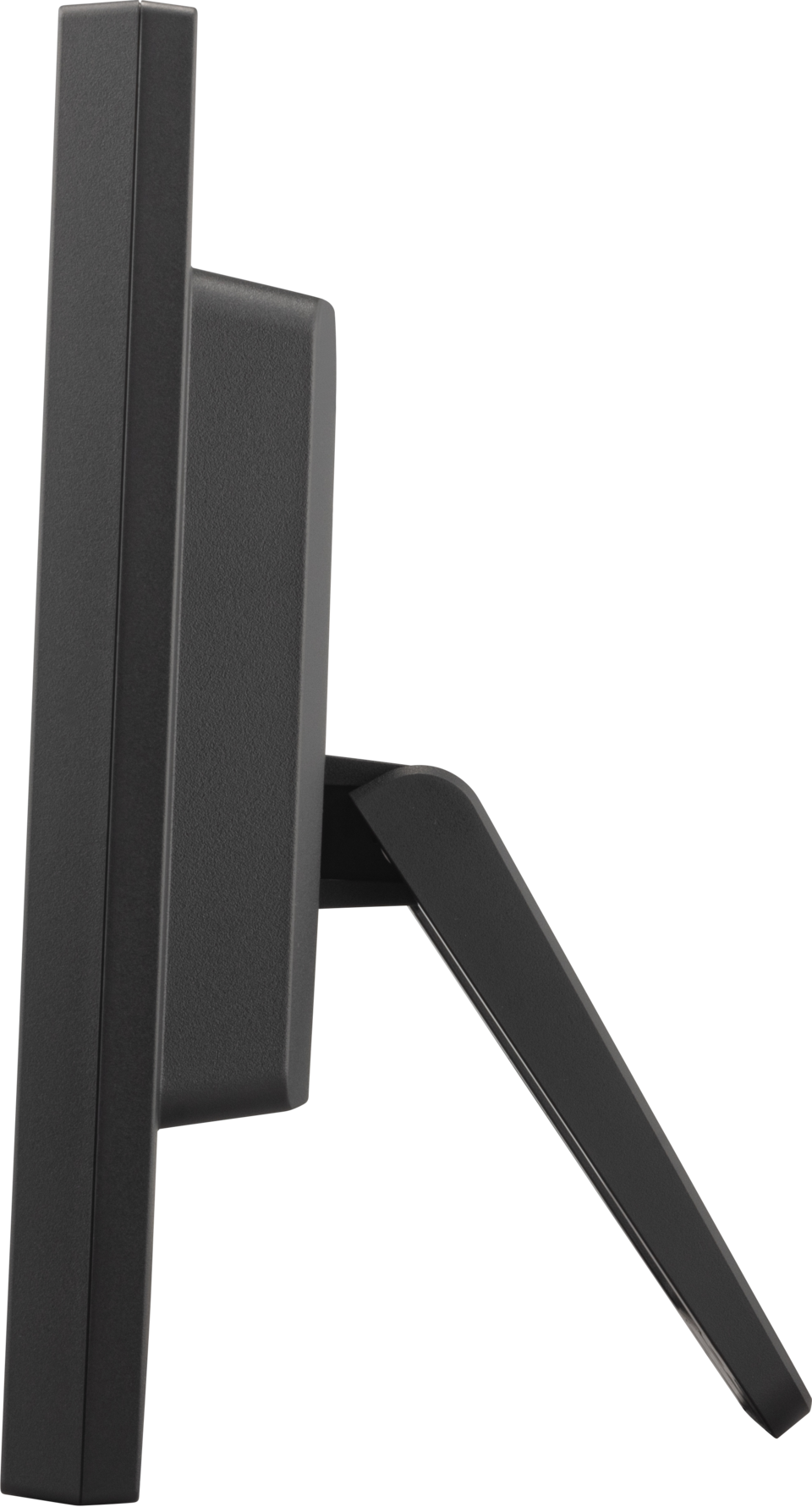

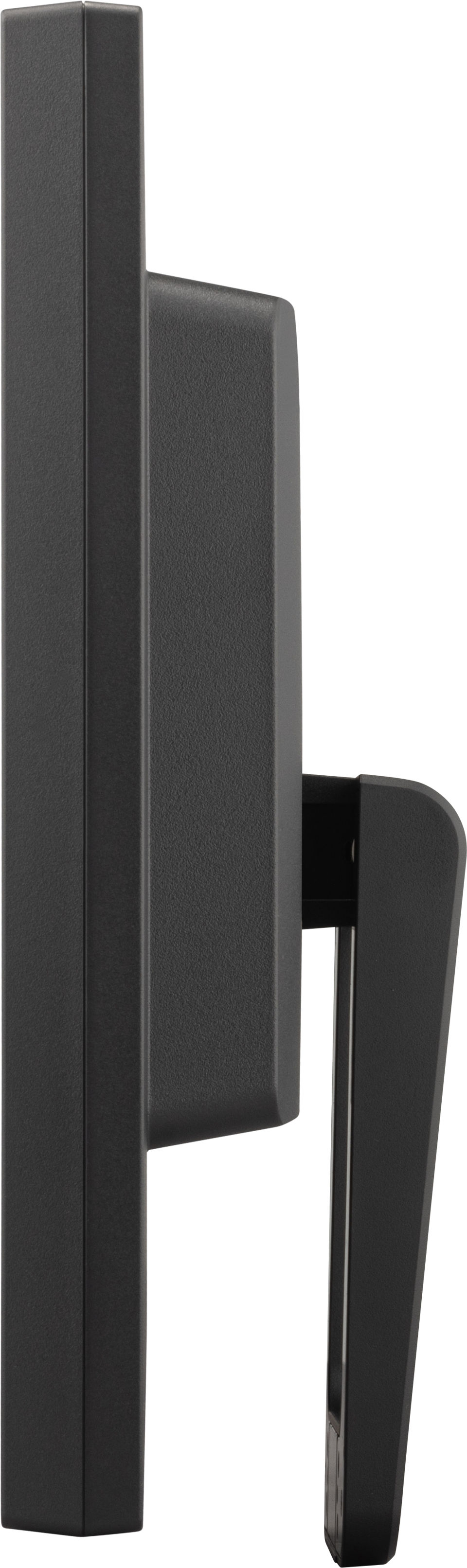

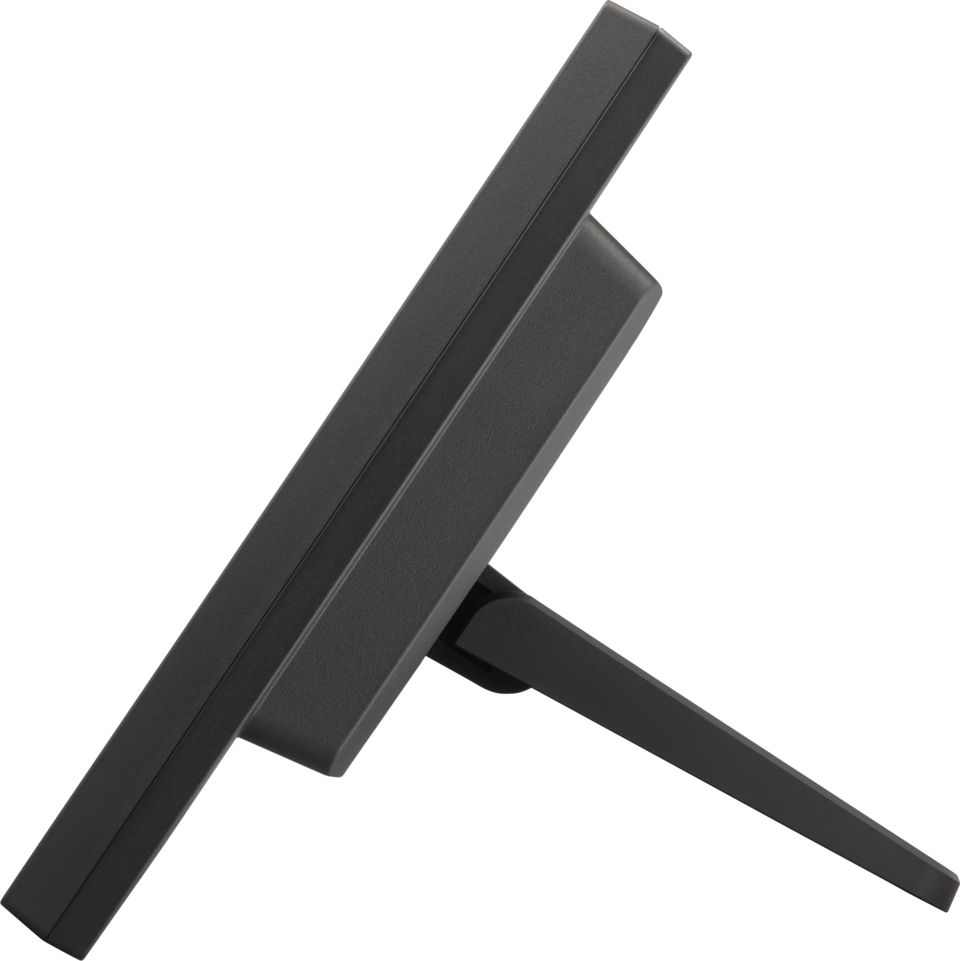

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Adjustable Tilt 1

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.
Full HD 1080P
Full HD 1080p 1

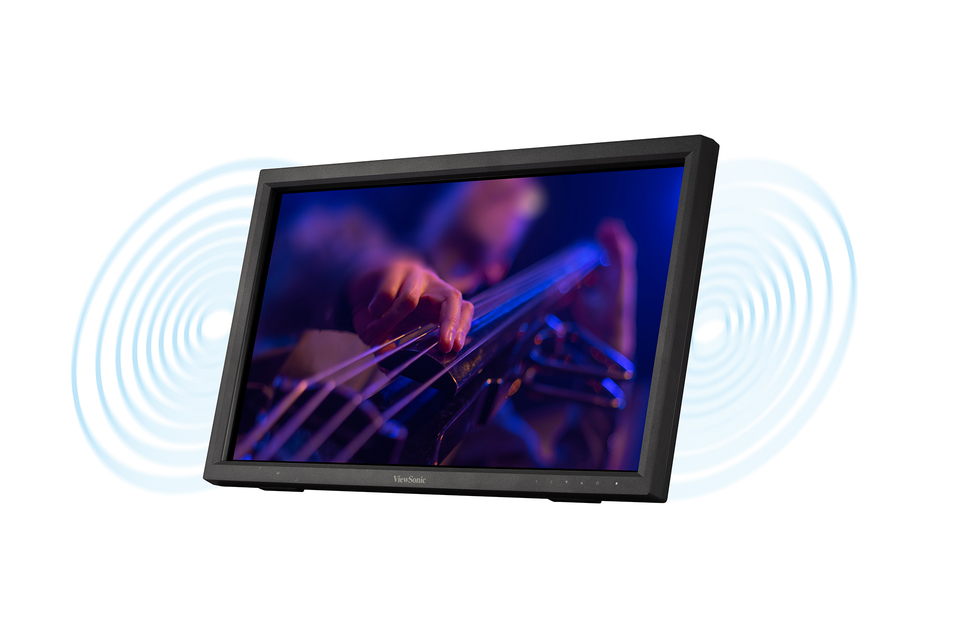

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Dual Integrated Speakers 1

Relieve your Eyes from Strain

Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.
Flicker-Free & Blue Light Filter
Relieve your Eyes from Strain 1
Relieve your Eyes from Strain 2

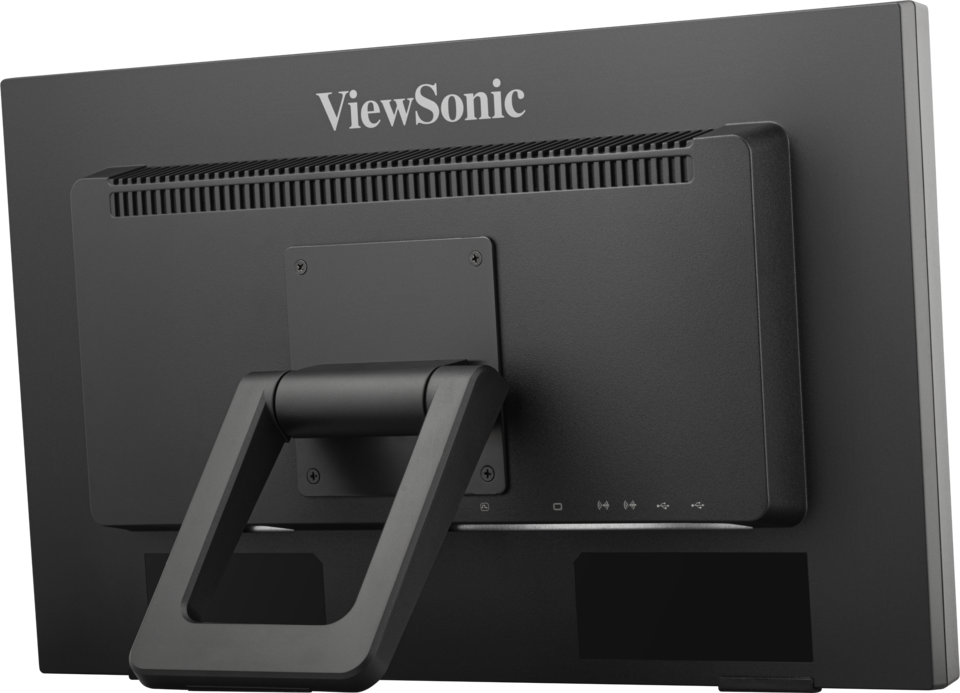

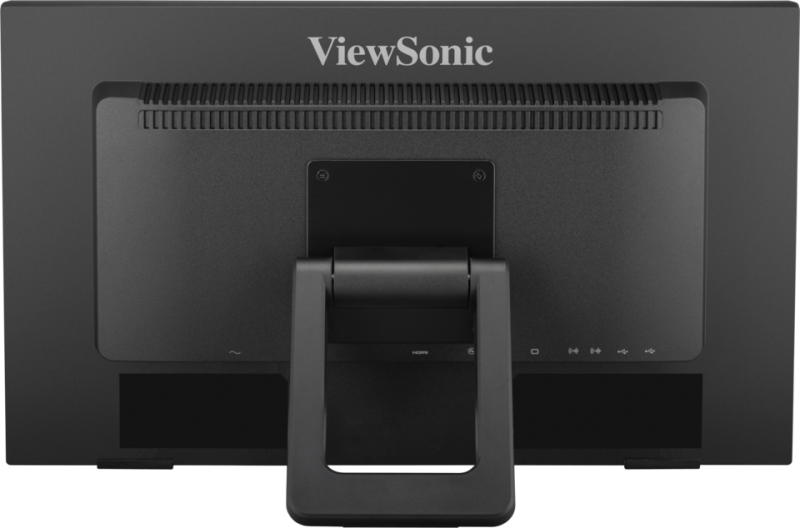

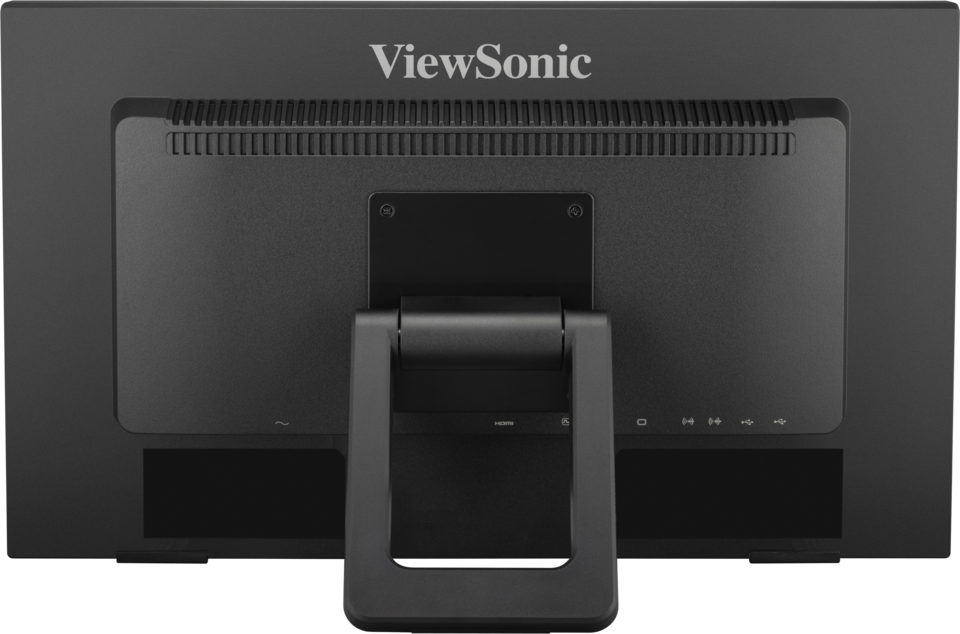

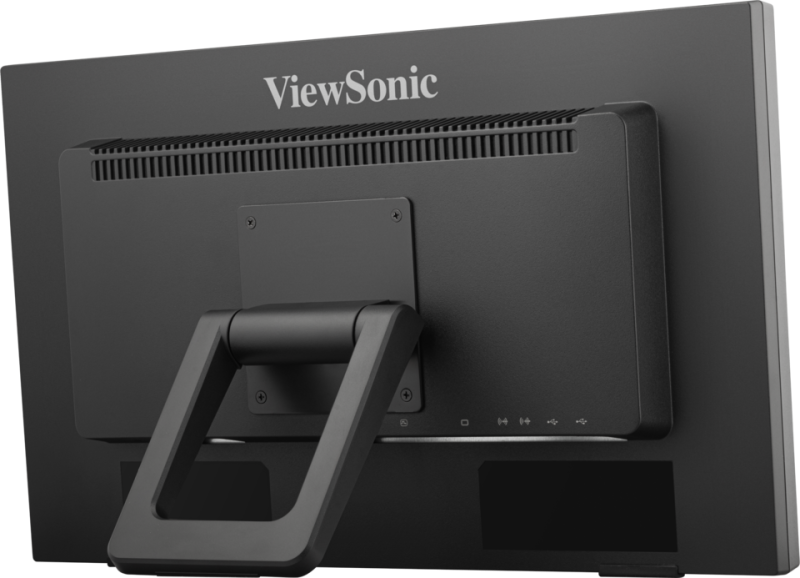

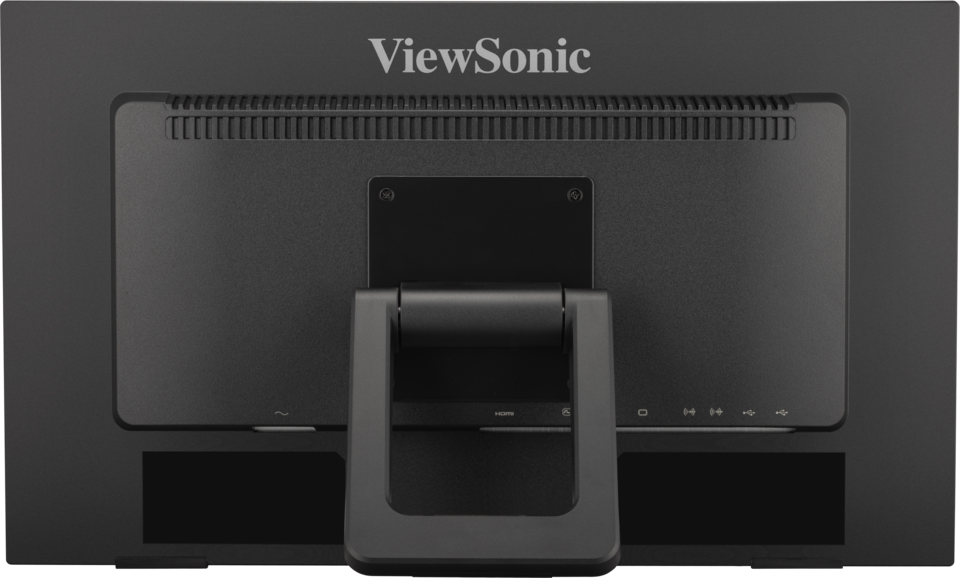

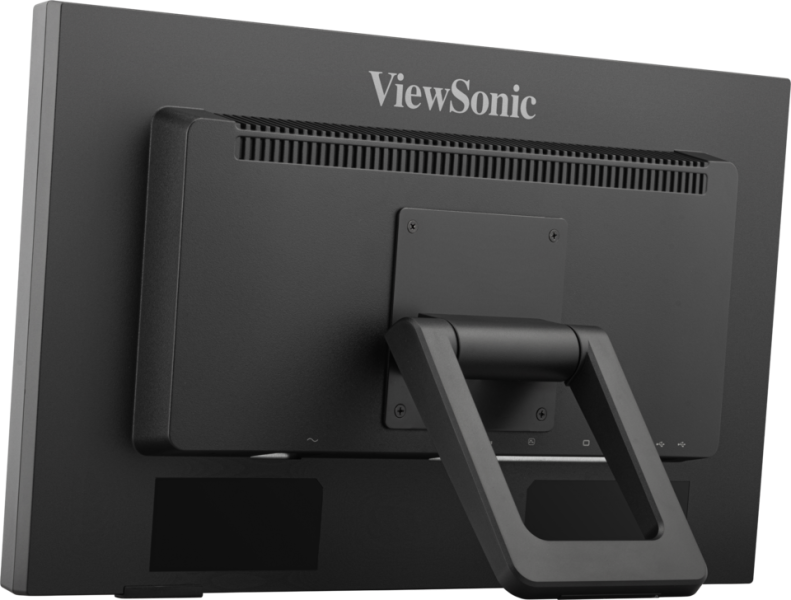

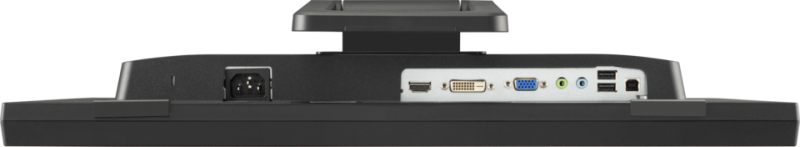

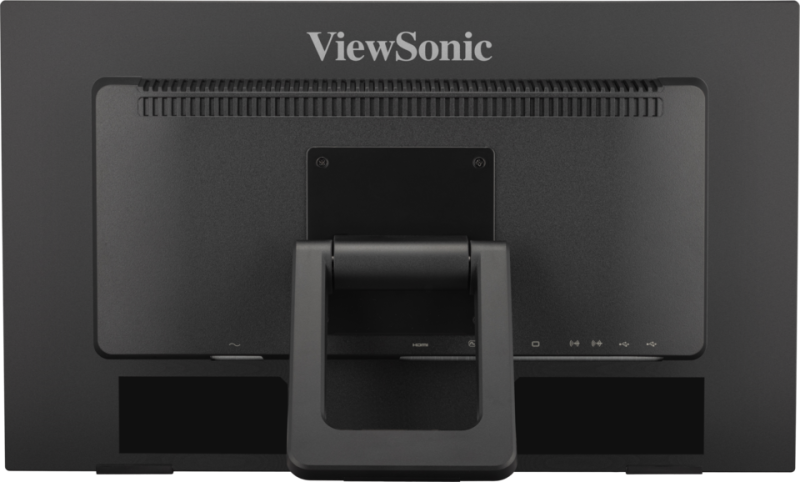

Dimension & I/O Ports

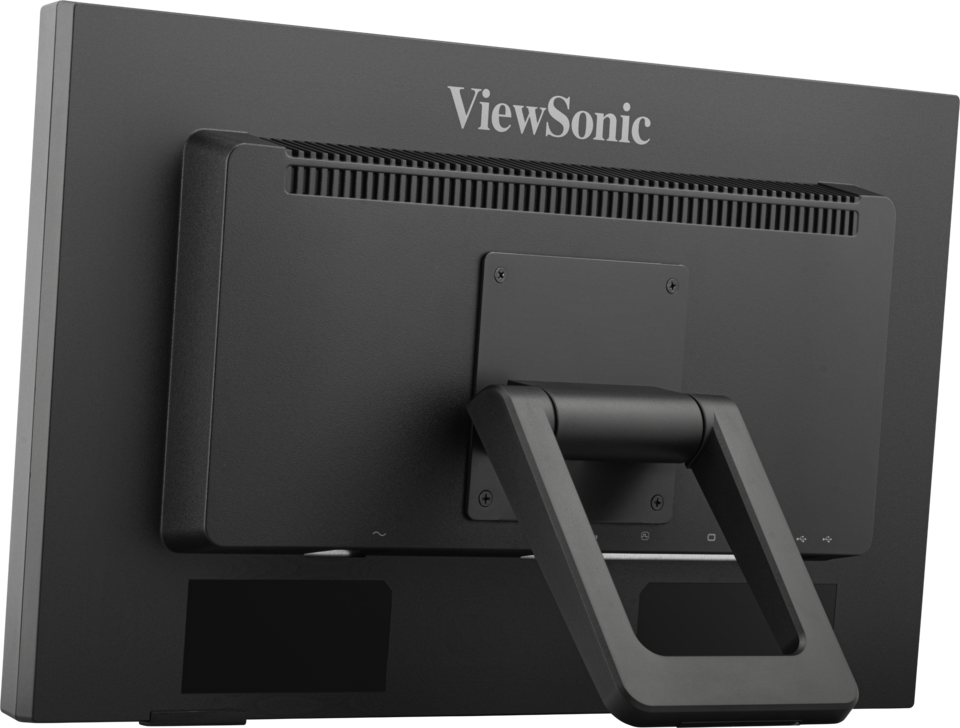

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.
100mm x 100mm VESA mount
Dimension & I/O Ports 1

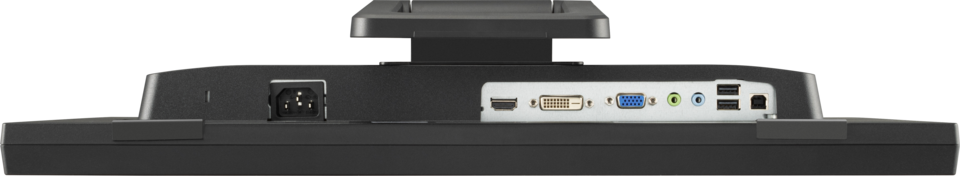

  1. Menu Control Panel
  2. Power In
  3. VESA Compatible
    (Wall Mount 100 x 100mm)
  4. HDMI
  5. DVI
  6. VGA
  7. Audio In
  8. Audio Out
  9. USB Downstream
  10. USB Upstream

SPECIFICATIONS


  • Tampilan
    Display Size (in.): 22
    Viewable Area (in.): 21.5
    Jenis Panel: VA Technology
    Resolusi: 1920 x 1080
    Jenis Resolusi: FHD (Full HD)
    Rasio Kontras Statis: 3,000:1 (typ)
    Rasio Kontras Dinamis: 20M:1
    Sumber cahaya: LED
    Kecerahan: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit true
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 6.5ms
    Waktu Respon (GTG w / OD): 6.5ms
    Sudut Pandang: 178º horizontal, 178º vertical
    Backlight Life (Jam): 30000 Hrs (Min)
    Lengkungan: Flat
    Refresh Rate (Hz): 75
    Filter Cahaya Biru: Yes
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Ukuran Piksel: 0.249 mm (H) x 0.241 mm (V)
    Layar sentuh: IR, 10-point multi-touch
    Surface Treatment: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 2mm
  • Kesesuaian
    Resolusi PC (max): 1920x1080
    Resolusi Mac® (maks): 1920x1080
    Sistem Operasi PC: Windows 10/11 certified; macOS tested
    Resolusi Mac® (min): 1920x1080
  • Konektor
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    3.5mm Audio Out: 1
    HDMI 1.4: 1
    DVI-D: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
