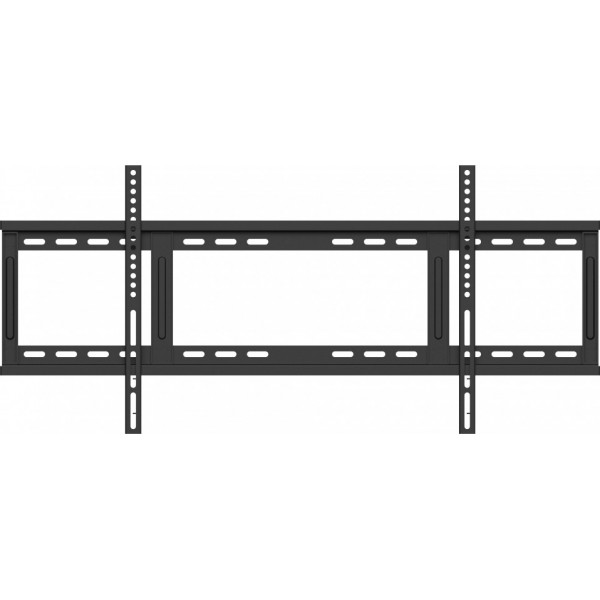

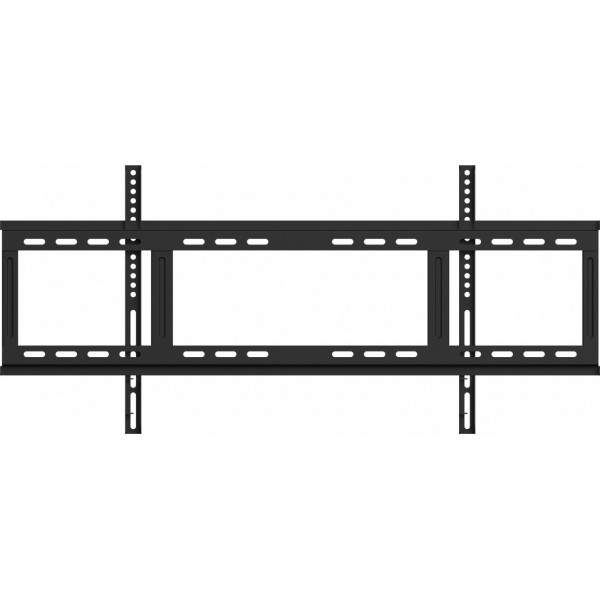

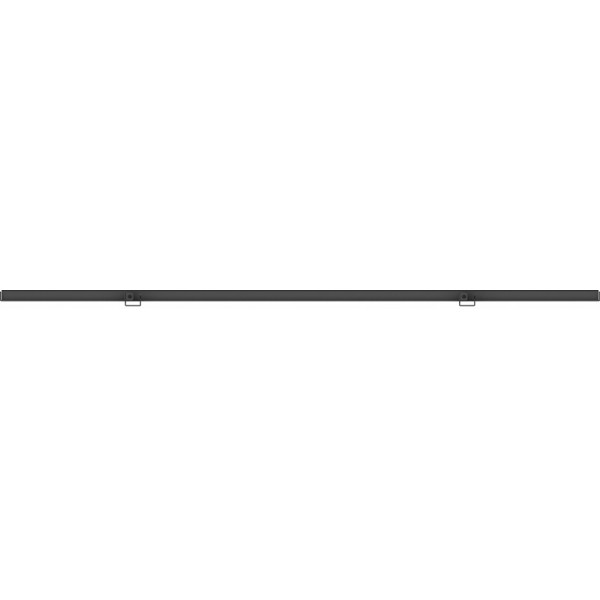

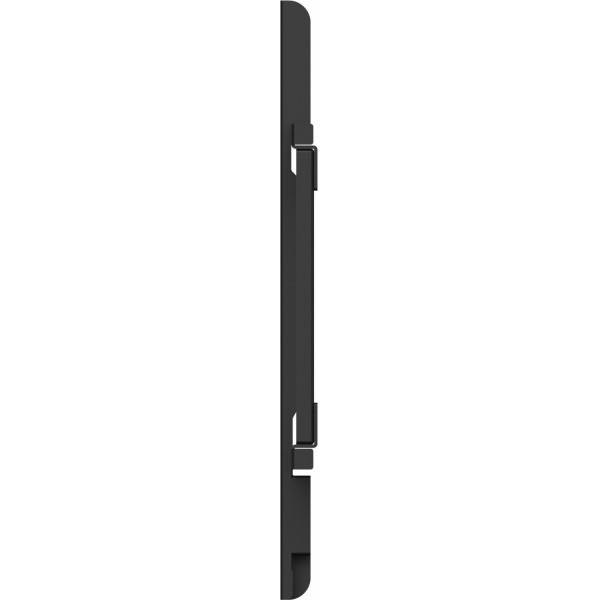

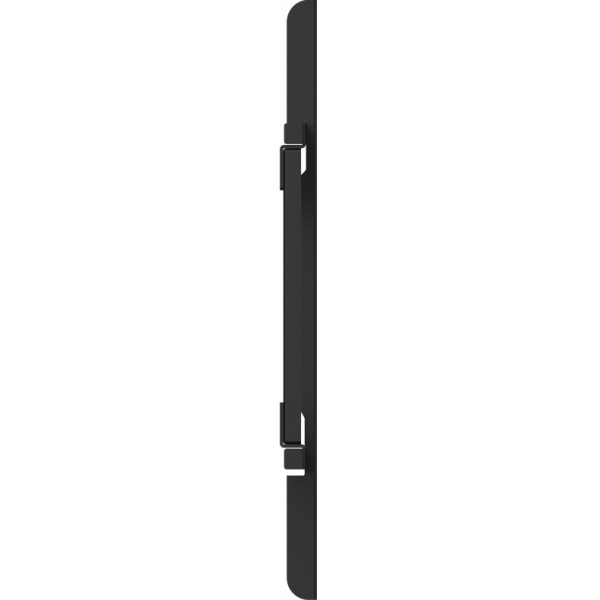

WMK-077
Fixed Wall Mount for CDE20 Series Displays (43”-75”)
- 27mm thin profile
- Secure locking screw
- Up to 30kg load capacity
- Durable powder coated finish
OVERVIEW
The WMK-077 is designed to mount CDE4320, CDE5520, CDE6520 and CDE7520 displays.SPECIFICATIONS
- Mounting Pattern Max. MountMax. 900 x 400 mm
- Screw TypeM6, M8
- BahanSPCC
- Dimension (WxHxD)Fisik (WxHxD): 960 x 430 x 27 mm / 37.8 x 16.93 x 1.06 in
Kemasan (WxHxD): 1015 x 290 x 47 mm / 39.96 x 11.42 x 1.85 in - Weight (Net)Net: 3.6 kg / 7.94 lb
Kotor: 4.4 kg / 9.7 lb - Support Flat Panel Size43" ~ 75"
- Min. Distance To The Wall27mm / 1.06
