Available Now

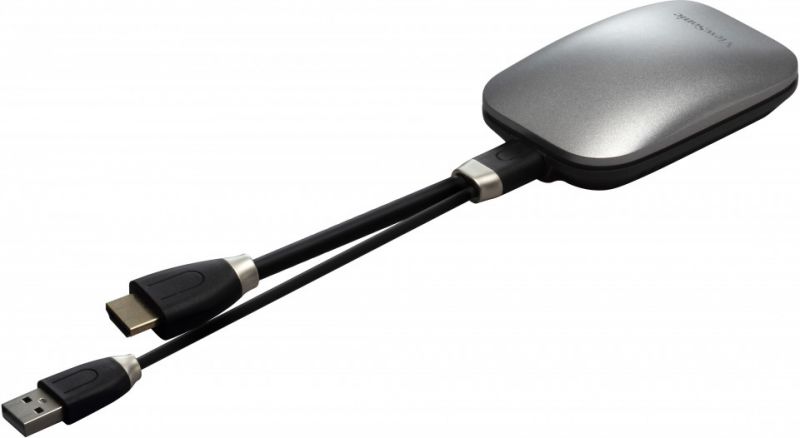

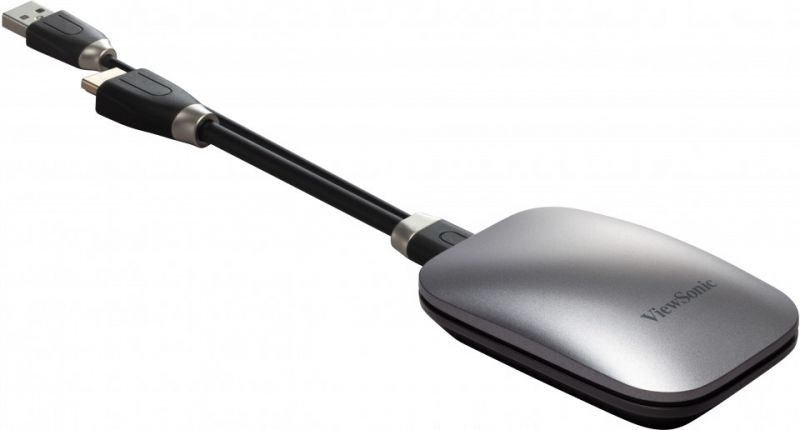

ViewBoard Cast Button(VB-WPS-003)

Screen sharing button with HDMI connector

Connect and share content with a click
Secure and safeguard your data
Uninterrupted connectivity with USB-C or HDMI
Collaborate across multiple devices instantly
Compatible with Windows, Mac and Chrome OS

Sales Enquiry

GALLERY

OVERVIEW

Enhance and elevate your meetings and presentations with just one tap. The ViewBoard® Cast Button eliminates complicated setups, time-consuming installations, and unwanted clutter, giving you more time to create, collaborate, and connect. Connect your device and cast your content effortlessly from your preferred device to your wireless display through HDMI cable. Secured with WPA2-PSK encryption, you can present and participate with guaranteed peace of mind.

Instant sync with a click

With just one click, cast your screen and share your content from your laptop to the ViewBoard®/Wireless Presentation Display with ease. The ViewBoard® Cast Button eliminates the need to install or download additional software, giving you more time to brainstorm and fewer syncing worries.

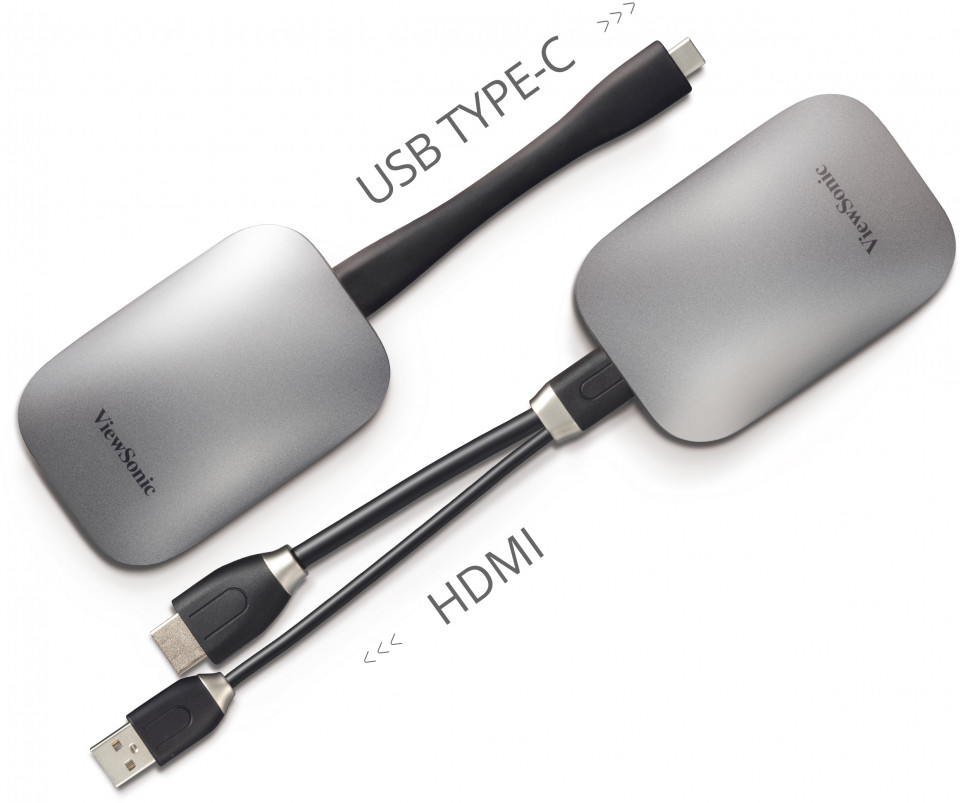

Uninterrupted connectivity

Connect the ViewBoard® Cast Button and your device via the HDMI, and you can showcase videos of superior clarity without fuss. You can focus on acing your presentation as the Cast Button gets powered at the same time.
Note:VB-WPS-001 with USB Type-C connector; VB-WPS-003 with HDMI connector

Superior compatibility

Compatible with various operating systems(Windows, Mac and Chrome OS), the ViewBoard® Cast Button lets you participate and present from your preferred device without hassle.

Optimize your meetings

Make your wireless meetings and presentations more effective and efficient with a single tap. The ViewBoard® Cast Button allows up to 4 persons to present on a ViewBoard®/Wireless Presentation Display at once, giving everyone the ability to participate and present.

Enhance your presentations

The ViewBoard® Cast Button helps you manage and streamline meetings better. Add notes and save presentations directly on the ViewBoard® Interactive Display. Move from PowerPoint to YouTube seamlessly without switching devices. Meetings will now be a breeze for everyone.

Uncompromising security and privacy

Elevate collaboration and content-sharing without risking cybersecurity. With ViewBoard® Cast Button, there is no need to connect to your company’s network or install external software. Secured with WPA2-PSK encryption, simply plug it into your device and share data safely and seamlessly.

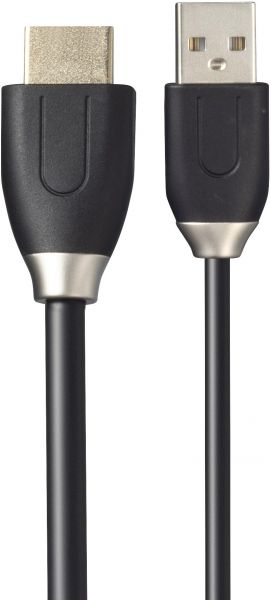

Dimensions & I/O Ports

HDMI
USB 2.0
Flashing Blue Light : Connecting to your device
Static Blue Light : Connected, ready to cast
Static White Light : Casting

SPECIFICATIONS

Operation System
Windows® 7, Windows 8.1, Windows 10 or later; MacOS™ 10.10 or later; Chrome OS; Linux
System Requirement
HDMI Output & USB Type-A
WiFi Frequency/Authentication Protocol
2.4GHz & 5GHz/5.8GHz dual band802.11 a/b/g/n/AC ; WPA2-PSK

Resolution/Frame Rate
FHD/30 fps
Extended Desktop
Available
Simultaneous Connections
Unlimited
Number Of Sources Simultaneous On Screen
4(ViewBoard Cast receiver);16(ViewBoard Cast Pro receiver)
Touch Control Back
Support 10 points
Power
Tegangan: 5V 650mA
Konektor
USB: USB2.0 Type-A compatible to USB2.0/3.0
HDMI: HDMI 1.2 above
Operating Condition
Suhu (º C): 32°F to 104°F (0°C to 40°C)
Kelembaban: 20% ~ 90% non-condensing
Storage Condition
Suhu (º C): -10°C to 60°C
Kelembaban: 20% ~ 90% non-condensing
Dimensions (W X H X D)
Physical: 225.7 x 25.2 x 61.8 mm (8.9*1.0*2.4 inch)
Packaging: 260.5 x 42 x 103.5 mm (10.3*1.7*4.1 inch)
Berat
Physical (Net): 117 g (0.26 lb)
Packaging (Gross): 340 g (0.75 lb)
Regulasi
FCC, FCC ID, ICID, CE, RED, BSMI, NCC, MIC, WPC, NTC
Quick Start Guide
Language: English, Danish, Dutch, Finnish, French, German, Italian, Norwegian, Polish, Russian, Spanish, Swedish, Turkish, Indonesian, Vietnamese, Traditional Chinese, Simplified Chinese, Arabic
Package Contents
1. VB-WPS-0032. Quick Start Guide
