VA1630-h

16" 1366x768 Home and Office Monitor

Tampilan
Display Size (in.): 16
Viewable Area (in.): 15.6
Jenis Panel: TN Technology
Resolusi: 1366 x 768
Jenis Resolusi: WXGA (Wide XGA)
Rasio Kontras Statis: 400:1 (typ)
Rasio Kontras Dinamis: 5M:1
Sumber cahaya: LED
Kecerahan: 220 cd/m² (typ)
Colors: 262K
Color Space Support: 6 bit true
Aspect Ratio: 16:9
Response Time (Typical Tr+Tf): 8ms
Sudut Pandang: 90º horizontal, 50º vertical
Backlight Life (Jam): 15000 Hrs (Min)
Lengkungan: Flat
Refresh Rate (Hz): 60
Filter Cahaya Biru: Yes
Low Blue Light: Software solution
Color Gamut: NTSC: 45% size (Typ)
Ukuran Piksel: 0.252 mm (H) x 0.252 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Kesesuaian
Resolusi PC (max): 1366x768
Resolusi Mac® (maks): 1366x768
Sistem Operasi PC: Windows 10 tested; macOS tested
Resolusi Mac® (min): 1366x768

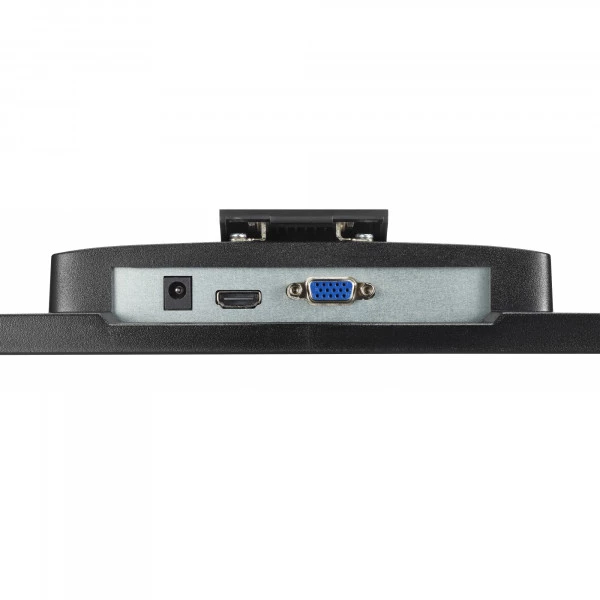

Konektor
VGA: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)

Power
Konsumsi (khas): 5W
Konsumsi (maks): 6W
Tegangan: AC 90-270V
Stand-by: 0.5W
Sumber Daya listrik: External Power Adaptor
Kontrol
Kontrol Fisik: Menu, Left, Right, Exit, Power
Pada Tampilan Layar: Picture, Display, Advance Color
Operating Conditions
Suhu: 32°F to 104°F (0°C to 40°C)
Kelembaban (tanpa kondensasi): 20% to 90%
Wall Mount
VESA Compatible: Customized, 75 x 75 mm
Sinyal Input
Frekuensi Horizontal: RGB Analog: 30 ~ 80KHz, HDMI (v1.4): 15 ~ 80KHz
Frekuensi Vertikal: RGB Analog: 58 ~ 62Hz, HDMI (v1.4): 58 ~ 62Hz
Video Input
Sinkronisasi Digital: TMDS - HDMI (v1.4)
Analog Sync: Separate - RGB Analog
Ergonomis

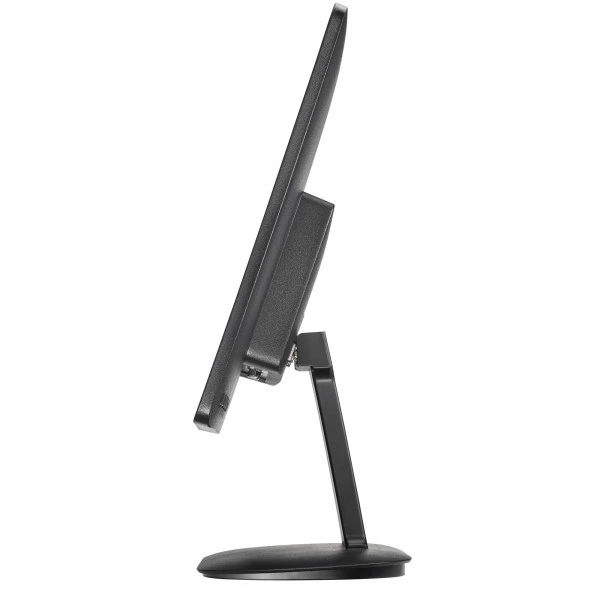

Miring (Maju / Mundur): -5º / 15º
Berat (imperial)
Net (lbs): 2.4
Bersih Tanpa Dudukan (lbs): 1.8
Gross (lbs): 4.2
Weight (metric)
Net (kg): 1.1
Jaring Tanpa Dudukan (kg): 0.8
Gross (kg): 1.9
Dimensi (imperial) (wxhxd)
Kemasan (in.): 16.7 x 13.6 x 4.1
Fisik (in.): 14.8 x 11.9 x 5.2
Fisik Tanpa Berdiri (masuk): 14.8 x 9.3 x 1.5
Dimensi (metrik) (wxhxd)
Kemasan (mm): 425 x 345 x 105
Fisik (mm): 376 x 302 x 131
Physical Without Stand (mm): 376 x 235 x 38
Umum
Regulasi: BIS
ISI PAKET: VA1630-H x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Daur Ulang / Pembuangan: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
