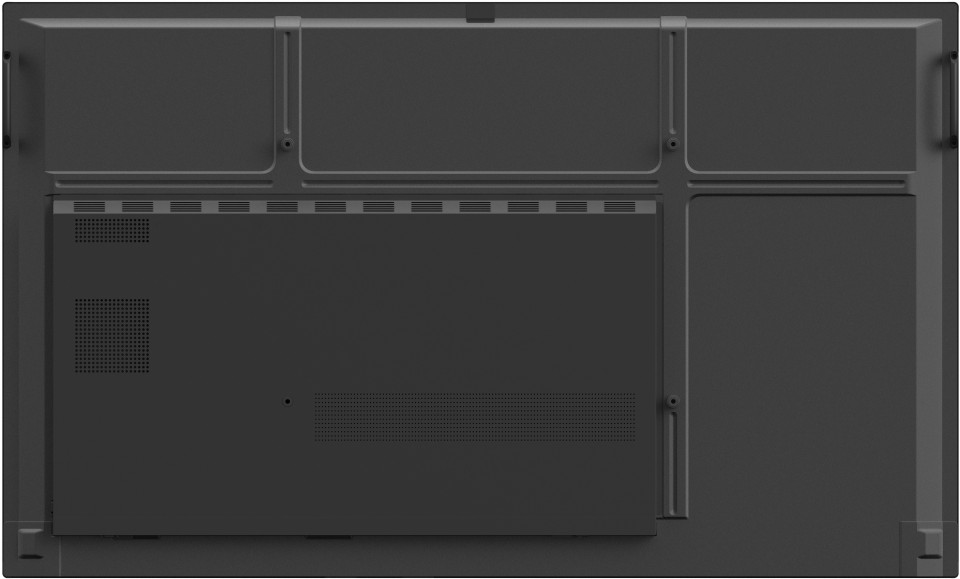

ViewBoard IFP6532-2

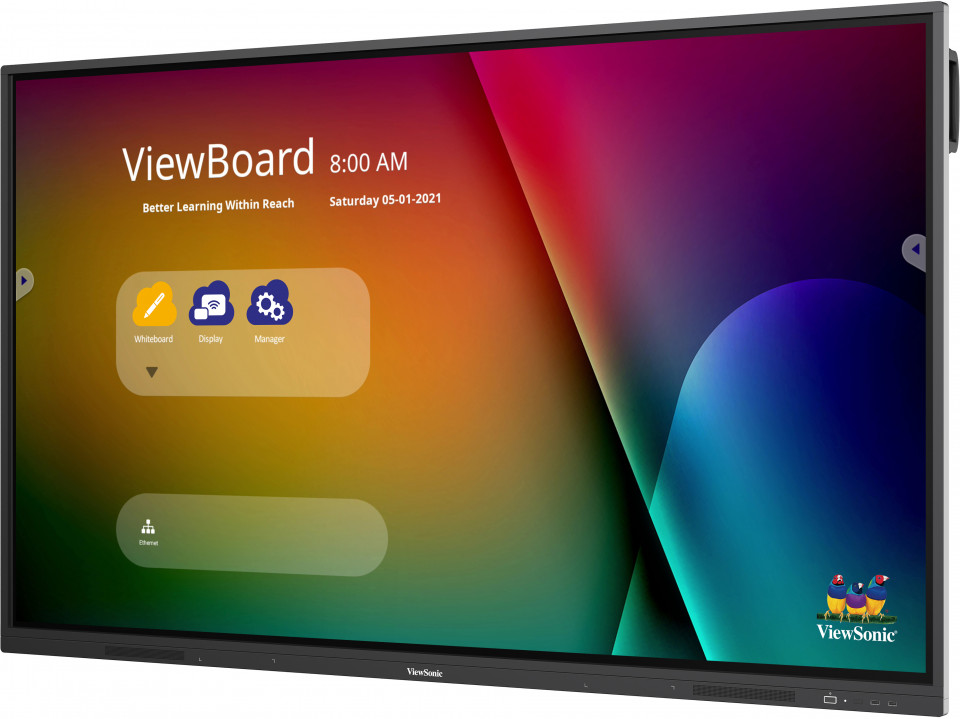

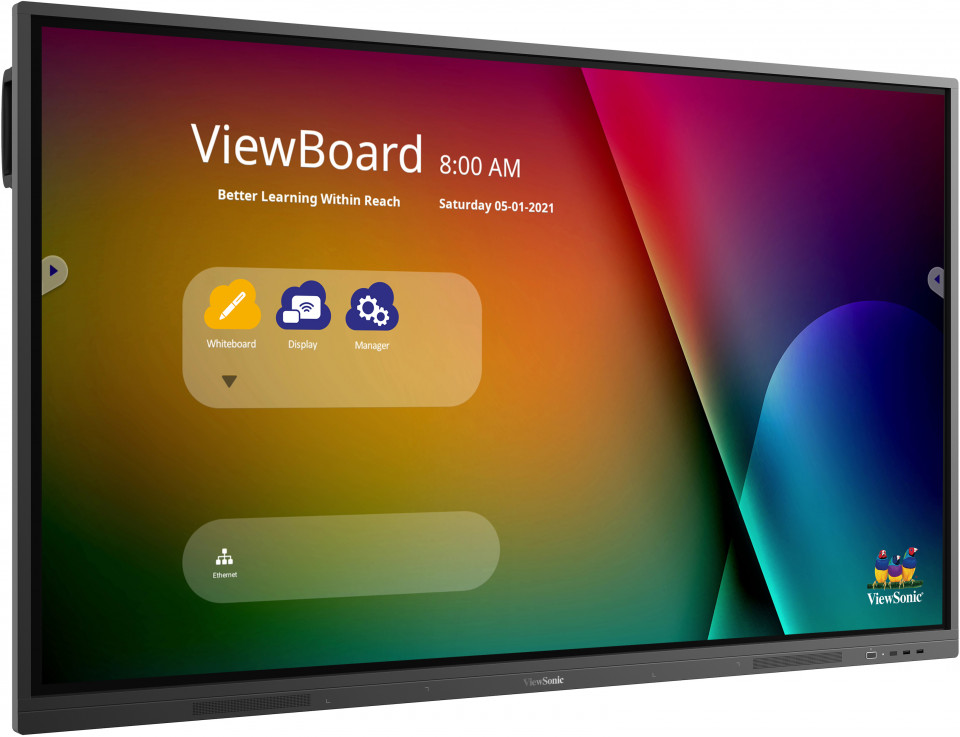

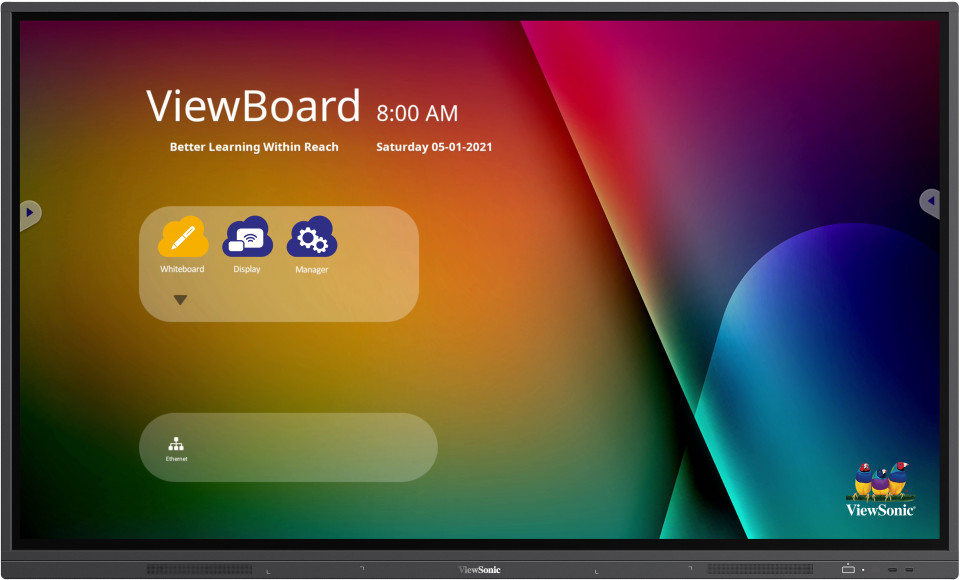

ViewBoard® 65" 4K Interactive Display
- All-in-one myViewBoard™ suite with Whiteboard, Display, and Manager
- Pen-on-paper writing experience with Ultra Fine Touch Technology

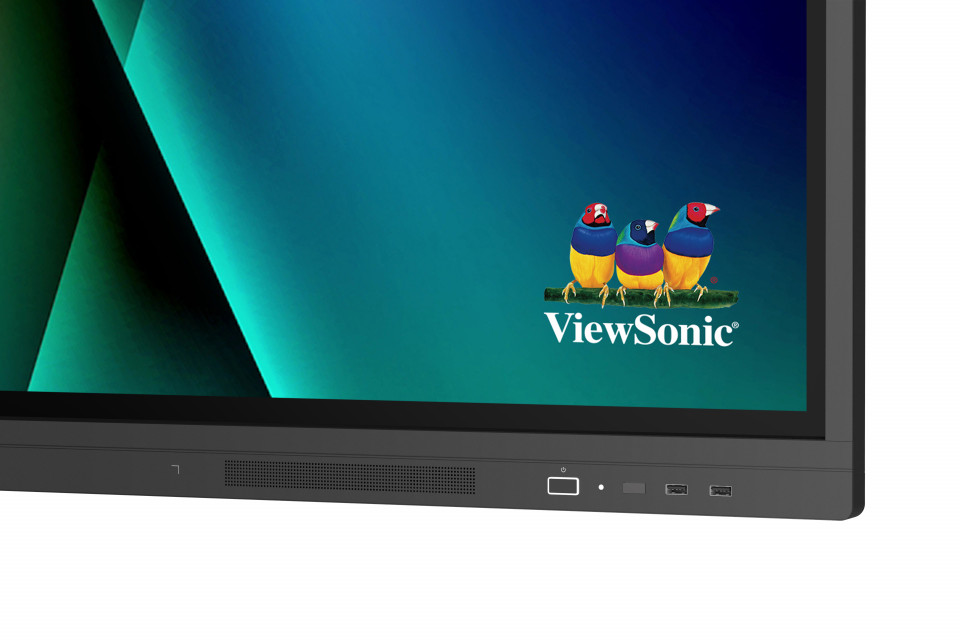

- Front-facing dual speakers to deliver attention-grabbing sound
- Webcam bracket easily attached with camera for better engagement
- Quad Core CPU with upgraded storage powered by Android 9.0 OS
SPECIFICATIONS
- DisplayPanel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight.
Display Area (mm): 1428.48(H)x 803.52 (V) (64.5” diagonal)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colours: 1.07B colours (8bit+FRC)
Brightness: 400 nits (typ.)
Contrast Ratio: 4000:1
Response Time: 6.5ms
Viewing Angles: H=178, V=178typ.
Backlight Life: 50,000 Hours (Min)
Surface Treatment: Hardness: 9H Anti-glare coating
Orientation: Landscape
Disclaimer: 50,000 hours backlight life at 8 hours of use per day - PlatformProcessor: ARM quad-core Cortex-A55
RAM: 4GB DDR4
Storage: 32 GB - TouchType/ Tech: Ultra Fine Touch Technology
Touch Point: 20 points touch, 2 points writing
- INPUTHDMI: HDMI 2.0 x2 (3840x2160 @60Hz)
RGB / VGA: x1
Audio: x1
RS232: x1
OPS: x1 (Optional Intel Standard OPS)
WiFi: x1 - OUTPUTAudio: x1
- LANRJ45: x1
- USBType A: USB2.0 Front x2; Side x2
Type B: x1 for HDMI/VGA touch - SPEAKERS12W x 2
- Top Camera PlateYes
- Embedded OSAndroid 9
- Bundle SoftwareBasic Annotation Software: myViewBoard Whiteboard
Pro Annotation Software: myViewBoard Whiteboard for Windows (Embedded in optional Windows Slot-in PC)
Wireless Presentation: myViewBoard Display & ViewBoard Cast - Special FeaturesAll-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC
Light Sensor: Yes - PowerVoltage: 162V-264V +/- 10%
Consumption: On: 175W(typ.)
Off: ≤ 0.5W\ - ERGONOMICSWall Mount (VESA® ): 600*400
- OPERATING CONDITIONSTemperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing - DIMENSIONS (W x H x D)Physical (inch / mm): 1489×897×87 mm / 58.6x35.3x3.4 in
Packaging (inch / mm): 1628×208×1005 mm / 64x8.2x39.5 in - WEIGHTNet (lb / kg): 38.3kg/84.4lb
Gross (lb / kg): 46.0kg/101.4lb - PACKAGE CONTENTS1. Power cord / 2.Remote control with AAA battery / 3.USB touch cable / 4. Touch pen x 2 / 5. Quick Start Guide + Compliance statement / 6. RS232 adaptor / 7. Screw x 4 ( wall mount 4) / 8. HDMI cable / 9. Clamp x5 / 10. Camera plate x1
- Compatible Slot-in PCVPC12-WPO/VPC25/VPC27 series
