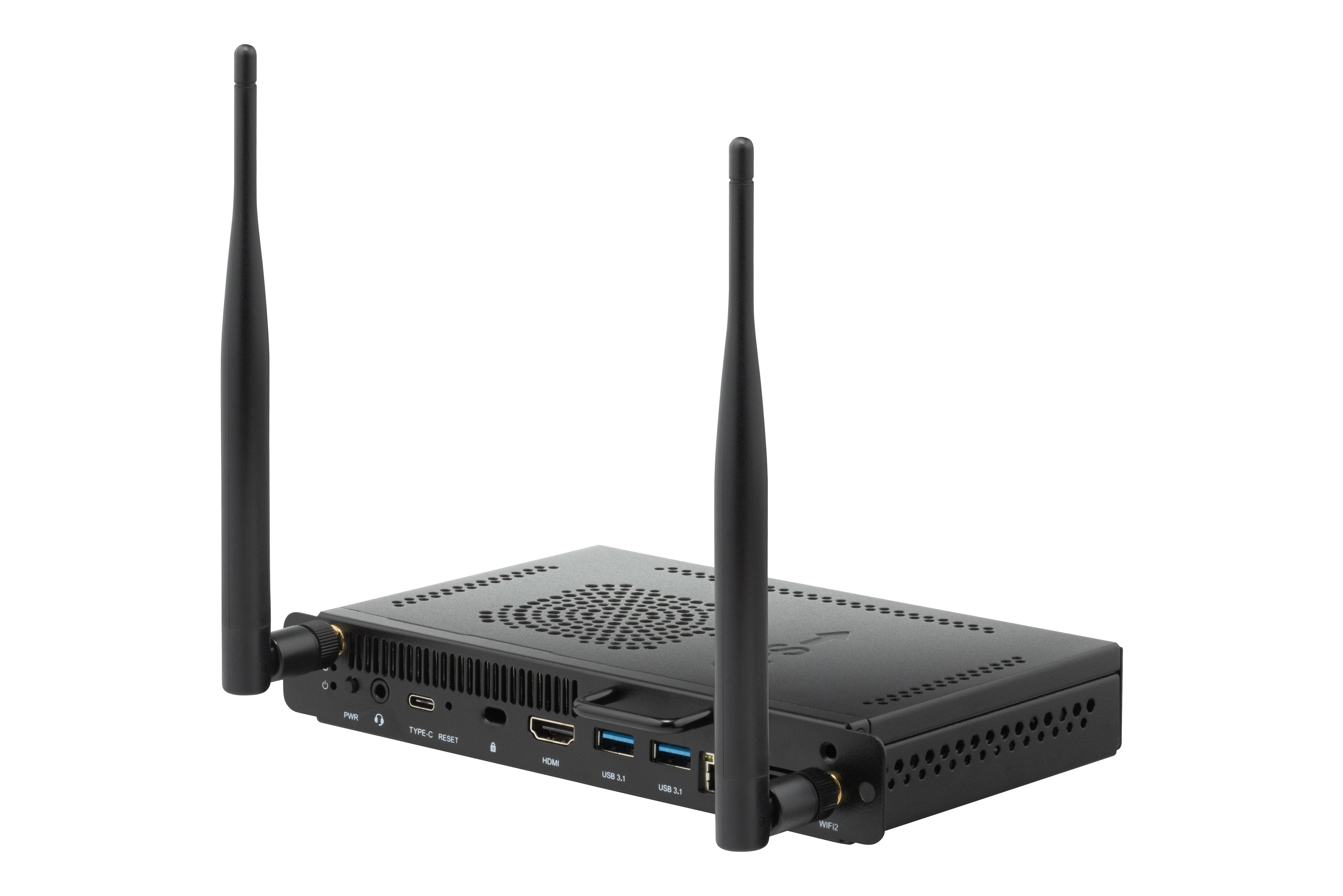

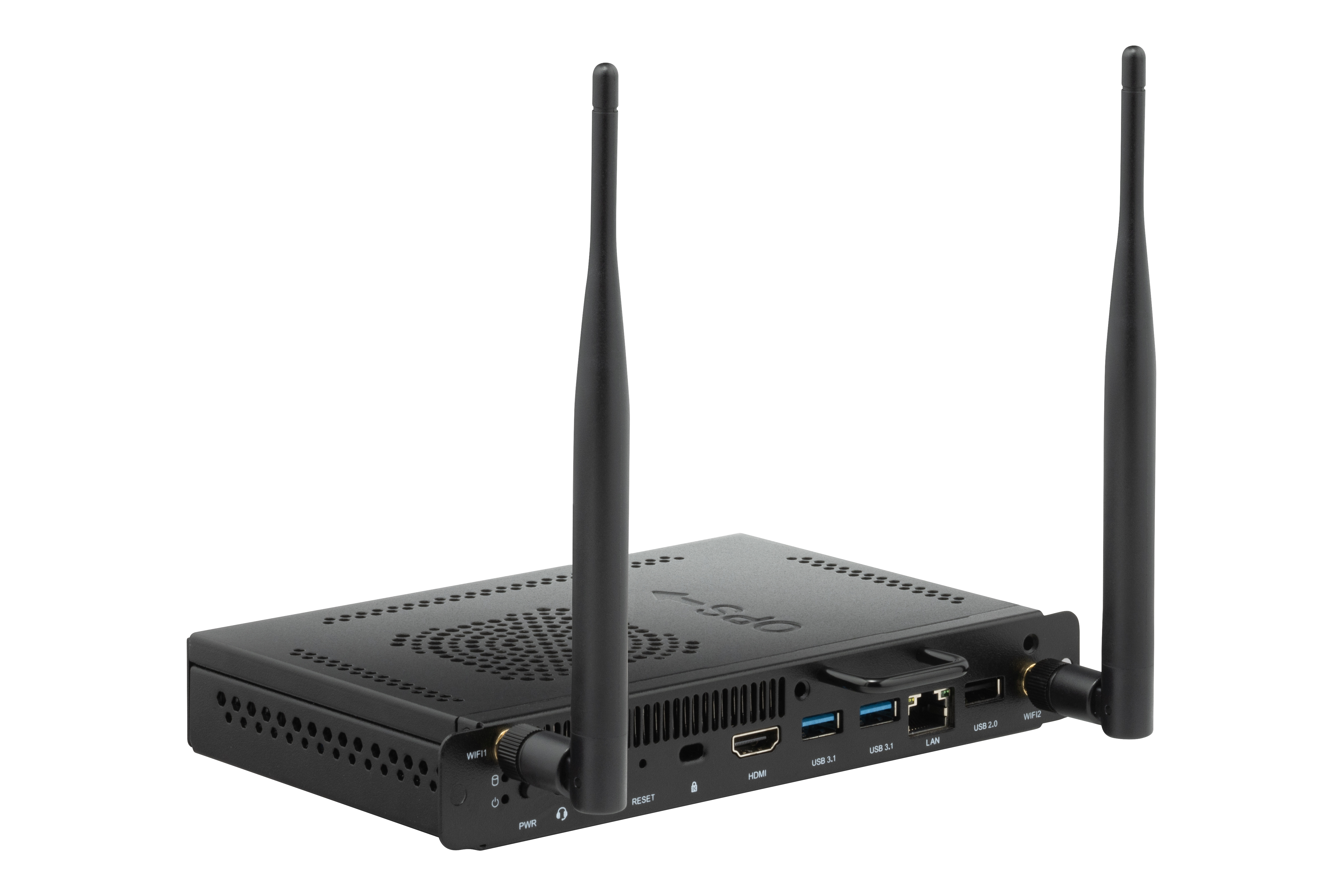

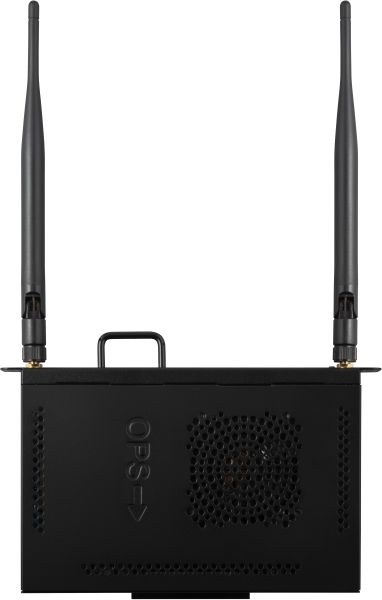

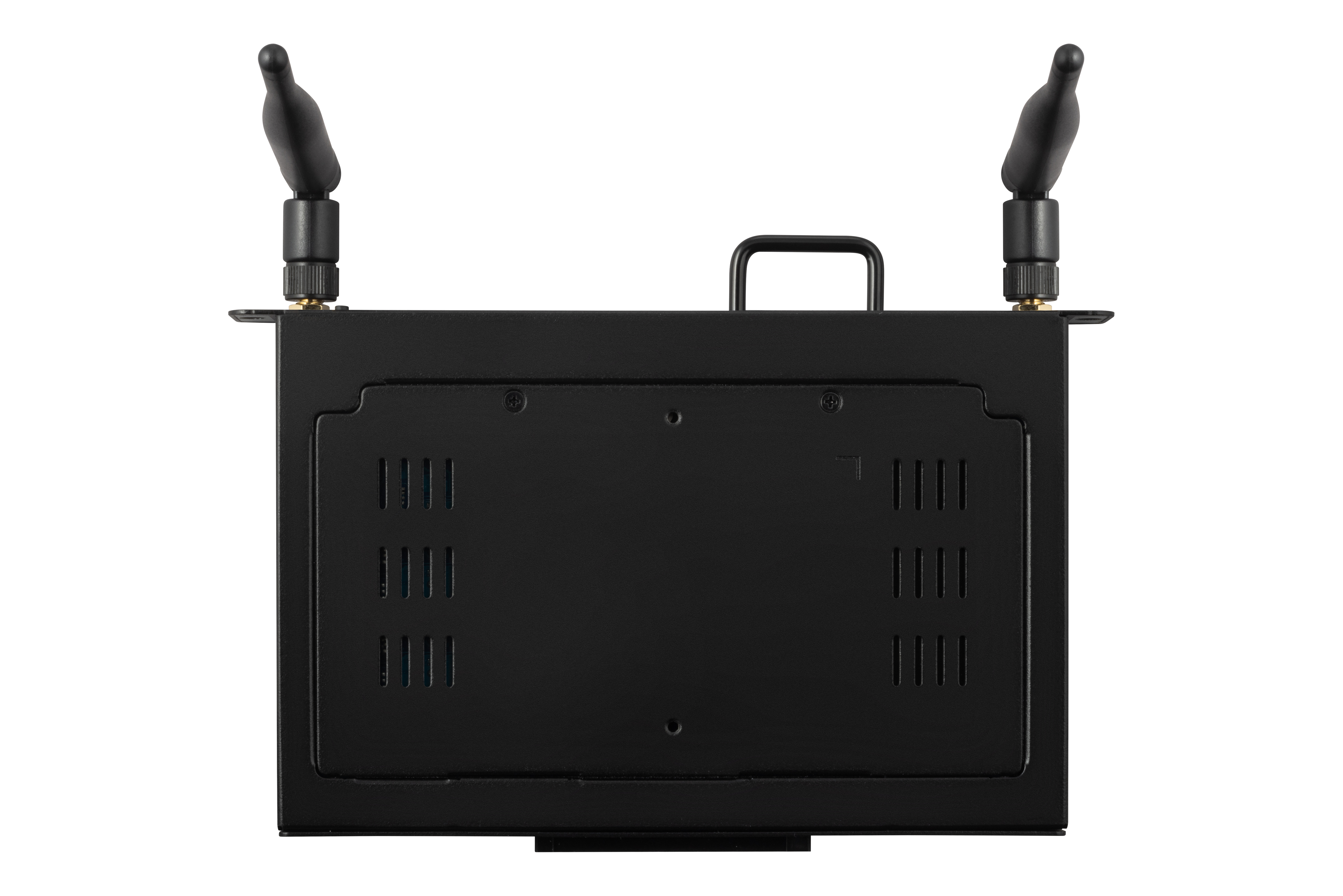

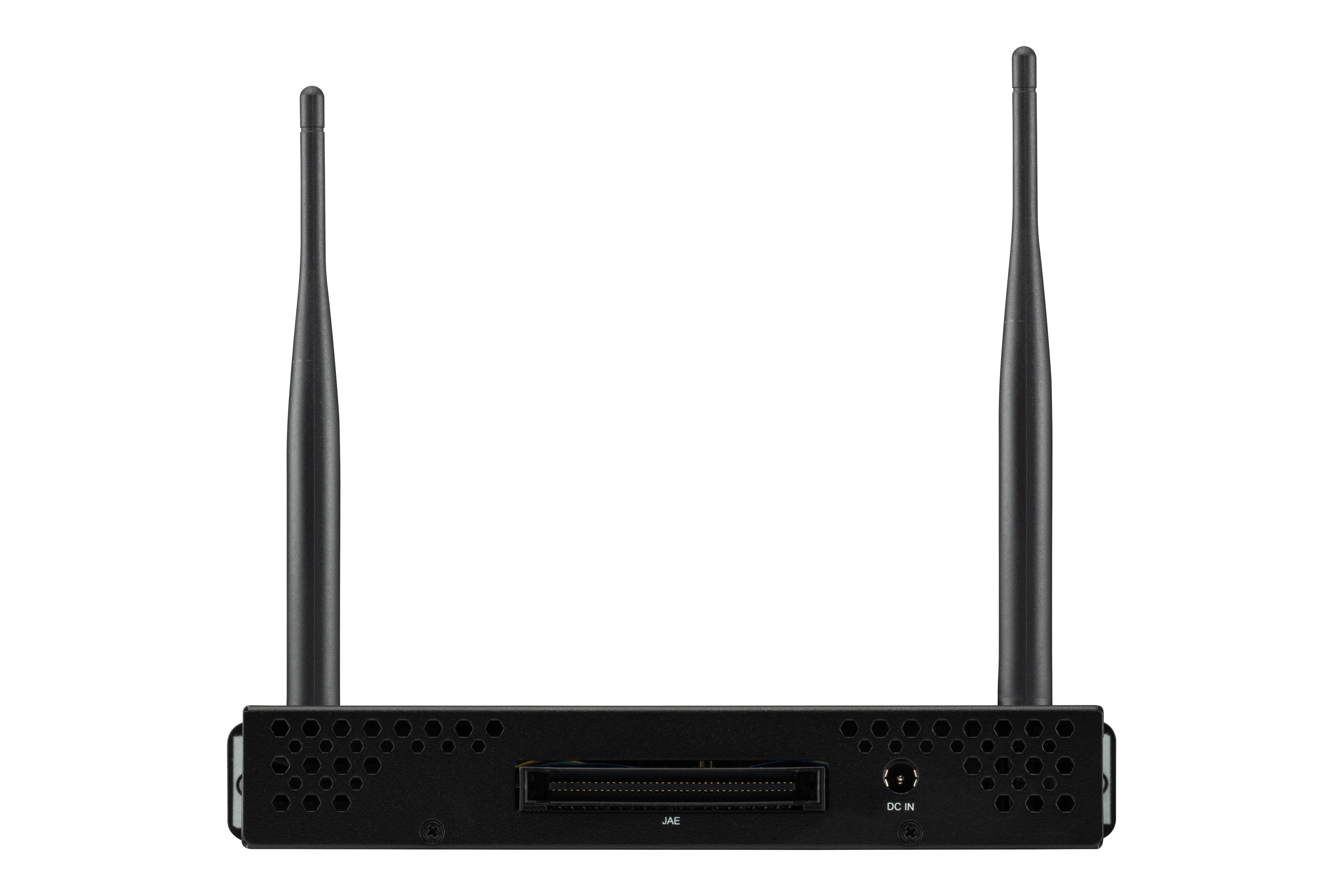

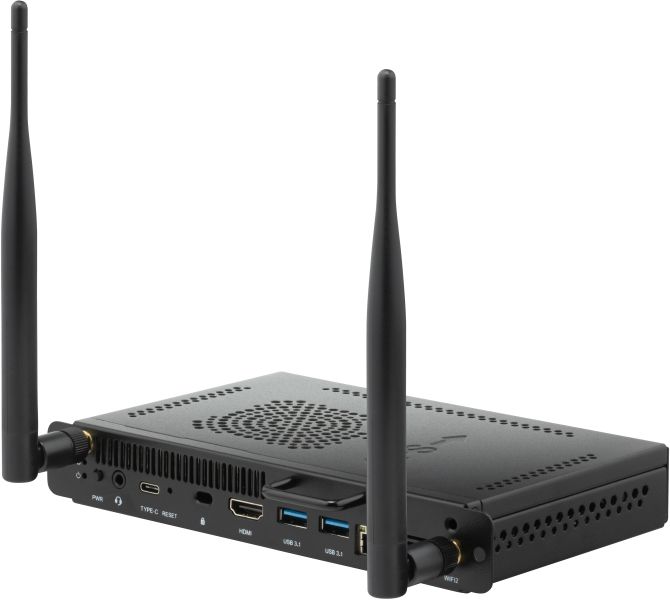

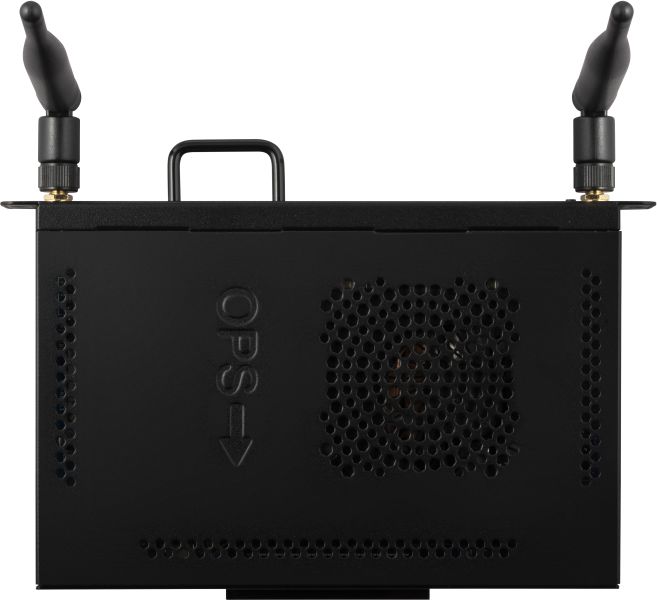

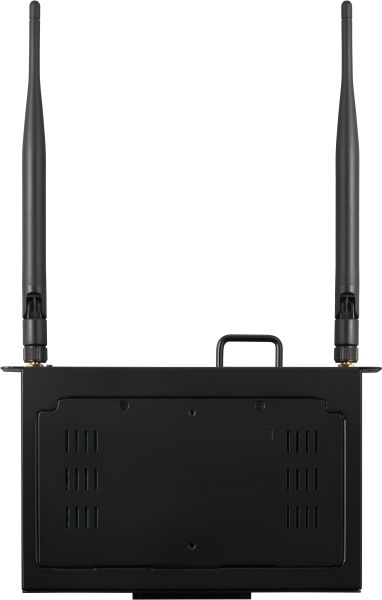

VPCF5-W33-G1

Slot-in PC for ViewBoard®

Windows 11 Pro
Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
Powerful Intel® 11th Core Processors embedded TPM2.0
Improved System Stability, Security, & Thermal Control

Sales Enquiry Share

GALLERY

OVERVIEW

Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-W33-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.

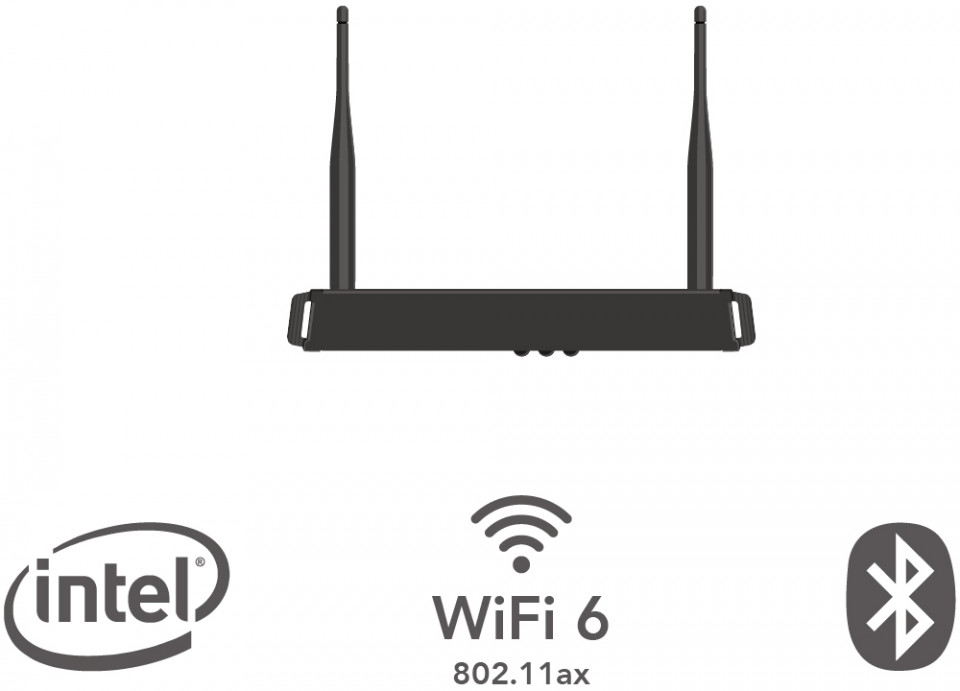

Tap into a productivity powerhouse

Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 11th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.2, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson

Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPCF5-W33-G1 intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.

Stay cool and blaze through classes

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.

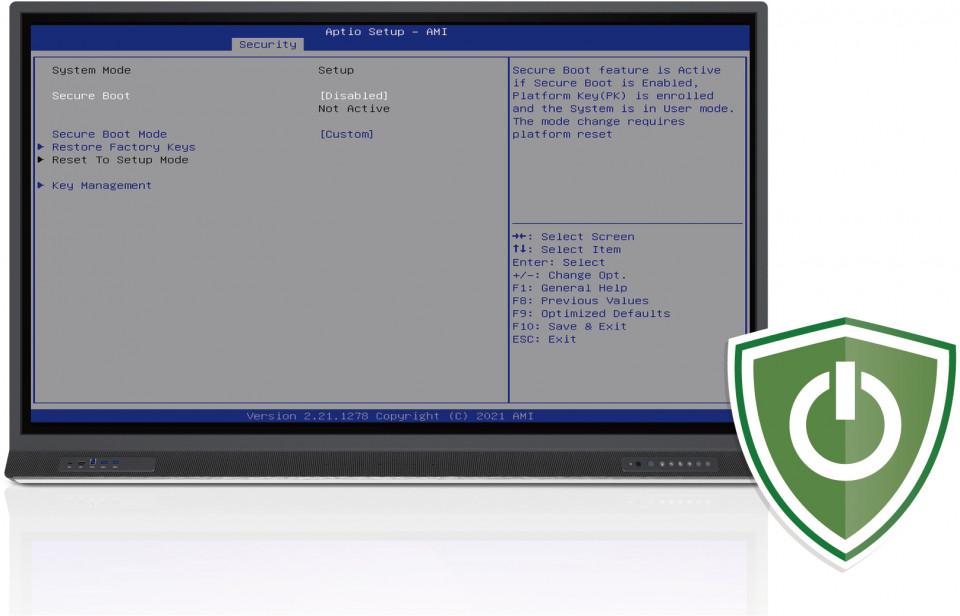

Boot up with total security

Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings

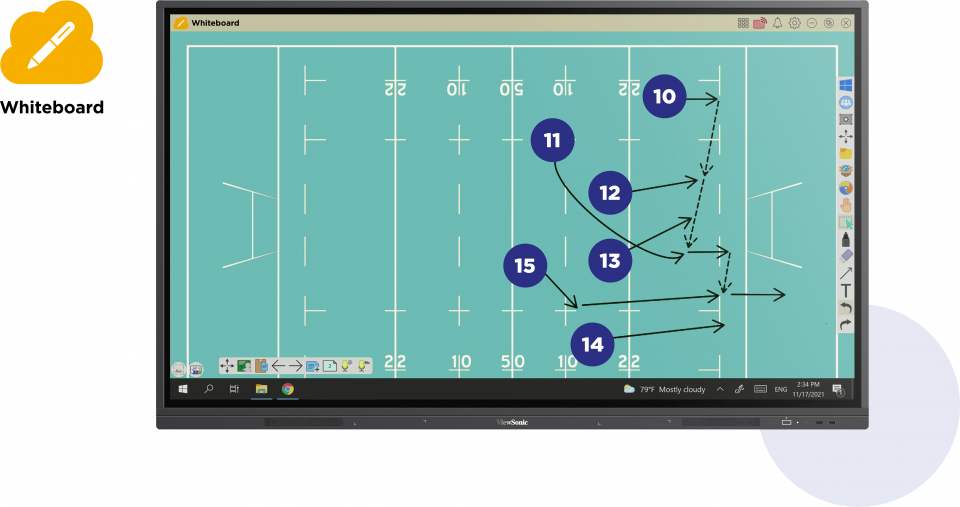

Built-in myViewBoard software

The VPCF5-W33-G1 seamlessly integrates with myViewBoard software, offering teachers a wide range of interactive lesson and presentation possibilities. Effortlessly prepare, save, and share class materials across various platforms in an instant.

SPECIFICATIONS

Software
Operating System: Windows Pro 11
Core
CPU: Intel® Tiger Lake Mobile Processor
Intel Gen11th core i5 CPU or later Gen. CPU
Graphics: Integrated Intel® Iris Xe Graphics (96EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP)
Memory
Type: DDR4
Capacity: 8GB

Storage
Dimension: M.2 SSD
Capacity: 256GB
Interface: PCIE

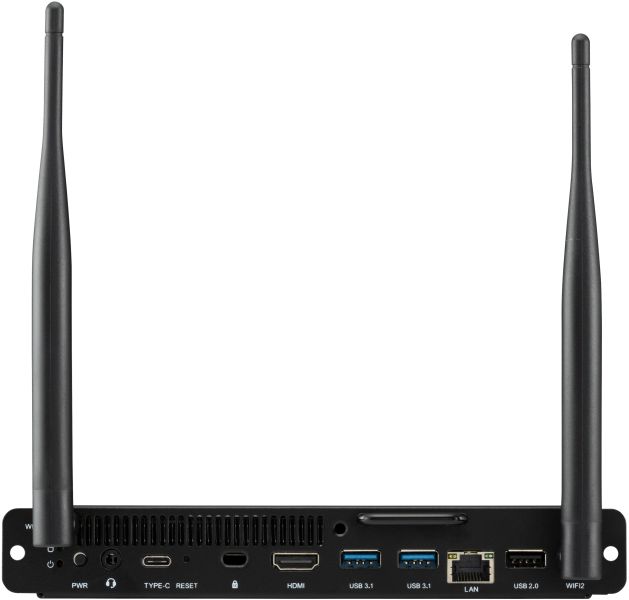

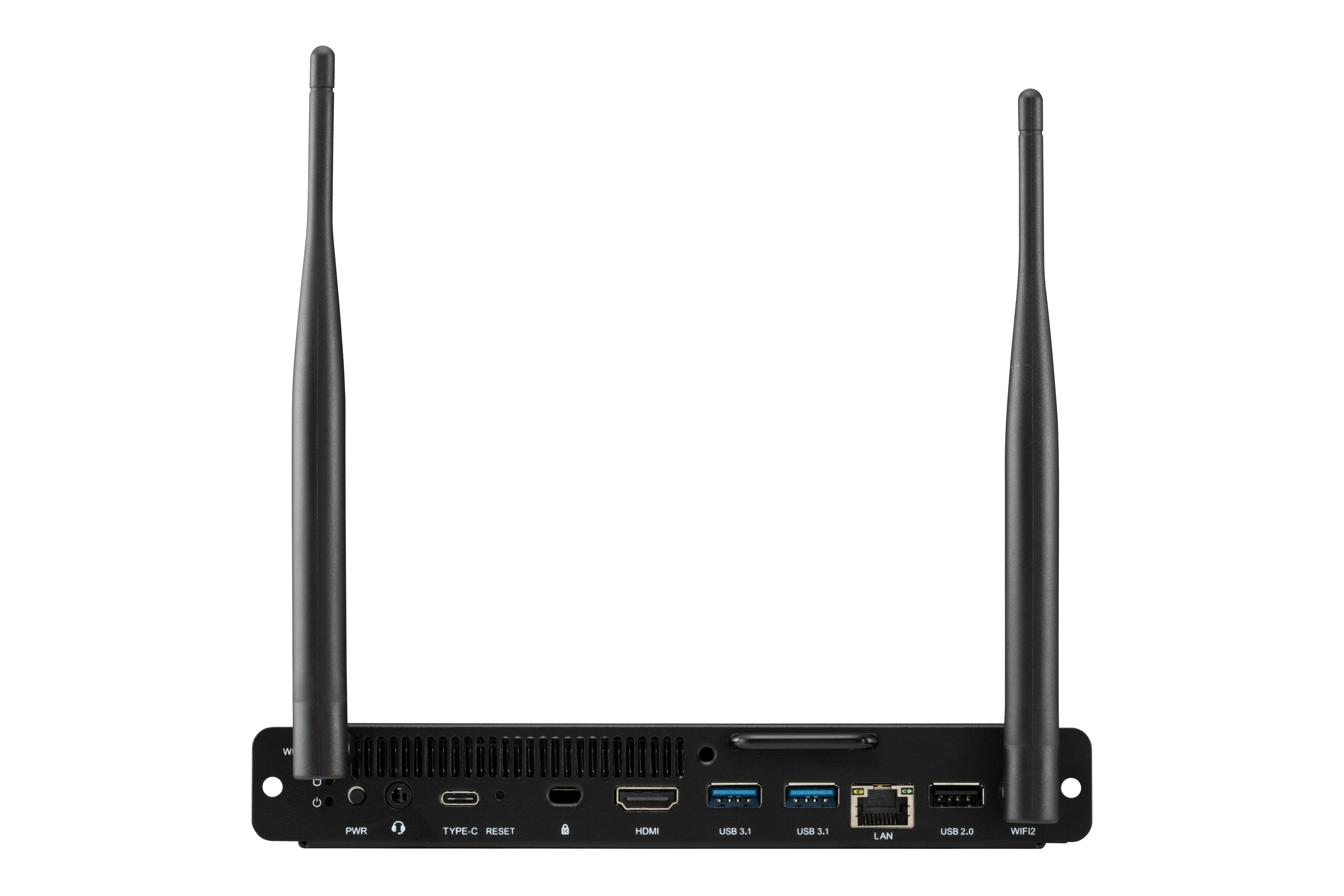

INPUT
MIC(Microphone): MIC-In&Line-Out two in one connector
OPS Standard: x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1)
OUTPUT
HDMI: x1 (Max 3840x2160@30Hz)
Audio: MIC-In&Line-Out two in one connector
LAN
RJ45: x1
Wireless / Bluetooth
Wireless / Bluetooth: Intel® AX101NGW
WIFI 6 802.11 ax + BT5.2
USB
Type A: USB 3.1 x 2 / USB 2.0 x1
Type C: USB 3.1 Gen2 x1 (Data Only)
Bundle Software
Bundle Software: myViewBoard Whiteboard,
Adobe Reader,
Watchdog/Winflash
Power
Voltage: DC 12-19V/8A Max
Consumption: Max 90 W
OPERATING CONDITIONS
Temperature (º C): 0℃ ~ 40℃(working)
Humidity: 10% ~ 90% @ 40°C Non-condensing(working)
DIMENSIONS (W x H x D)
Physical (inch / mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
Packaging (inch / mm): 10.23 x 7.87 x 3.15 in / 260 x 200 x 80 mm
WEIGHT
Net (lb / kg): 1.54 lb / 0.7 kg
Gross (lb / kg): 2.65 lb / 1.2 kg
REGULATIONS
REGULATIONS: CE EMC / LVD / CE RED / RoHS /REACH / WEEE / CB2018
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. Quick Start Guide(With Compliance Statement )
2. Screws x 2
3. Antenna x 2
