New

IFP105S

ViewBoard

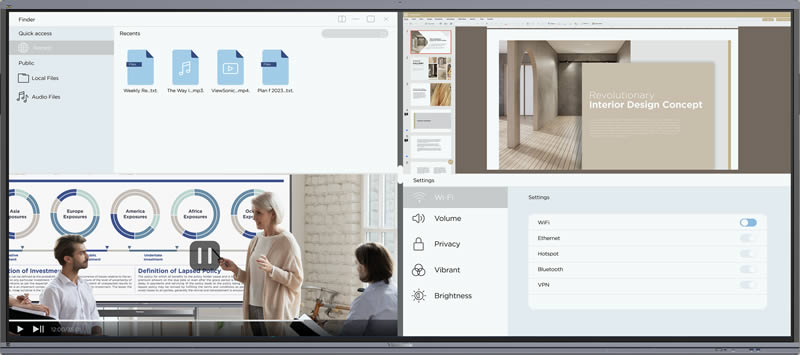

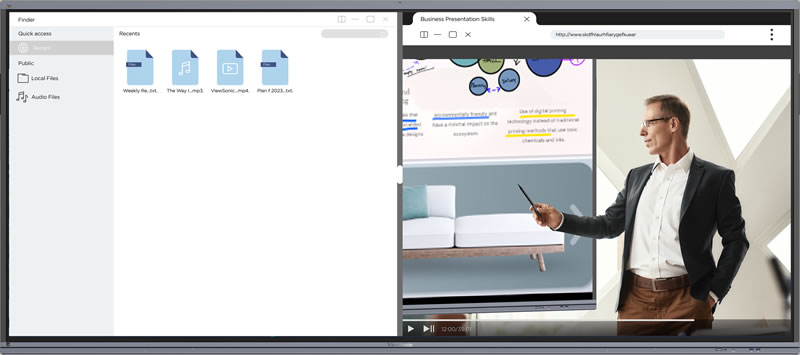

Ultrawide 21:9 ratio with increased space for multi-tasking and better meeting collaboration
5K UHD Resolution for impactful delivery of complex data and crisp image details
Pen-on-paper writing experience with Ultra Fine Touch Technology, up to 40 touch points

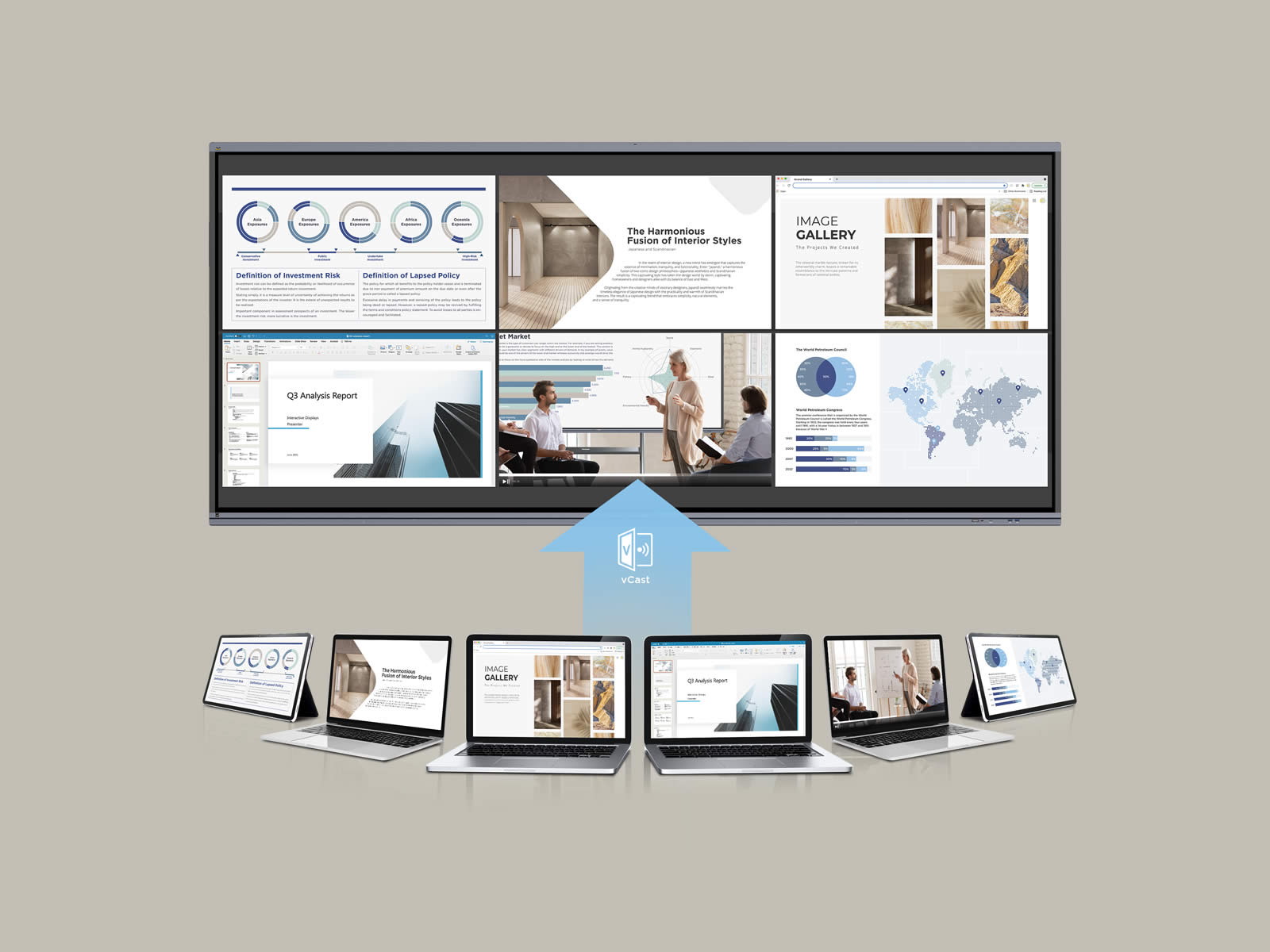

Effortless wireless screen sharing of up to 9 devices with vCast to facilitate collaboration

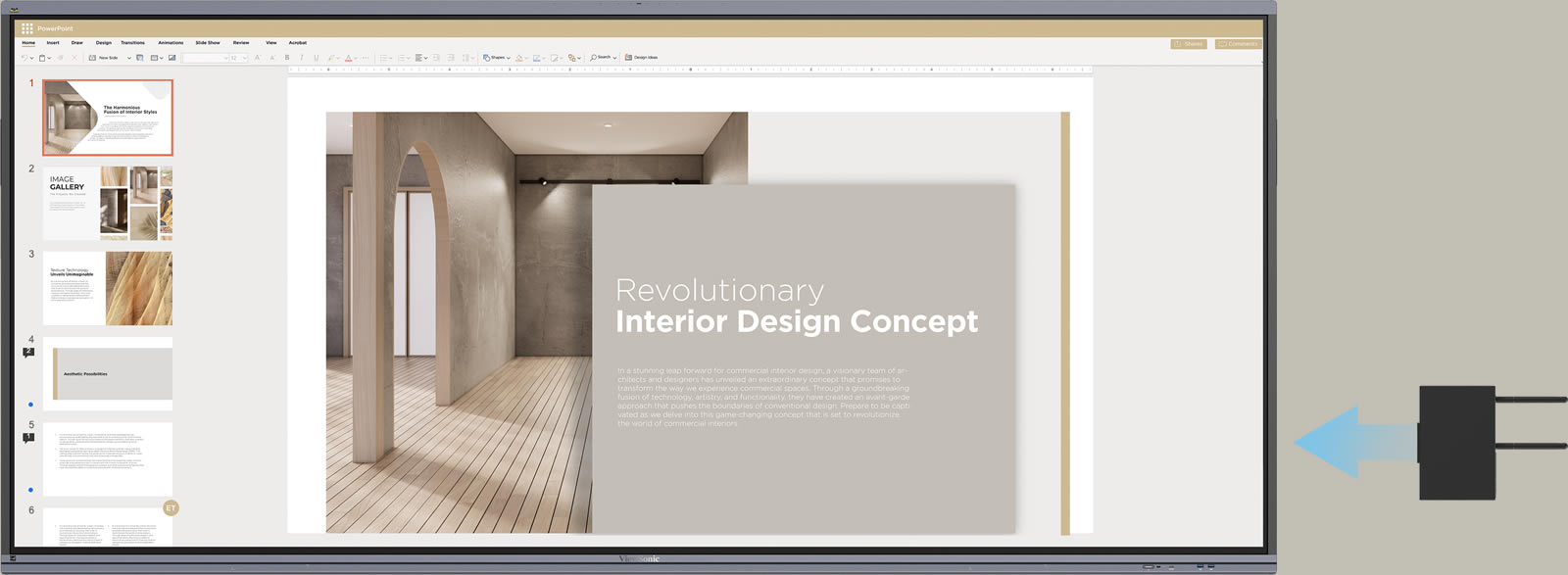

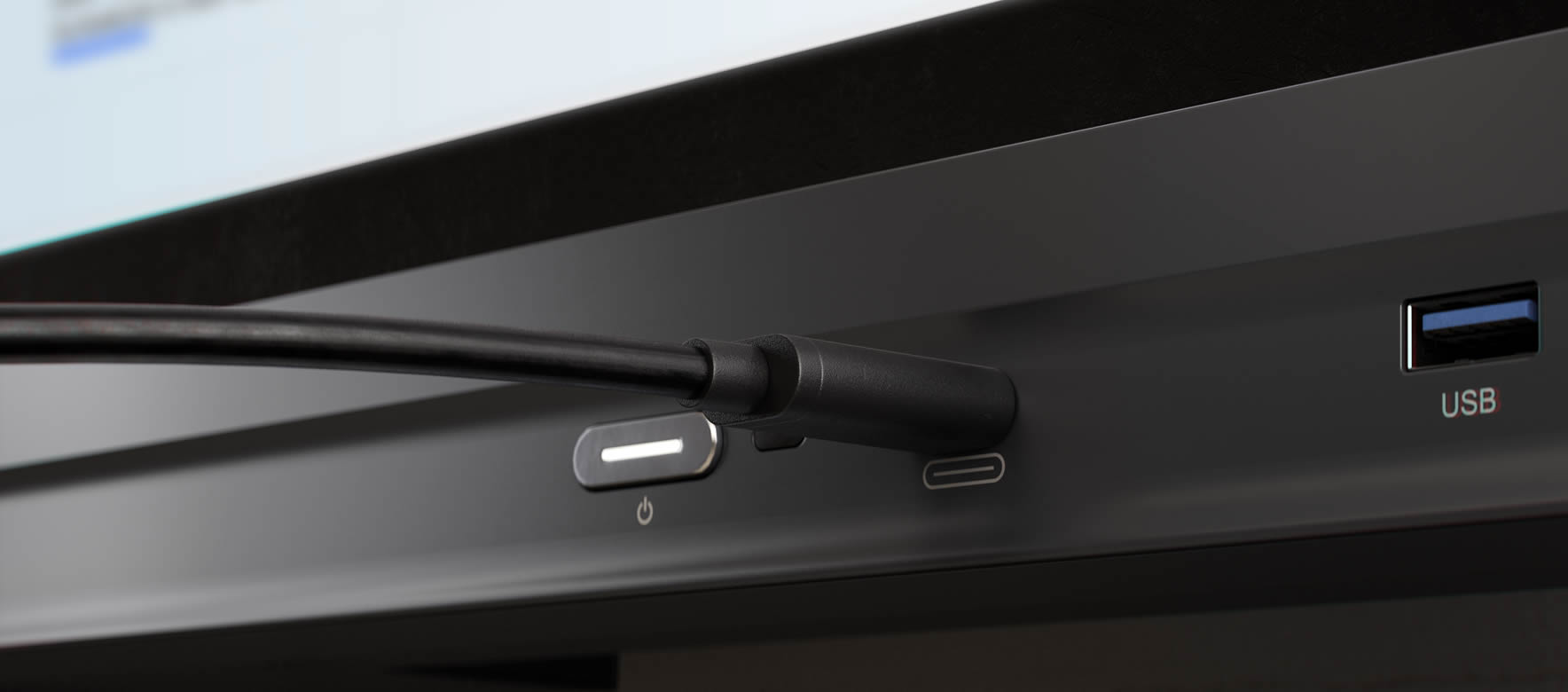

USB-C, one cable solution for enhanced productivity

業務諮詢

圖像專區

產品介紹

ViewBoard IFP105S delivers a wider and larger usable interactive area with a unique 21:9 aspect ratio and stunning 5K resolution. The 105” display space allows you to split the screen and work on multiple tasks simultaneously, making collaboration more efficient and productive. The highly responsive 40-point touch feature drives synchronous writing performance that feels both natural and intuitive ensuring that every input is registered. The cable-free screen casting and screen sharing are available through vCast to present your ideas effortlessly. Designed for Microsoft Teams Rooms (MTR), the IFP105S is perfect for Front Row, facilitating presentations, decision-making, and teamwork.

規格

顯示規格
面板尺寸: 105"
面板類型: TFT LCD Module with DLED Backlight, VA
顯示區域 (mm): 2465.92(H) x 1049.56 (V) (104.6”diagonal)
長寬比: 21:9
解析度: WUHD 5120x2160(Pixels)
Colors: 1.07B colors (10bit)
亮度: 450 nits
對比率: 5000:1
反應時間: 6.5ms
可視角度: H = 178, V = 178 (Typ.)
背光壽命: 50,000 Hours
表面塗層: Hardness: 7H, Anti-glare coating
螢幕邊框: 19.5/19.5/29.8/41.2 mm
顯示方向: Landscape
平台
處理器: Octa-Core CPU (A76*4 + A55*4)
RAM: 8GB LPDDR
儲存空間: 64GB eMMC
Touch
類型 / 技術: IR Recognition
觸控解析度: 32767 x 32767
觸控點: Windows: 40 Android: 20

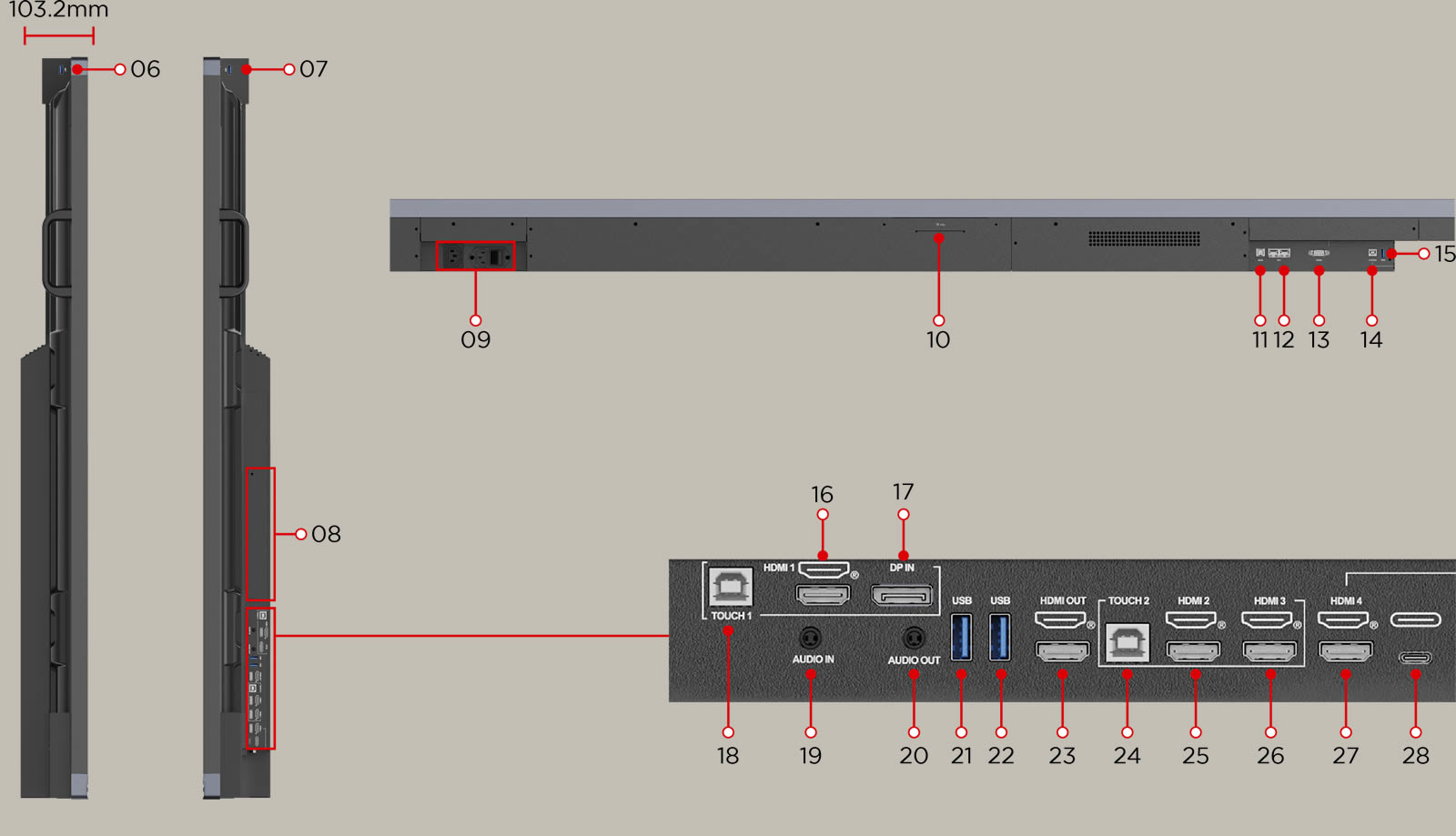

INPUT
HDMI: x4
Display Port: 1
音訊: 1
MIC (麥克風): Built-in 8 Array Microphone
RS232: 1

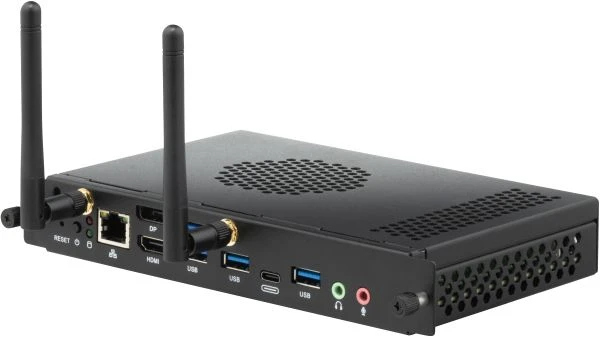

OPS: X1 OPS Slot
WiFi: X1 Module Slot
OUTPUT
HDMI: 1
音訊: 1
SPDIF: 1
LAN
RJ45: X2 (in x1; out x1; 1000m for Android /PC ; 100m for type-C)
USB
Type A: USB2.0 * 1 (bottom) (for FW upgrade)
USB3.0 * 6 (Top*2 + Rear *2 + Front *2), all support Smart USB
Type B: 3 (bottom x 1; side x 2)
Type C: 1 (side) [1*PD65W(65W with OPS, 100W without OPS) + DP1.2 + Data + 10M/100M sharing]
1 (Front) (1*PD15W + DP1.2 + Data + 10M/100M sharing)
喇叭
16W x 2 + 15W x 1 subwoofer
Top Camera Plate
Yes
內建作業系統
Android 13
搭載軟體
基本註記軟體: myViewBoard
專業註記軟體: myViewBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: vCast/myViewBoard Display App
特色功能
All-in-one USB port: Yes
輕鬆在 IFP 和嵌入式裝置之間執行 LAN 分享功能: (10/100/1000M) (USB Type-C 10/100, Android & PC 10/100/1000)
Light Sensor: x1
電源
電壓: 100-240VAC +/- 10% Wide Range
消耗功率: On: 310W(typ.) / Off: <0.5W
ERGONOMICS
壁掛 (VESA®): 1000 x 400
OPERATING CONDITIONS
溫度 (ºC): 0°C to 40°C
濕度: 20% ~ 80% RH non-condensing
外觀尺寸 (寬 x 高 x 深)

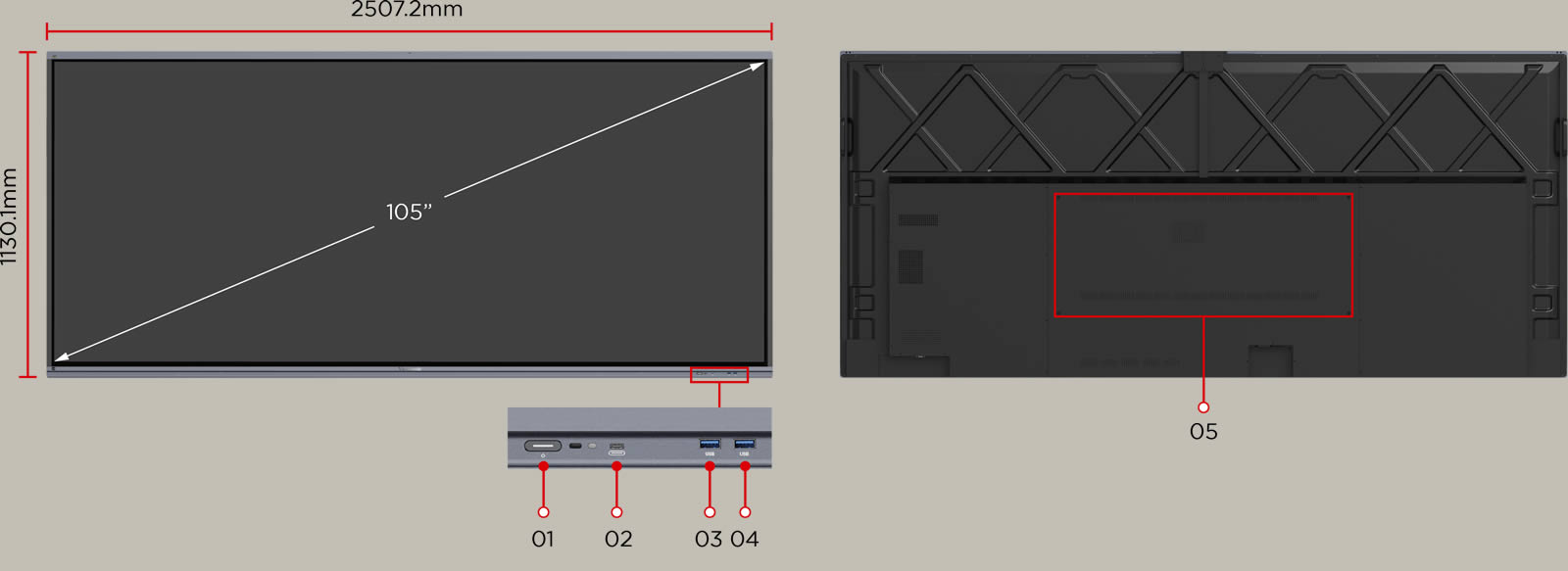

實體 (inch / mm): 98.71 x 44.49 x 4.06 in / 2507.2 x 1130.1 x 103.2mm
外箱 (inch / mm): 105.19 x 11.02 x 51.38 in / 2668 x 280 x 1305mm
WEIGHT
淨重 (lb/kg): 201.5lb/91.4Kg
毛重 (lb / kg): 225.1lb/115.7Kg
REGULATIONS
cTUVus,FCC/ICES003, LBL(low blue light filter), FF(Flicker free), CE EMC, CB, RoHS Green BOM, RoHS DoC, ErP, REACH SVHC List, DoC, EEL, WEEE, BSMI
產品內容
1. 3m power cord by ship area
2. Remote control with AAA battery
3. 3m touch USB cable
4. Touch pen x 2
5. Quick Start Guide + Compliance statement
6. RS232 adapter
7. Clamp x 5
8. Camera Plate
9. Screw x 6 (2 for camera , 4 for wall mount)
10. HDMI cable 3m
