VB-STND-009

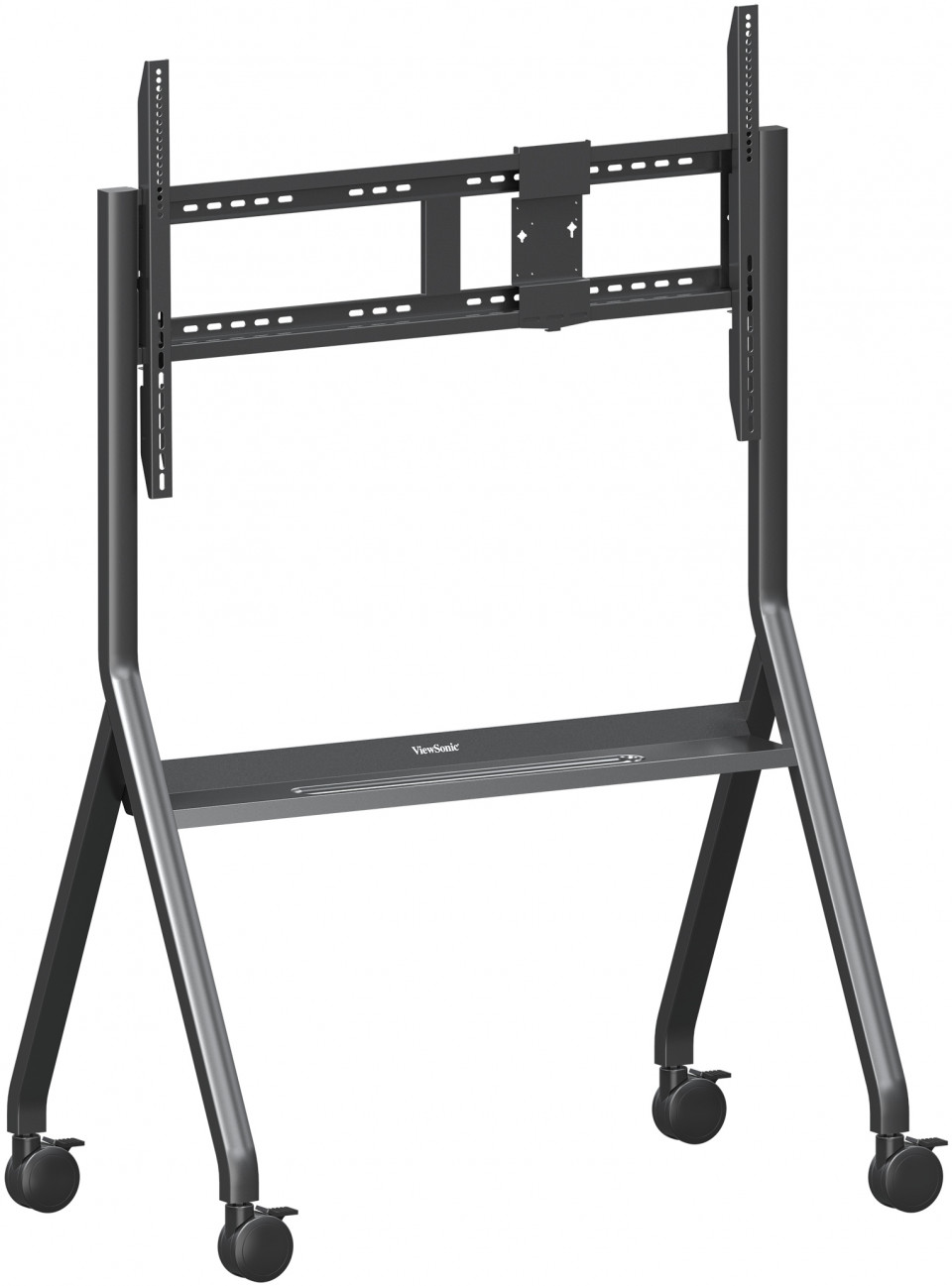

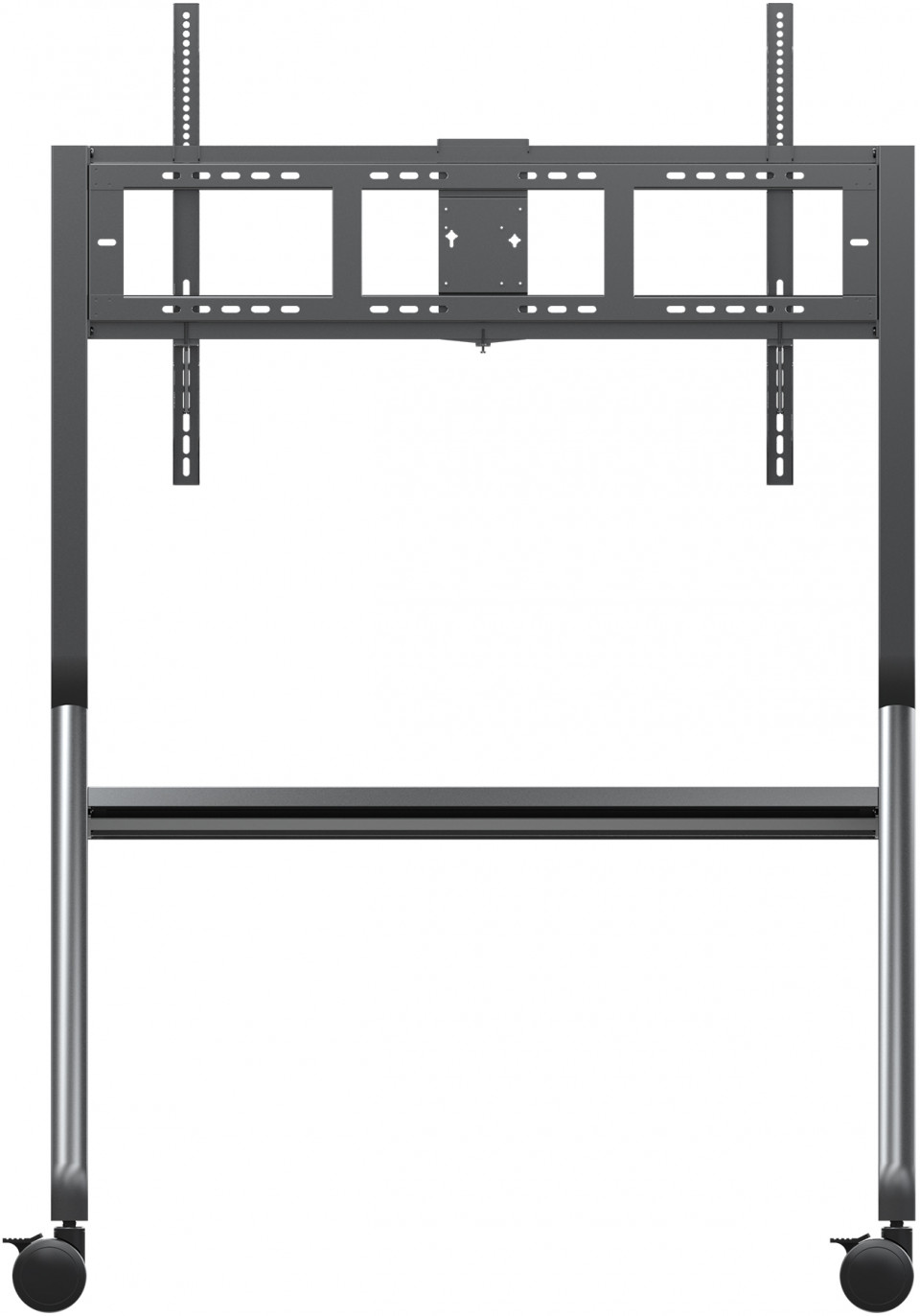

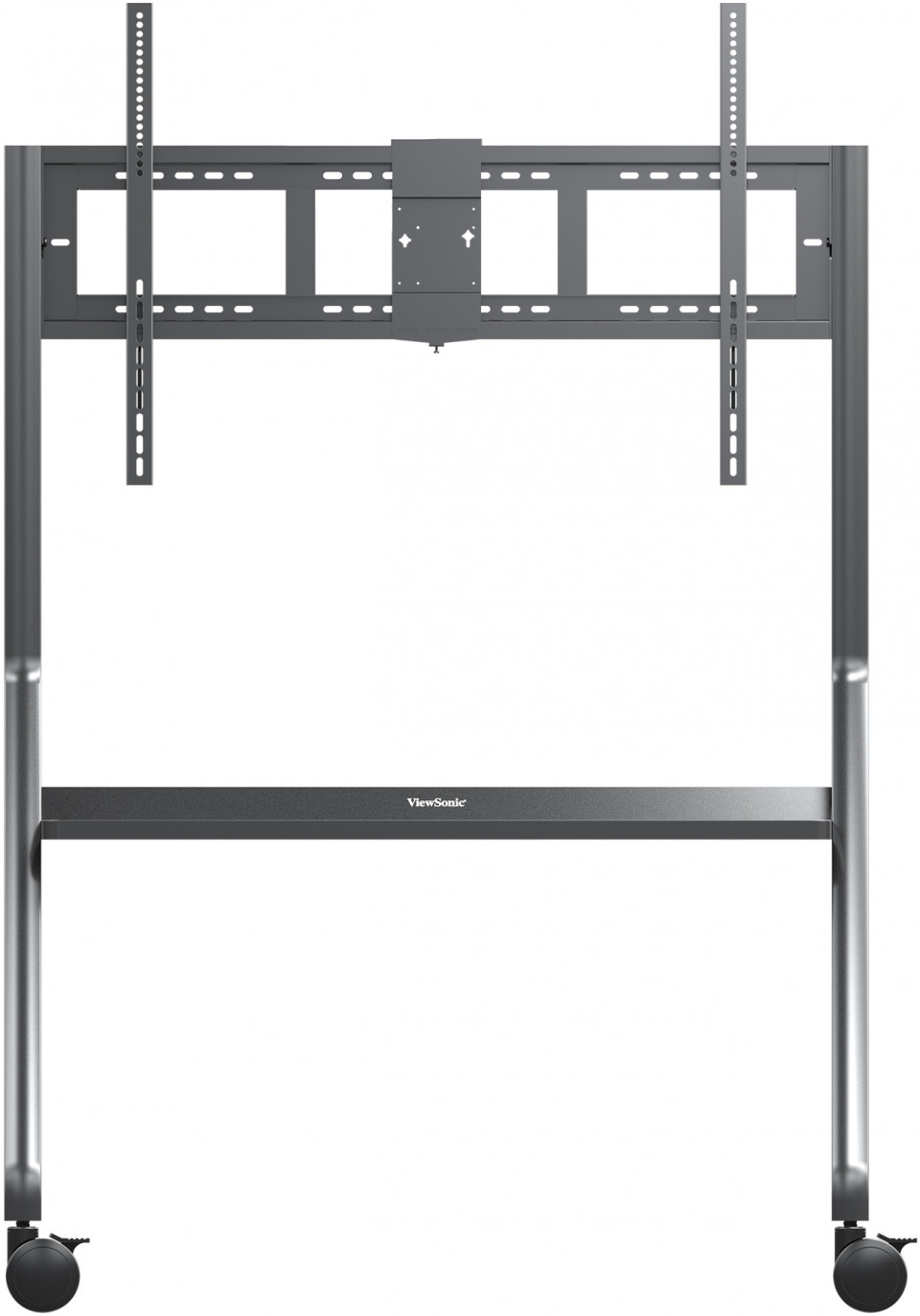

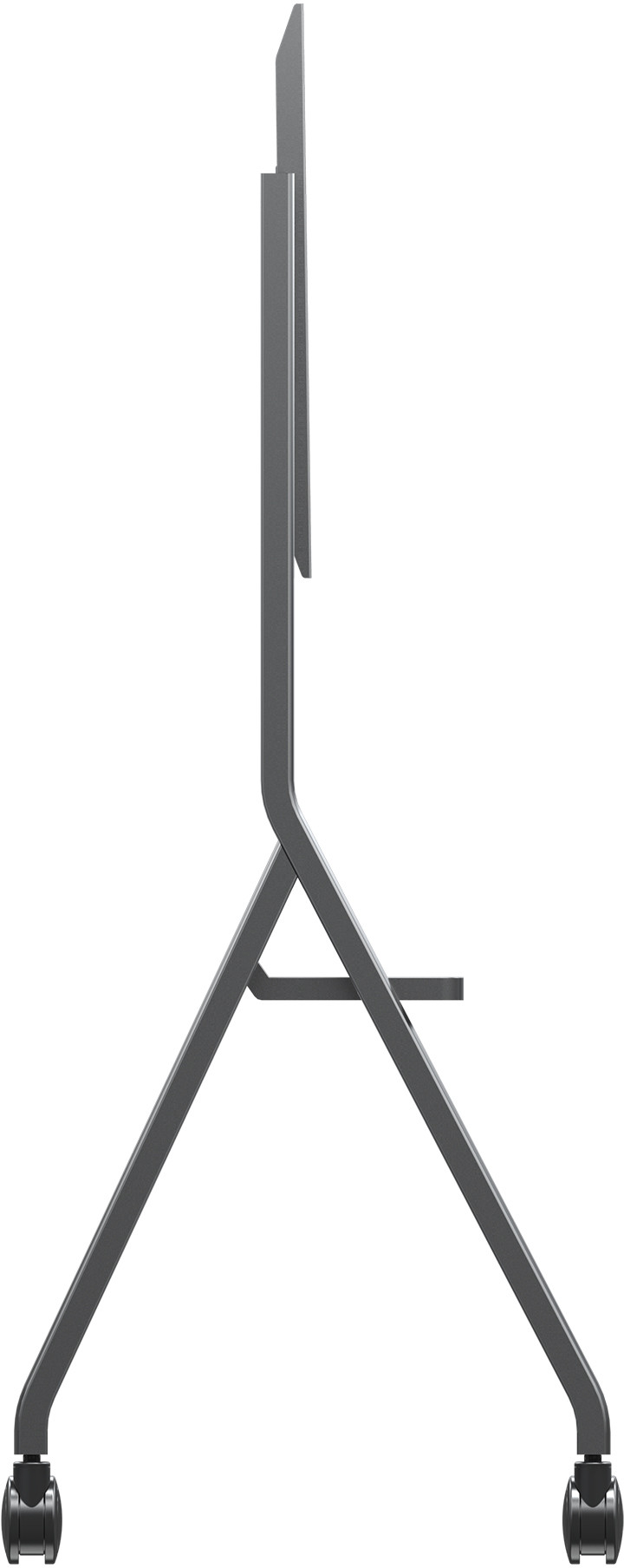

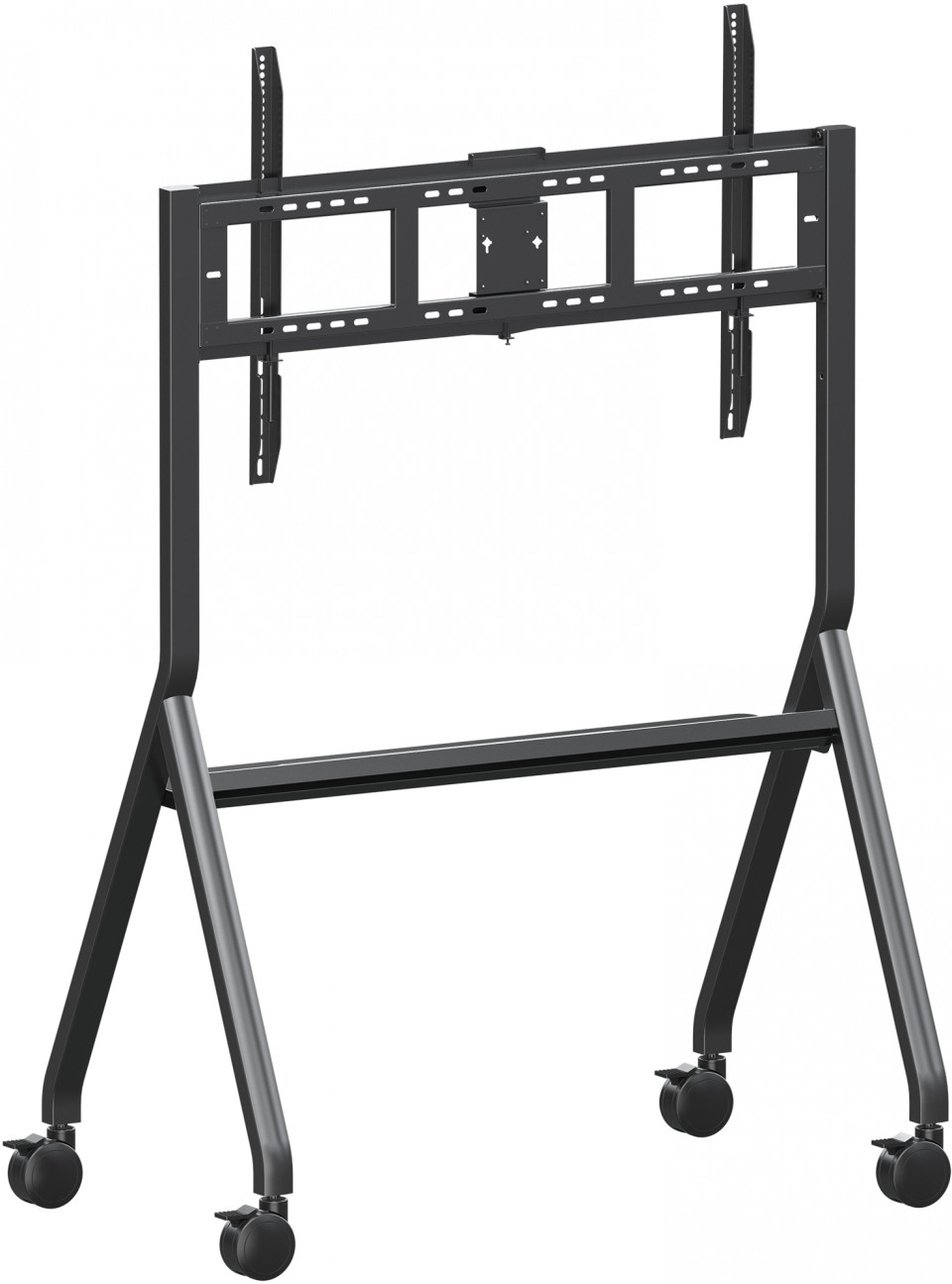

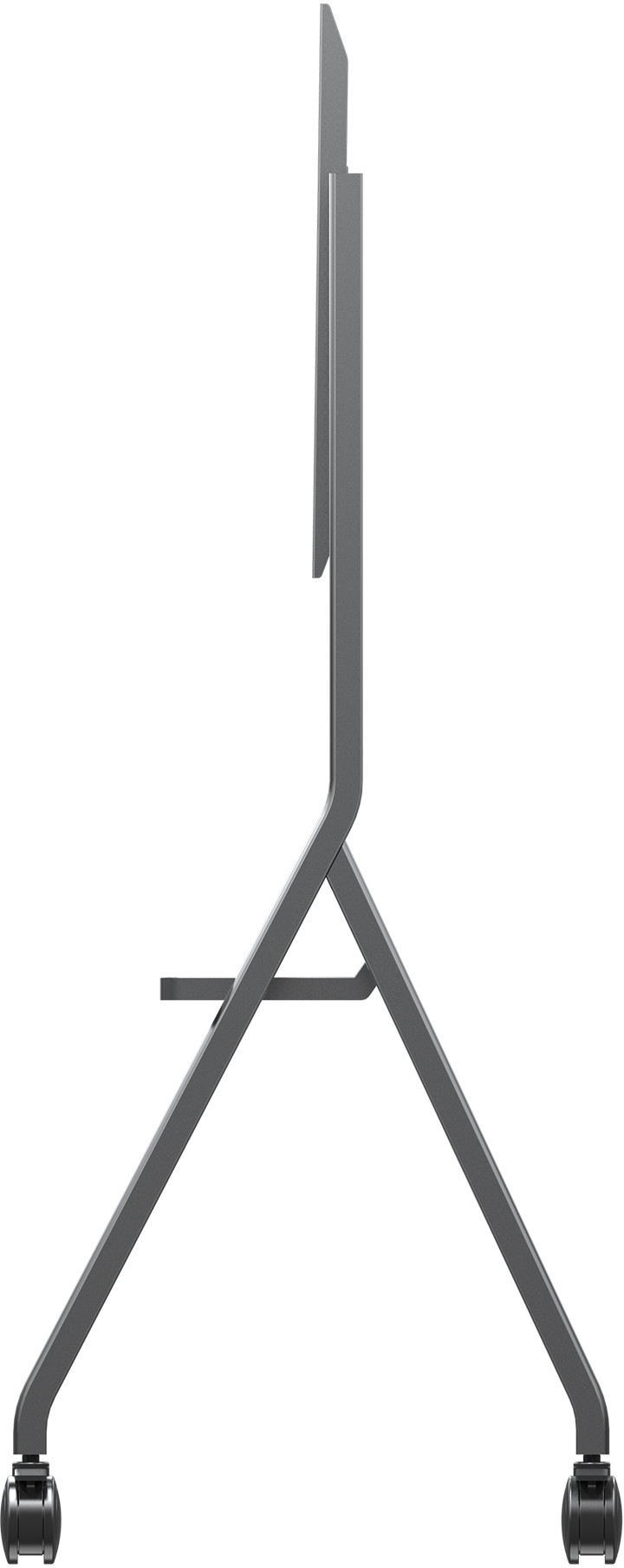

Slim Trolley Cart for 55" to 105" Display
•Streamlined, height-adjustable design
•360° silent wheels with quick-release brakes
•Storage tray included for accessories and other items
OVERVIEW
The ViewSonic VB-STND-009 trolley cart is designed for ViewBoard Interactive Flat Panel Displays ranging from 55” to 105,” and securely accommodates any large format display weighing up to 120kg. Its streamlined, height-adjustable design and easy installation enable seamless integration into any space. Featuring 360° silent wheels with quick-release brakes, this cart offers effortless, stable, and secure mobility of presentation displays from one room to another.Height Information

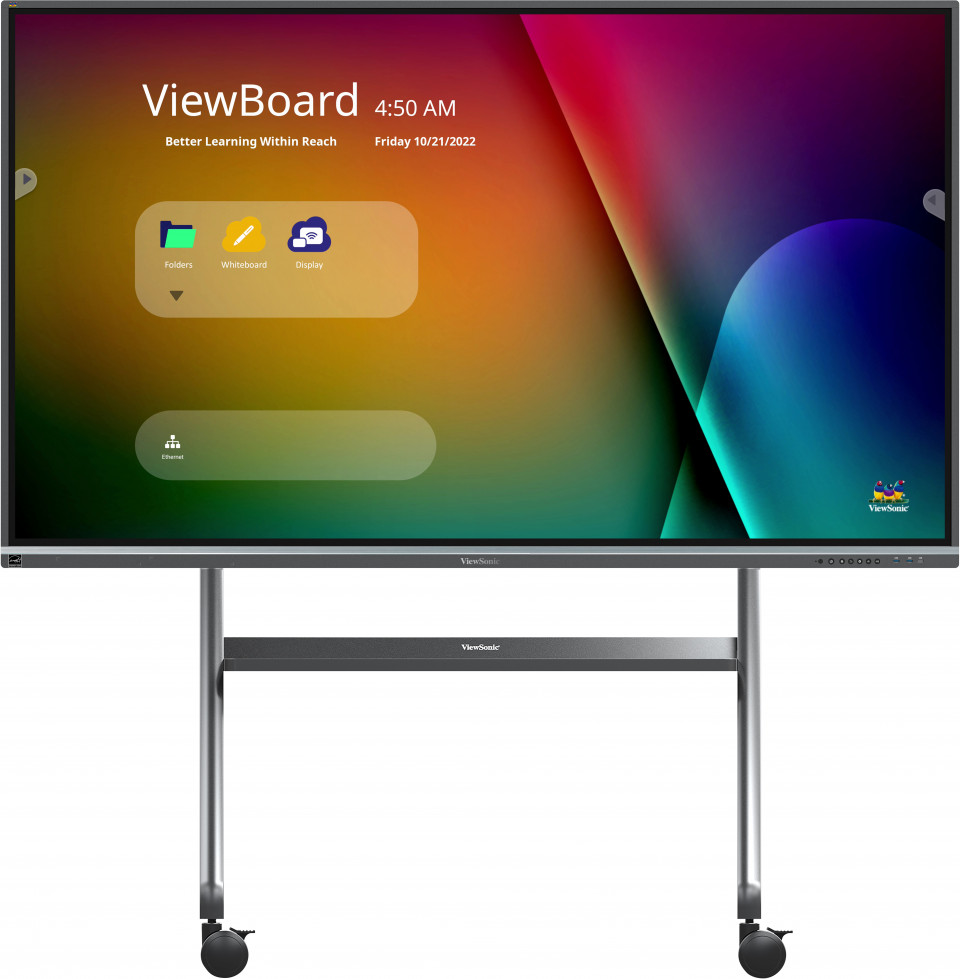

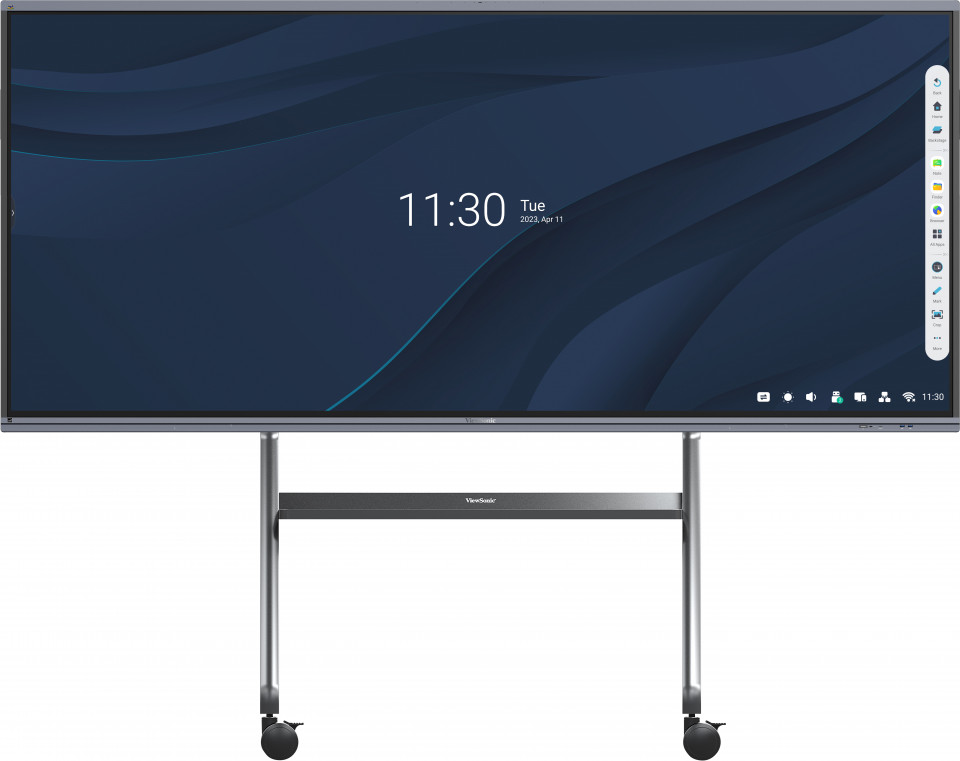

The trolley cart can accommodate 55", 65”, 75”, 86”, 98", and 105" ViewBoards. The height information may differ depending on the ViewBoard model.| ViewBoard | 55" IFP5550-5 | 65" IFP6550-5 | 75" IFP7550-5 | 86" IFP8650-5 | 98" IFP9850-4 | 105" IFP105S | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height Measurement | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | mm |
| T1 | 79.38 | 2016.3 | 77.45 | 1967.3 | 76.63 | 1946.5 | 80.09 | 2034.2 | 82.62 | 2098.6 | 88.63 | 2251.1 |
| B1 | 48.91 | 1242.4 | 42.15 | 1070.6 | 36.48 | 926.5 | 34.43 | 874.4 | 30.53 | 775.4 | 44.15 | 1121.3 |
| T2 | 74.66 | 1896.3 | 72.73 | 1847.3 | 71.91 | 1826.5 | 75.36 | 1914.2 | - | - | 83.90 | 2131.1 |
| B2 | 44.19 | 1122.4 | 37.43 | 950.6 | 31.75 | 806.5 | 29.70 | 754.4 | - | - | 39.42 | 1001.3 |
SPECIFICATIONS
- ErgonomicsSwivel: 360 degree
Height Adjust: Yes - Wall mount bracketup to1000x600 ( 55"~105")
- MaterialIron, PU(Castor)
- LoadingWall mount: 120 kg max. / 265 lb max.
Plate: 15 kg max./ 33.1 lb max. - DimensionsPhysical (WxHxD): 1155x(1570~1762)x704 (mm) / 45.5x(61.8~69.4)x27.7 (in)
Packaging (WxHxD): 1510x175x732 (mm) / 59.45x6.89x28.82 (in) - WeightNet: 24.65kg / 54.35lb
Gross: 28.7kg / 63.3lb - Inbox itemsQuick Start Guide
Accessory bag
COMPATIBLE WITH VB-STND-009

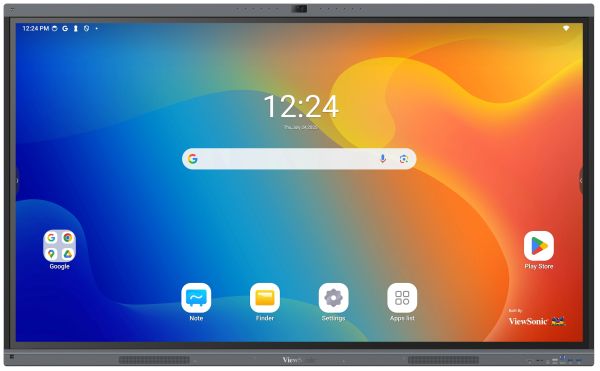

Enterprise Device Licensing Agreement (EDLA) Certified ViewBoard 65” 4K Interactive Display
