ELITE RGB & TT RGB Plus
Snadné sestavení
Aktivace RGB monitoru
1.) Zapojte kabel USB 3.0 do monitoru a počítače.
Zástrčka typu A (obdélník) se připojuje k počítači.
Zástrčka typu B (čtvercová) se připojuje k monitoru.
2.) Using the OSD control button on the monitor, navigate to the Setup Menu and turn “ELITE RGB” on.
Deaktivace výstražného signálu

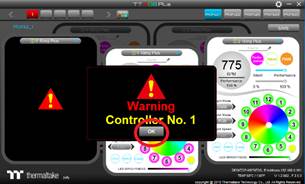

1.) If you open the software and are given a warning, this is to alert you that one of the ports is not detecting a device. Simply hit the OK button to get rid of the alert.
2.) Each activated RGB device is represented by a port, that lets you control the RGB behavior of each device recognized by your PC. See above- there are 4 activated ports and one port that is not activated (ex. 5 Riing Plus). Click the green circle with a vertical line going through the middle. This will disable the port and deactivate the warning alert.
Synchronizace XG240R se softwarem TT RGB PLUS
1.) Click the square RGB button at the top, center of the program.
2.) Your monitor will be displayed here. Click Sync On. Your monitor is now synced and will follow the commands given to the device in Port 1.
Ovládání LED diod
**Port 1 is the primary port. Other ports can follow the commands given to this port (See step 3).
Váš monitor provede stejné příkazy, jaké byly zadány zařízení v Portu 1.
1.) To Change a color of all the LEDs in in a port, click the preferred color in the Color Wheel.

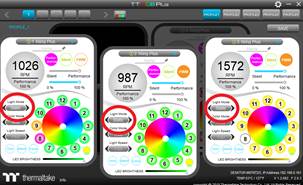

2.) To change the lighting effect of a device, select its designated port and toggle through the effects in Light Mode found on the left side, next to the color wheel.

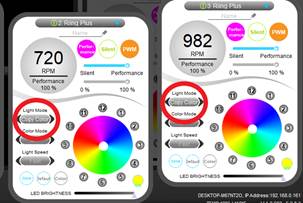

3.) To have one or all of your RGB devices perform the same effect, change the Light Mode in Port 2, 3, etc. to Copy Color. Now all your devices will be performing the effect of Port 1.
4.) In Color Mode, underneath Light Mode, the color mode option RGB allows you to change the color of individual LED units. Change the mode to Single and you will change the color of all LED units at once.
RGB Single
5.) To change the color of individual LED units in the RGB color mode, first, you need to freeze LEDs that you don’t want changed. Frozen LEDs will become small, allowing the colors of large LEDs to be changed. Choose your color by clicking in the Color Wheel and all large units will change to that color. Continue this for each individual LED unit, freezing and unfreezing units to change the colors.
Frozen LED Units Unfrozen LED Units
Sledování obrazovky (režim hráče)
1.) For your RGB to react to the colors on your screen, change the Light Mode to Player. The RGB will portray the dominant colors on the screen, so for optimal results play your game or entertainment in FULL SCREEN.
2.) Remember, for all your ports to follow the colors on the screen, either set each port to Player or set Port 1 to Player and the rest of the ports to Copy Color.
Voice Control and Additional Info Link

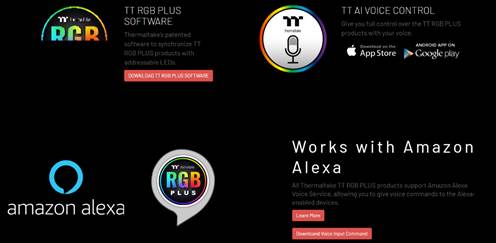

For information on downloading the ThermalTake voice control app, Amazon Alexa voice service, or for more software information, please go to https://ttrgbplus.thermaltake.com/
Kompatibilní produkty
Synchronizace osvětlení RGB monitoru ViewSonic Elite s ekosystémem RGB společnosti Thermaltake v současné době
funguje pouze v případě, že vlastníte jeden z níže uvedených "nezbytných" produktů.
Seznam kompatibilních produktů naleznete níže. Další informace naleznete na webových stránkách společnosti Thermaltake.
*Varianty režimů, funkce přizpůsobení a jakékoli další funkce nebo použití se řídí podmínkami použití, licenční smlouvou s koncovým uživatelem a možnostmi softwaru, jak jsou specifikovány nebo poskytovány v softwaru partnerů.
¹Chcete-li synchronizovat monitor Viewsonic s produkty Thermaltake RGB,
uživatelé musí mít buď XG240R, nebo XG350R-C a jeden z označených "nezbytných produktů".
Thermaltake products to act as a host.
²Products with RGB sync up ability in TT RGB ecosystem
