VC10

Wireless Presentation Dongle

Sales Enquiry

OVERVIEW

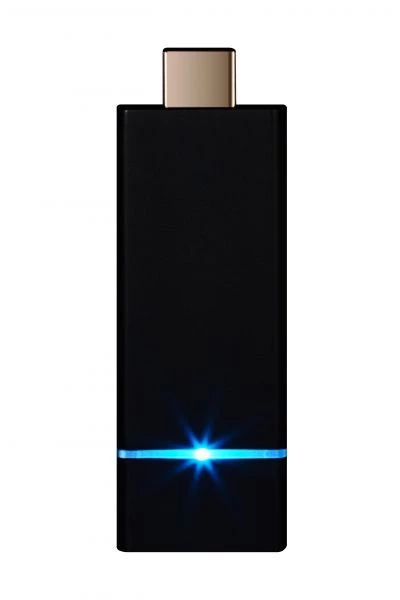

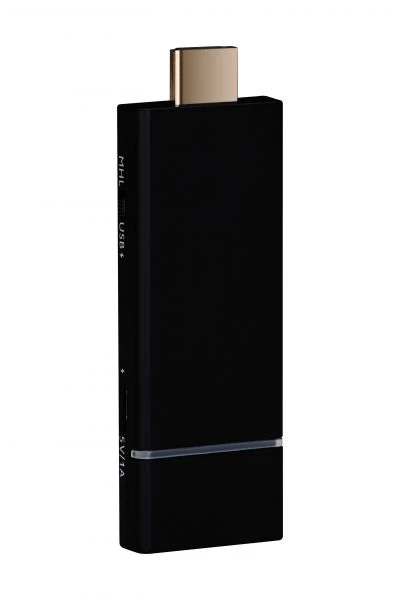

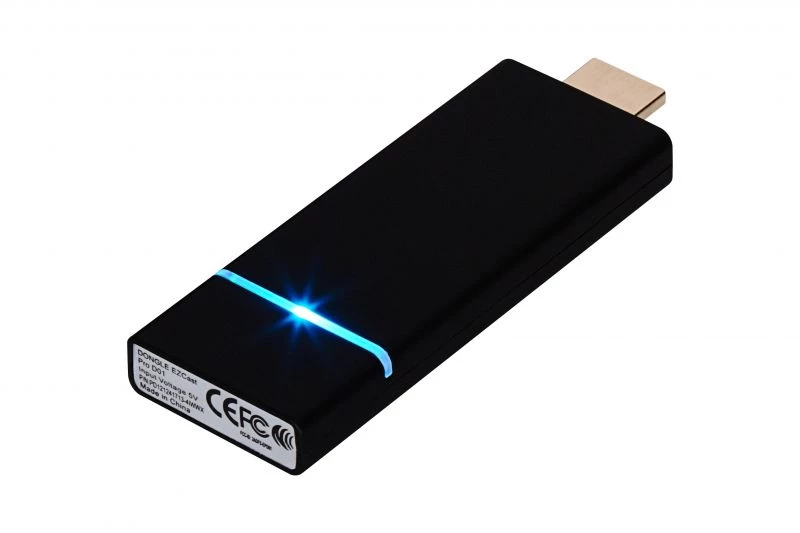

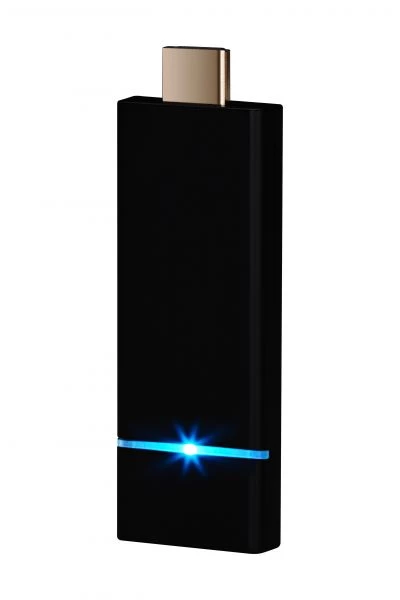

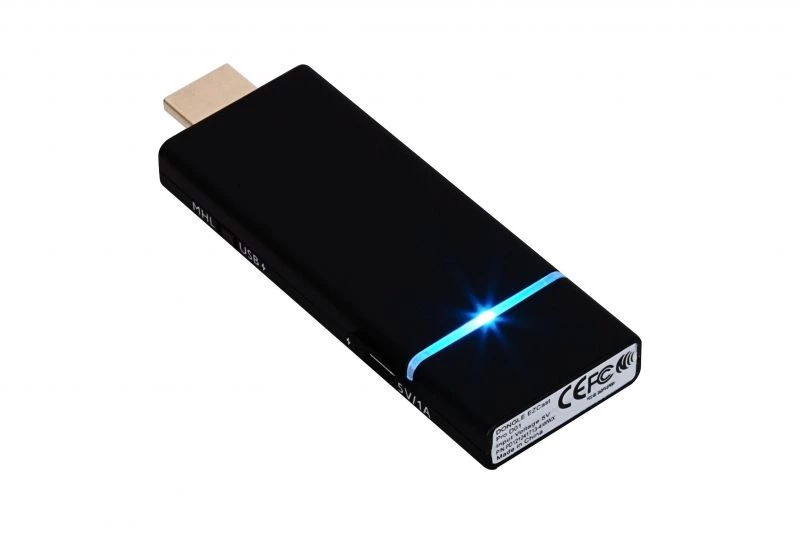

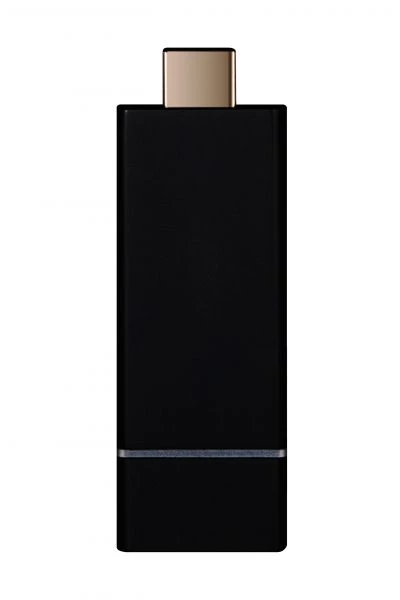

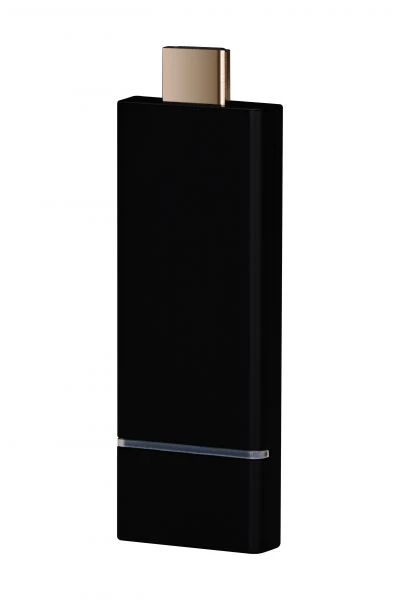

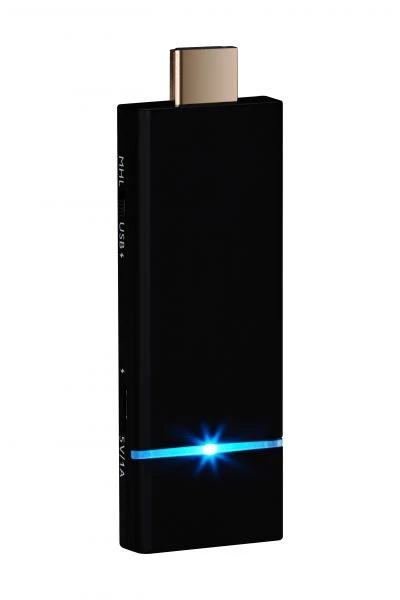

VC10 is a powerful and compact wireless dongle that enables content to be streamed wirelessly from mobile devices, PCs, and laptops to any projector or display. With its shared HDMI/MHL interface, VC10 is designed for cable-free connection and setup, making your wireless presentations easy and effective in any meeting room or classroom. The VC10 wireless dongle supports commonly used WiFi display standards which allows users to stream content to any display, while enterprise WiFi router access allows users to access business networks. In addition, VC10 can be plugged directly into ViewSonic’s PortAll® dongle compartment to provide wireless projection with ViewSonic projectors.

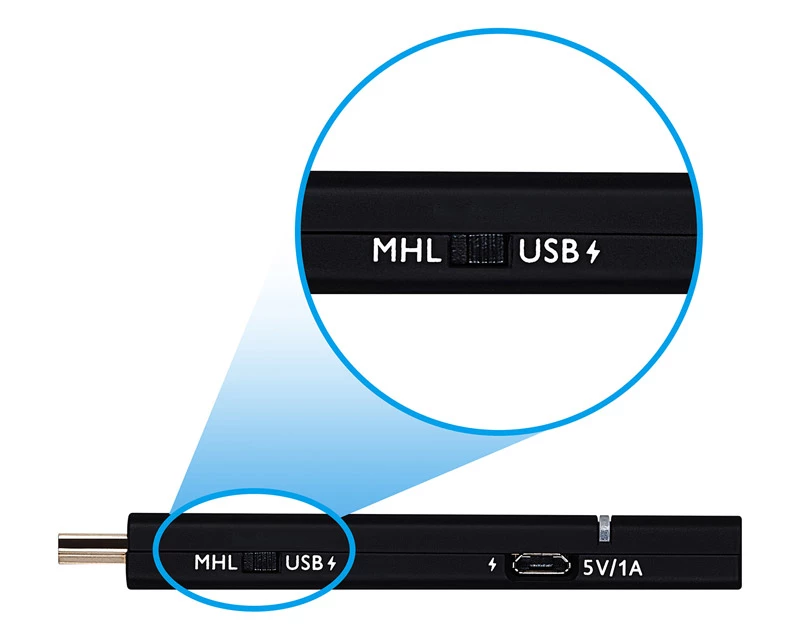

Shared HDMI/MHL display interface

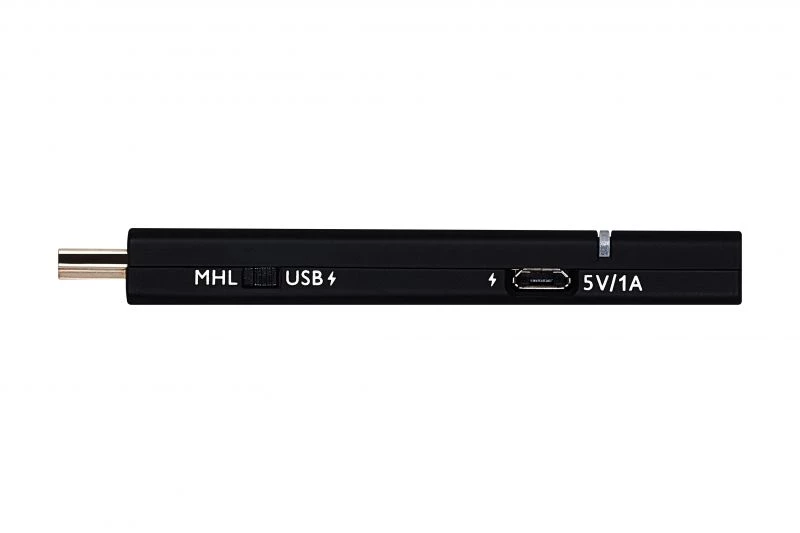

To enhance better convenience, VC10 comes with a shared HDMI and MHL output interface for flexible connectivity with projectors, TVs and monitors. A user-friendly switch allows users to easily toggle between MHL and HDMI modes.
*HDMI mode must be with USB charging port

HDMI/MHL

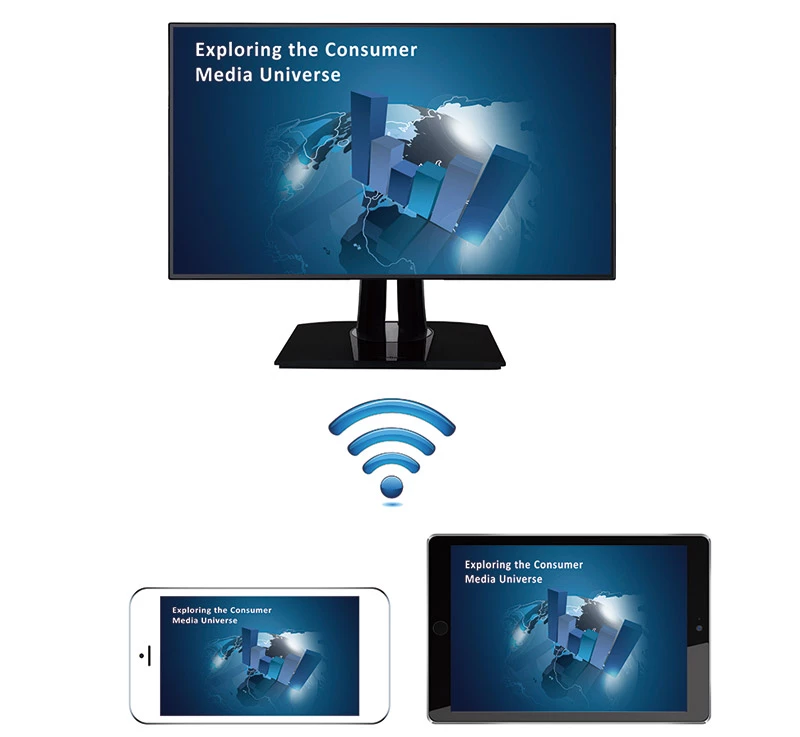

Easy Streaming from 3rd Party Apps

VC10 supports common WiFi display standards such as Miracast, Airplay, and DLNA, making it easy and convenient for users to stream from content from 3rd party apps.

MultipleWiFi Display

Enterprise WiFi Routers

VC10 is able to access enterprise WiFi routers such as PEAPvo or EAP-MSCHAPv2 which allows users to access business networks for convenience when presenting.

EnterpriseWiFi Routers

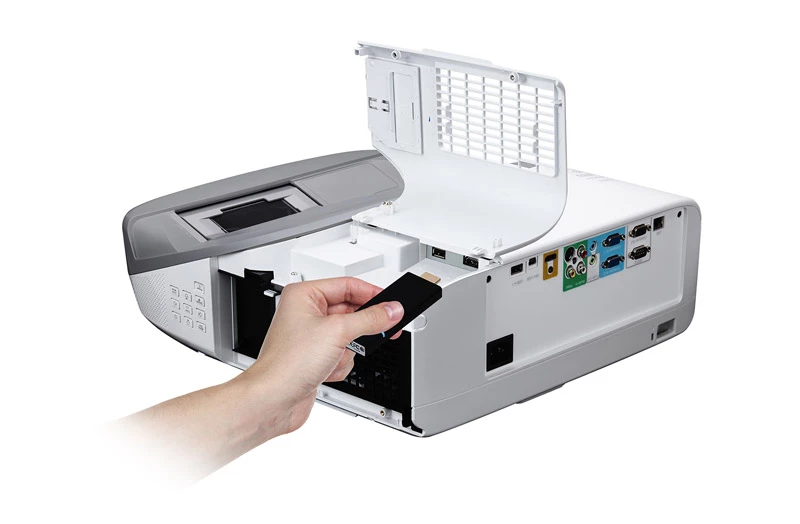

Cleverly Concealed Wireless Projection

VC10 can be easily plugged in and concealed within ViewSonic PortAll® compartments for convenient, cable-free projection.

PortAll® Compatible

Unobstructed Viewing from Any Seat

ViewSonic’s AirView function allows users to mirror projected or displayed images on their mobile device wherever they are in the room for unobstructed viewing.

AirView

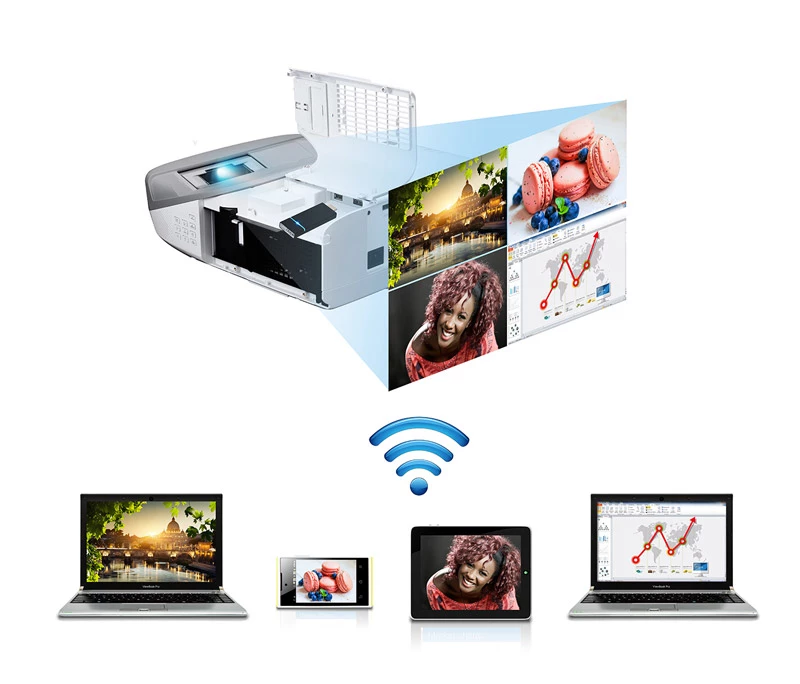

Four Way Split Screen Viewing

V10 allows users to view content from up to 4 connected sources, such as TVs, smartphones, and tablets, on a 4-way spit screen. All displayed content can then be controlled by a host or administrator for a smooth split screen experience.

4Split Screen

SPECIFICATIONS


  • Key Component
    Processor: Action Micro AM8251
    Wireless Module: RTL8192EU 2.4G 2T/2R
  • System requiremet
    WiFi Display(vPresenter Pro):
    • w/o smoothly video playback : Celeron 2.0G above CPU
    • Video playback smoothly – i5 2.4G CPU with SandyBridge
    • iOS 7 and above
    • Android 4.0 and above
  • Wireless Network
    Interface: Built-in 802.11 b/g/n 2T2R
    Frequency Range: 2.4GHz(2.312~2.472GHz, 2.484GHz)
    Output watts: 0.042 watts
    Antenna gain (Max) : 2 dBi
    Max. Transmission output power: 17.24dBm (0.053W)
    Data transfer speeds:
    • 150Mbps (max) @ 20MHz
    • 300Mbps (max) @ 40MHz

COMPATIBLE WITH VC10

LS800HD

5,000 Lumens Installation Projector

LS800WU

5,500 Lumens Installation Projector

LS810

5,200 Lumens Installation Projector

LS820

Full HD Home Theater Laser Projector with Rec.709

LS830

4,500 Lumens Installation Projector

PA505W

3,500 Lumens WXGA Business Projector

PG703W

4,200 Lumens WXGA Business Projector

PG703X

4,500 Lumens XGA Business Projector

PG705HD

4,000 Lumens 1080p Business Projector

PG800HD

5,000 Lumens Installation Projector

PG800W

5,000 Lumens Installation Projector

PG800X

5,000 Lumens Installation Projector

PJD6352

Embrace Network World and Experience Infinite Connection

PJD6352LS

Embrace Network World with Smart design

PJD6552LW

3,500 Lumens WXGA Business Projector

PJD6552LWS

3,500 Lumens Education Projector

PJD7326

LightStream™ 4000 lumens XGA Networkable Projector

PJD7526w

LightStream™ 4000 lumens WXGA Networkable Projector

PJD7720HD

1080p DLP 3200 lumens SuperColor™ High definition presentations Home Entertainment Projector

PJD7831HDL

1080p DLP 3200 lumens SonicExpert™ PortAll™ Home Entertainment Projector

Pro7827HD

2,000 Lumens 1080p Home Projector

Pro8510L

5,200 Lumens Installation Projector

Pro8530HDL

5,200 Lumens Installation Projector

Pro9510L

6,200 Lumens Installation Projector

PS501W

3,600 Lumens WXGA Education Projector

PS501X

3,600 Lumens XGA Education Projector

PS600W

3,700 Lumens WXGA Education Projector

PS700X

3,300 Lumens XGA Education Projector

PS750HD

3,300 Lumens 1080p Education Projector

PS750W

3,300 Lumens WXGA Education Projector

PS750X

3,300 Lumens XGA Education Projector

PX725HD

2,000 Lumens 1080p Home Projector

PX727-4K

2,200 Lumens 4K Home Projector
