Direct View LED
LDP216-121
Key Features
- 4K UHD display for rich details and immersive visuals
- Reliable operation with COB LED packaging technology
- Immersive audio from built-in Harman Kardon speakers
- All-in-One design without complicated setup
- Adaptable and flexible to suit any display scenario
- Effortless full-front maintenance
Product Description
Behold truly spectacular picture quality from ViewSonic® 4K UHD LDP216-121 All-in-One LED Display. A breakthrough innovation in LED displays – the large screen boasts industry-leading Chip-on-Board (COB) LED packaging technology, 4K UHD resolution, and superior audio fidelity from professional Harman Kardon speakers for an out-of-this-world audiovisual experience. Embedded with cutting-edge COB LED packaging technology, it enables finer pixel pitch and well-engineered performance that you can depend on. The minimalistic 4K UHD display is supported with HDR/HLG capabilities to deliver deeper contrasts, ultimate clarity, and more engaging visuals. Soak in a rich, studio-grade soundscape from the seamlessly flushed Harman Kardon speakers – the LDP216-121 is an audiovisual innovation perfect for sophisticated engineering, research institution, and a luxurious audiovisual feast for reception and VIP room. Cleverly designed for user-centric installation and maintenance, the All-in-One solution offers total versatility to fit and enhance any indoor location. Equipped with a detachable system control box, it offers maximum flexibility to blend harmoniously into its surroundings. Stretch beautiful UHD content across an expandable ultra-wide 32:9 video wall. Or simply turn it into portrait mode for an alternative viewing perspective.
- Power Switch
- Harman Kardon Speakers
- HDMI Out
- Audio Out
- S/PDIF Out
- IR In
- USB 2.0 (5V/1.5A) x 2
- LAN & Control
- HDMI 2.0 x 2
- HDMI 1.4 x 2
- HDMI 2.1
- RS232
- USB-C (5V/2A)
- USB 2.0 (5V/1.5A)
- IR Receiver
- Menu Control: Brightness Level
- Menu Control: Volume
- Menu Control: Input Source
- Power Button
- Indicator Light
Visit Us
- www.viewsonic.com
-
Sự CHỉ Rõ

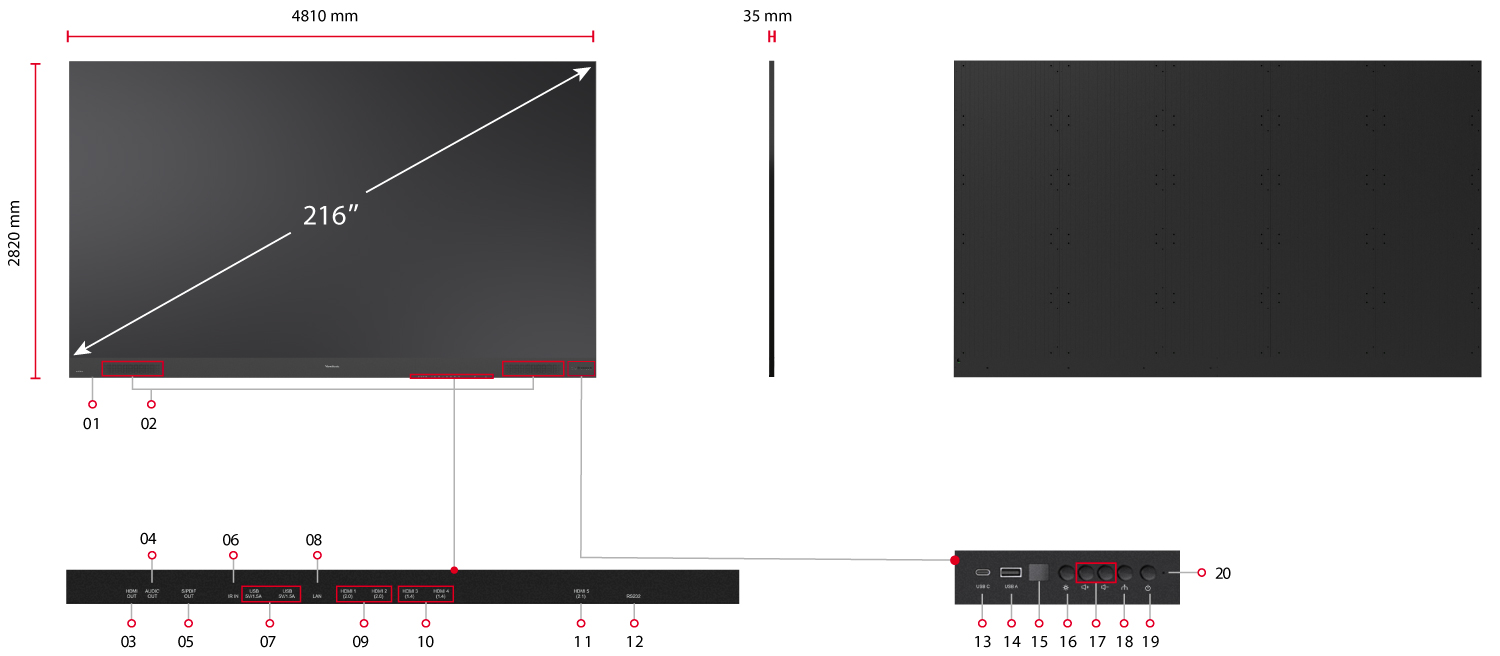

Screen Size: 216" Khu vực hiển thị (mm): 4800 (H) x 2700(V) Độ phân giải gốc: 3840x2160 Panel Technology: Direct view LED LED Package Type: COB Pixel Pitch (mm): 1.25 Refresh Rate: 3840Hz Brightness (max.): 500 nits (8 levels adjustable) Contrast Ratio (typ.): 20000:1 Hướng: Landscape / Portrait Viewing Angles (typ.): H = 170, V = 170 LED Lifetime (typ.): 100,000 Lưu trữ cục bộ: Total 64GB
(56GB available storage)Hệ điều hành tích hợp: Android 9.0 Hỗ trợ độ phân giải: VGA(640 x 480) to 4K(3840 x 2160) Tương thích HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz Tần số ngang: 23-120 kHz Tốc độ quét dọc: 15-135 Hz -
ĐầU VàO
HDMI: x6
(HDMI 2.1 x 1, HDMI 2.0 x 2, HDMI 1.4 x 2, HDMI 2.0 internal x1)USB Type A: x3
(USB2.0 x3)RJ45 Input (Internet): x1 IR in: x1 Wi-Fi Input: 2.4G/5G Hz USB Type C: x1
(Video input、Power output (5V/2A))Đầu vào âm thanh (3,5 mm): x1 HDBaseT: x1
(1080P@100m、4K30Hz@70m) -
ĐầU RA
HDMI out: x2
(HDMI 2.0 external x1,internal x1)Loa: 20W x2 (Harman Kardon) Cổng ra âm thanh (3,5 mm): x1 USB Type A (Nguồn): Shared with USB input
(5V/1.5A x3) -
ĐIềU KHIểN
RJ45 (LAN control): x1(shared with Internet) USB Type A (Services): x1(shared with USB A input) RS232 (DB 9-pin female): x1 IR Receiver: x1 -
KHáC
Điện áp cung cấp: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
(vary by country)Nhiệt độ hoạt động: 0~40℃ LED Module Quantity: 768 Ingress Protection Rating: IP54(Front) Khối lượng tịnh: 925.9 lbs(420kg) Gross Weight: 1168.45 lbs(530 kg) Screen Dimensions (WxHxD): 189.3x111x1.4 inches
(4810x2820.3x35 mm)Screen Dimensions (WxHxD) with wall mount: 189.8x111x3 inches
(4810x2820.3x77 mm)Packing Dimensions: 109.5x33.5x50.4 inches
(2780x850x1280 mm) -
STANDARD ACCESSORIES
Dây nguồn: x2 LAN Cable (Cat 5A): x1 (5m) IR Extender Cable: x1 (3m) Điều khiển từ xa: x1 QSG: x1 Giá treo tường: x1 Spare Parts: 42 Maintenance Tool: LD-MK-002 x1 -
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-002 x1 ViewBoard Cast Button(USB-C): VB-WPS-001 ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
