Detachable PC Modules

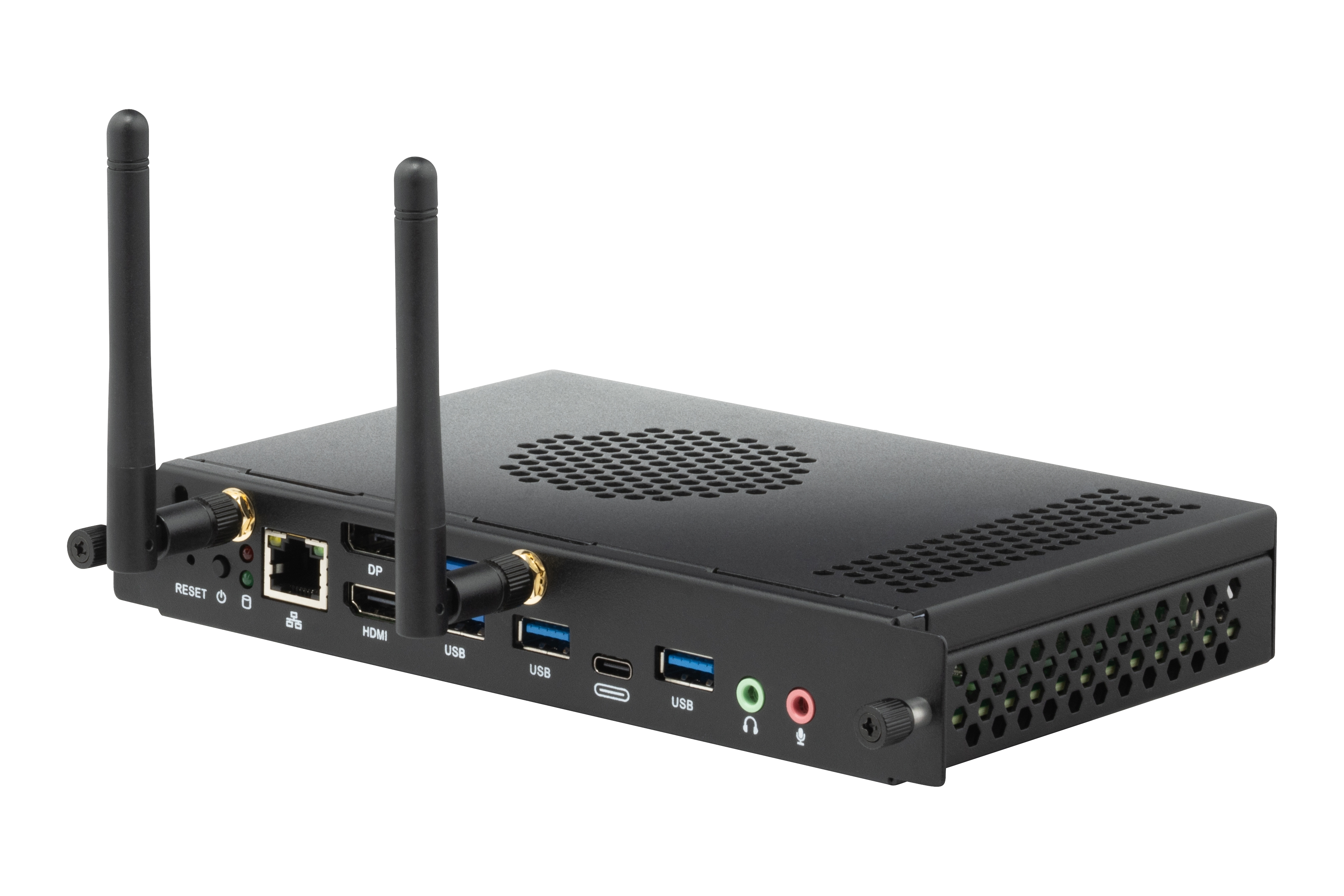

VPC37-W53-G1
Key Features
- Windows 11 Pro
- Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
- Powerful Intel® 12th Core Processors embedded TPM2.0
- Improved System Stability, Security, & Thermal Control
Product Description
Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPC37-W53-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 16GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.1, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.
Visit Us
- www.viewsonic.com
-
SOFTWARE
Operating System: Windows 11 Pro -
CORE
CPU: Intel® Core™ i7-1260P 2.1G Turbo boost 4.7G Graphics: Integrated Intel® iris Xe Graphics (96EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP) -
MEMORY
Type: DDR4 SO-DIMM Capacity: 16GB (up to 32GB) -
STORAGE
Dimension: M.2 2280 (22 x 80 mm) Capacity: 256GB SSD Interface: PCIE and SATA 3 -
INPUT
MIC(Microphone): x1 -
OUTPUT
DisplayPort: x1 (1.4 max. resolution 7860x4320@60Hz) HDMI: x 1 (2.0 max. , resolution 3840x2160@60Hz) Audio: x 1 Line out -
LAN
RJ45: x1 -
WIRELESS / BLUETOOTH
Wireless / Bluetooth: Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1 -
USB
Type A: USB 3.0 x 4 Type C: x 1 (data only) -
BUNDLE SOFTWARE
Bundle Software: myViewBoard for Window
Adobe Reader
BIOS Winflash tool
FinchGuard (Watch Dog)" -
POWER
Voltage: DC 12-19V/ 8A Consumption: 96 W (Max) -
OPERATING CONDITIONS
Temperature (º C): -5~40°C Humidity: 10% ~ 90% @ 40°C Non-condensing. -
DIMENSIONS (W X H X D)
Physical (inch / mm): 7.95 x 4.83 x 1.18 in / 202 x 122.6 x 30 mm Packaging (inch / mm): 10.51 x 7.56 x 2.83 in / 267x 192 x 72mm -
WEIGHT
Net (lb / kg): 1.33lb/0.6kg Gross (lb / kg): 2.14 lb/0.97kg -
REGULATIONS
REGULATIONS: cTUVus, FCC/ICES003, FCC ID/ ICID, TPCH DoC, Packing waste, CA65 DoC, CE EMC, (LVD or CB,CE R&TTE, ErP, RoHS Green BOM & DoC,REACH SVHC,WEEE -
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. VPC37-W53-G1
2. Quick Start Guide
