Projector
PA504W
Key Features
- 1.21-1.57 throw ratio enables seamless projector upgrades
- 4,000 ANSI Lumens offering bright images in any environment
- Convenient connectivity with dual HDMI and USB-A power supply
- Comprehensive LAN control for centralised device management
- High native contrast ratio achieved through Texas Instruments' 0.65" DMD chip
- DLP technology offering filter-free design and consistent image quality
Product Description
The ViewSonic PA504W is a high-brightness lamp projector tailored for both education and business settings. It features a 1.21-1.57 throw ratio, allowing seamless projector upgrades in typical installation conditions. With 4000 ANSI Lumens, it ensures bright, vivid images even in well-lit environments, guaranteeing clarity for every presentation or lesson. Its Texas Instruments' 0.65” DMD Chip elevates the viewing experience with a high native contrast ratio, unveiling fine details for exceptional sharpness on the screen. Effortlessly switch between content sources via the dual HDMI ports. Additionally, you can combine it with the ViewSonic WPD-700 Wireless Screen Casting Kit, powered by the projector's USB-A output, for expanded versatility. Comprehensive LAN control takes this convenience further, providing streamlined device management. Based on DLP technology, it maintains consistent colour performance and great readability over time and features a filter-free design for minimal maintenance requirements.
Visit Us
- www.viewsonic.com
-
SPECIFICATION
Native Resolution: 1280x800 Brightness: 4000 (ANSI Lumens) Contrast Ratio with SuperEco Mode: 22000:1 Display Color: 1.07 Billion Colors Light Source Type: 200W UHP Lamp Light Source Life (hours) with Normal Mode: 5000 Light Source Life (hours) with SuperEco Mode: 15000 Lens: F=2.59-2.87, f=16.88-21.88mm Projection Offset: 120%+/-5% Throw Ratio: 1.21-1.57 Optical Zoom: 1.3x Digital Zoom: 0.8x-2.0x Image Size: 30"-300" Throw Distance: 0.78m-10.14m
(100"@2.61m)Keystone: V:+/-40° Audible Noise (Normal): 31dB Audible Noise (Eco): 27dB Input Lag: 16ms Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080) HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p Video Compatibility: NTSC, PAL, SECAM Horizontal Frequency: 15K-102KHz Vertical Scan Rate: 23-120Hz -
INPUT
Computer in (share with component): 1 Composite: 1 HDMI: 2
(HDMI 1.4/ HDCP 1.4)Audio-in (3.5mm): 1 -
OUTPUT
Monitor out: 1 Audio-out (3.5mm): 1 Speaker: 10W USB Type A (Power): 1 (5V/1.5A) -
CONTROL
RS232 (DB 9-pin male): 1 RJ45 (LAN control): 1 USB Type A (Services): 1
(share with USB A Output) -
OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)Power Consumption: Normal: 255W

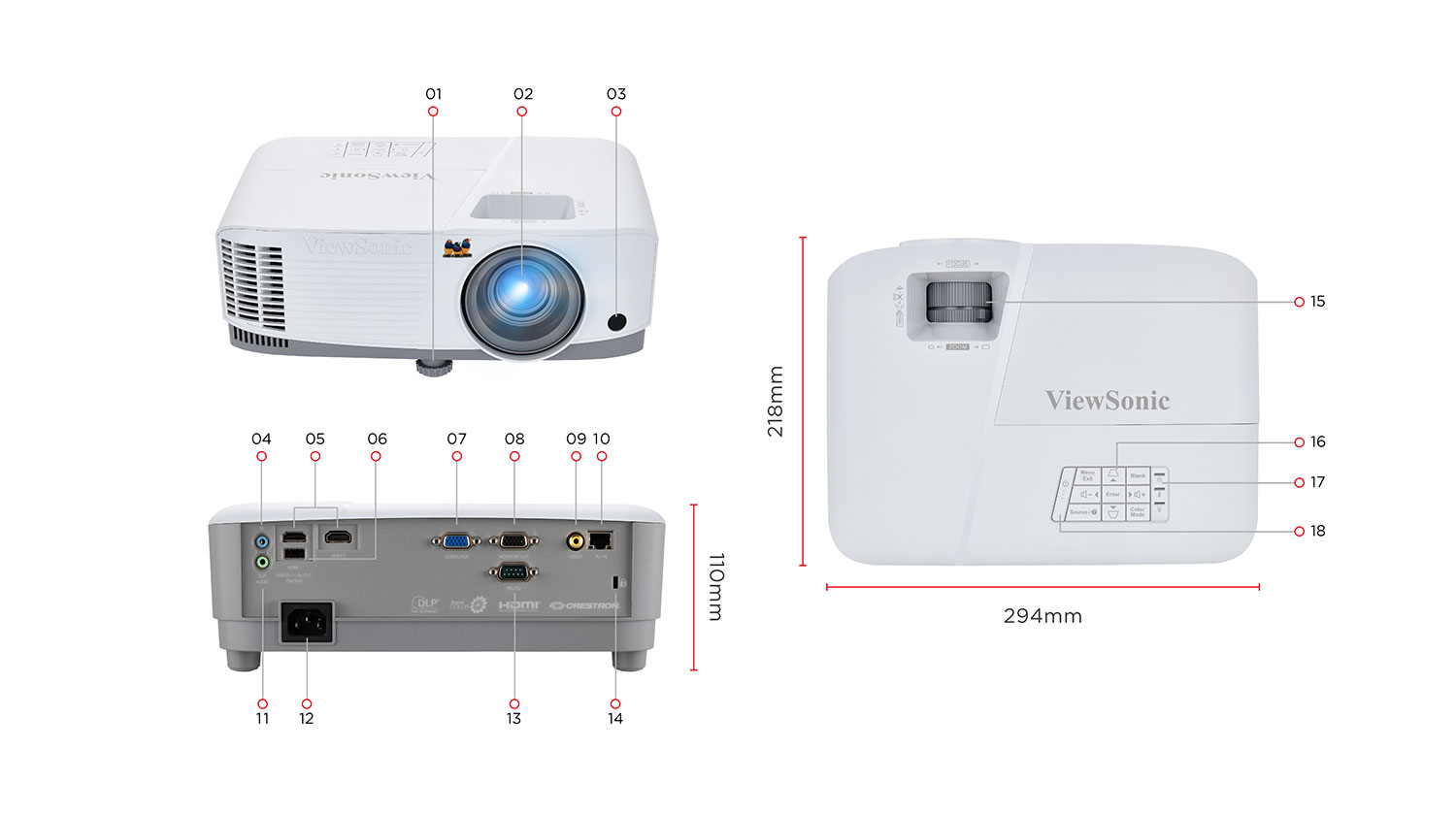

Standby: <0.5WOperating Temperature: 0~40℃ Carton: Brown Net Weight: 2.33kg Gross Weight: 3.54kg Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm Packing Dimensions: 415x168x297mm OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages -
STANDARD ACCESSORY
Power Cord: 1 VGA Cable: 1 Remote Control: 1 QSG: Yes Warranty Card: Yes (CN only) -
OPTIONAL ACCESSORY
Lamp/Light Source: RLC-130 Wall/Ceiling Mount: PJ-WMK-007 Carry Bag: PJ-CASE-008
