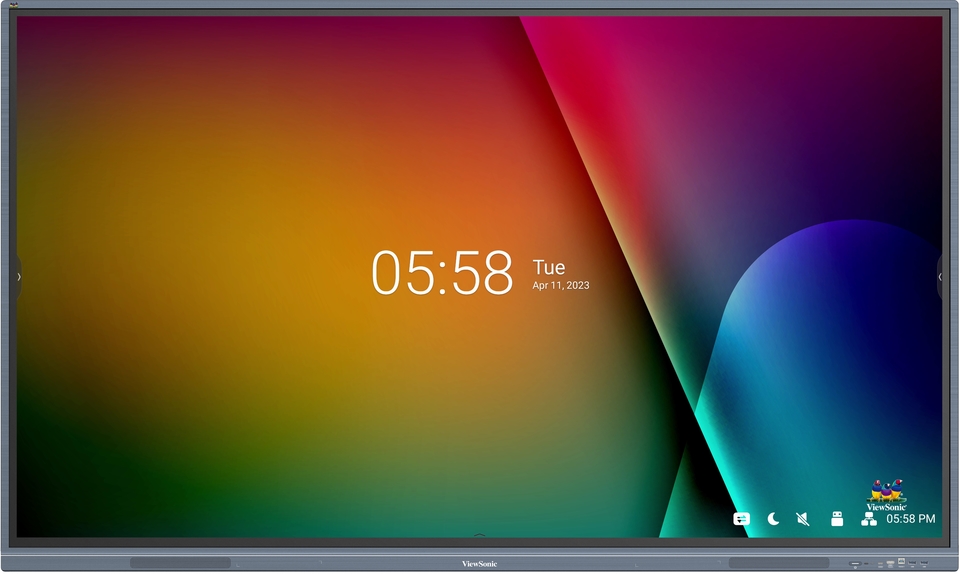

ViewBoard IFP7533-G
Key Features
- Integrated with myViewBoard software
- Multi-tasking capabilities for enhanced lesson delivery
- Embrace simplicity and organization with the USB-C one-cable solution, offering 65W of Power Delivery.
- Intuitive user interface and fast app launch for smooth operation
- Powered by Android 13
Product Description
The ViewBoard IFP33 Series harmonises a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colours, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is preinstalled with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
- POWER ON/OFF
- USB C
- HDMI 1
- TOUCH 1
- USB 3.0x2
- OPS Slot
- RS-232
- LAN
- USB 2.0x2
- TOUCH 2
- HDMI 2
- HDMI 3
- HDMI OUT
- USB
- VESA® Wall Mount (800x400mm)
- SPDIF
- AUDIO in
- AUDIO out
- VGA
- Power On/OFF
- AC IN
- Wi-Fi Slot
- Sensor Mount
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 75" Panel Type: TFT LCD Module with DLED Backlight. IPS Display Area (mm): 1649.664(H) × 927.936(V) (74.6” diagonal) Aspect Ratio: 16:9 Resolution: UHD 3840x2160(Pixels) Colours: 1.07B colours Brightness: 450 nits Contrast Ratio: 5000:1 (max. with DCR enabled) Response Time: 8ms Viewing Angles: H=178, V=178 Backlight Life: 50,000 Hours (8 hours of use per day) Surface Treatment: Hardness: 7H Anti-glare coating Orientation: Landscape -
PLATFORM
Processor: Quad-core ARM Cortex (A55*4 ) RAM: 8GB DDR4 Storage: 128 GB -
TOUCH
Type/ Tech: Ultra Fine Touch Technology Touch Point: 40 points touch -
INPUT
HDMI: HDMI-IN 2.0 x 3 (3840x2160 @60Hz) RGB / VGA: x1 Audio: x1 RS232: x1 OPS: x1 (Optional Intel Standard OPS) WiFi: x1 (Optional VB-WIFI-002/VB-WIFI-004/VSB-050) -
OUTPUT
HDMI: HDMI 2.0 x1 Audio: x1 SPDIF: x1 -
LAN
RJ45: x2 -
USB
Type A: USB3.0 x4 (Front x2, Rear x2)；
USB2.0 x1Type B: x2 (Front x1, Rear x1) Type C: Frontx1 (PD65W + DP1.2 + Data USB2.0 + 10M/100M sharing) -
SPEAKERS
18W x 2 -
TOP CAMERA PLATE
Yes -
EMBEDDED OS
Android 13 -
BUNDLE SOFTWARE
Basic Annotation Software: myViewBoard Whiteboard Pro Annotation Software: myViewBoard for Windows (Embedded in optional Windows Slot-in PC) Wireless Presentation: myViewBoard Display Wireless Presentation with Touch Feedback: Viewboard Cast: Yes -
SPECIAL FEATURES
All-in-one USB port: (combine slot-in PC/Android/HDMI USB port) Front “SmartPort™ USB” to all channels. Simple LAN sharing between IFP and slot-in device: 10/100M for Android & Slot-in PC Light Sensor: Yes -
POWER
Voltage: 100-240V AC Consumption: ON: 106W ; Off: ≤ 0.5W -
ERGONOMICS
Wall Mount (VESA® ): 800x400 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% RH non-condensing -
DIMENSIONS (W X H X D)
Physical (inch / mm): 1709 x 1020 x 88 mm / 67.3 x 40.2 x 3.5 in Packaging (inch / mm): 1863 x 1140 x 225 mm / 73.3x 44.9 x 8.6 in -
WEIGHT
Net (lb / kg): 104.3lb/47.3kg Gross (lb / kg): 133.5lb/60.55kg -
REGULATIONS
FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI,BIS -
PACKAGE CONTENTS
1. 3m power cord by ship area 2. Remote control with AAA battery 3. 3m touch USB cable 4. Touch pen x 2 (VB-PEN-009) 5. Quick Start Guide + Compliance statement 6. RS232 adapter 7. Clamp x 5 8. Camera Plate 9. Screw x 8 (camera 2+2, wall mount 4) 10. HDMI cable 3m -
COMPATIBLE SLOT-IN PC
VPC35-W53-G1/VPC37-W53-G1
