PS502X

4,000 ANSI Lumens XGA Short Throw Business & Education Projector

4,000 ANSI Lumens offering clear images in any environment
0.616 Short throw ratio for minimal space consumption
Up to 300" ultra large screen with lower cost-per-inch
Easy and flexible connection: dual HDMI ports, USB Type-A port
Convenient software updates for projectors via USB connection

Sales Enquiry Share

GALLERY

OVERVIEW

The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.

High Brightness for Business & Education Environments

Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.

4,000 ANSI Lumens

High Brightness for Business & Education Environments 1

Big Screen for Small Spaces

The PS502X’s 0.616 short throw projection gives you 100” from only 1.3m away whenpositioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare andshadows on the projection screen.

0.616 Short Throw

Ultra-Large Screen with Lower Cost-per-inch

The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.

Up to 300"

Ultra-Large Screen with Lower Cost-per-inch 1

Easy and Flexible Connection

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.

Dual HDMI Ports

Vibrant Colours for Captivating Presentations

Impress any audience with ViewSonic’s exclusive colour technology and elevate your presentationwith a true-to-life colour experience.

Vibrant Colors for Captivating Presentations 1

A Simpler Way to Update Projector Software

Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.
Learn more: https://youtu.be/irlhJLpDHas
*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.

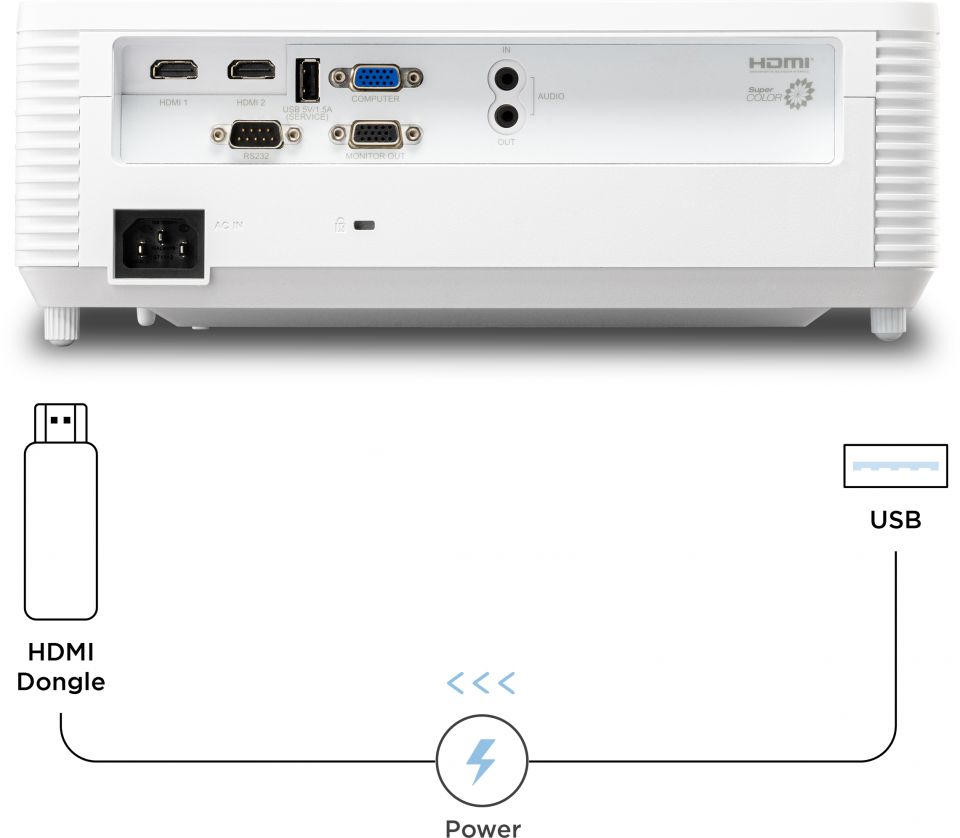

USB Type A Power Supply

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.

Audio Right Out of the Box

The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentationswithout the need for external speakers.

Built-in 16W Speakers

Dimensions & I/O Ports

Adjustment Foot
Lens
Front IR
HDMI 1
HDMI 2
USB-A(5V/15A, Service)
Computer In
Audio In
AC in
R232
Kensingtion Lock
Monitor Out
Audio Out
Focus Ring
LED Indicator
Keypad

SPECIFICATIONS

Specification
Projection System: 0.55" XGA
Native Resolution: 1024x768
Brightness: 4000 (ANSI Lumens)
Contrast Ratio with SuperEco Mode: 15000:1
Display Color: 1.07 Billion Colors
Light Source Type: 240W UHP Lamp
Light Source Life (hours) with Normal Mode: 4000
Light Source Life (hours) with SuperEco Mode: 12000
Lens: F=2.7, f=7.15mm
Projection Offset: 130%+/-10%
Throw Ratio: 0.616
Optical Zoom: Fixed
Digital Zoom: 0.8x-2.0x
Image Size: 60"-300"
Throw Distance: 0.75m-3.76m
(77"@0.96m)
Keystone: +19°/-19° (V)
Audible Noise (Normal): 34dB
Audible Noise (Eco) : 25dB
Input Lag: 33.2ms
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Horizontal Frequency: 15K-102KHz
Vertical Scan Rate: 23-120Hz
Input
Computer in (share with component): 1
HDMI: 2
(HDMI 1.4/ HDCP 1.4)
Audio-in (3.5mm): 1
Output
Monitor out: 1
Audio-out (3.5mm): 1
Speaker: 16W
USB Type A (Power): 1 (5V/1.5A)

Control
RS232 (DB 9-pin male): 1
USB Type A (Services): 1
(share with USB A Output)
Others
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
(AC in)
Power Consumption: Normal: 295W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.87kg
Gross Weight: 4.08Kg
Dimensions (WxDxH) with Adjustment Foot: 309x234x115mm
Packing Dimensions: 400x337x168mm
OSD Language: English, German, French, Swedish, Spanish, Portuguese, Polish, Dutch, T. Chinese, S.Chinese, Finnish, Korean, Russian, Hungarian, Czech, Arabic, Thai, Turkish, Vietnamese, Indonesian, Greek, Italian, Total 22 languages
User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
Standard Accessory
Power Cord: 1
VGA Cable: 1
Remote Control: 1
QSG: Yes
Lens Cover: Yes
Air Filter: Yes (CN Only)
Warranty Card: Yes (CN Only)
Optional Accessory
Lamp/Light Source: RLC-128
Air Filter: RSPL
Wall/Ceiling Mount: PJ-WMK-305
PJ-WMK-007
Carry Bag: PJ-CASE-008
