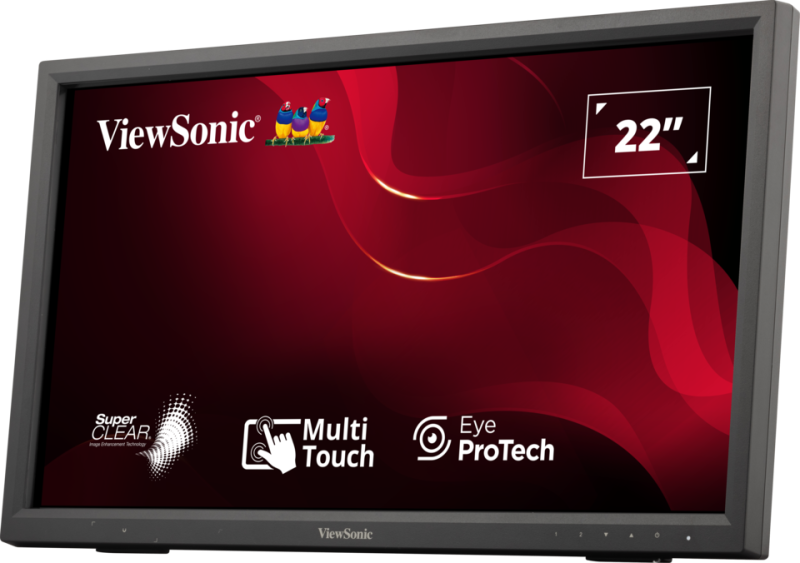

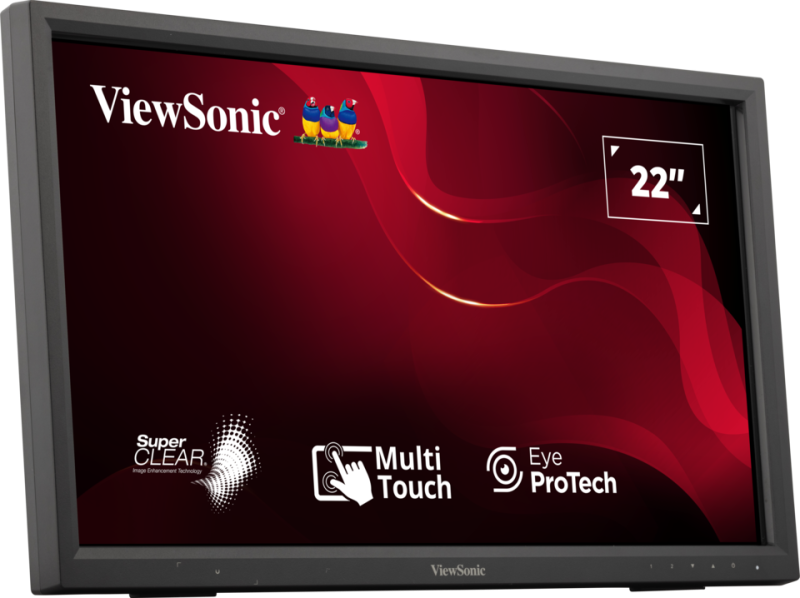

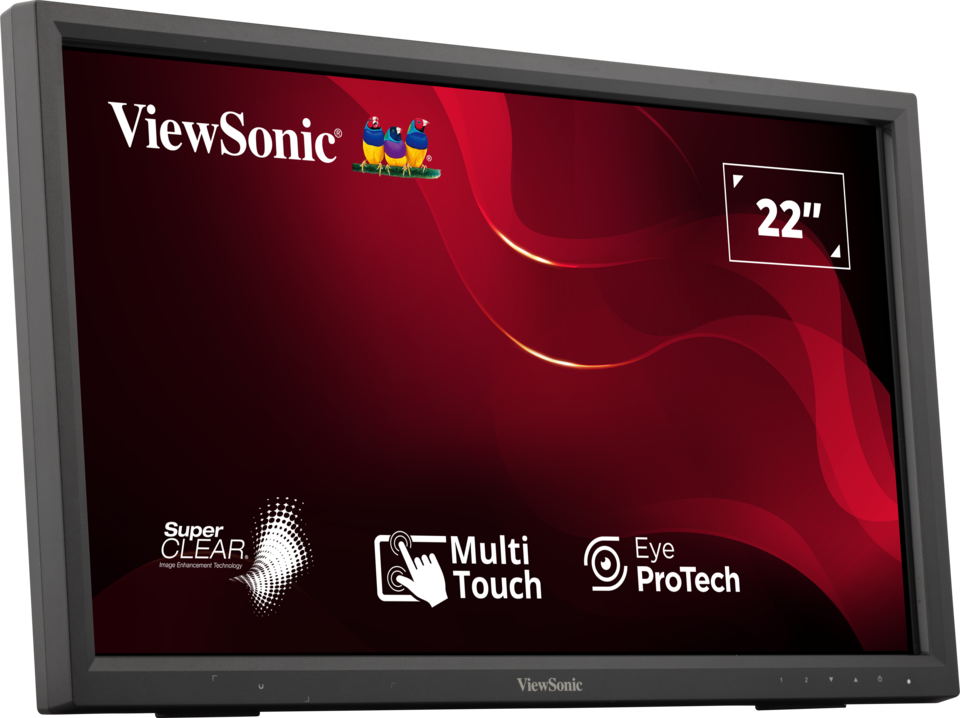

TD2223

22” IR Touch Monitor

Intuitive 10-point touchscreen
Finger, stylus, and glove touch compatible
Magnetic pen placeholder
Adjustable back tilt up to 40-degrees
Scratch-resistant 7H hardness screen

Sales Enquiry Share

GALLERY

OVERVIEW

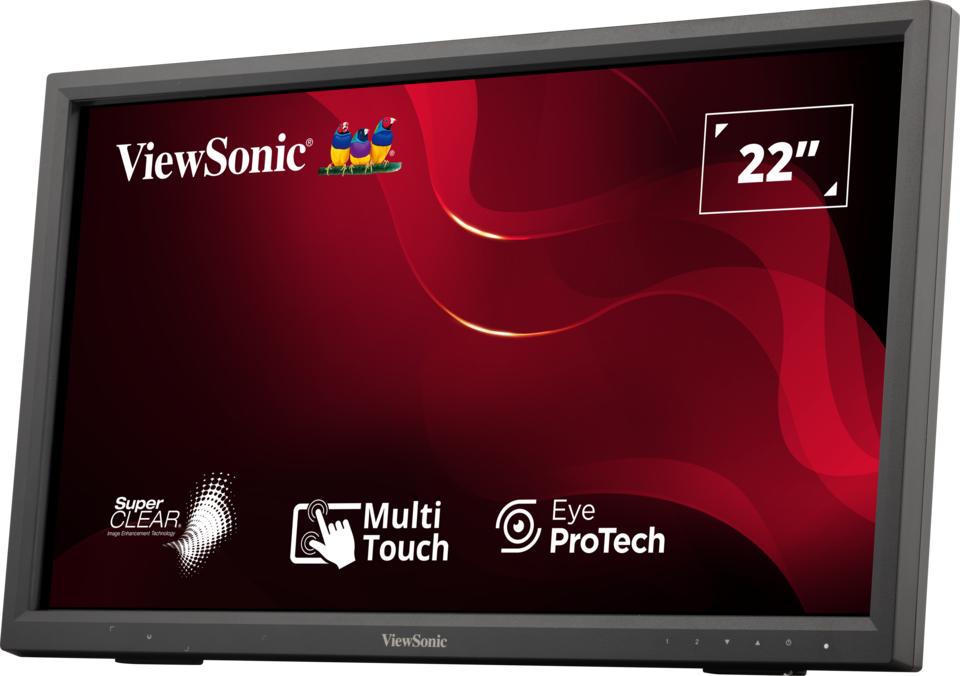

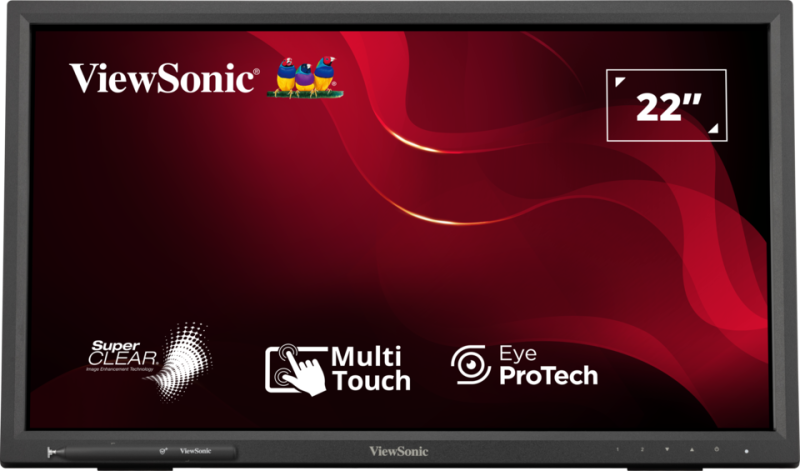

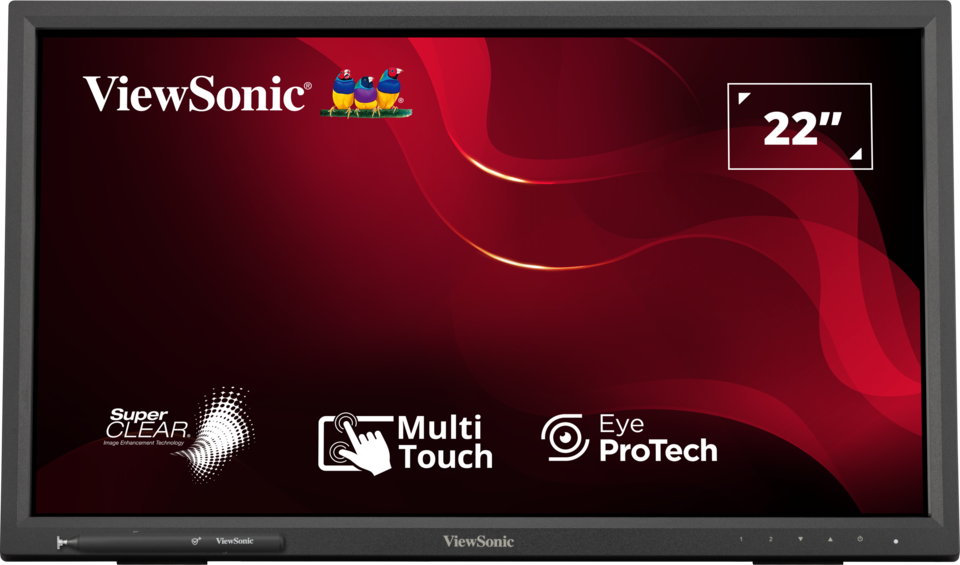

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.

IR Touch Technology

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

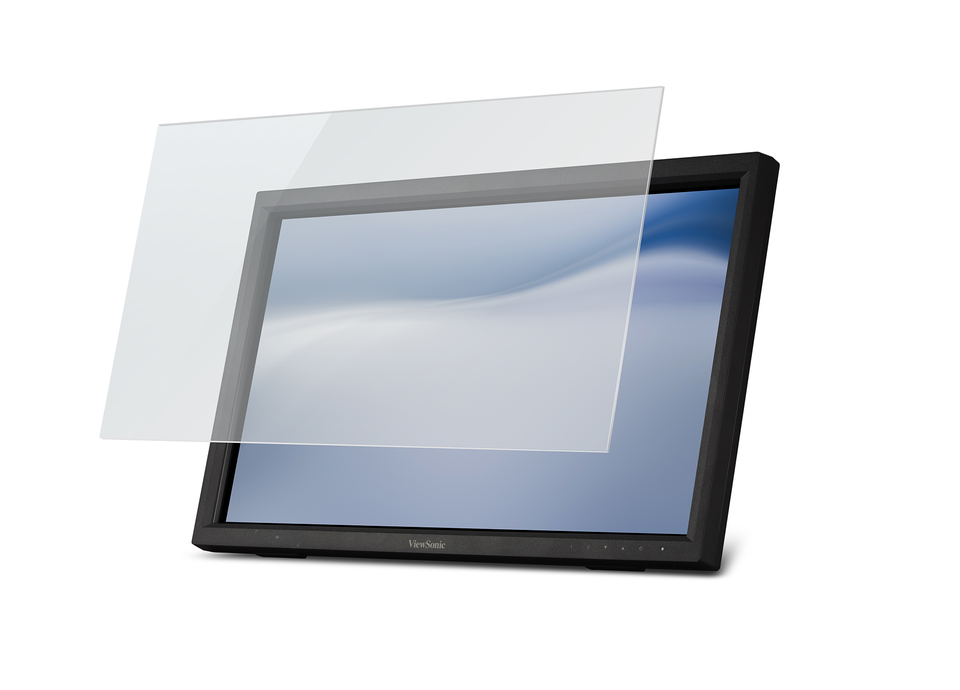

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

7H Hardness Screen

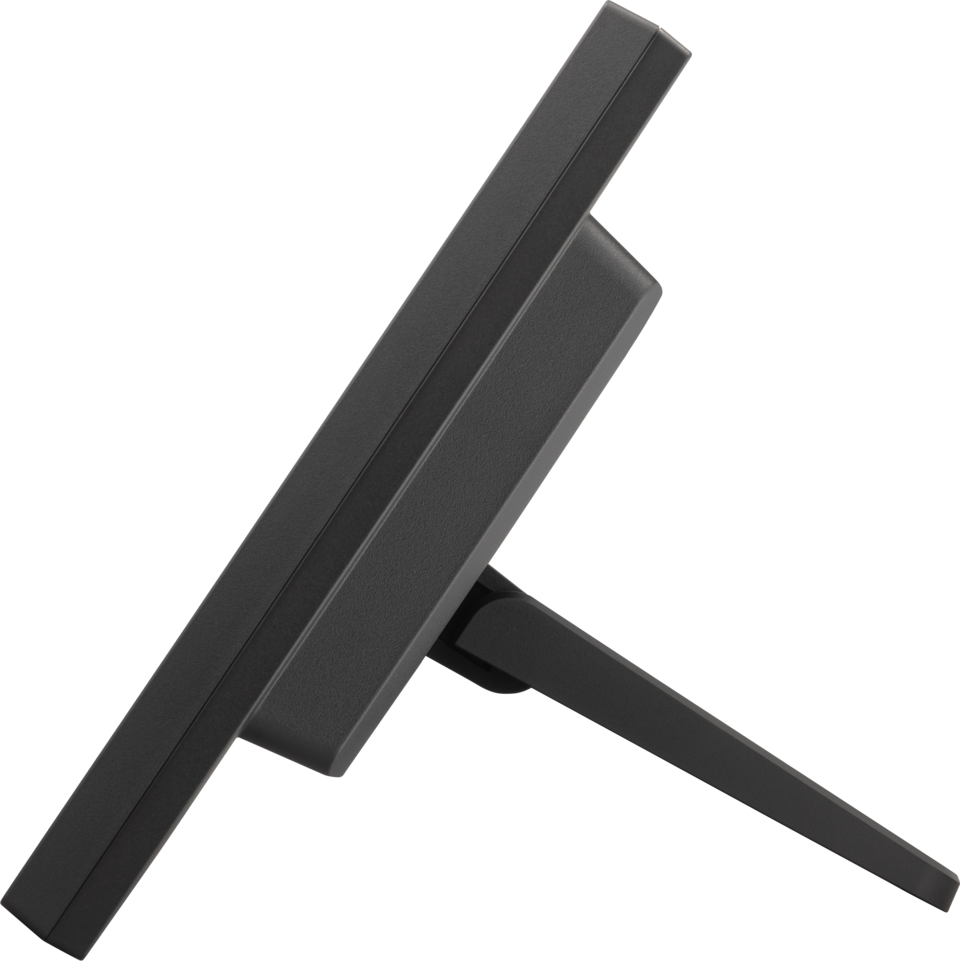

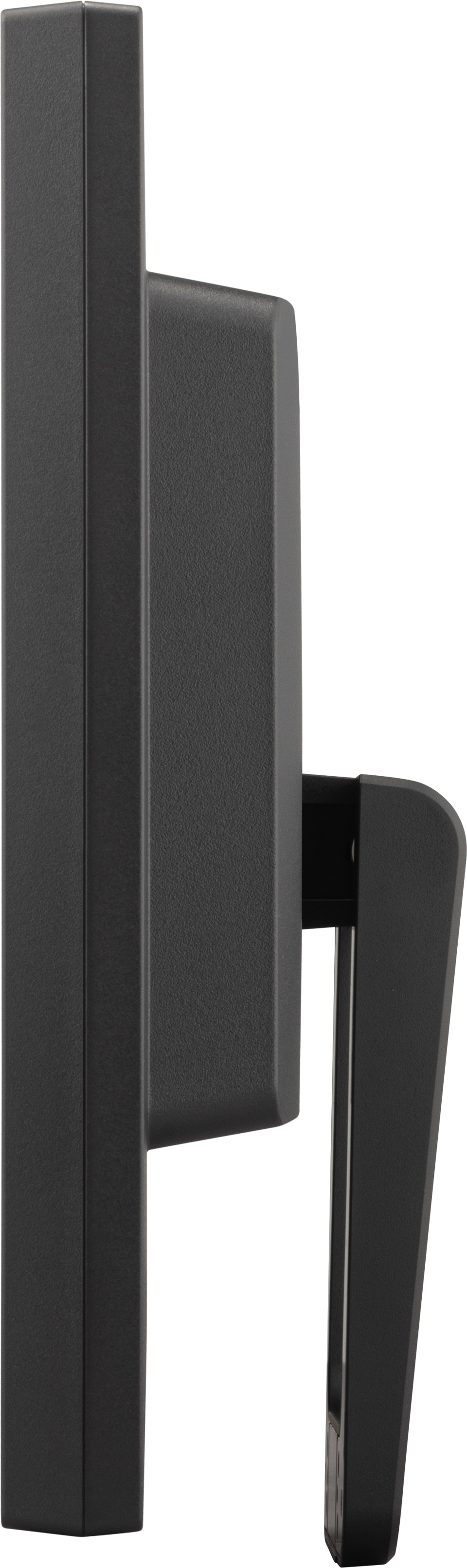

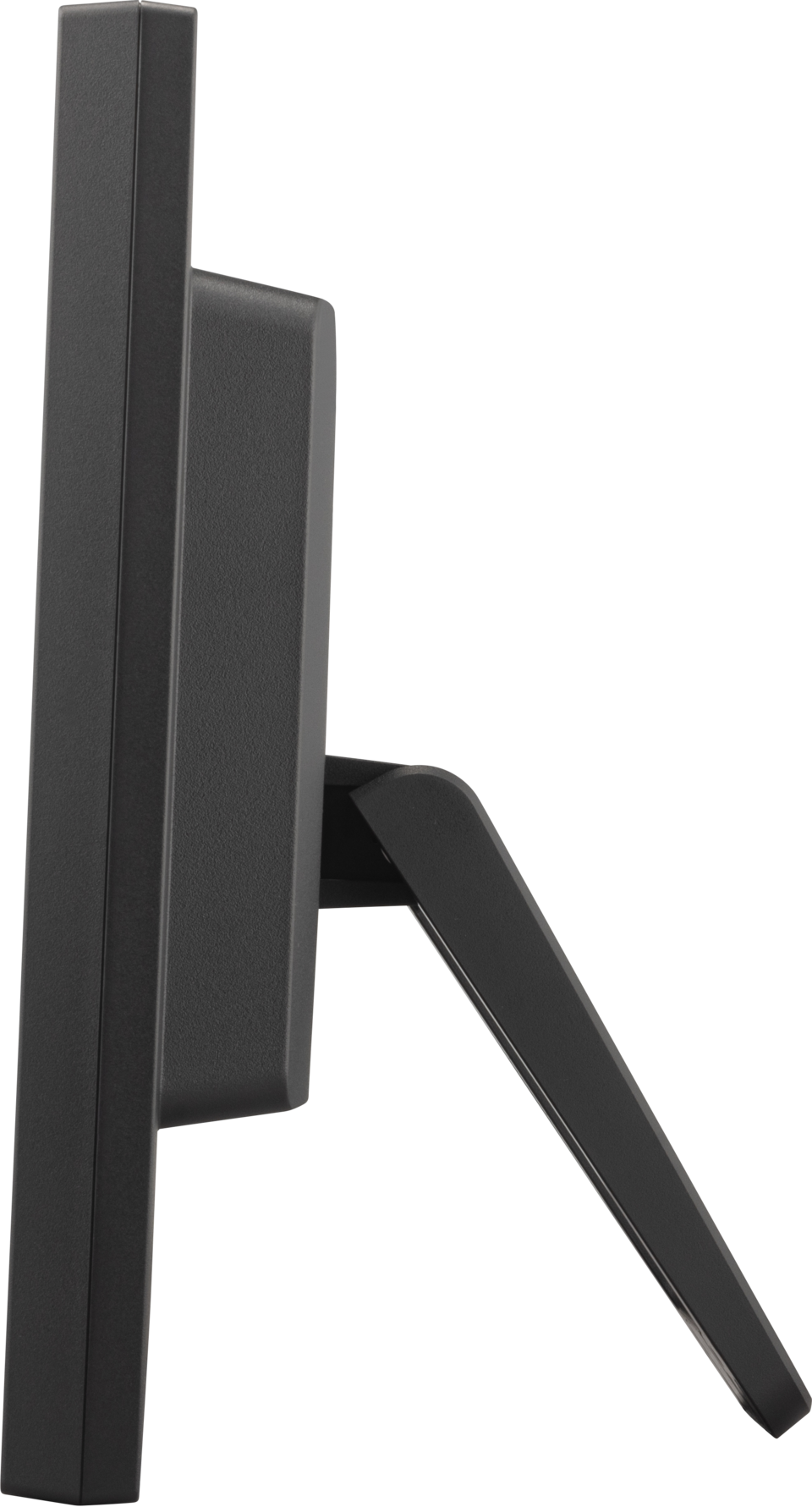

Adjustable Tilt

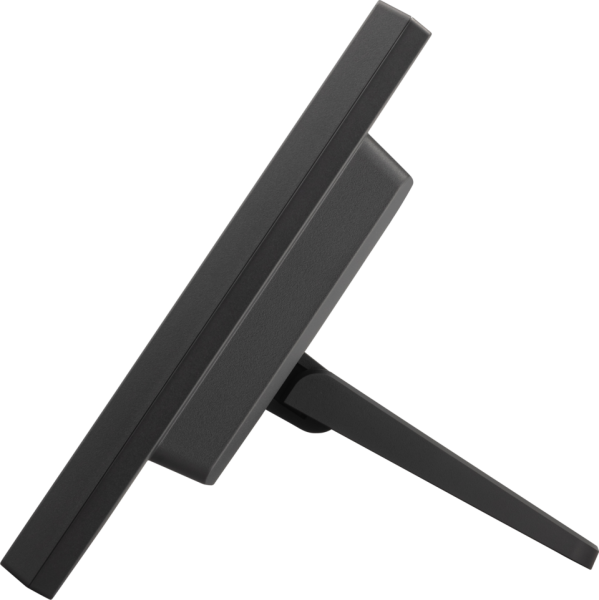

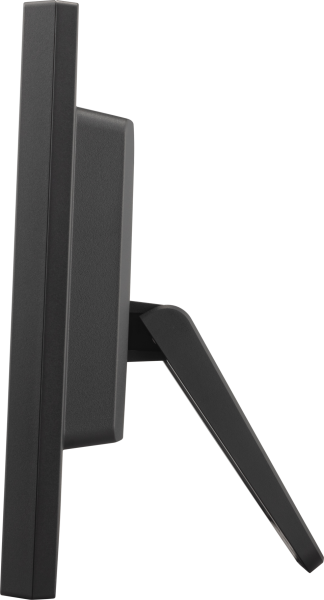

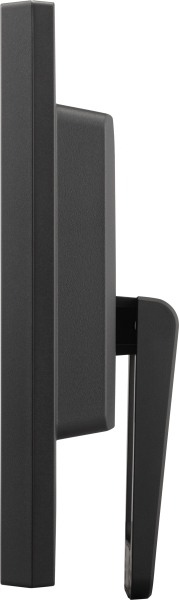

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.

Full HD 1080p

Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.

Full HD 1080P

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.

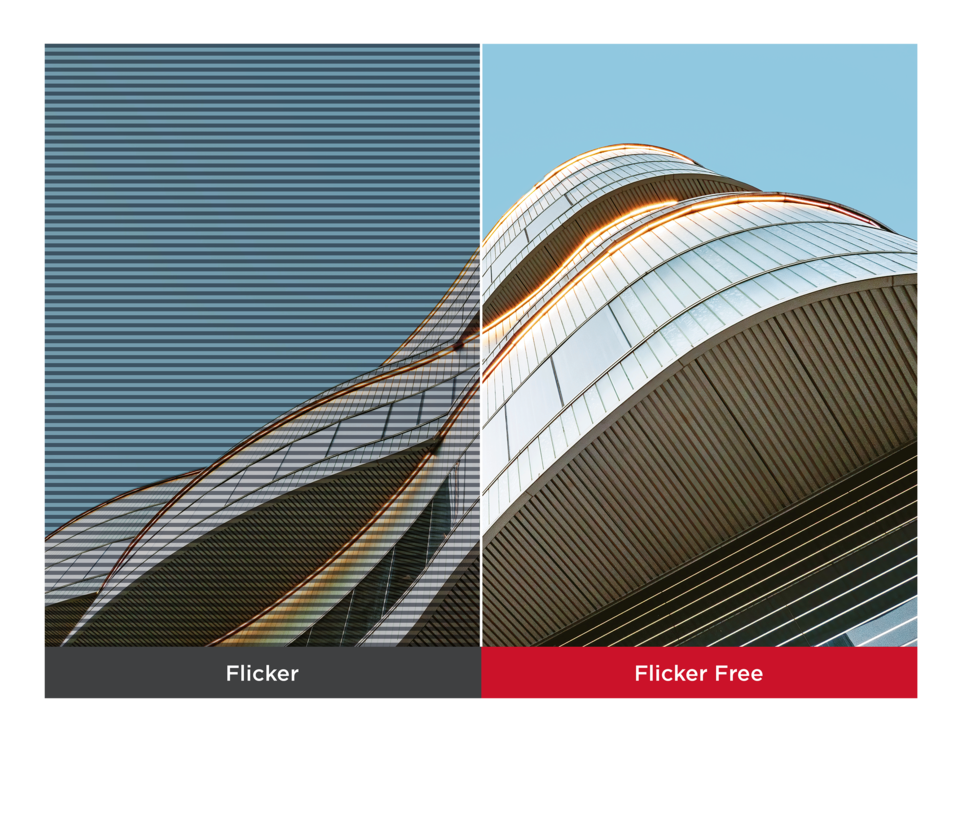

Relieve your Eyes from Strain

Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.

Flicker-Free & Blue Light Filter

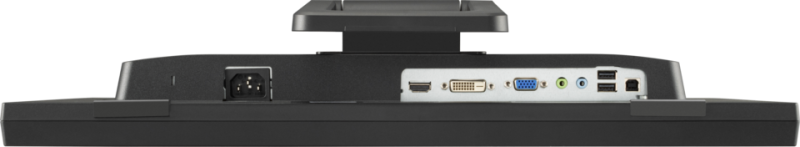

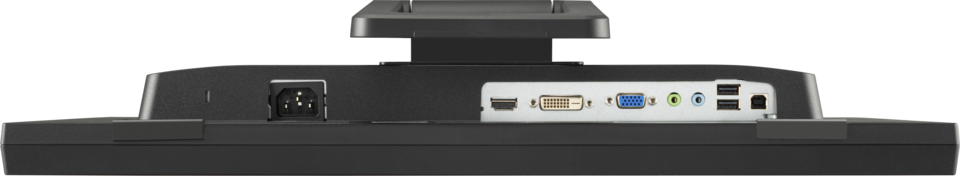

Dimension & I/O Ports

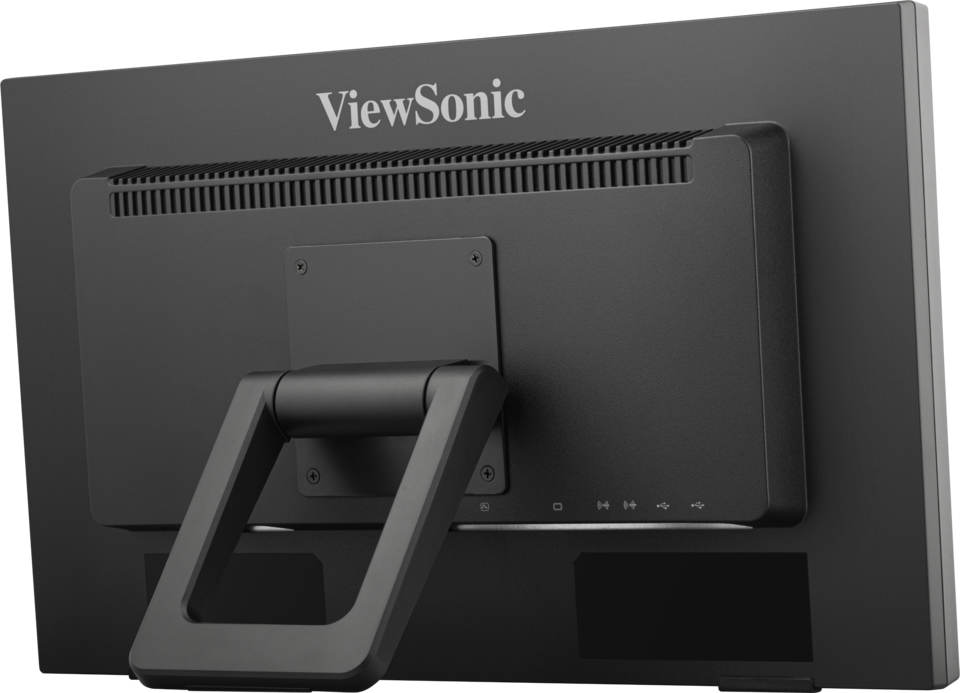

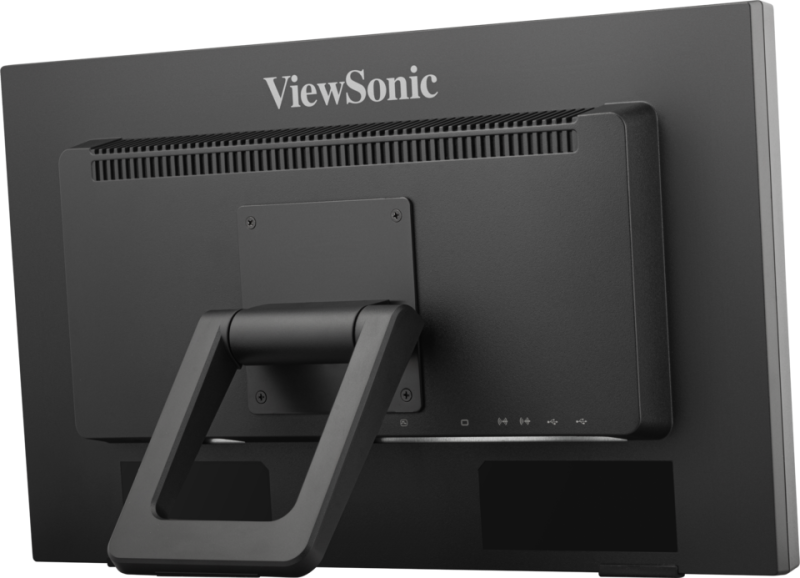

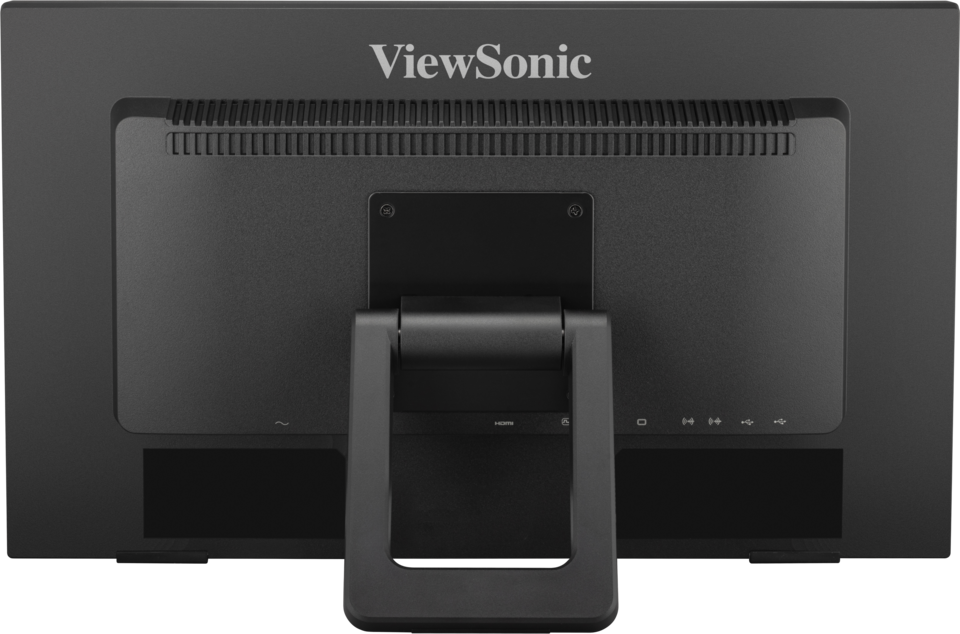

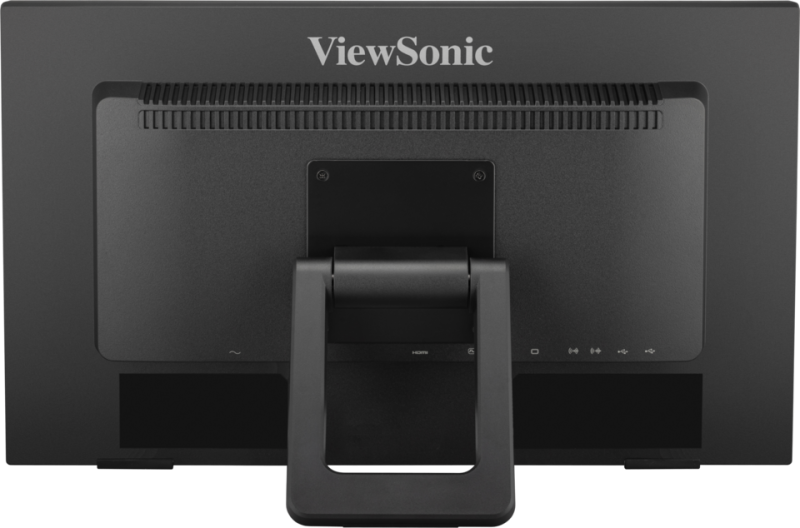

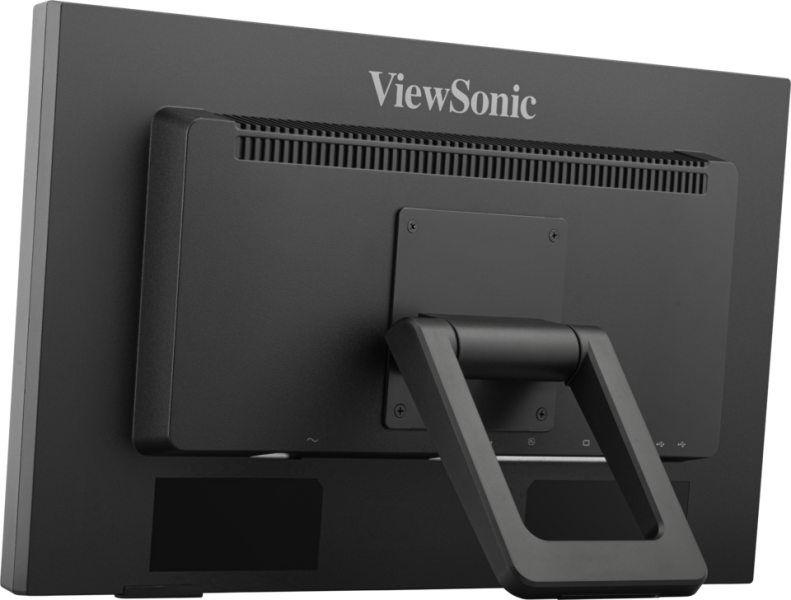

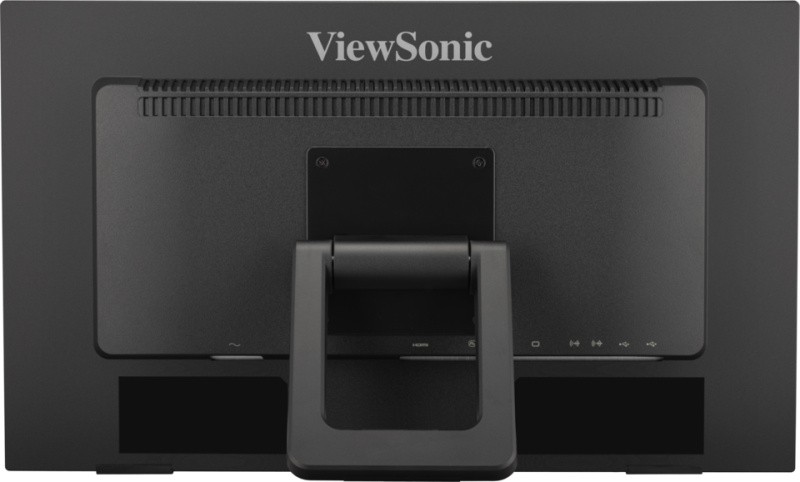

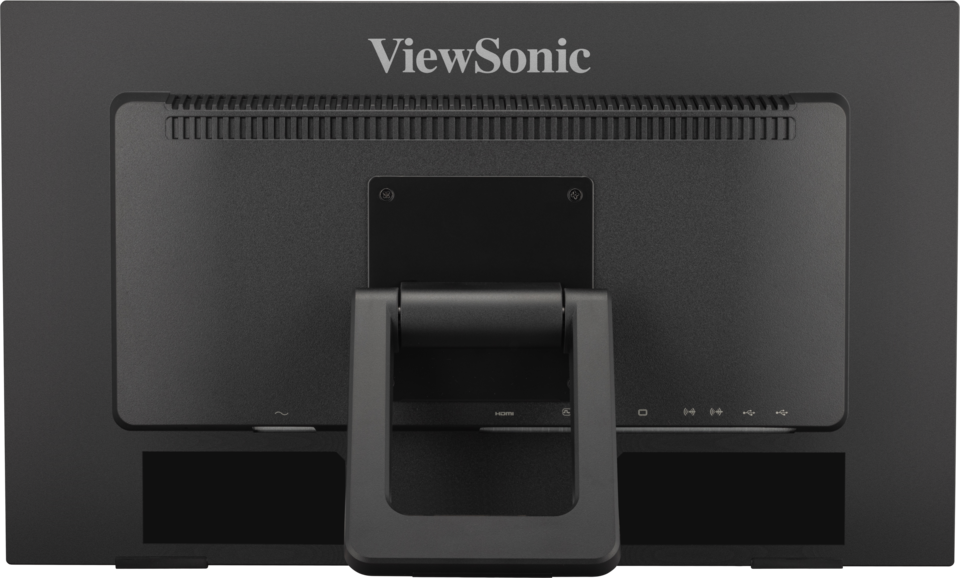

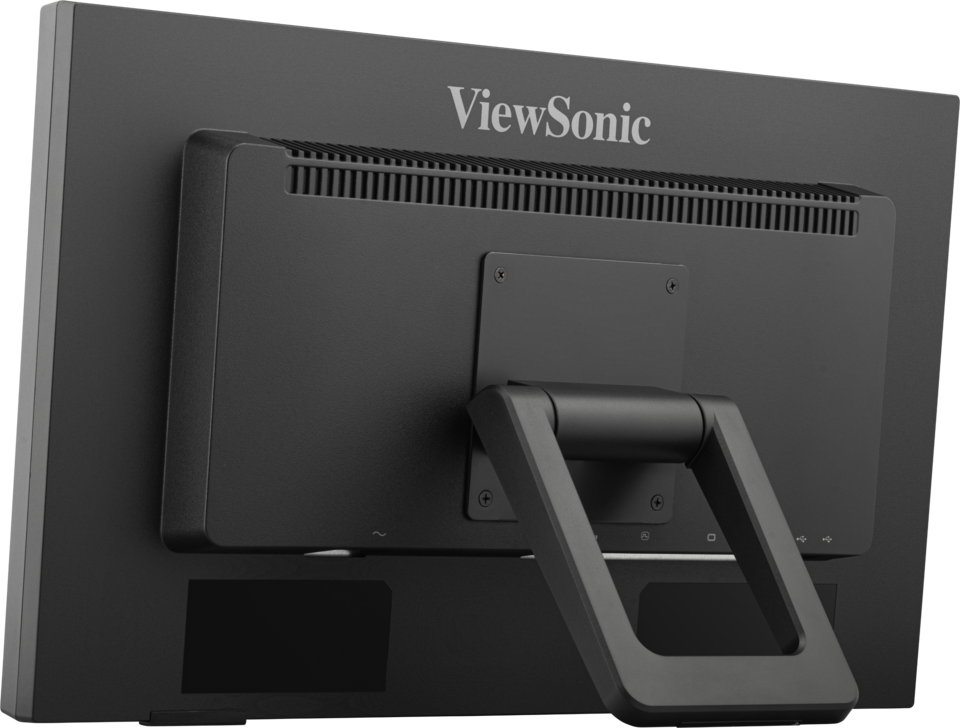

Conveniently mount the monitor to your preference by utilising the 100mm x 100mm VESA-compatible mount design.

100mm x 100mm VESA mount

Menu Control Panel
Power In
VESA Compatible
(Wall Mount 100 x 100mm)
HDMI
DVI
VGA
Audio In
Audio Out
USB Downstream
USB Upstream

SPECIFICATIONS

Display
Display Size (in.): 22
Viewable Area (in.): 21.5
Panel Type: VA Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 3,000:1 (typ)
Dynamic Contrast Ratio: 20M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Response Time (Typical GTG): 6.5ms
Response Time (GTG w/OD): 6.5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Pixel Size: 0.249 mm (H) x 0.241 mm (V)
Touch Screen: IR, 10-point multi-touch
Surface Treatment: Glossy, Hard Coating (7H)
Cover Glass Thickness: 2mm
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DVI-D: 1
Power in: 3-pin Socket (IEC C14 / CEE22)

Audio
Internal Speakers: 2Watts x2
Power
Eco Mode (Conserve): 13W
Eco Mode (optimized): 16W
Consumption (typical): 18.5W
Consumption (max): 21.8W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: Internal Power Supply
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: 1, 2, Up, Down, Power
On Screen Display: Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz
Video Input
Digital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Tilt (Forward/Back): 20º / 40º
Weight (imperial)
Net (lbs): 9.3
Net Without Stand (lbs): 8
Gross (lbs): 12.6
Weight (metric)
Net (kg): 4.2
Net Without Stand (kg): 3.7
Gross (kg): 5.7
Dimensions (imperial) (wxhxd)
Packaging (in.): 22.8 x 15.9 x 6.4
Physical (in.): 20.4 x 12.9 x 4
Physical Without Stand (in.): 20.4 x 12.1 x 2.4
Dimensions (metric) (wxhxd)
Packaging (mm): 580 x 405 x 162
Physical (mm): 519 x 329 x 101
Physical Without Stand (mm): 519 x 308 x 61
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS
PACKAGE CONTENTS: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
