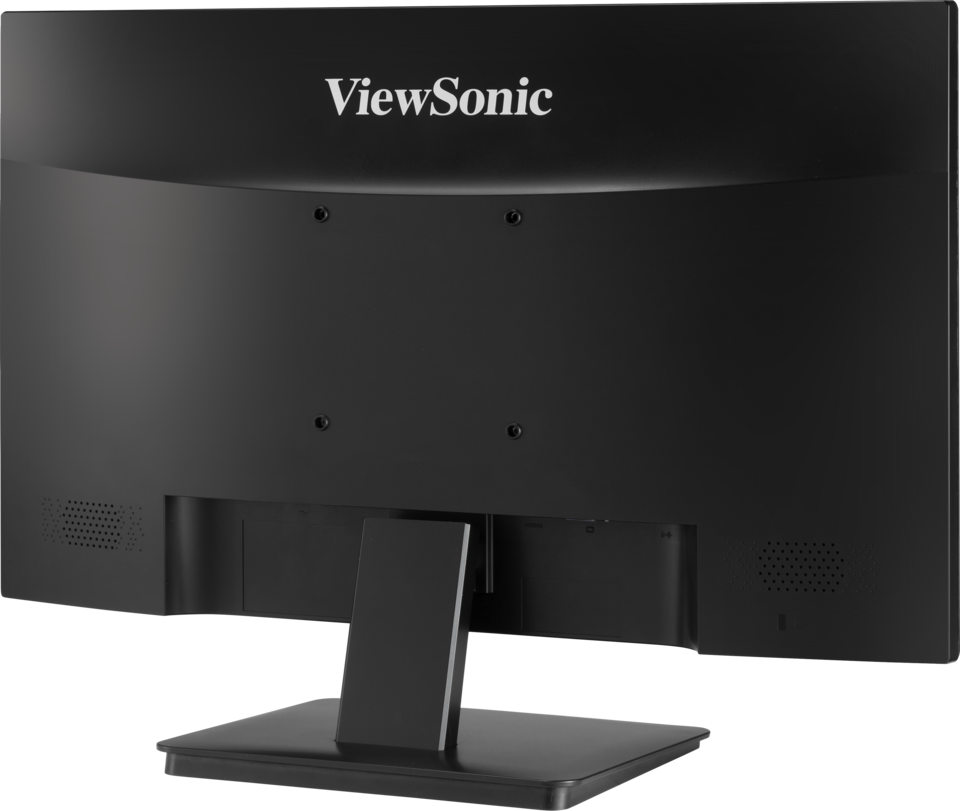

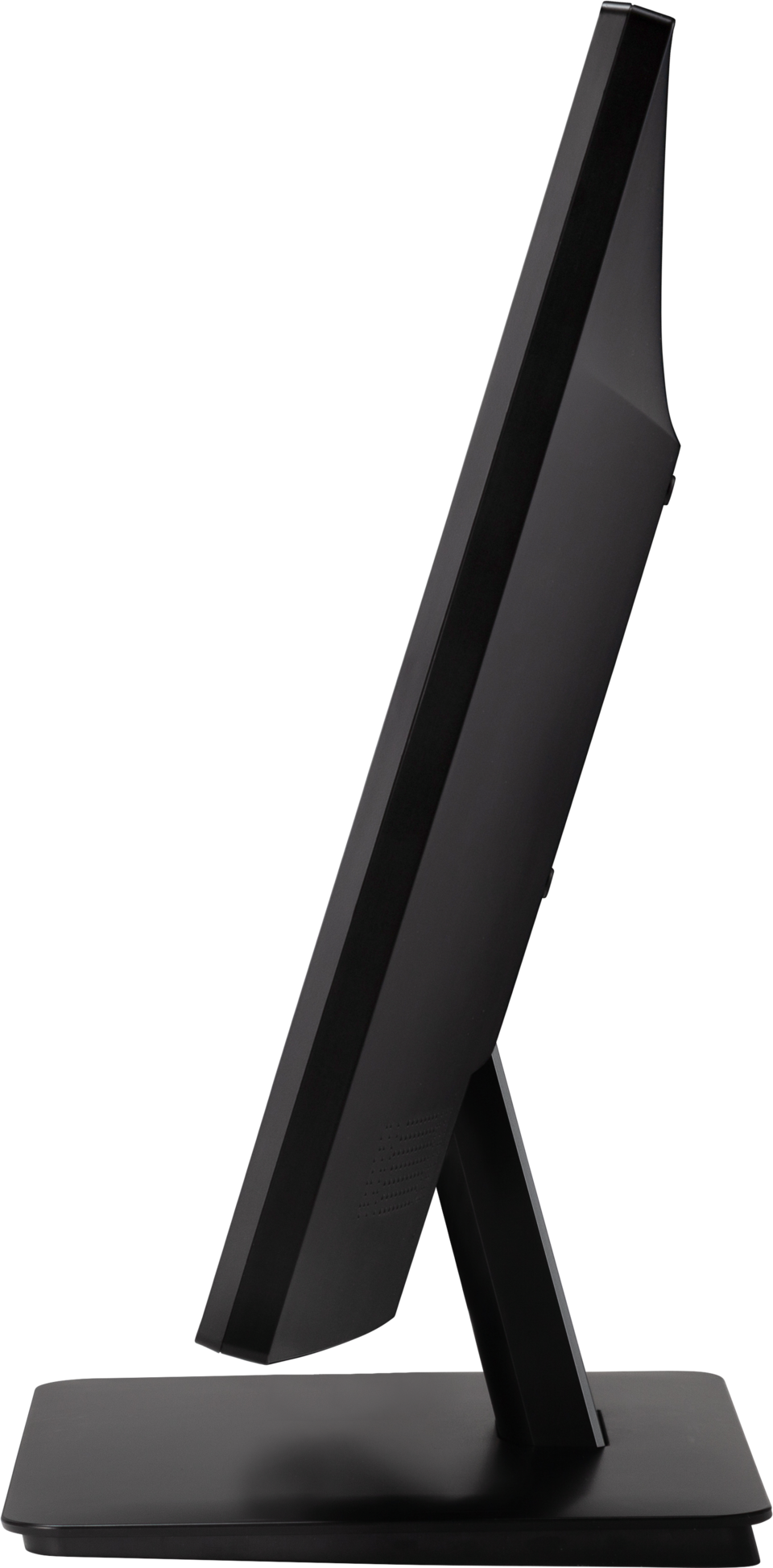

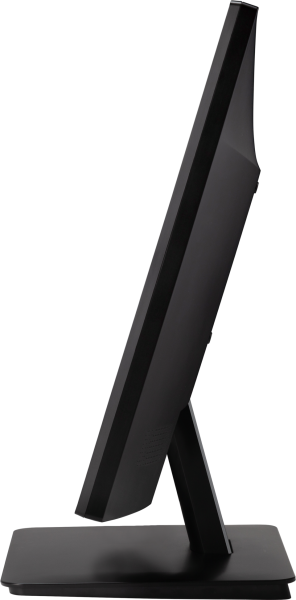

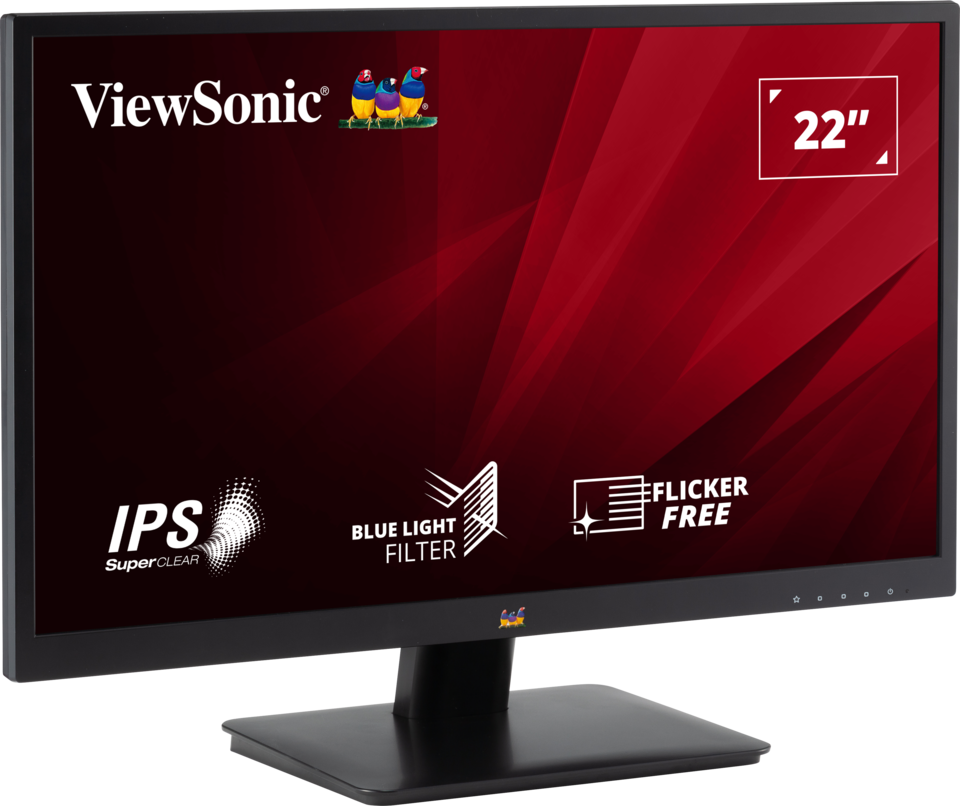

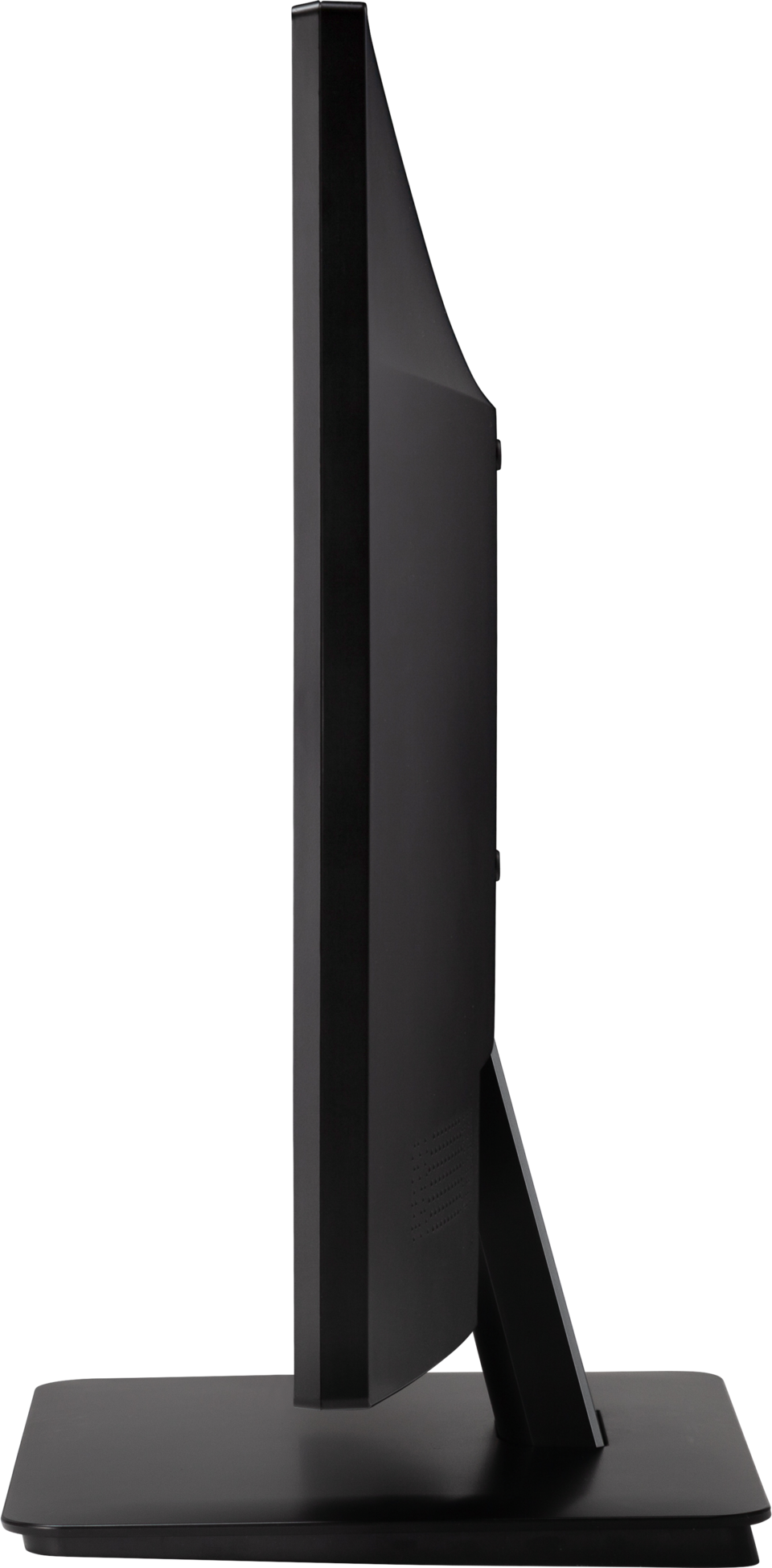

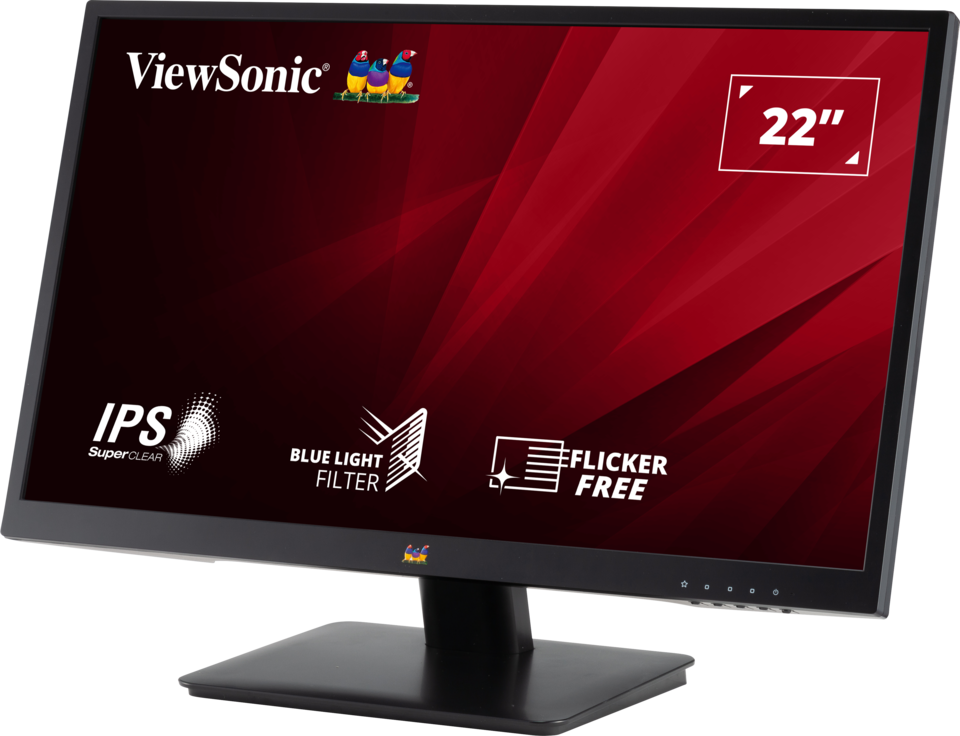

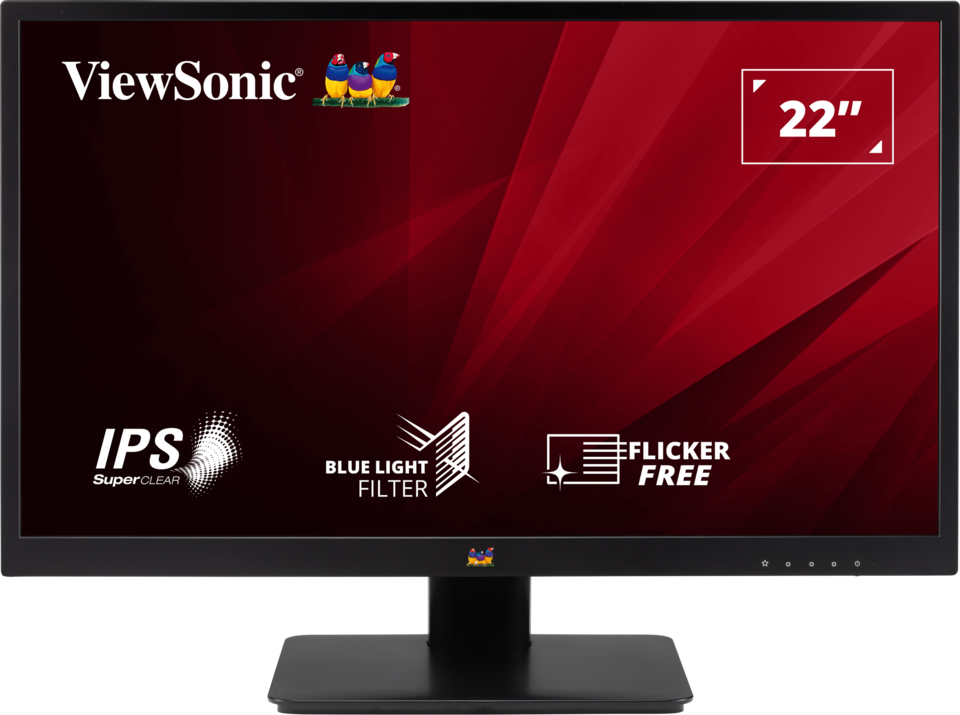

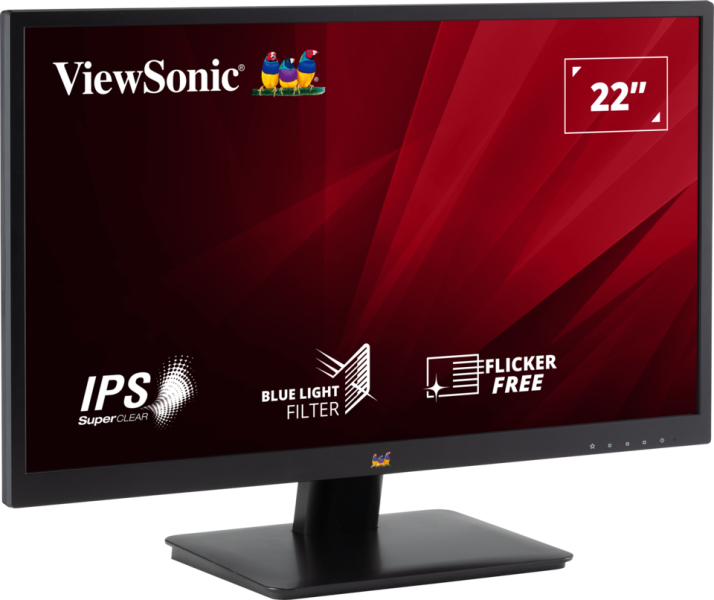

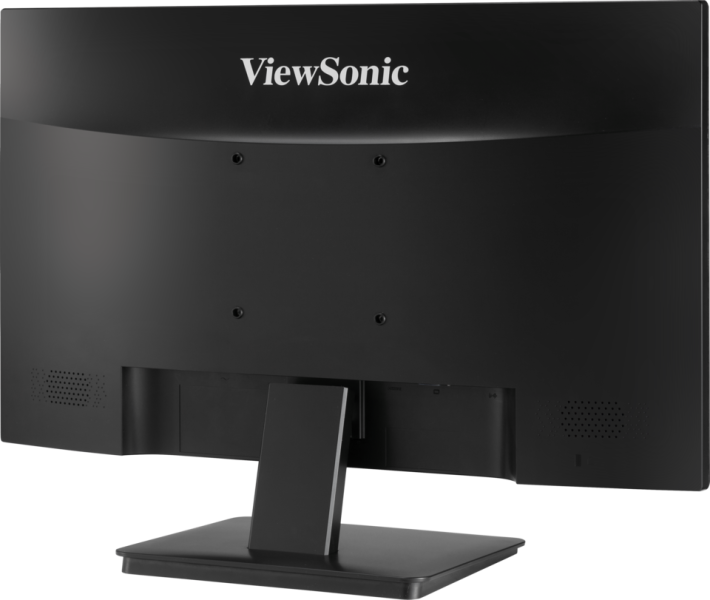

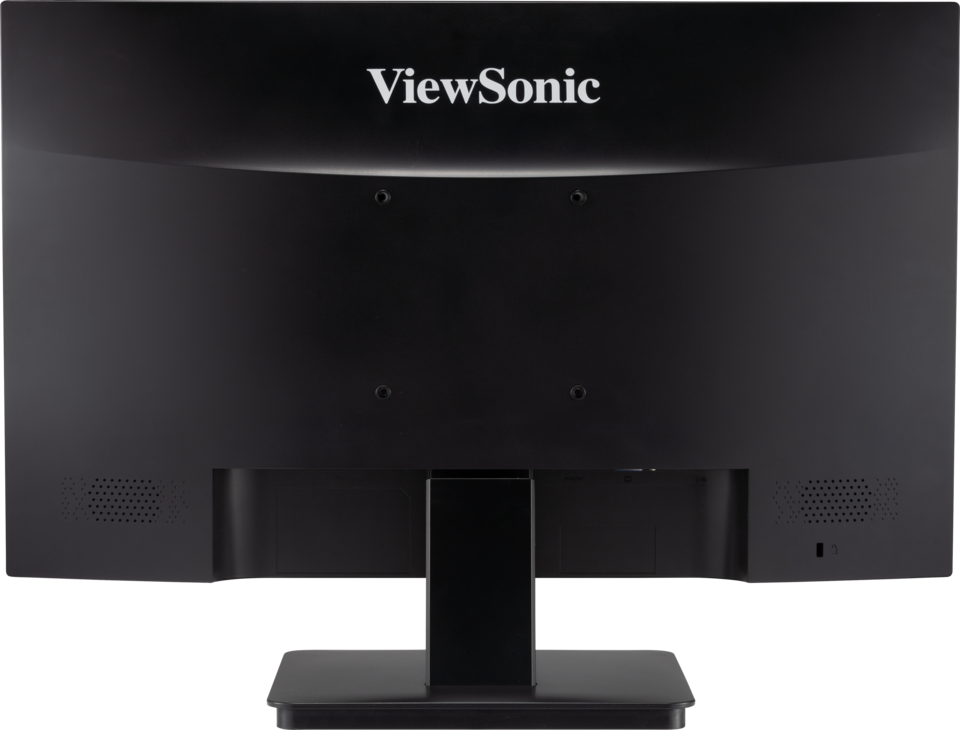

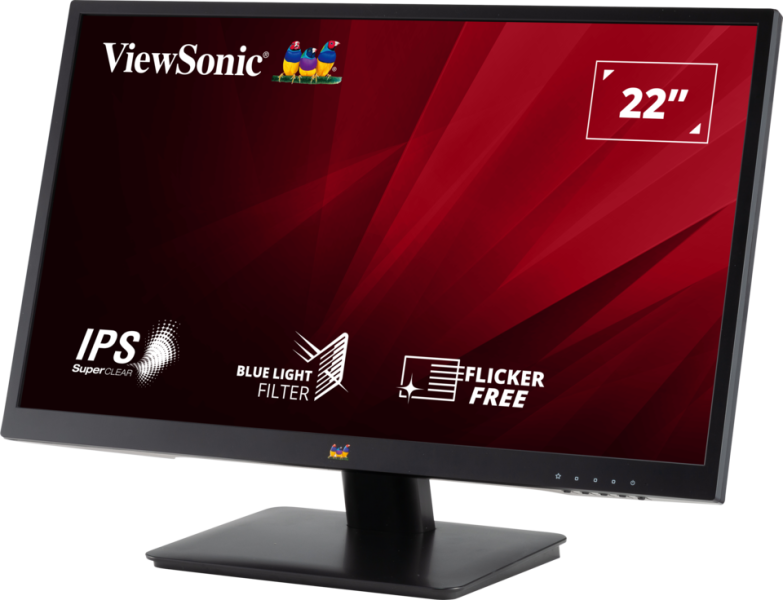

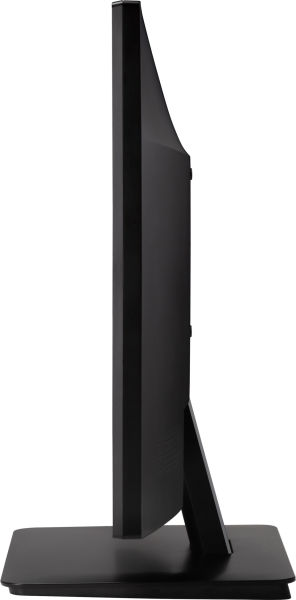

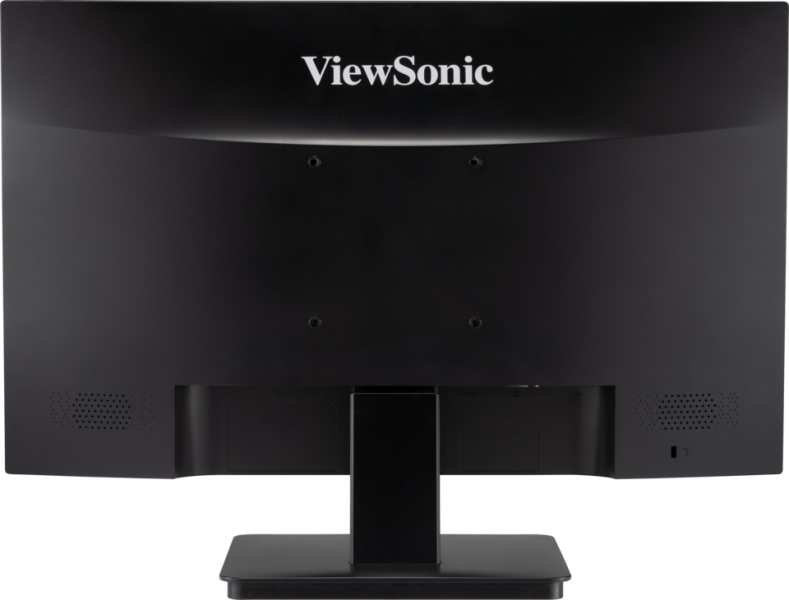

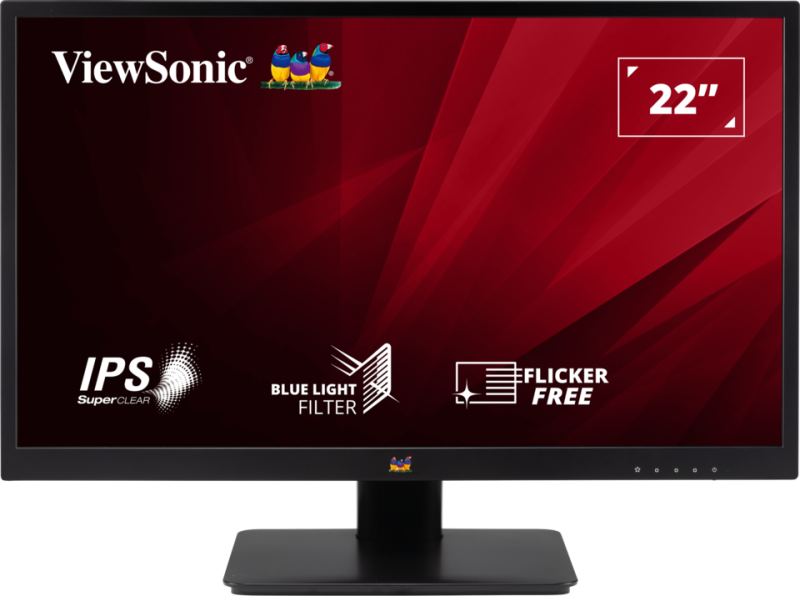

ViewSonic LCD Display VA2210-mh

VA2210-mh

22" 1080p Home and Office Monitor

SuperClear® IPS technology
Narrow bezel
HDMI and VGA inputs
Dual integrated speakers
ViewMode technology

GALLERY

SPECIFICATIONS

DISPLAY
Monitor Size: 22” W (21.5” Viewable)
Panel Technology: PS Technology TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 476.064mm (H) x 267.786mm (V)
Aspect Ratio: 16:9
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angles: 178 degrees / 178 degrees (Typ)
Response Time: GTG: 5ms (Typ)
INPUT SIGNAL
Frequency: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz
Sync: Separate Sync, TMDS
COMPATIBILITY
PC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested

CONNECTOR
Input: VGA x 1, HDMI x 1 (v1.4 compatible)
Output: Earphone out x 1 (3.5mm plug)
AUDIO
Speaker: 2W x 2
POWER
Power: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
ERGONOMICS
Tilt: 20 ~ -5 degrees
WALL MOUNT
VESA®: 100mm x 100mm
OPERATING CONDITIONS
Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation)
DIMENSIONS (W x H x D) (mm)
Physical with stand (mm): 500mm (W) x 365.5mm (H) x 185mm (D)
Physical without stand (mm): 500mm (W) x 302.2mm (H) x 47mm (D)
Packaging (mm): 558mm (W) x 380mm (H) x 130mm (D)
WEIGHT
Net with stand: 2.9kg
Net without stand: 2.6kg
Gross: 4.0kg
PACKAGE CONTENTS
LCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
Audio Cable (1.5m)
Quick Start Guide
