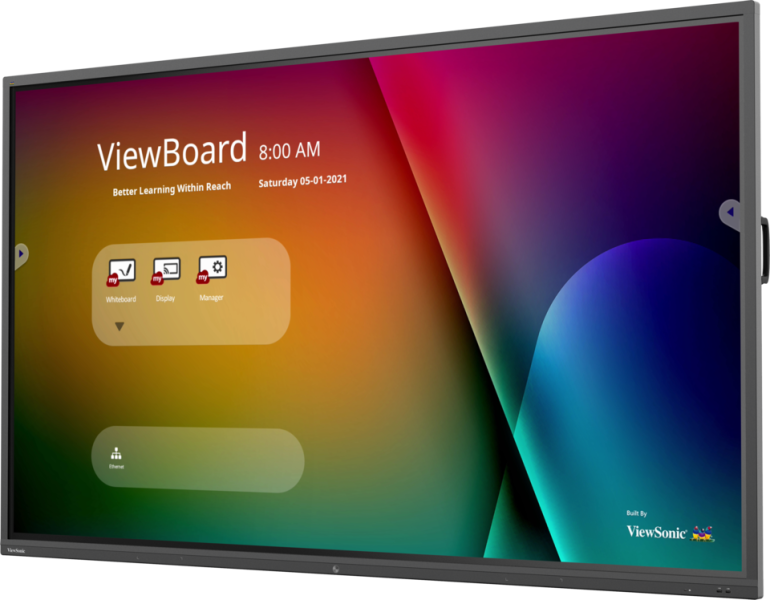

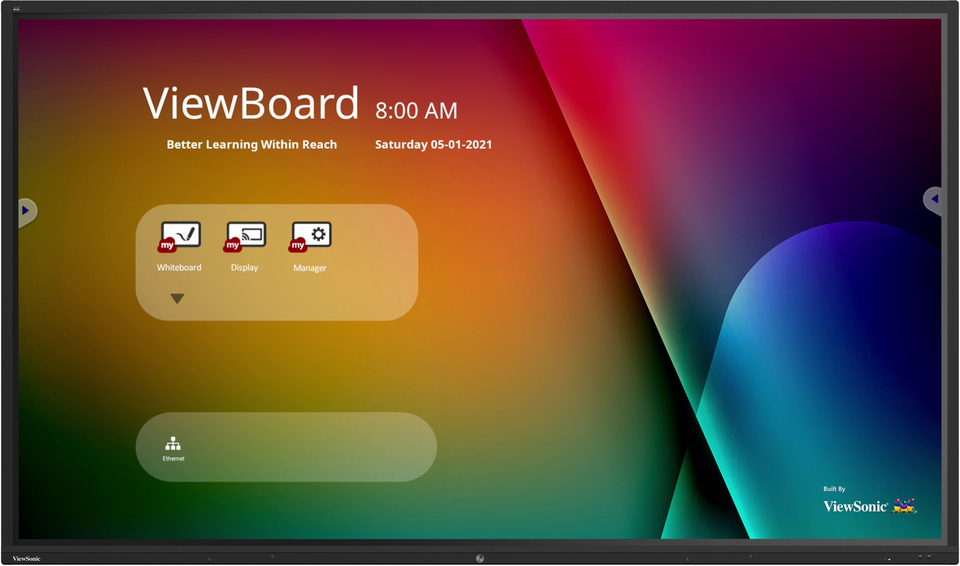

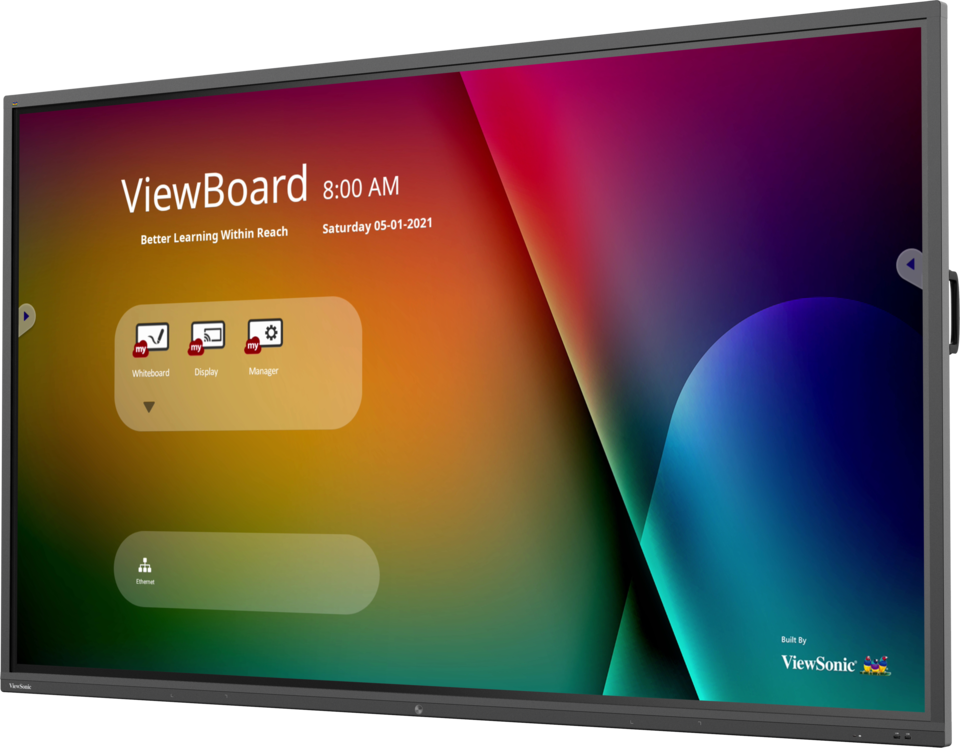

ViewBoard IFP9850-4

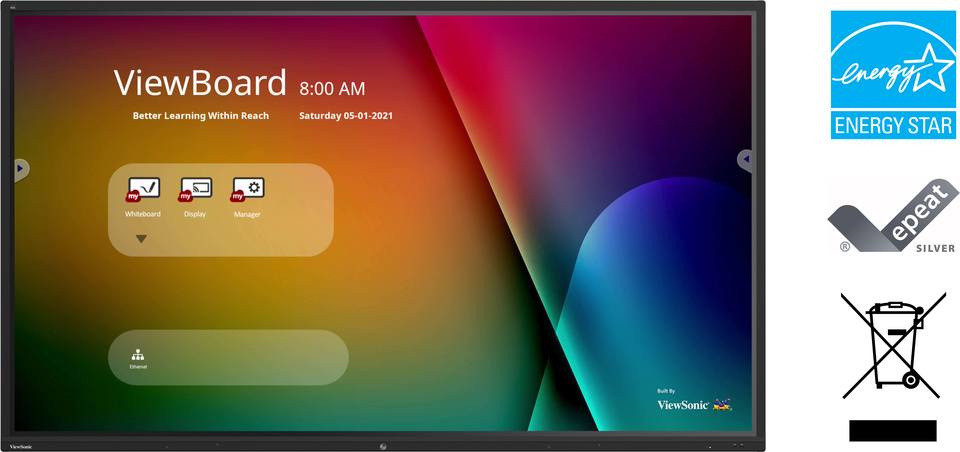

ViewBoard® 98" 4K Interactive Display
- Natural pen-on-paper writing experience with Ultra Fine Touch technology
- Seamless plug-and-present connectivity via USB-C
- Native whiteboarding software for seamless annotation and collaboration
- Wireless content sharing and 4-way split screen for multiple contributors
- myViewBoard Manager for simplified and centralized display management
OVERVIEW
The ViewBoard® 50-4 is a sleek 98” 4K interactive display purpose-built for seamless presentation in corporate and educational spaces. Simply connect your laptop or tablet via a single USB-C cable for instant and effortless presentation functionality. Annotate and collaborate in real-time using integrated myViewBoard® digital whiteboarding software and enjoy a naturally smooth writing experience supported by Ultra Fine Touch technology and dual fine-tipped pens for digital accuracy. And to allow multiple contributors within a single presentation, ViewBoard® Cast offers single sign-on wireless content sharing with up to a 4-way split screen. Encased in a stylishly slim bezel, the ViewBoard® 50-4 not only elevates any room, but also empowers IT teams with myViewBoard® Manager,a web-based remote management system, for simplified and centralized display management from anywhere, anytime. Naturally Smooth Writing with Digital Accuracy

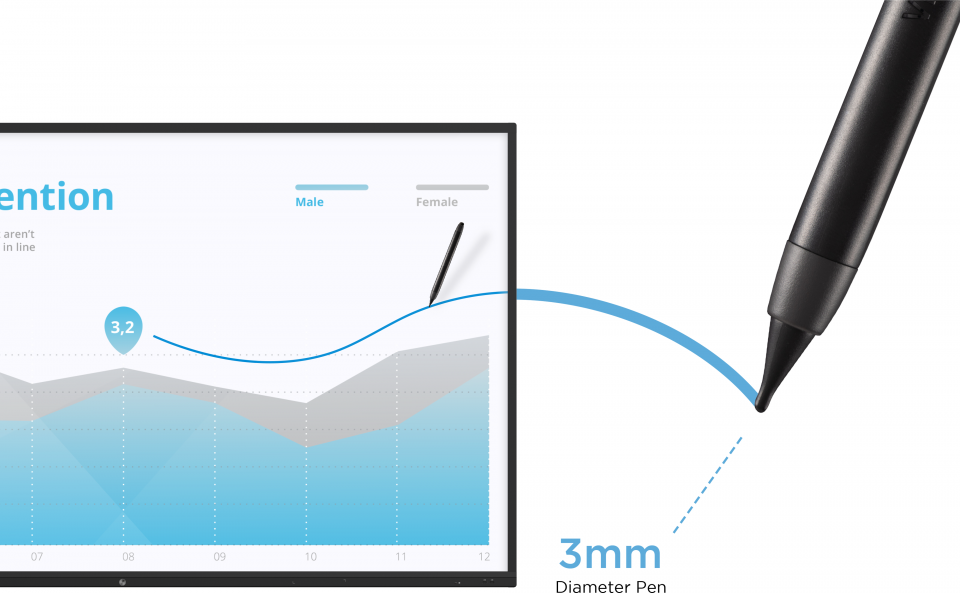

Ideate, annotate, and collaborate during presentations with a pen-on-paper feel. With dual-pen recognition to support group collaboration, and Ultra Fine Touch technology and 3mm tipped pens for lag-free digital precision, the ViewBoard 50-4 offers unparalleled writing accuracy with a natural flow.
Plug-and-Present Connectivity via USB-C
Eliminate untimely starts and complicated cords with the USB-C one-cable solution. Facilitating both power and data transfer through a single lightweight cable, USB-C allows users to simply connect their laptop, tablet, or smartphone for instant presentation functionality to ensure effortless and punctual starts every time.
Digital Whiteboarding Tools with Enterprise Security
Engage your audience with presentations that are interactive, collaborative, and secure. myViewBoard digital whiteboarding software combines convenient single sign-in access to your cloud drive, such as One Drive for Business, with native annotation tools to support real-time collaborative presentations wherever you are.
Remote Management for Simplified Control Anywhere
Streamline operations for IT managers with a centralized and intuitive device management system. Accessible directly through the Chrome or Edge web browser, myViewBoard Manager allows approved personnel to schedule updates, implement system changes, and broadcast messages to single or multiple displays simultaneously from anywhere.
Cast without Cables
Ideal for quick starts and guest users, myViewBoard Display delivers quick and efficient screen casting without the need for cables or software downloads. Simply open myViewBoard Display in any web browser and use the one-time password on the display for immediate and hassle-free wireless casting.

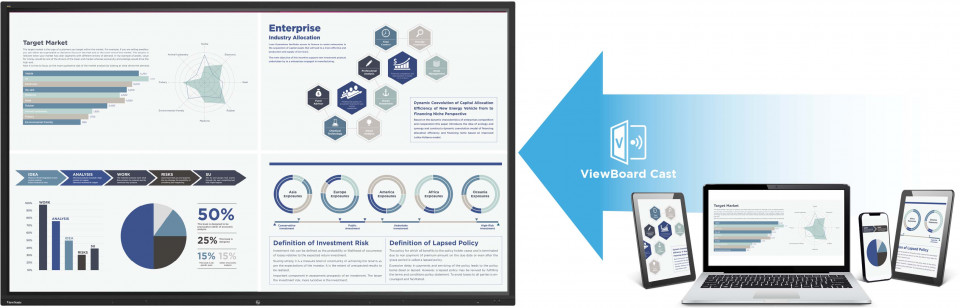

Multi-user Casting with ViewBoard Cast
Get more from your display with up to 4-way split screen capability. Whether you’re comparing data or inviting guest contributors, ViewBoard Cast offers multi-user app-based wireless casting with complete interactive functionality so groups can edit and annotate files directly from their devices for efficient, real-time collaboration.
More Power Than Ever Before
Building on the power of its predecessor, the ViewBoard 50-4 combines an ARM Cortex A73*4 (1.8GHz) processor, 32GB of storage, and Android 9 compatibility to deliver consistently smooth usability. From educational presentations to corporate meetings, the fully native and embedded OS ensures a seamless, up-to-date, and elevated user experience.
Connect Even Faster with Wi-Fi 6
Add additional internet speed with 2.4/5 GHz for a seamlessly smooth experience when using bandwidth-demanding applications such as video conferencing, live streaming, and in-screen web browsing.

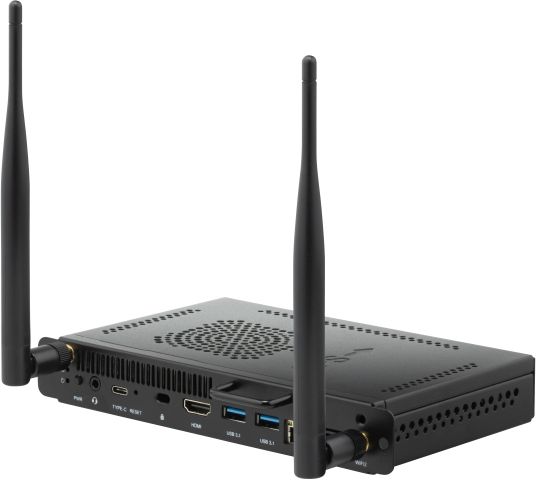

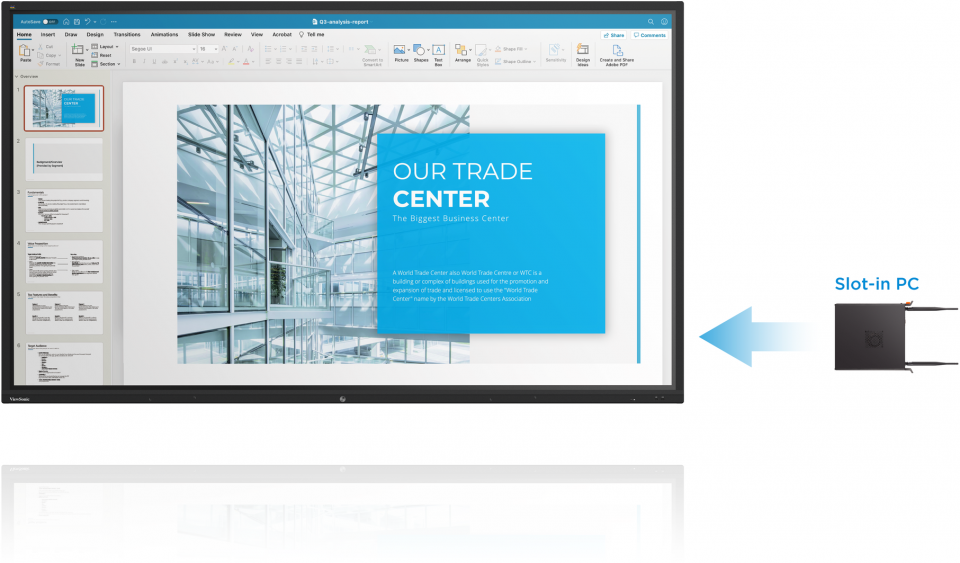

Add Complete Computing Power with A Slot-in PC
Upgrade the display to a stand-alone computer with an optional slot-in PC. Eliminating the need for casting, the additional module comes preloaded with myViewBoard WhiteBoard software and runs on Windows 10 OS with certain models upgradable to Windows 11.

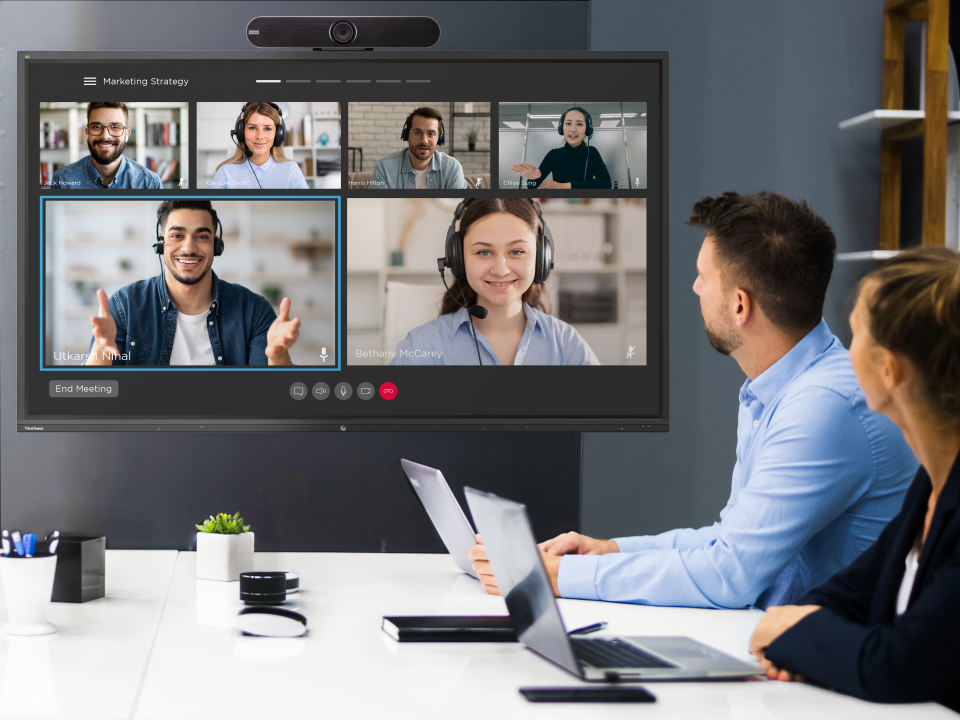

Expand Your Audience
See and be seen in crisp, brilliant visual quality with Tribe, the optional all-in-one conference camera. Engineered for effortless video conferencing with superb audio support, the ultra-wide camera with121° Field-of-View (FOV) puts your best face forward with smart light correction and backlight compensation technology.
I/O Ports
- USB 2.0
- Touch
- HDMI In
- Touch
- HDMI Out
- USB 3.0
- Wi-Fi Module Slot
- USB Type-C
- VESA® Wall Mount
(800x600mm) - Power In
- Power Switch
- Audio out
- RS-232
- LAN
- Audio In
- VGA
- USB 2.0
- SPDIF
SPECIFICATIONS
- ДисплейДиагональ: 98"
Тип панели: TFT LCD Module with DLED Backlight
Область отображения (мм): 2171.85(H) x 1232.35(V) (97.52”diagonal)
Соотношение сторон: 16:9
Разрешение: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Яркость: 450 nits
Срок службы подсветки: 50,000 Hours (Min.)
Коэффициент контрастности: DCR: 3000:1
Время отклика: 8ms(TYP.)
Углы обзора: H = 178, V = 178typ.
Срок службы подсветки: 30,000 Hours (Min)
Покрытие: Anti-glare
Disclaimer: 50,000 hours backlight life at 8 hours of use per day - ПлатформаПроцессор: ARM Cortex A73*4
RAM: 4GB DDR4
Внутренняя память: 32GB - TouchТип / Технология: Ultra fine touch technology
Разрешение сенсорного датчика: 32768 ×32768
Сенсорные точки: 20 points touch, 10 points writing
- INPUTHDMI: HDMI 2.0 x3 (3840x2160 @60Hz)
RGB / VGA: x 1
Аудио: x 1
RS232: x 1
OPS: X1 PC Slot

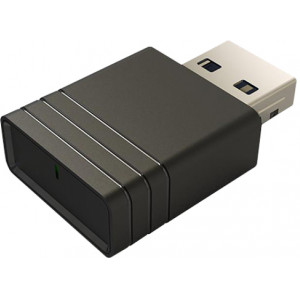

WiFi: x 1 WiFi Slot - OUTPUTHDMI: HDMI out 2.0 x1 (3840x2160 @60Hz)
Аудио: 3.5mm * 1
SPDIF: x1 - LANRJ45: x2
- USBType A: USB2.0 x 1USB3.0 x 4
Type B: x2, for touch
Type C: x1 - ДИНАМИКИ16Wx2
- Top Camera PlateYES
- COMPATIBILITYRGB PC/HDMI PC: 1920x1080
HDMI: 4K 60Hz/30Hz/1080p - Встроенная ОСAndroid 9
- Поставляемое в комплекте ПОБазовое ПО для заметок: myViewBoard for android
Профессиональное ПО для заметок: myViewBoard for windows (Embedded in Windows Slot-in PC)
Wireless Presentation: Viewboard Cast - Особые характеристикиAll-in-one USB port: Front “SmartPort USB” to all channels.
Упрощенная передача файлов через LAN между IFP и подключенным устройством: Yes
Light Sensor: Yes - ПитаниеНапряжение: 100-240VAC +/- 10% Wide Range
Потребление: On mode: 192.5W, Off mode< 0.5W - ERGONOMICSНастенное крепление (VESA® ): 800*600
- OPERATING CONDITIONSТемпература (º C): 0°C to 40°C
Влажность: 10% ~ 90% RH non-condensing - РАЗМЕРЫ (Ш х В х Г)Физические (дюймы / мм): 88.4 x 52.1 x 3.6 in /2245 x 1323 x 91 mm
В упаковке (дюймы / мм): 95.9 x 58.8 x 13.6 in / 2435 x 1483 x 346 mm - WEIGHTНетто (фунты / кг): 228.4lb / 103.6kg
Брутто (фунты / кг): 293.7lb / 133.2kg - REGULATIONSFCC, cTUVus, EPEAT, ES8, LBL, CE, CB, RCM
- СОДЕРЖИМОЕ УПАКОВКИ1. Power cord
2. Remote control with AAA battery
3. USB cable for touch

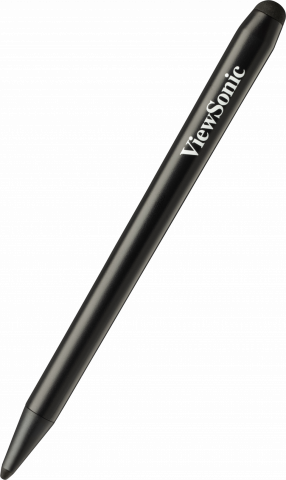

4. Touch pen x 2
5. Quick Start Guide
6. RS232 adapter
7. Clamp x 5
8. Camera plate
9. Screw x 8
10. HDMI cable
11. USB Typc-C cable - Слот для ПКVPC12-WPO series/VPC25-O series/VPC27-O series

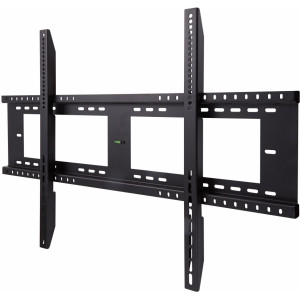

COMPATIBLE WITH VIEWBOARD IFP9850-4
