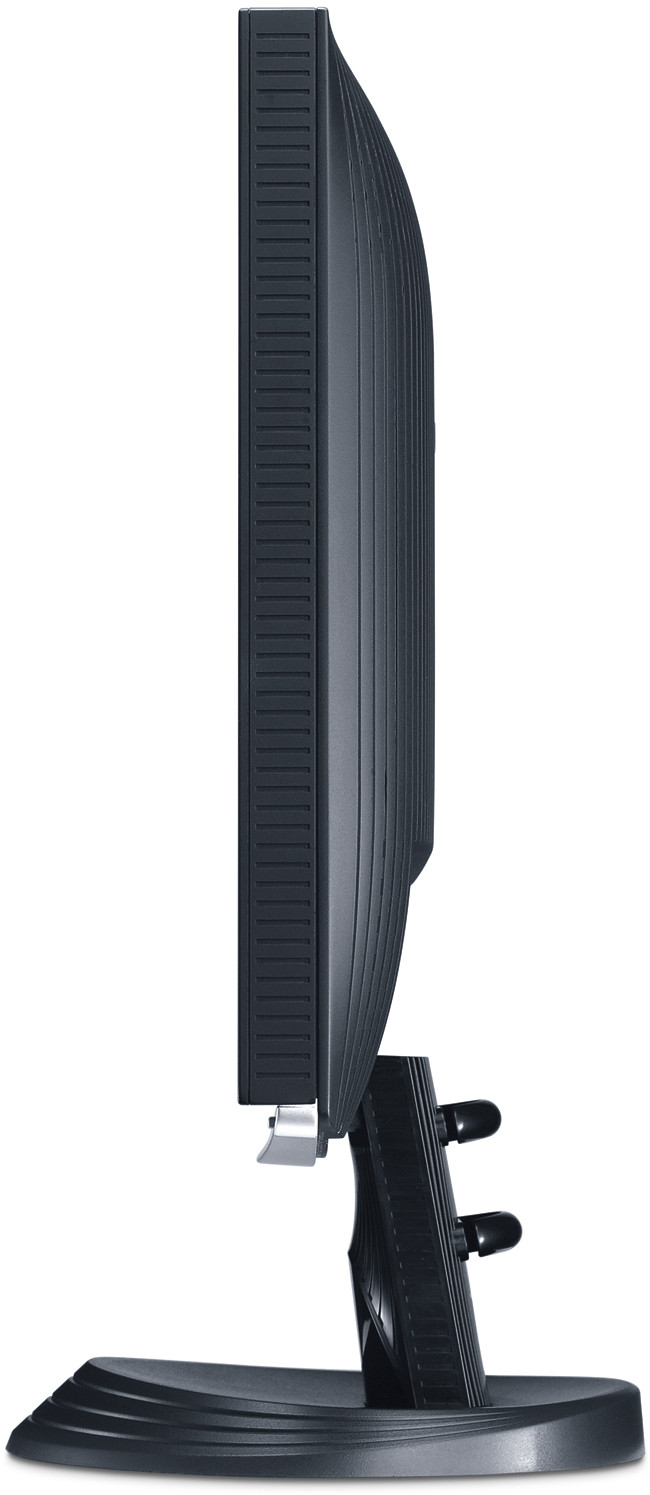

ViewSonic VX1940w-3 49 cm / 19" WIDESCREEN LCD WITH 20000:1 DYNAMIC CONTRAST

Key Features

Product Description

ViewSonic’s 49 cm / 19" VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 20000:1 DYNAMIC CONTRAST RATIO and 1680X1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES PRODUCTIVITY by allowing you to view two documents side-by-side or to work in two applications without toggling. The Kensington® security port provides theft deterrence and the OSD and power lock prevent unauthorized changes to your optimal screen settings.

Visit Us

www.viewsonic.com

COLORS

Black

LCD

КОНТРАСТНОСТЬ:	700:1 (Typical)
Углы обзора:	170° (H), 170° (V)
Оптимальное разрешение:	1680×1050
Время отклика (тип.):	2ms (grey-to-grey), 5ms (off-on-off) (Typical)
Ресурс лампы:	40,000 (Minute.)
Поверхность панели:	Anti-Glare, Hard coating (3H)
Поддержка цвета:	16.2 M (6 bits + 2 bits FRC)
Размер:	19" wide Color TFT Active Matrix LCD with 16:10 aspect ratio
Яркость:	280 (Typical)
Коэффициент динамической контрастности:	20000:1

СОВМЕСТИМОСТЬ

ПК: VGA up to 1680 × 1050 non-interlaced

Mac®: Power Mac, up to 1680×1050
РАЗМЕРЫ

Физические (ШхВхГ): 442mm × 385mm × 195mm (17.4" × 15.2" × 7.7")
ИНСТРУКЦИЯ

CB, WEEE, RoHS, UL, cUL, FCC-B, TUV-S, NOM, Energy Star, TUV/
ERGO(covers ISO13406-2&MPR II),TUV/GS,CE GOST-R+Hygienic
,SASO , ENERGY, Ukraine CCC BSMI, PSB, C-TICK, MIC, Green Mark,
TCO-03
СОЕДИНЕНИЕ

Аналоговый: 1 × 15-pin mini D-sub

Питание: Built-in power Adapter, 3-Pin plug
Питание

Напряжение: AC 100-240V (Universal); 50/60Hz (Switch)

Потребление: 44W (Typical) / <49W (Maximum)

СРЕДСТВА УПРАВЛЕНИЯ

OSD:

Auto Image Adjust

Contrast/Brightness

Color Adjust: sRGB, 9300K, 7500K, 6500K, 5400K, User Color [R, G, B]
Information

Manual Image Adjust: Horizontal size, H/V position, fine tune,
sharpness, dynamic contrast, aspect ratio, response time

Setup Menu: Language select, resolution notice, OSD position, OSD time out, OSD background

Memory recall

Видео входы

Частота: 24-82kHz / 50-85Hz

Синх.: H/V separate (TTL), composite, sync on green

Аналоговый: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Вес

Нетто: 4.6 kg (10.1 lb)
УСЛОВИЯ ЭКСПЛУАТАЦИИ

Влажность: 10% - 90%

Температура: 32-104ºF (0-40ºC)

ПК:	VGA up to 1680 × 1050 non-interlaced
Mac®:	Power Mac, up to 1680×1050

Аналоговый:	1 × 15-pin mini D-sub
Питание:	Built-in power Adapter, 3-Pin plug

Напряжение:	AC 100-240V (Universal); 50/60Hz (Switch)
Потребление:	44W (Typical) / <49W (Maximum)

Частота:	24-82kHz / 50-85Hz
Синх.:	H/V separate (TTL), composite, sync on green
Аналоговый:	RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Влажность:	10% - 90%
Температура:	32-104ºF (0-40ºC)
