“The performance of the VX2770 was actually really good, its 1920 x 1080 Full HD IPS panel offered some great image quality and was ideal for the F1 and Assassins Creed games”
Archived
VX2770Smh-LED
68.5cm / 27” Full HD 1080p LED Display
REVIEWS
“Ce moniteur Viewsonic VX2770Smh-LED se classe parmi les meilleurs écrans 27 pouces sans bordure du moment, juste derrière le Designo d’Asus. Son rétréoclairage est juste un peu moins bien maîtrisé, tout comme sa réactivité pour les jeux vidéo. Il reste toutefois un bon écran, tout à fait recommandable. ”
SPECIFICATIONS
- LCDContrast Ratio: 1,000:1 (typ.)
Viewing Angles: 178° horizontal / 178° vertical (typ.)
Display Area: 68.5cm (27”) wide
Optimum Resolution: 1920 x 1080
Response Time: 7ms GtG.
Panel Surface: Anti-glare Type, 3H Hardness
Pixel Clock: 0.3114 mm x 0.3114 mm
Brightness: 250 cd / m²
Dynamic Contrast Ratio: 30,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.) - COMPATIBILITYPC: VGA up to 1920 x 1080 non-interlaced
Mac®: MAC up to 1920 x 1080 - DIMENSIONSPhysical With Stand: 622 x 459 x 193mm (24.48” x 18.07” x 7.59”)(W x H x D)
- AUDIOSpeaker: 1.5W x 2
- INPUTSync: Separate Sync / Composite Sync / SOG
Analogue: RGB analogue (75 Ω, 0.7 / 1.0 Vp-p)
Digital: DVI / HDMI (TMDS, 100 Ω)

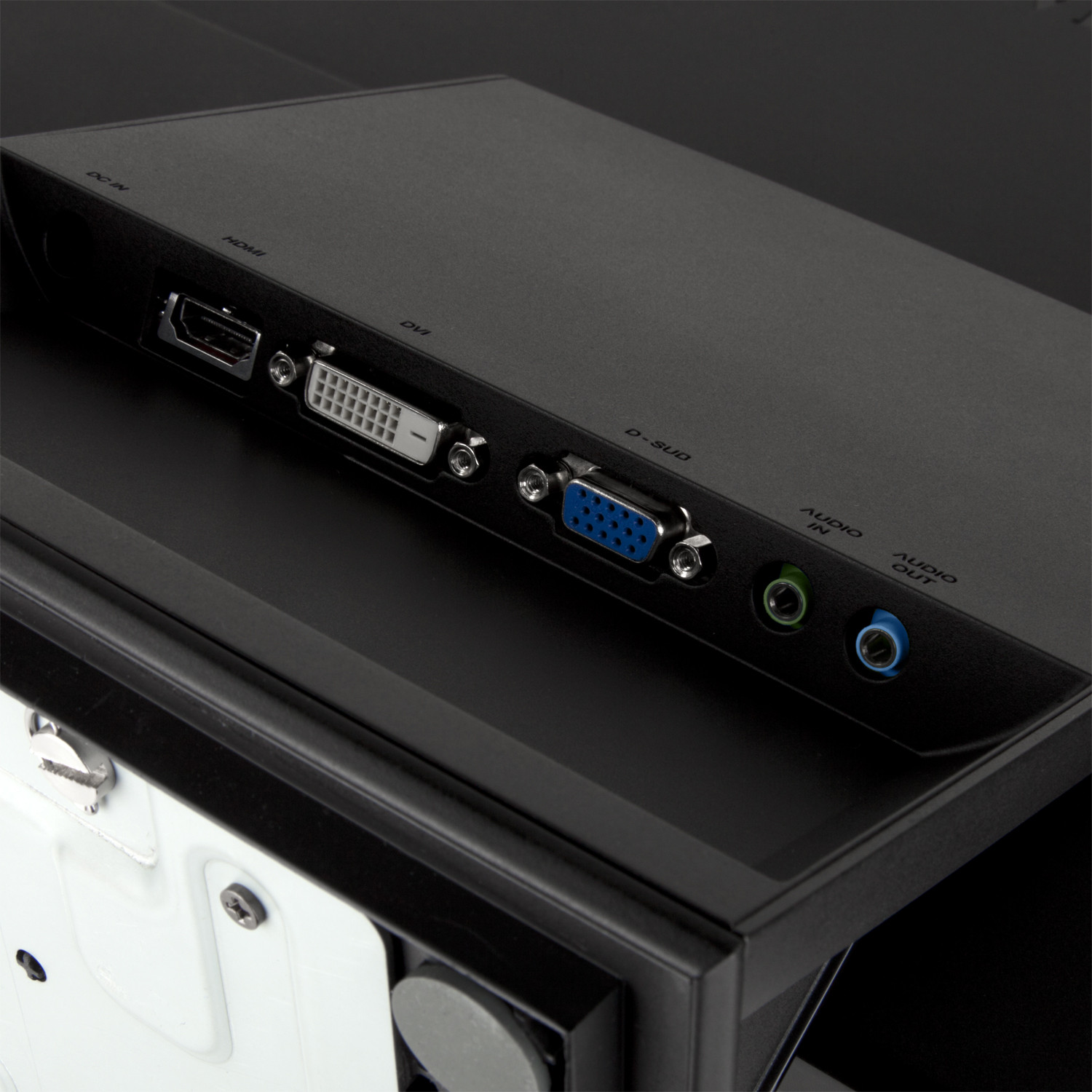

Frequency: Fh = 24 ~ 83 kHz ; Fv = 50 ~ 76 Hz - CONNECTORVideo: Analogue: D-sub x 1
Digital: DVI- D x 1, HDMI 1.3 x 1
Audio Out: 3.5mm Mini Phone Jack Audio (Blue) x 1
Power: External Power Adapter
Audio Input: 3.5mm Mini Phone Jack Audio (Green) x 1 - POWERVoltage: AC 100 - 240V (universal); 50 / 60 Hz
Consumption: 30W (typ.)
Save mode: <0.5W - ERGONOMICSTilt: 20° ~ -5°
- WEIGHTNet With Stand: 4.98 Kg (10.97 lbs)
- OPERATING CONDITIONSHumidity: 20% to 90% (no condensation)
Temperature: 32° F to 104° F (0° C to 40° C)
