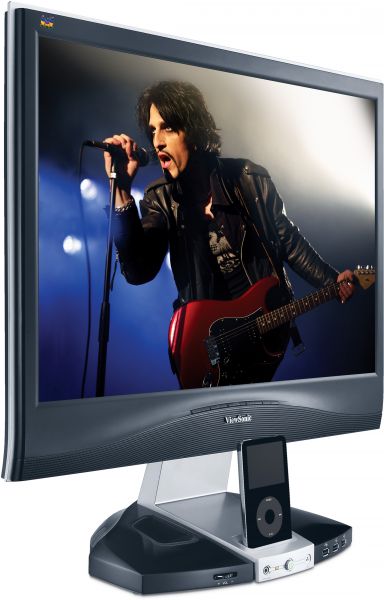

VX1945wm
19-ДЮЙМОВЫЙ ШИРОКОЭКРАННЫЙ ЖК-МОНИТОР VIEWDOCK™ С ДОК-СТАНЦИЕЙ IPOD В МУЛЬТИМЕДИЙНОМ ОСНОВАНИИ
REVIEWS
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
“"Surprisingly superb graphics at an affordable price. The multimedia docking base is a welcome bonus, too."”
SPECIFICATIONS
- COLORSBlack
- LCDТип: 49 cm / 19" Wide TN colour TFT active matrix WXGA+ LCD
КОНТРАСТНОСТЬ: 700:1 (typ.)
Углы обзора: 140° horizontal, 140° vertical (at 10:1), 160° horizontal, 160° vertical (at 5:1)
Яркость: 300cd/m2
Обрасть отображения: 41.0cm horizontal x 25.6cm vertical, 48.3cm diagonal
Оптимальное разрешение: 1440 x 900@60Hz
Время отклика (тип.): 5ms (off-on-off) (typ.)
Ресурс лампы: Long life, 40,000 hrs. (typ)
Поверхность панели: Anti-glare
Шаг пиксела: 0.285mm
Поддержка цвета: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 140MHz - СОВМЕСТИМОСТЬПК: VGA up to 1440x900 non-interlaced
Mac®: Power Mac™ G3/G4/G5 up to 1440 x 900 non-interlaced
- РАЗМЕРЫФизические с подставкой: 450 x 449 x 212
Физические без подставки: 450 x 341 x 66
Упаковка (ШхВхГ): 545 x 520 x 260 - ИНСТРУКЦИЯCE, CB, ERGO, ISO13406-2 (pixel failure class II), GOST-R + 20 original copies hygienic, UL, cUL, FCC-B, ENERGY STAR®, NOM, MPR II, SASO, BSMI, CCC, PSB, C-TICK, WEEE, RoHS
- СОДЕРЖИМОЕ УПАКОВКИLCD Monitor, power cable, 15-pin VGA video cable, DVI cable, audio cable,
USB cable, iPod® adapter, Quick Start Guide, ViewSonic Wizard CD-ROM
(User Guide/drivers) (multi-language) - ГАРАНТИЯThree-year limited warranty on LCD, parts and labor. Optional Express Exchange® service program available.
- АУДИОДинамики: 2 x 2 watt integrated stereo speakers
Sub-woofer: 1 x 3 watt intergrated into base
Микрофон: Integrated into base - ПЕРЕРАБОТКАThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- СОЕДИНЕНИЕАналоговый: 15-pin mini D-Sub (detachable cable)
Цифровой: 24-pin DVI-D (detachable cable)
Питание: 3-pin plug
USB: USB 2.0 hub, 1x upstream (4-pin Typ B)/4x downstream (4-pin Typ A)
Base: iPod dock, USB (A type)x4, USB (B type)x1, audio out stereo jack, 2-in-1 audio in, headphone jack
АУДИО: 1 x 3.5mm stereo audio line-in, 1 x 3.5mm stereo audio line-out
Headphone: 3.5mm mini stereo jack
ViewDock: iPod® dock (Made for iPod® certified)
Карт-ридер: 8-in-1 digital card reader - ПитаниеНапряжение : AC 100– 240V, 50/60Hz (auto switch), internal power supply (Display)
Потребление: 59 watt (typ.), <1 watt in power save mode
Meets MPR II and ENERGY STAR® standards - СРЕДСТВА УПРАВЛЕНИЯОсновные: Power, menu [1], up, down, select [2], mute, subwoofer volume up/down
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D), ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5400K, user RGB), information (resolution, H/V frequency, pixel clock, model number, serial number), manual image adjust (H/V position, H size, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - УСЛОВИЯ ЭКСПЛУАТАЦИИТемпература: 0°C – 40°C
Влажность: 20%–80% (non-condensation) - ВЕСNet With Stand: 5.7kg
Нетто без подставки: 4.7kg
Гросс с подставкой: 7.7kg - Видео входыAnalogue/Digital: RGB analogue (0.7 Vp-p, 75 ohm)
Частота: Fh: 30~82kHz, Fv: 50~85Hz
Синх.: H/V separated (TTL), composite, sync-on-green
Цифровой: DVI-D (TMDS, 100 ohm) - SECURITYKensington® security port
- КреплениеVESA FDMI 100mm x 100mm
- ЭргономикаНаклон: Down 5°, Up 20°
