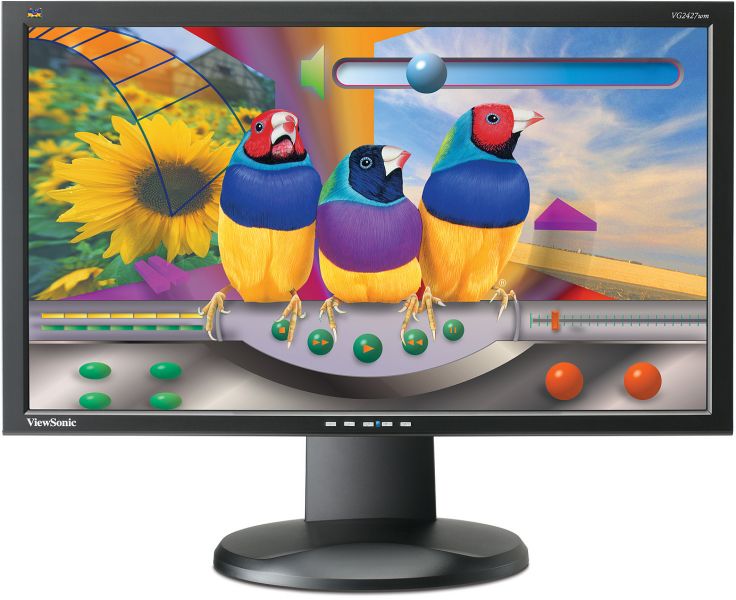

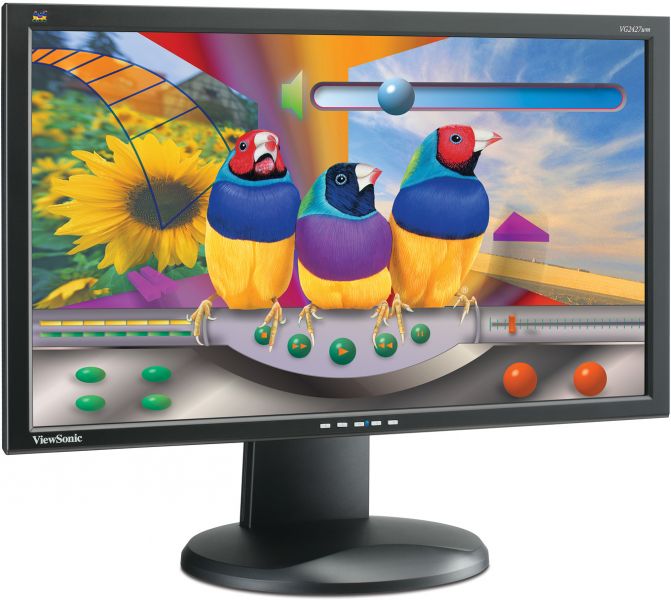

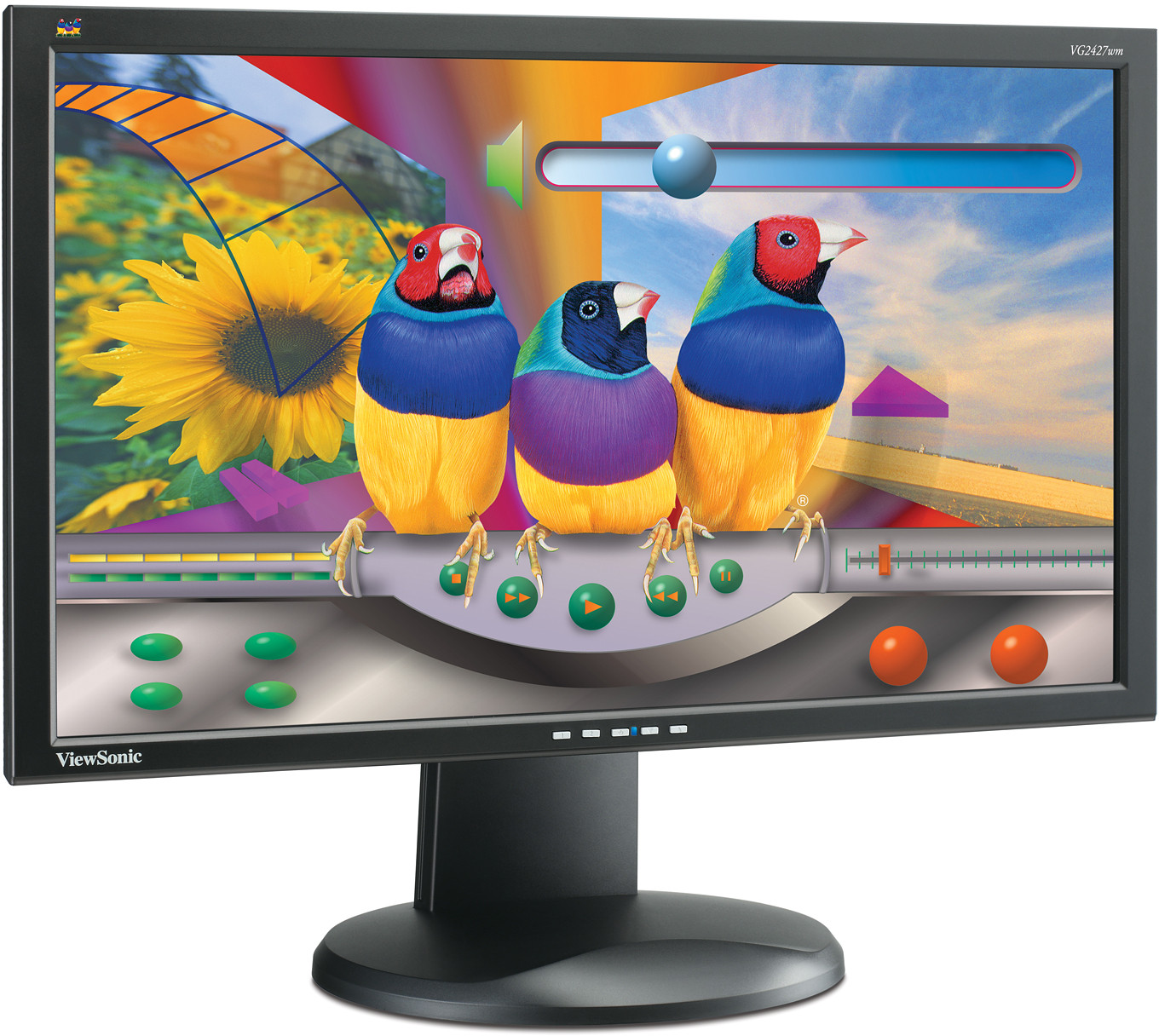

VG2427wm
61cm / 24" (23.6" VIEWABLE) WIDESCREEN LCD WITH FULL HD RESOLUTION
REVIEWS
“Awarded to VG2427wm
Widescreen Monitor Group Test
What Laptop Gold Award”
“Awarded to VG2427wm
Widescreen Monitor Group Test
What Laptop Gold Award ”
“Awarded to VG2427wm
Widescreen Monitor Group Test
What Laptop Gold Award ”
“Awarded to VG2427wm
Widescreen Monitor Group Test
What Laptop Gold Award ”
SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1000:1(typ.) ; 20000:1 dynamic
Viewing Angles: 170o(H), 160o(V) at 10:1 c/r, 170o(H), 170o(V) at 5:1 c/r
Brightness: 300 cd/m² (typ.)
Display Area: 521mm (H) x 293mm (V)
Optimum Resolution: 1920×1080
Response Time: 5ms(typ.)
Light Source: 50,000 hrs(typ.)
Panel Surface: Anti-Glare
Pixel Pitch: 0.2715mm(H)×0.2715mm(V)
Colour Support: 16.7 M(6-bits + Hi FRC)
Size: 60 cm (23.6") wide Color TFT Active Matrix LCD with 16:9 aspect ratio - COMPATIBILITYPC: VGA up to 1920×1080 non-interlaced
Mac®: Power Mac, up to 1920×1080
- DIMENSIONSPhysical With Stand: 564mmx442mmx250mm(22.2"x17.4"x9.8")
Physical Without Stand: 564mmx335mmx67mm(22.2"x13.2"x2.6") - PACKAGE CONTENTSD-Sub Cable, DVI-D Cable, Power Cable, Audio cable, USB cable
- AUDIOSpeaker: 2x2 watt
- INPUTSync: H/V Separated
Digital: DVI-D(TMDS, 100ohms)
Analogue: RGB Analog (75 ohms, 0.7/1.0 Vp-p)
Frequency: Fh: 22-82kHz, Fv: 50-75Hz - CONNECTORAnalogue: 15 pin mini D-sub×1
Digital: DVI-D
Power: Built-in power Adapter, 3-Pin plug
USB: down stream x2 / up stream x1
Audio: 3.5 mm Audio in - POWERVoltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 45(typ.)
Eco Mode: optimize 31W(typ.)/conserve 26W(typ.)
Save mode: ≦1W - CONTROLSBasic: Power, Mute,[1], Up[▲], Down[▼], [2]
On View (PC mode): Auto image adjust, Contrast/Brightness, Audio adjust: Volume, mute,
Color adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user color [R, G, B]
Information, Manual image adjust: H/V position, Horizontal size, fine tune, sharpness, dynamic contrast, aspect ratio, Eco mode, Setup menu: Language select, resolution notice, OSD position, OSD timeout, OSD background, memory recall - OPERATING CONDITIONSTemperature: 32-104°F(0-40°C)
Humidity: 10-90%(Non condensed) - WEIGHTNet: 7 kg(15.4 lb)
Gross: 9.6 kg(21.2 lb) - POWER MANAGEMENTTCO'03, ENERGY STAR®
- VESA MOUNT COMPLIANTVESA® 100mmx100mm

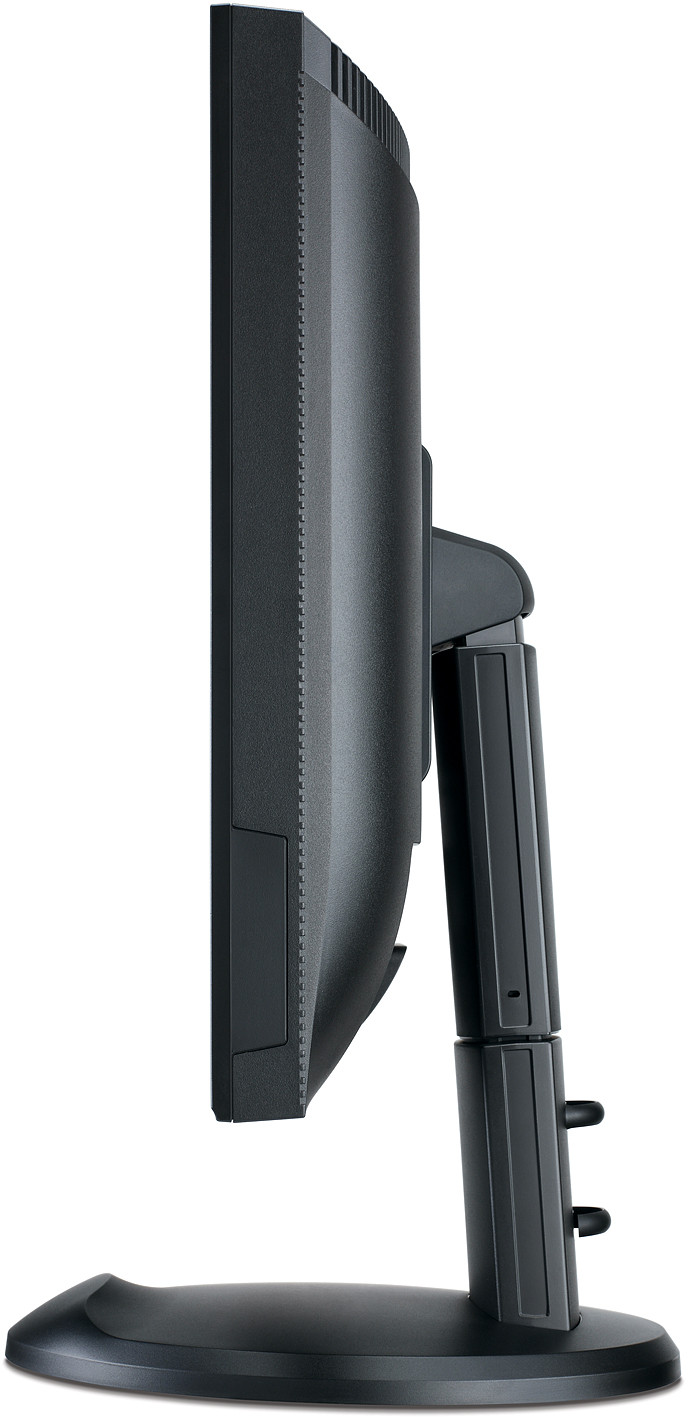

- ERGONOMICSTilt: 20˚~-5˚
Swivel: 360˚(180 ˚left / 180 ˚right)
Height Adjustment: 0~135mm
