Direct View LED

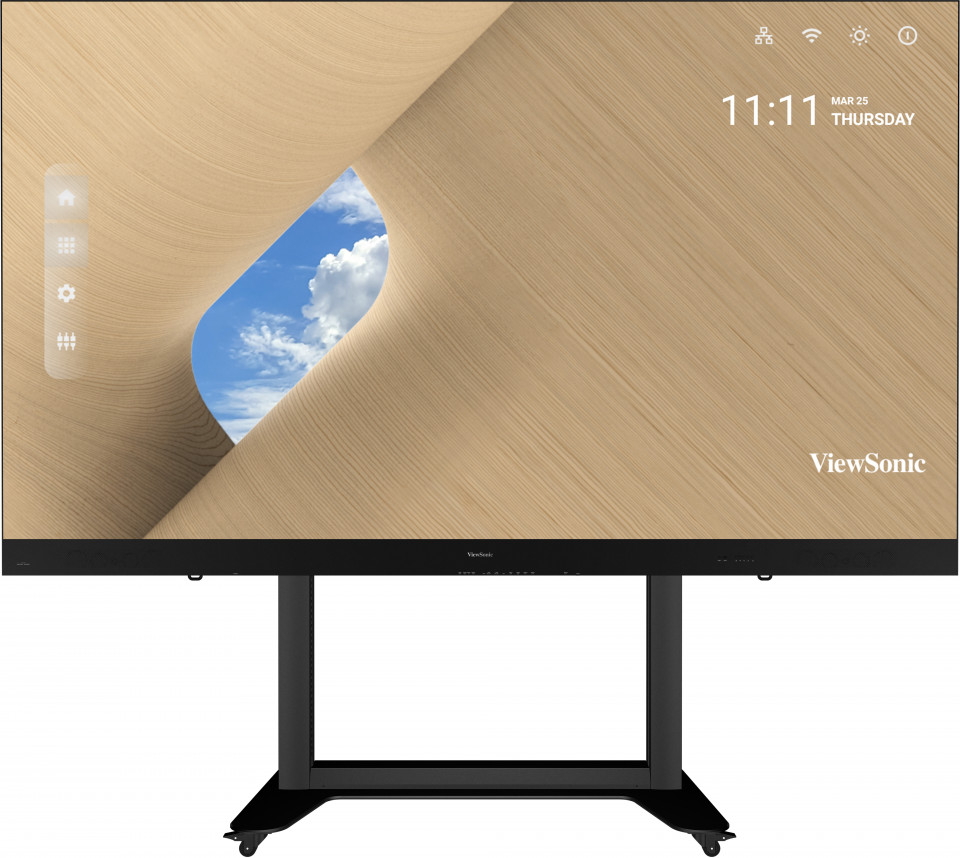

LDS135-152
Key Features
- 免組裝移動式解決方案 ，即裝即用快速完成安裝設置
- 可折疊式螢幕設計、搭配移動式航空箱 提升移動的機動性、靈活性
- 內建支架，可電動調整高度
- Harman Kardon 揚聲器 展現震撼音效
- 無邊框的極簡外觀 提供令人驚艷的視覺體驗
- 可搭配租賃模式 應用於畫廊、商業活動、會展等商業空間
Product Description
ViewSonic® LDS135-152 是一款多合一的 135 吋 LED 顯示器，整合了顯示螢幕、影像拼接與控制系統，集高效率、機動性、靈活性等特色於一身，具備簡單運送、安裝、維護等多項優點，讓用戶容易使用管理與維護。新款 ViewSonic All-in-One LED 顯示器免組裝移動式解決方案，內建電動高度調節支架，能在短時間內輕鬆安裝。全新的折疊螢幕設計，大幅提升運輸便利性，與前一代相比，移動式航空箱的包裝尺寸減少了近 50％，從而最大限度地降低了運輸成本。無邊框的極簡外觀，內建 Harman Kardon 揚聲器，無論是畫廊、商業活動、會展、會議室和其他大型場所，都能提供令人驚艷的視覺體驗。
- Harman Kardon Speakers
- Power Button
- HDMI Out
- Audio Out
- S/PDIF Out
- IR In
- USB 2.0 (5V/1.5A) x 2
- LAN & Control
- HDMI 2.0 x 2
- HDMI 1.4 x 2
- HDMI 2.1
- RS232
- USB-C (5V/2A)
- USB 2.0 (5V/1.5A)
- IR Receiver
- Menu Control: Brightness Level
- Menu Control: Volume
- Menu Control: Input Source
- Power Button
- Indicator Light
- Control Panel: Height Adjustment
- 360° Silent Wheels
Visit Us
- www.viewsonic.com
-
規格資訊
Screen Size: 135'' 顯示區域 (mm): 3000 (H) x 1687.5(V) 原始解析度: 1920x1080 Panel Technology: Direct view LED LED Package Type: SMD 3 in 1 Pixel Pitch (mm): 1.56 Refresh Rate: 4440Hz Brightness (max.): 600 nits (8 levels adjustable) Contrast Ratio (typ.): 6000:1 顯示方向: Landscape Viewing Angles (typ.): H = 160, V = 160 LED Lifetime (typ.): 100,000 Hours 本機儲存空間: Total 64GB
(56GB available storage)內建作業系統: Android 9.0 支援解析度: VGA(640 x 480) to
1080p(1920 x 1080)HDTV 相容性: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160P/60Hz 水平頻率: 23-120 kHz 垂直掃描率: 15-135 Hz -
輸入
HDMI: x6
(HDMI 2.1 x 1, HDMI 2.0 x 3, HDMI 1.4 x 2)USB Type A: x3
( USB2.0 x3)RJ45 Input (Internet): x1 IR in: x1 Wi-Fi Input: 2.4G/5G Hz USB Type C: x1
(Video input、 Power output (5V/2A)) -
輸出
HDMI out: x2
(HDMI 2.0 external x1,internal x1)喇叭: 20W x2 (Harman Kardon) 音源輸出 (3.5 mm): x1 USB Type A (供電): Shared with USB input
(5V/1.5A x3) -
調整選項
USB Type A (Services): x1(shared with USB A input) RS232 (DB 9-pin female): x1 IR Receiver: x1 -
其他
電源供應電壓: 100-120V/30A~ 50/60Hz or 220-240V/15A~ 50Hz
(vary by country)電源消耗: 1500W (typ), 2500W (max)
< 0.5W (Sleep), < 0W (Off)運作時溫度: 0~40℃ LED Module Quantity: 100 Ingress Protection Rating: IP30 淨重: 564 lbs
(253 kg)Gross Weight: 998 lbs
(453 kg)Screen Dimensions (WxHxD): 1800x1963x770 mm(min.)
3010x2613x770 mm(max.)Packing Dimensions (WxHxD): 74.8x80x31.5 inches
(1900x2032x800 mm) -
STANDARD ACCESSORIES
電源線: x1 LAN Cable (Cat 5A): x1 (5m) 遙控器: x1 快速使用手冊: x1 Spare Parts: LED PCB Unit x7 Maintenance Tool: LD-MK-001 x1 -
OPTIONAL ACCESSORIES
Maintenance Tool: LD-MK-001 ViewBoard Cast Button(USB-C): VB-WPS-001 ViewBoard Cast Button(USB-A+HDMI): VB-WPS-003
