TD2220-2

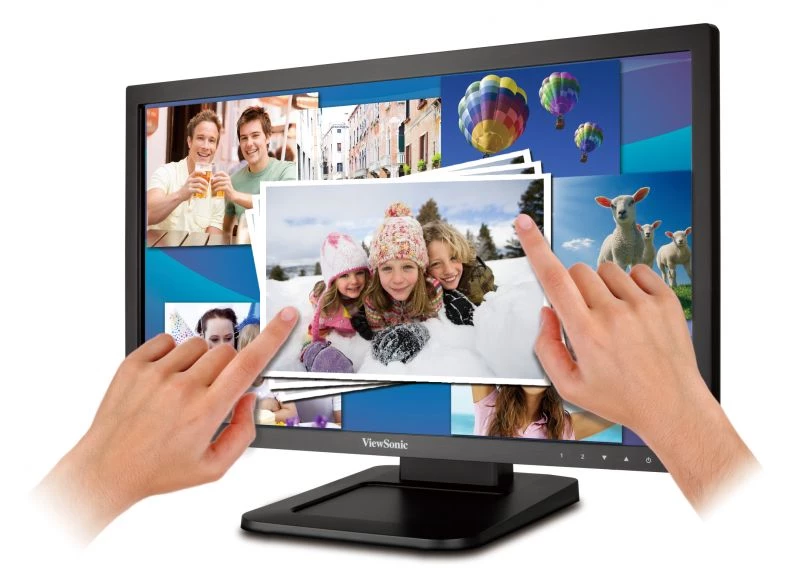

22 吋 Full HD 1080p 光學觸控顯示器 直覺性多點觸控 提升工作效能與便利性
- 7H 高硬度強化玻璃
- Full HD 1080p 解析度
- 支援USB HID
- VGA、DVI
- 符合Energy Star和EPEAT Sliver認證
SPECIFICATIONS
- 顯示器面板類型: 21.5 吋寬螢幕
可視區域: 21.5 英吋
最佳解析度: 1920x1080
對比率: 1,000 : 1 (一般), 20,000,000 : 1 (DCR)
亮度: 200 cd/m2 (typ)
可視角度: 170° / 160°
刷新率 (Hz): 60
表面塗層: 表面硬度 (8H)
燈管壽命: 40,000 小時 ( 最小值)
反應時間: 5ms - 輸入訊號類比: RGB 類比 (75 Ω，0.7 / 1.0 Vp-p)
數位: DVI-D(TMDS, 100 Ω)
頻率: 水平24-83KHz; 垂直50-76Hz
同步訊號: 水平 / 垂直分離 / Composite Sync / SOG - 相容性PC: VGA 可支援至1920 x 1080
Mac: MAC 可支援至1920 x 1080 (Touch function not compatible)

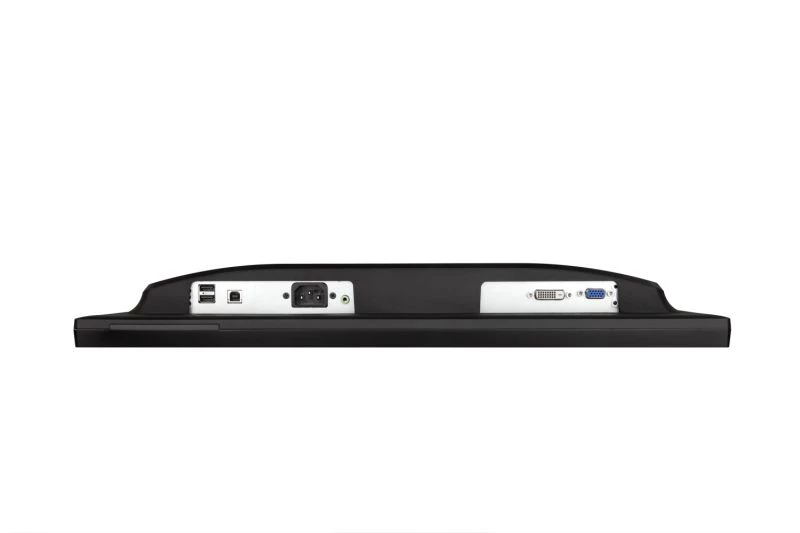

- 連接頭類比: D-sub *1
數位: DVI *1
USB: Up Stream: Type B *1
Down Stream: Type A *2
電源: 內建電源變壓器，三頭插座 (CEE22) *1 - 電源電壓: AC 100 - 240V ( 國際標準)；50 / 60 Hz
消耗功率: (Eco Mode)
Standard: 26W
Optimize: 21W
Conserve: 18W - 操作環境溫度: 0° C 至40° C (32° F 至104° F)
濕度: 20% 至 90% ( 無凝結) - 外觀尺寸實體: 511mm (寬) x 365mm (高) x 240mm (深)
- 重量淨重: 4.9 公斤
- 通過安規標準cULus, FCC-B, ICES003, Energy Star, CEC, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, BIS

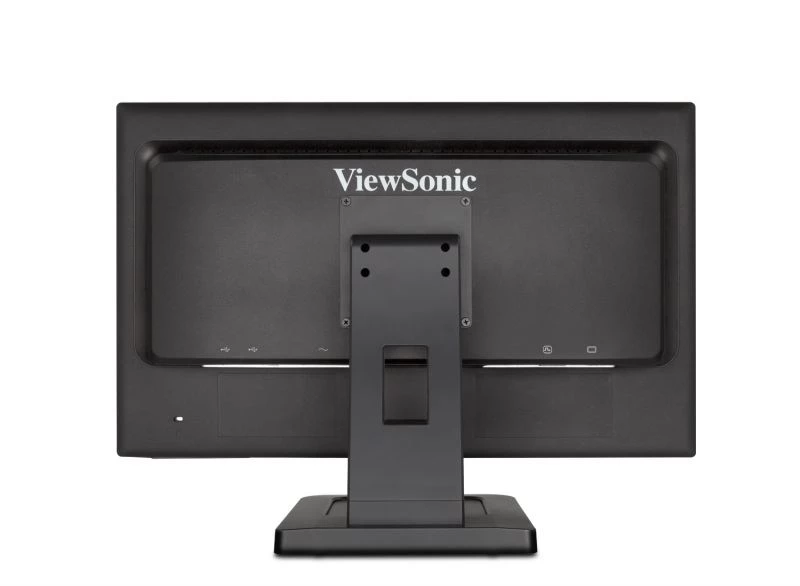

- Wall Mount 規格100mm x 100mm
100mm x 100mm
