Pro8600

視訊: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p
頻率: 水平31-100KHz; 垂直48-120Hz

PC: VGA to 1600x1200 UXGA
Mac: Up to UXGA (may require MAC adaptor)

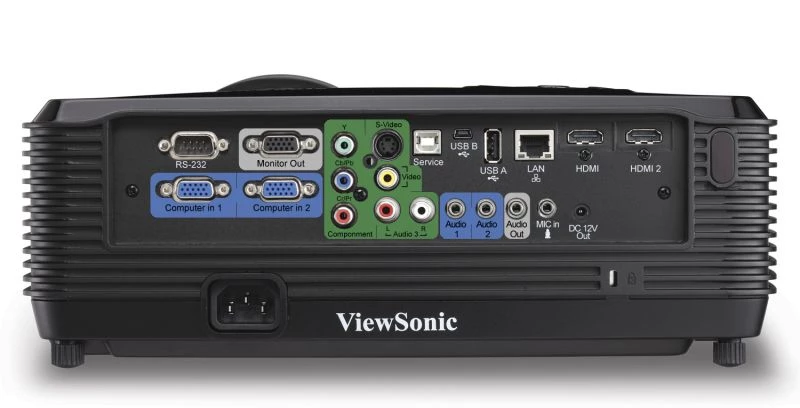

RGB 輸入: DB-15 x 2
RGB 輸出: DB-15 x 1
複合視訊輸入: 1 x RCA 端子
S 端子: Mini-Din 4 pin x 1
色差端子: RCA x 2(Share with RGB)
數位輸入: HDMI x1
音訊: 輸入:3.5mm mini- Mono Jack x 2
輸出:3.5mm mini- Mono Jack x 1
控制訊號: RS232(DB-9 x 1)
USB: Type A (card reader and wireless dongle)
Type B (mouse control and service)
Mini Type B (USB display)
電源: 3.5mm plug 12V/1A
網路: RJ45

電壓: 100V ~ 240 / 50 / 60Hz
消耗功率: 450W (typ) / <0.5W (stand-by mode)

溫度: 32° ~ 104° F (0° ~ 40° C)
濕度: 10–90% (無凝結)

實體: 335mm (寬) x 110mm (高) x 263mm (深)

淨重: 3.9 公斤

CB, UL/cUL, FCC-B (including ICES-004), CE, TUV-S
(Argentina), NOM, GOST-R, UKrSEPRO, PSB, C-Tick,
KC, CCC, CECP, WEEE, RoHS, SVHC, Hygienic
