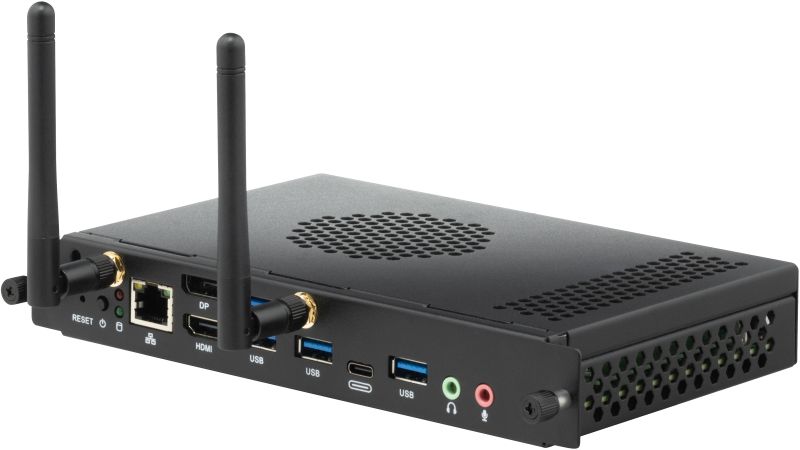

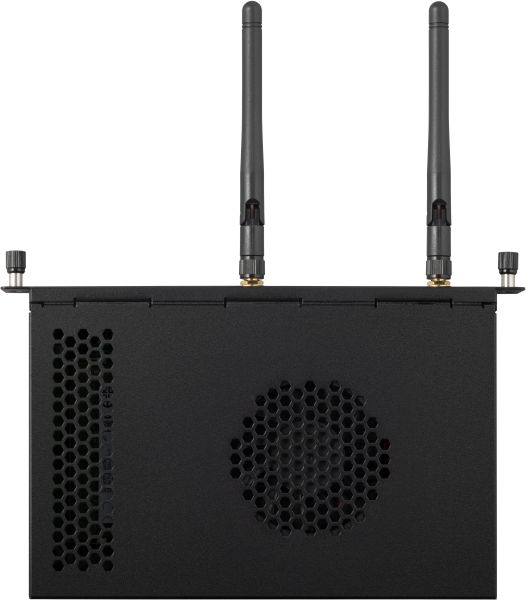

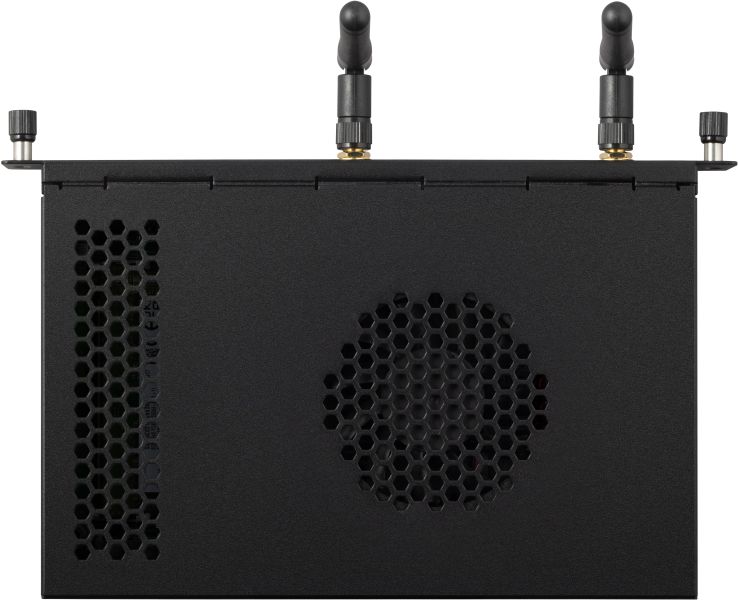

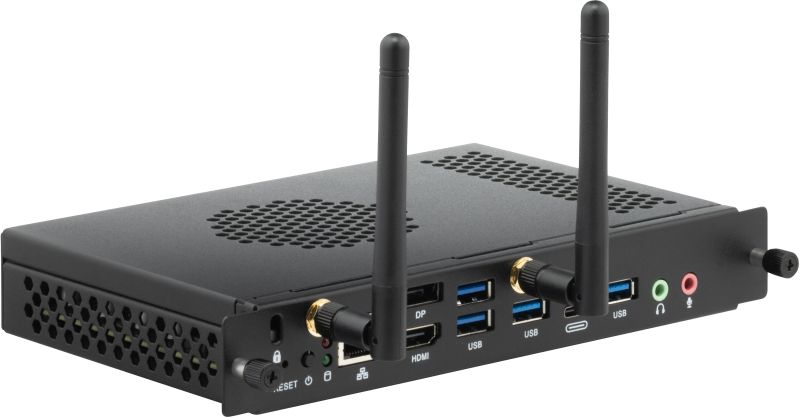

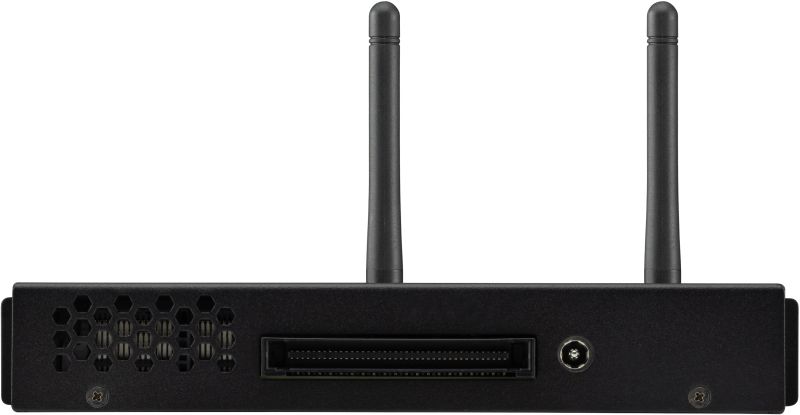

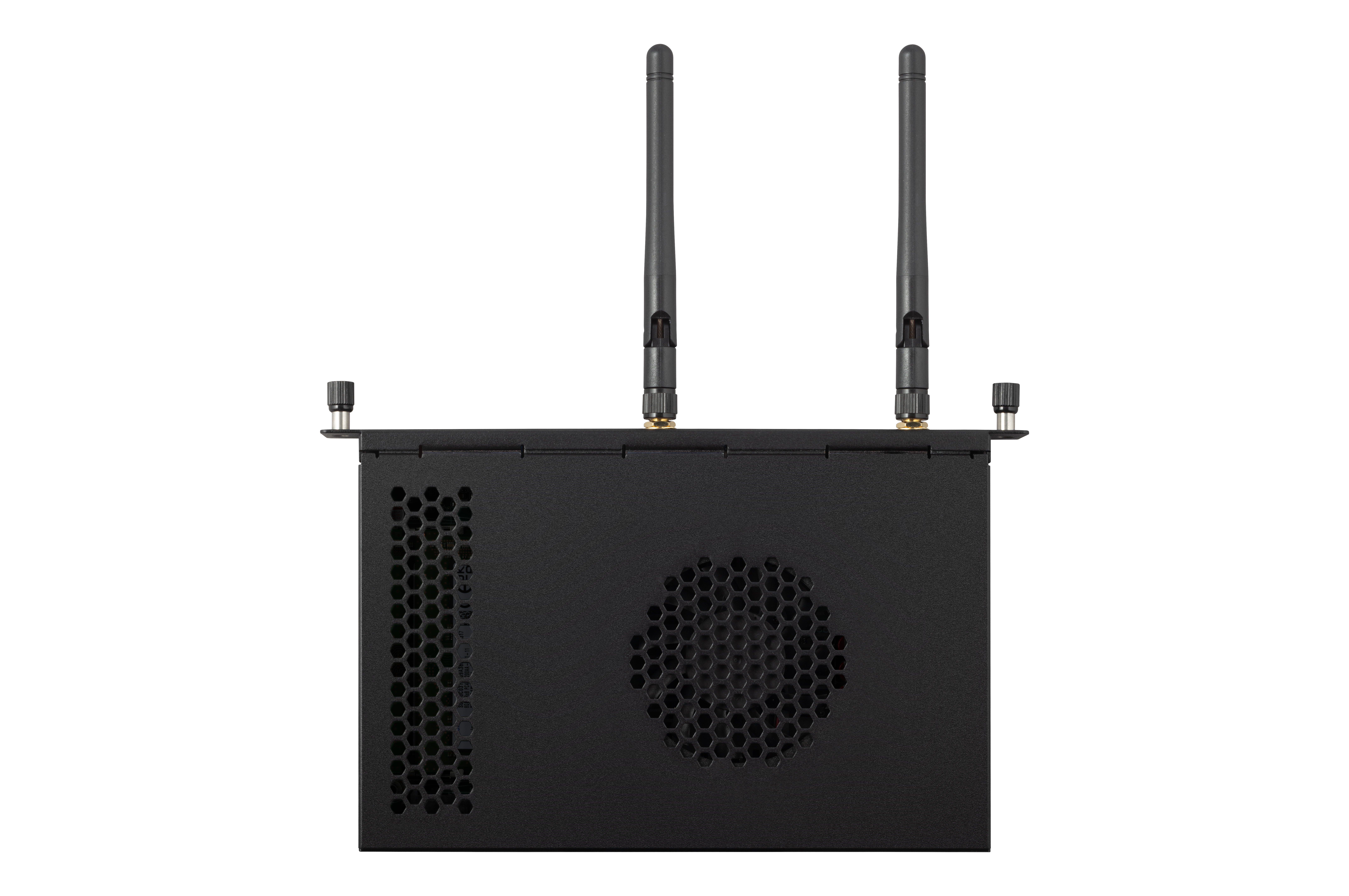

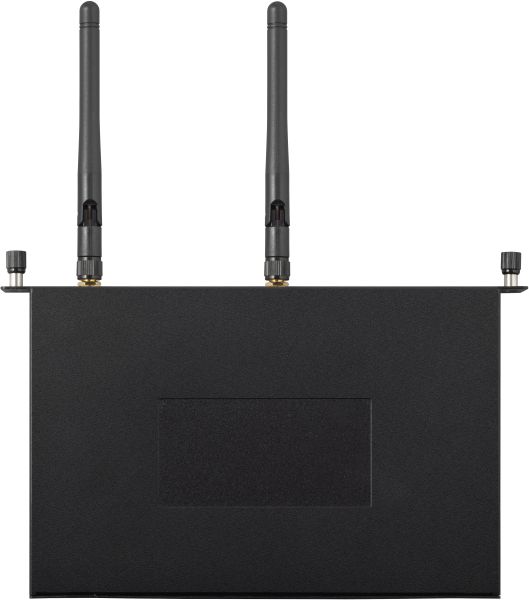

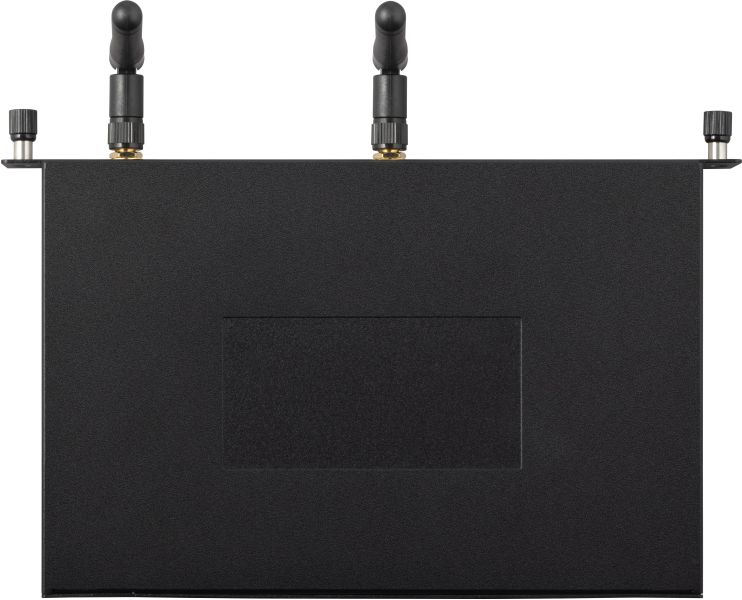

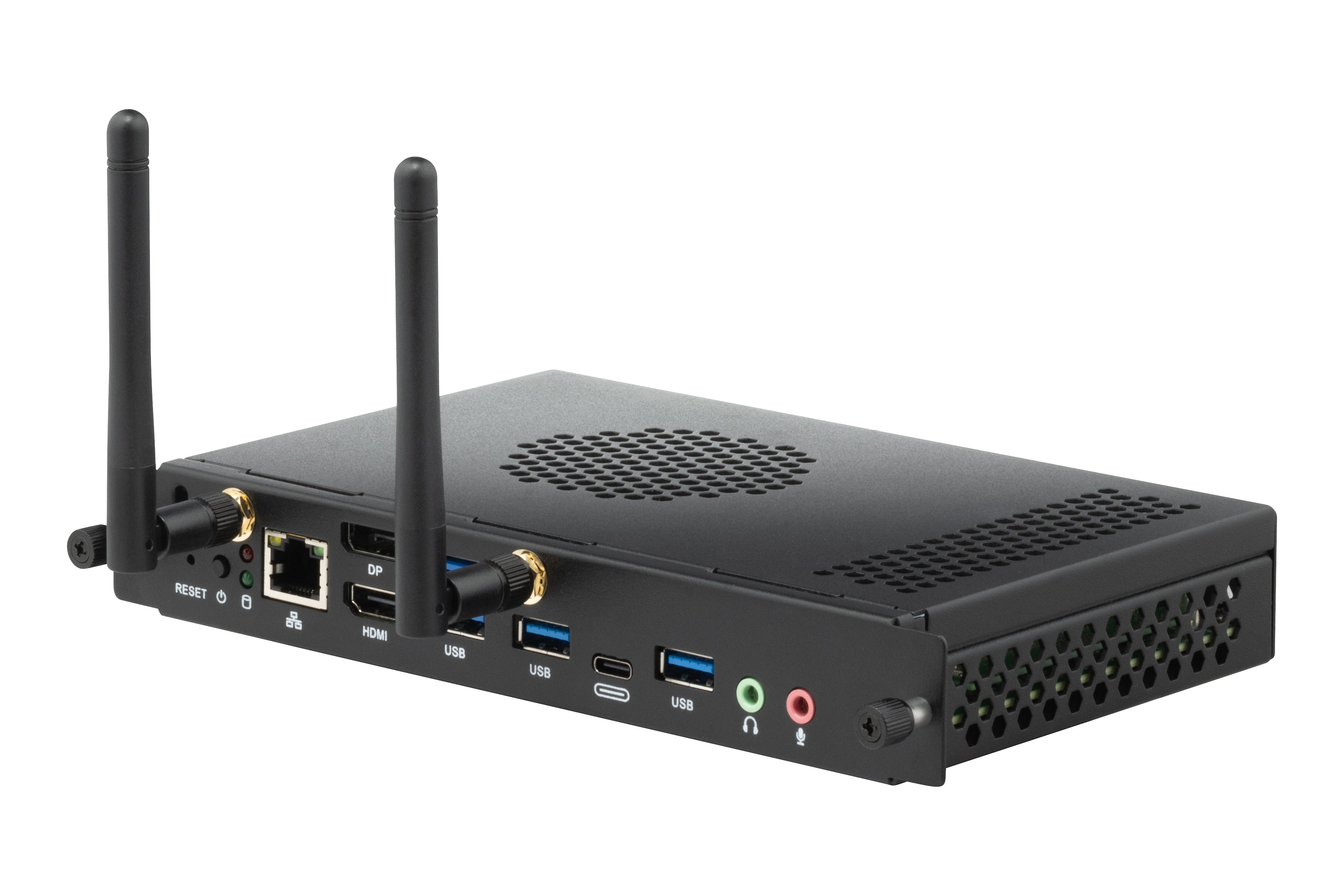

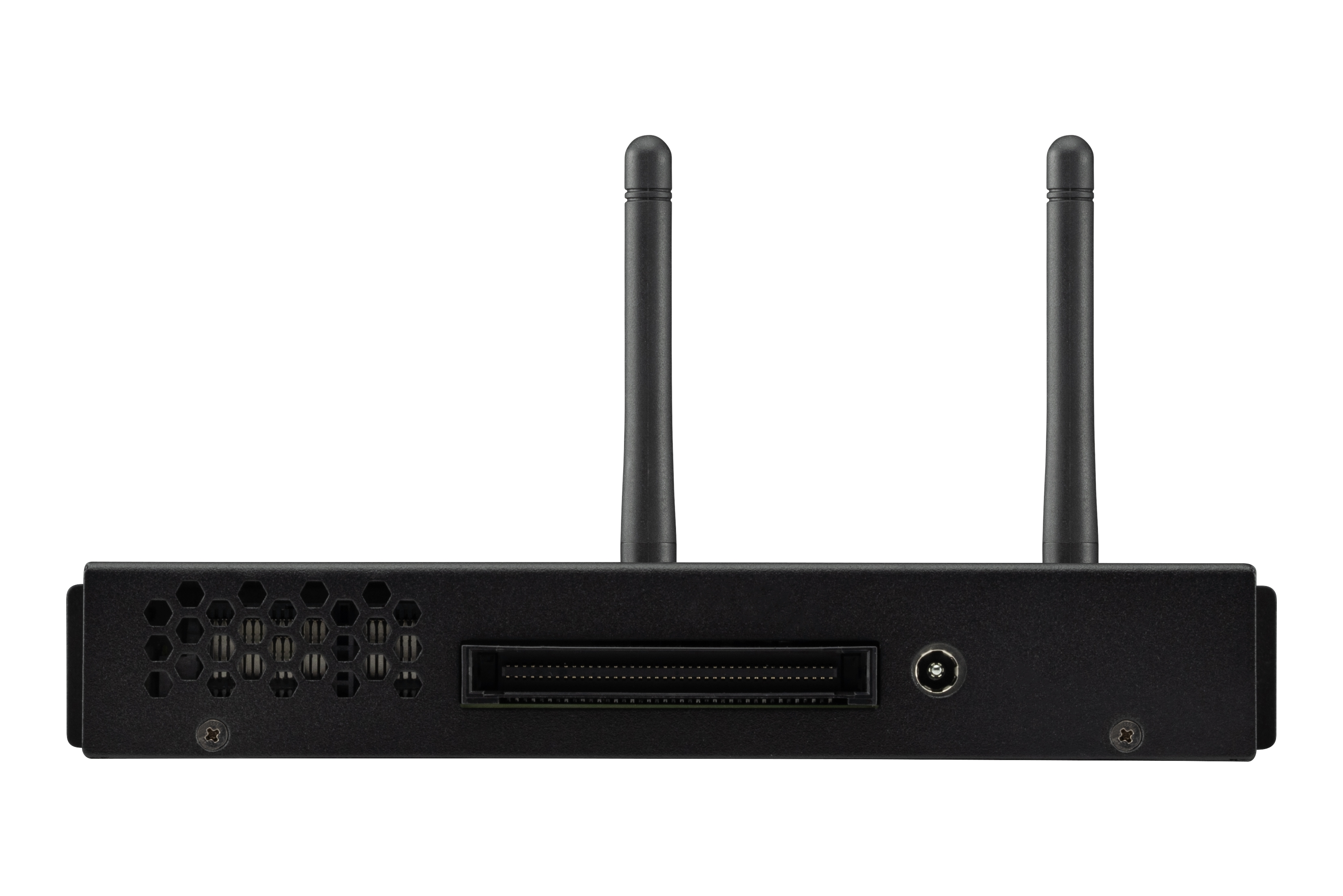

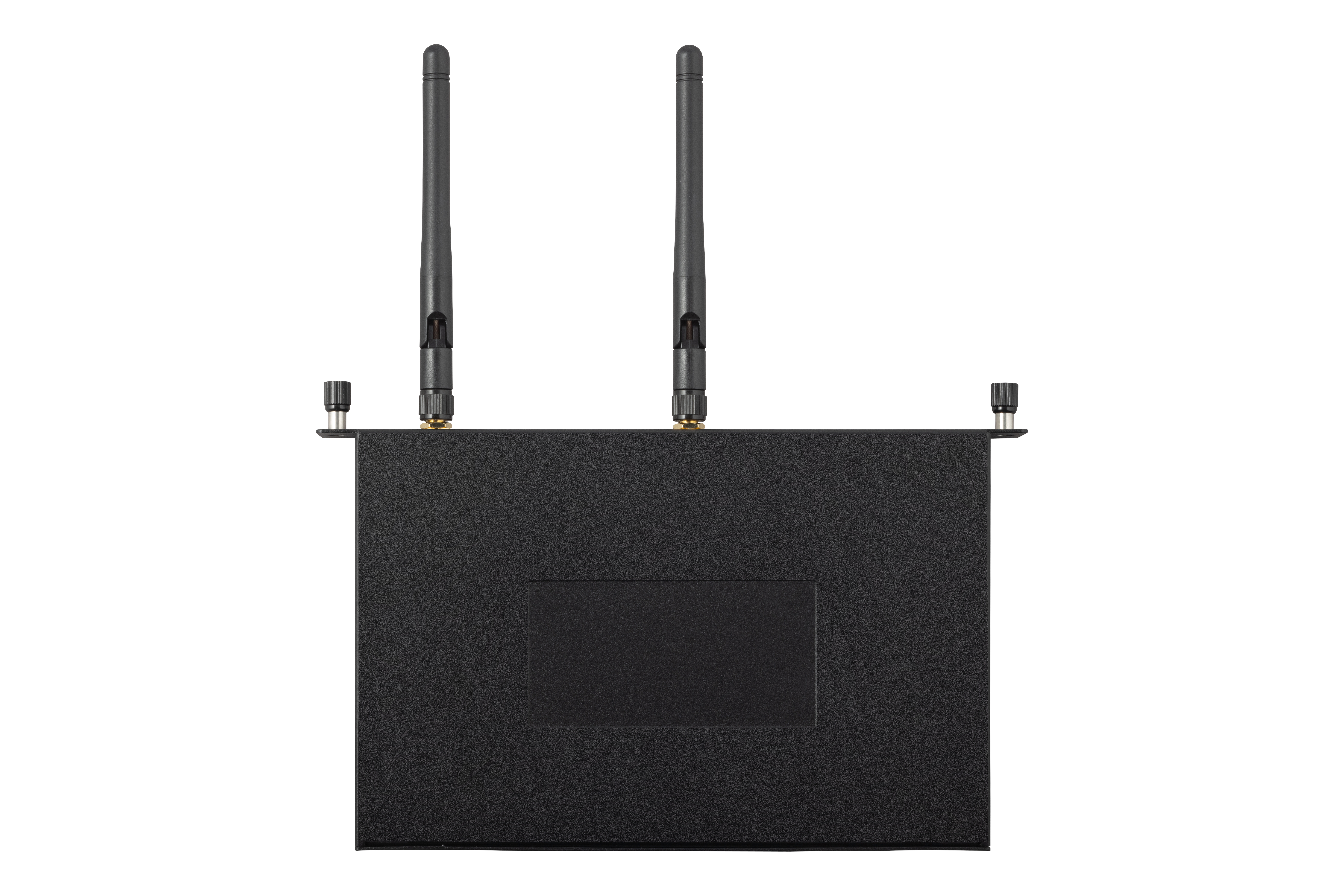

VPC35-W53-G1

Slot-in PC for ViewBoard®

Windows 11 Pro
Ideal Integrated Solution for ViewBoard® Interactive Displays and Presentation Display
Powerful Intel® 12th Core Processors embeded TPM2.0
Improved System Stability, Security, & Thermal Control

Sales Enquiry Share

GALLERY

OVERVIEW

Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPC35-W53-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 16GB DDR4 memory, and 256GB SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.1, and a range of ports, including 4K HDMI, DP1.4, USB 3.0, and Gigabit LAN RJ45 for faster workflows.

Tap into a productivity powerhouse

Boost the interactive whiteboard with remarkable power and lightning-fast speed from Intel® 12th Gen Core™ processors, letting you zip through lessons and tutorials effortlessly. Integrated with Intel® WiFi 6 and Bluetooth 5.1, experience ultra-fast, versatile connectivity to facilitate remote and hybrid classes with ease.

Stability in every lesson

Teach and present without any worry about sudden disruptions. Built with the FinchGuard, a Watchdog timer software, the VPC35-W53-G1 intuitively detects and recovers from system malfunctions seamlessly to maximize productivity.

Stay cool and blaze through classes

Equipped with a thermal control circuit and noise reduction capabilities, the fan within the device will dissipate much more heat in quieter acoustics of under 35 decibels for more conducive and longer lessons.

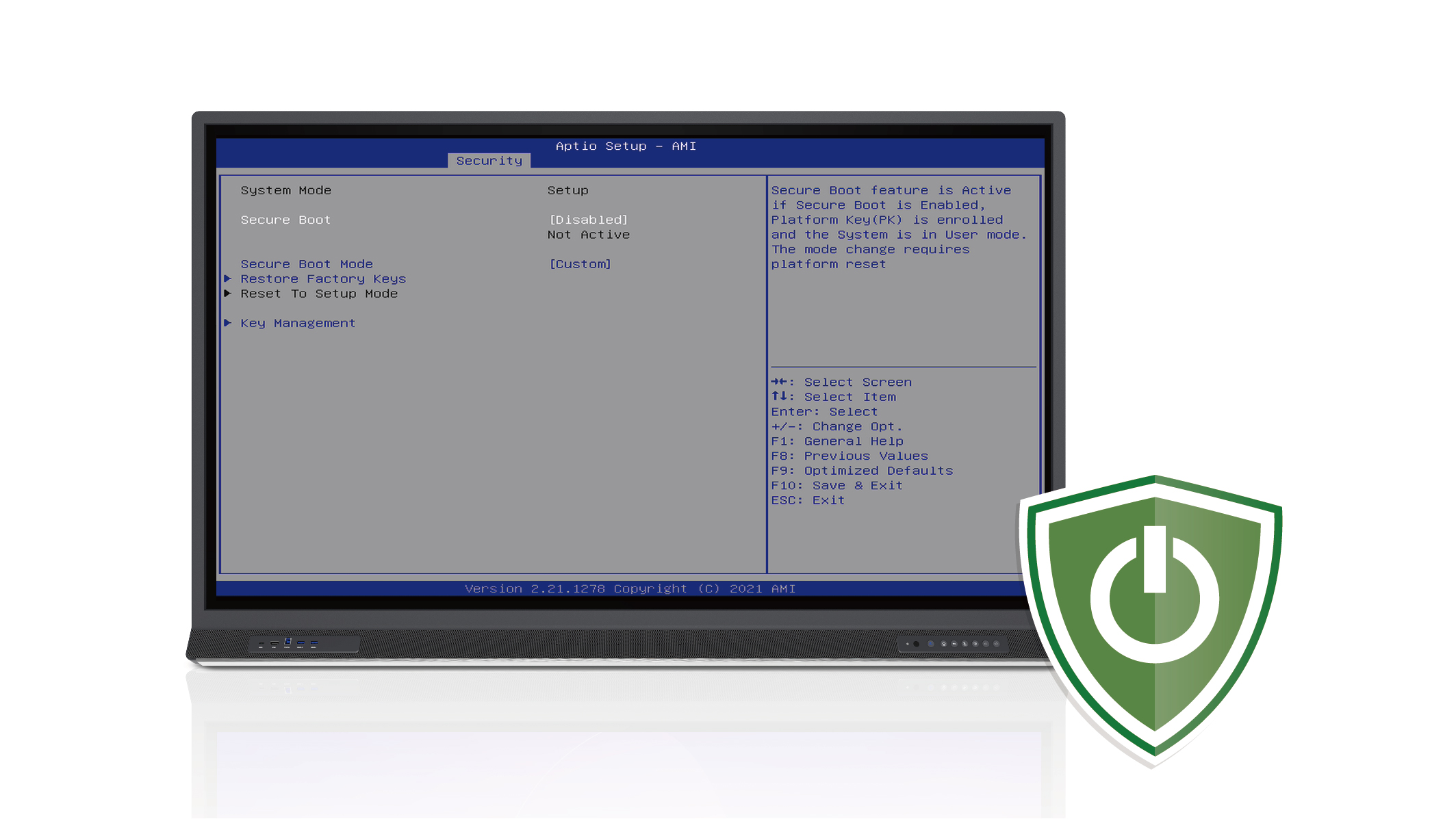

Boot up with total security

Prevent malicious software and unwanted operating systems from loading during start-up with the optional Secure Boot in the BIOS setting. This stops existing errors from loading and keeps unauthorized personnel from accessing PC settings.

Built-in myViewBoard software

The VPC35-W53-G1 seamlessly integrates with myViewBoard software, offering teachers a wide range of interactive lesson and presentation possibilities. Effortlessly prepare, save, and share class materials across various platforms in an instant.

SPECIFICATIONS

Software
Operating System: Windows 11 Pro
Core
CPU: Intel® Core™ i5-1240P 1.7G Turbo boost 4.4G
Graphics: Integrated Intel® iris Xe Graphics (80EU)
Total Available Graphics Memory: 32GB
Max Resolution up to 7680x4320@60Hz (DP)
Memory
Type: DDR4 SO-DIMM
Capacity: 16GB (Up to 32GB)

Storage
Dimension: M.2 2280 (22 x 80 mm)
Capacity: 256GB SSD
Interface: PCIE and SATA 3

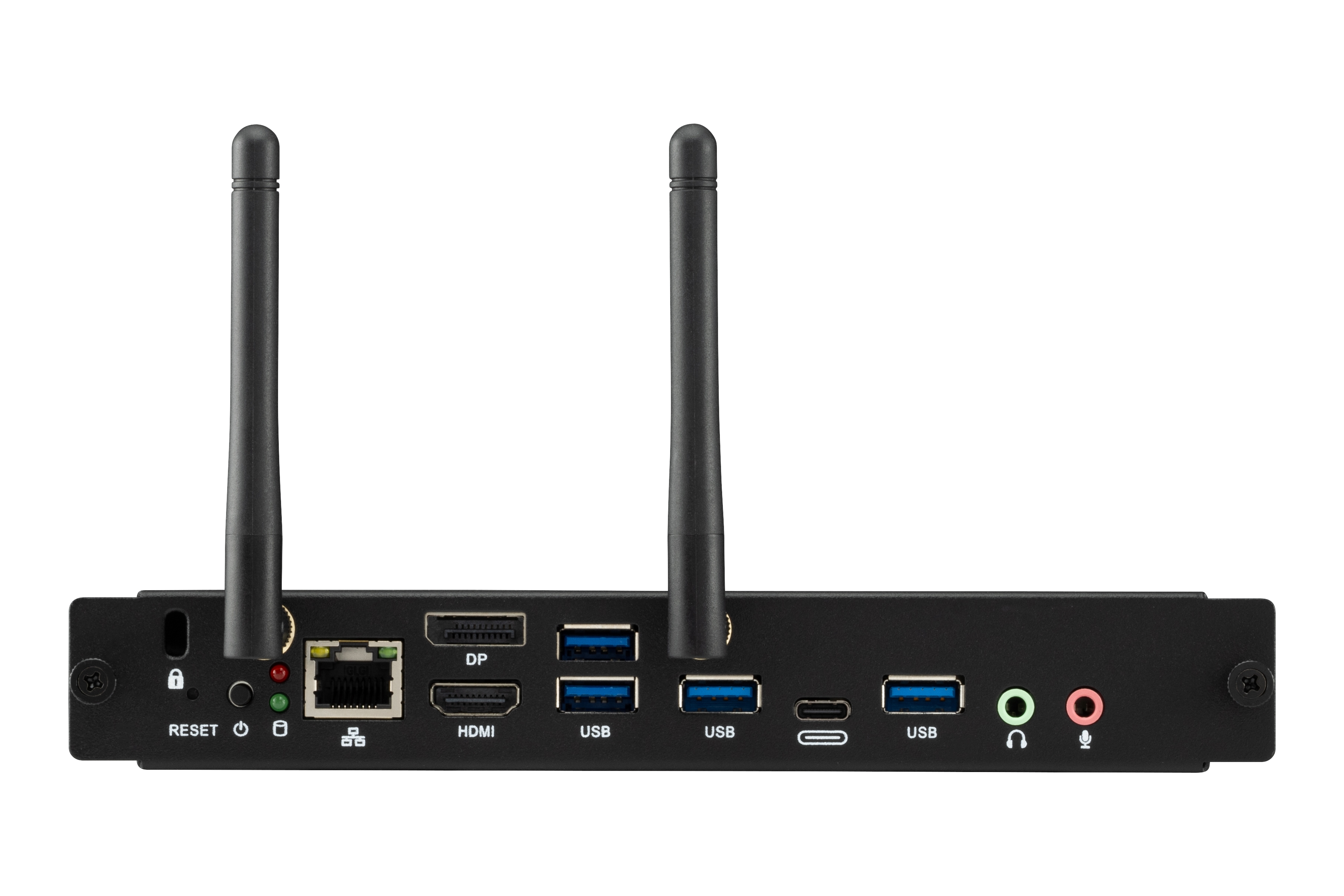

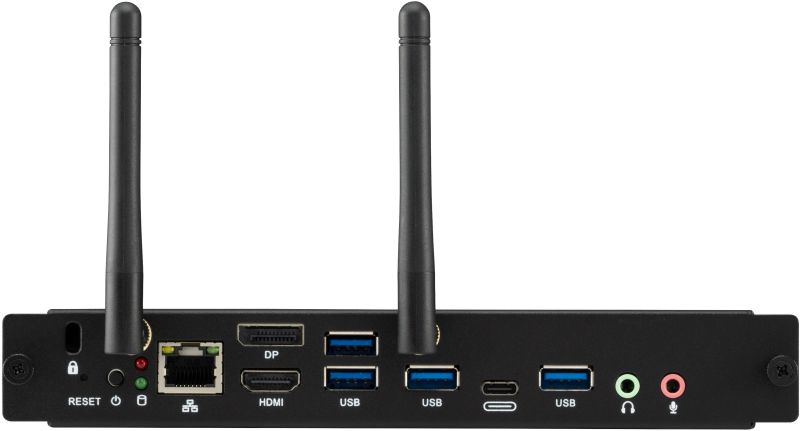

INPUT
MIC(Microphone): x1
OUTPUT
DisplayPort: x1 (1.4 max. resolution 7860x4320@60Hz)
HDMI: x 1 (2.0 max, resolution 3840x2160@60Hz)
Audio: x 1 Line out
LAN
RJ45: x1
Wireless / Bluetooth
Wireless / Bluetooth: Intel® Wi-Fi 6 AX200 802.11 a/b/g/n/ac/ax 2T2R + BT5.1
USB
Type A: USB 3.0 x 4
Type C: x 1 (data only)
Bundle Software
Bundle Software: myViewBoard for Window
Adobe Reader
BIOS Winflash tool
FinchGuard (Watch Dog)
Power
Voltage: DC 12-19V/ 8A
Consumption: 96 W (Max)
OPERATING CONDITIONS
Temperature (º C): -5~40°C
Humidity: 10% ~ 90% @ 40°C Non-condensing.
DIMENSIONS (W x H x D)
Physical (inch / mm): 7.95 x 4.83 x 1.18 in / 202 x 122.6 x 30 mm
Packaging (inch / mm): 10.51 x 7.56 x 2.83 in / 267x 192 x 72mm
WEIGHT
Net (lb / kg): 1.33lb/0.6kg
Gross (lb / kg): 2.14 lb/0.97kg
REGULATIONS
REGULATIONS: cTUVus, FCC/ICES003, FCC ID/ ICID, TPCH DoC, Packing waste, CA65 DoC, CE EMC, (LVD or CB,CE R&TTE, ErP, RoHS Green BOM & DoC,REACH SVHC,WEEE
PACKAGE CONTENTS
PACKAGE CONTENTS: 1. VPC OPS
2. Quick Start Guide
