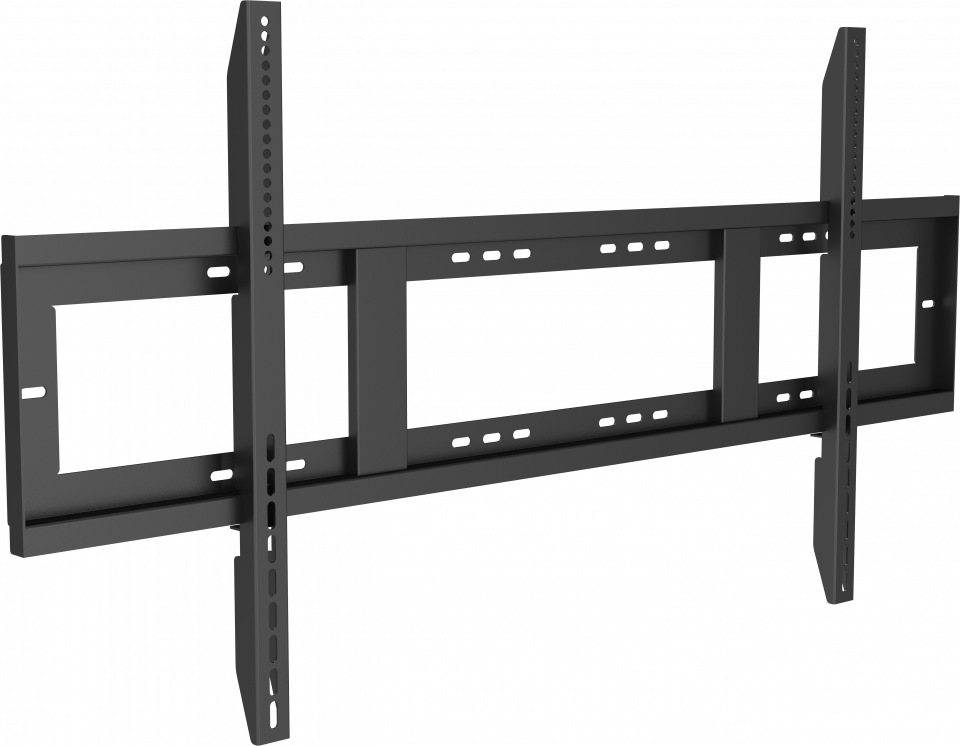

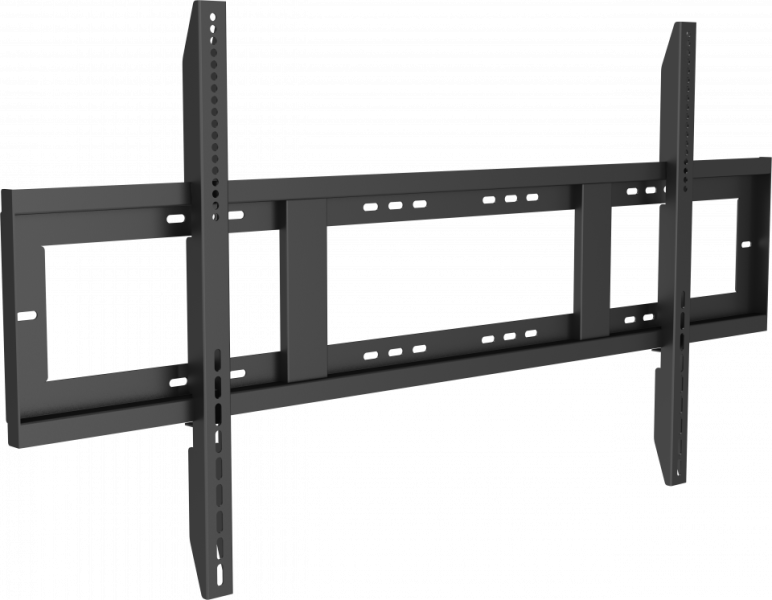

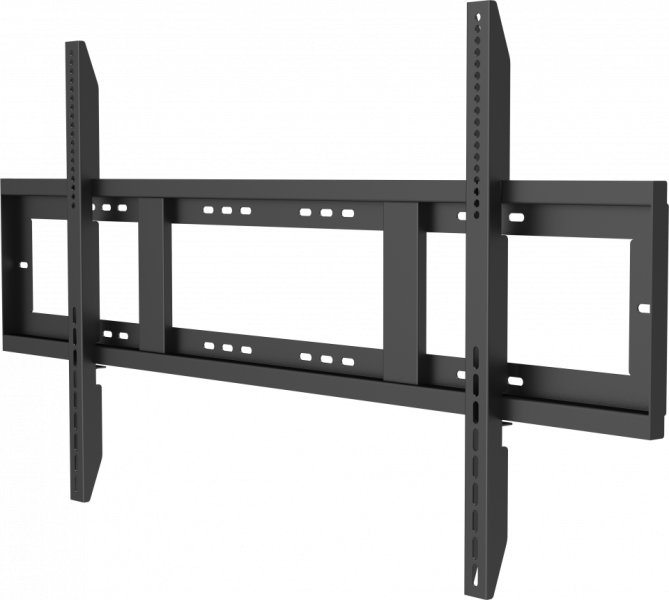

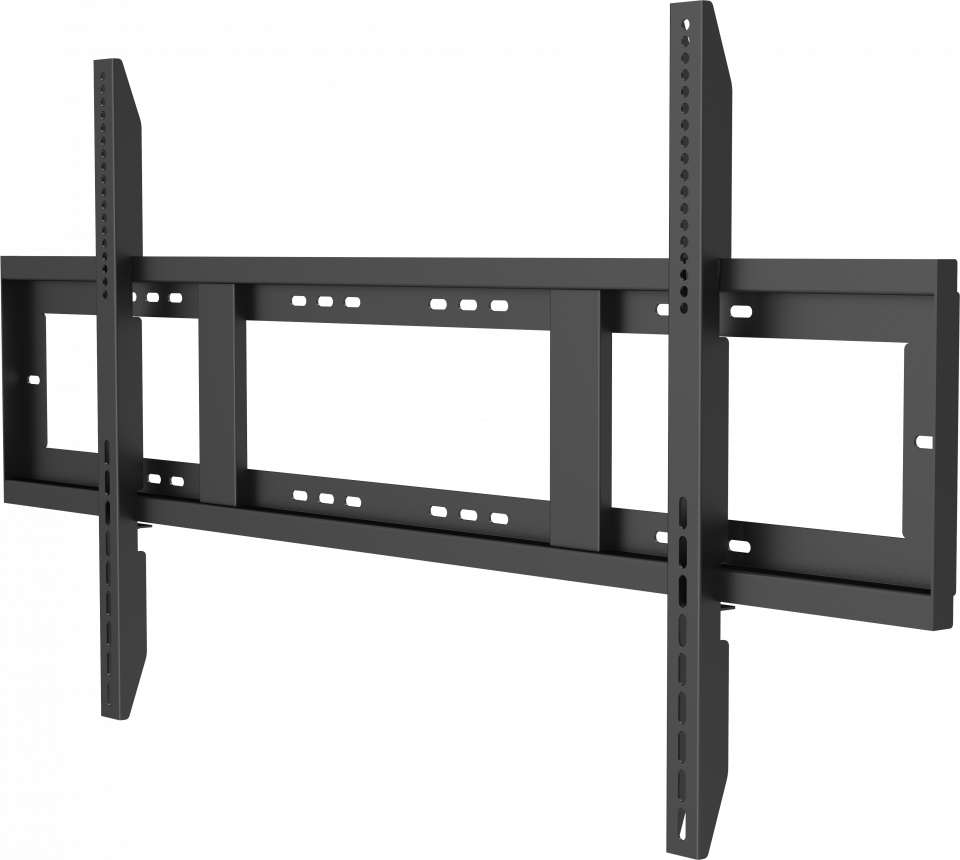

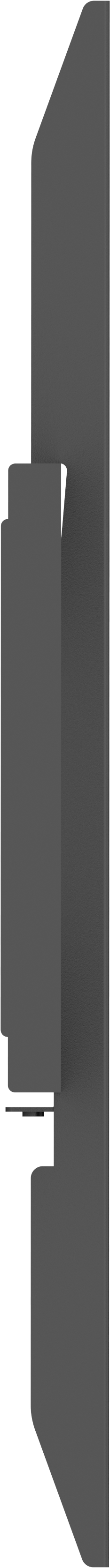

VB-WMK-003
Fixed Wall Mount for ViewBoard and Presentation Display
- Secure locking screw
- Up to 150kg load capacity and 105" display
- VSEA standard support up to 1000x600mm
- Durable coated finish
OVERVIEW
The VB-WMK-003 is designed to mount 65" to 105" ViewBoard and Presentation DisplaySPECIFICATIONS
- Mounting Pattern Max. Mountup to 1000x600mm
- Screw TypeM5, M8
- MaterialIron
- Dimension (WxHxD)Physical (WxHxD): 1260×650×45mm / 49.6x 25.6 x 1.77 in
Packaging (WxHxD): 1340×358×60mm / 52.75 x 14.1 x 2.36 in - Weight (Net)Net: 6.8kg / 15 lb (Support Max. Weight: 150 kg)
Gross: 7.6 kg / 16.76lb - Support Flat Panel Size55"~105"

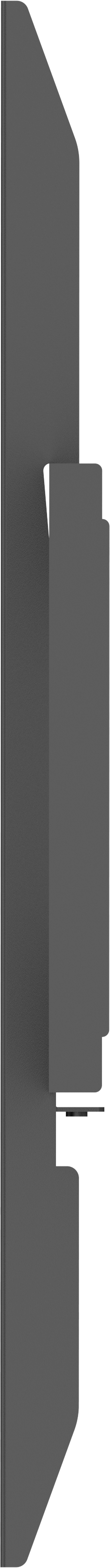

- Min. Distance To The Wall45 mm / 1.77 in
- Included Accessories1.Expansion rubber: Φ12×60mm, PMMA, 10 PCS (8 pcs for installation, 2 pcs for spare)
2.Screw to fix IFP on wall mount：M8×25mm, 6 PCS (4 pcs for installation, 2 pcs for spare)
3.Screw to fix wall mount on wall: M8.0×60mm, 8.8H, 10 PCS (8 pcs for installation, 2 pcs for spare)
4.Screw for spare: M5×15mm, 4 pcs (2 pcs for installation, 2 pcs for spare)
5.Washer：Φ 20× Φ 8.5× 1.5mm, 10 PCS (8 pcs for installation, 2 pcs for spare)
6.Guide X 1
COMPATIBLE WITH VB-WMK-003
65" 4K Wireless Presentation Display (WPD)
65" 4K Presentation Display
75" 4K Wireless Presentation Display (WPD)
75" 4K Presentation Display
86" 4K Wireless Presentation Display (WPD)
86" 4K Presentation Display
ViewBoard® 105" 5K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® 65" 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
ViewBoard® 75” 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
ViewBoard® 75" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
ViewBoard® 86" 4K Interactive Display
ViewBoard® 98" 4K Interactive Display
