ViewBoard 6552-1C

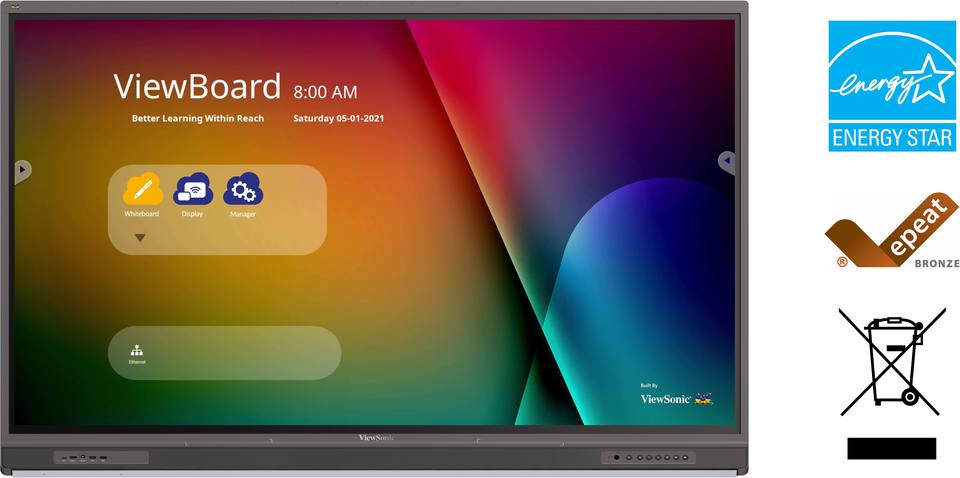

ViewBoard® 65" 4K Interactive Display

New Exterior Design with Innovative Multimedia Sound Bar
USB-C for plug-and-play connectivity via a single cable
Dual-pen, 33-point touch with naturally smooth writing experience
Industry-leading audio and advanced eye-care technology
Centralized remote management system via myViewBoard Manager

Sales Enquiry Share

OVERVIEW

The ViewBoard^® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.

ViewBoard^® 52 Series

Today’s lessons made easy

Special Features

Newly designed with for better lesson delivery

Learn More

For Teachers

Instant Connectivity
Seamless Usability
User-Friendly Software

Learn More

For Students

Inclusive Collaboration
Advanced Eye-Care Technology
Integrated Sound

Learn More

For Schools

Simplified Management
Software Compatibility
Safety and Security

Learn More

Newly Designed with Innovative Multimedia Sound Bar

Upgraded for a better teaching and learning experience.

Immersive Soundbars

Recognizing the power of sound in student engagement, the in-built speakers are positioned front and center to fill the room with rich audio that ensures every detail can be heard.

Responsive 8-Mic Array

An in-built 8-mic array with acute noise detection and cancellation capability. Combined with another industry-first feature within the ViewBoard 52 Series, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source.

Designed for Teachers

User-centric and digitally styled to support lessons that flow.

Instant Connection via USB-C

A single-cord solution for data, video and power with no preparation or technical know-how required. Teachers simply plug-and-play for immediate presentation, whiteboarding, and collaborative functionality using the familiar software of their own device.

Wireless Connection via vCastSender

No cable required. ViewSonic's vCastSender application allows teachers to connect wirelessly through a one-time password for cable-free classes with complete functionality of the display's presentation and collaboration tools.

Easy Casting via myViewBoard Display

Ideal for quick presentations and guest users, myViewBoard Display allows users to cast directly to the ViewBoard 52 via their internet browser for instant screen-mirroring with no cable or download necessary.

Industry-First User-Centric Design

The unique angular design puts the control buttons and I/O ports clearly in line of sight, giving teachers easier access than competing products and allowing them to seamlessly and creatively incorporate the display into classes without disrupting the lesson flow. *Image shown is for illustration purposes only. Actual product may vary.
*Image shown is for illustration purposes only. Actual product may vary.

Easy Access Shortcut Keys

Designed for simplified control, the easily accessible shortcut keys allow teachers to instantly disable the touch function when not required and to freeze the display screen for independent use of their personal device during presentations.

Built for Students

Intuitive digital collaboration with eye-care technology.

Best-in-Class Collaboration Tools

The 4K Ultra HD display comes equipped with Ultra Fine Touch and palm awareness technology to deliver a completely natural writing experience with dual-pen, 33-point touch capability to support in-class or online student collaboration.

Industry-Leading Classroom Sound

Designed to fill the classroom with robust, attention-grabbing sound, the ViewBoard 52 Series features 2X15W speakers and a 15W subwoofer embedded within the front-facing soundbar to further amplify the impact of in-class music and videos for increased overall engagement.

Advanced Screen Bonding Technology

By reducing the space between the glass and the panels to a single millimeter, advanced bonding technology brings even brighter, better, and clearer visuals to an already impressive display.

Advanced Eye-Care Technology

With True Flicker-Free technology, a blue light filter, and an anti-glare coating all built directly into the display hardware, the ViewBoard 52 Series offers an automatic, superior viewing experience that is both eye friendly and energy efficient.

Normal

Eye-care Technology

Bluelight Filter Off

Centralized Management for Schools

User-friendly remote management via desktop or mobile.

Remote Management System

The browser-based myViewBoard^® Manager application allows IT managers and verified admin users to update, schedule, broadcast and manage multiple displays simultaneously from any location through a secure, user-friendly remote management system.

Device Agnostic and Software Compatible

Designed to use the software you know, the ViewBoard 52 Series operates on Android 9.0 and is compatible with Windows, Mac, Chrome and Linux with full touch input functionality for all connected devices.

Enterprise-Grade Safety and Security

The built-in AWS-powered myViewBoard^™ whiteboarding software provides comprehensive and trustworthy data protection through cloud-powered security and encryption to ensure the security and safety of private files and information.

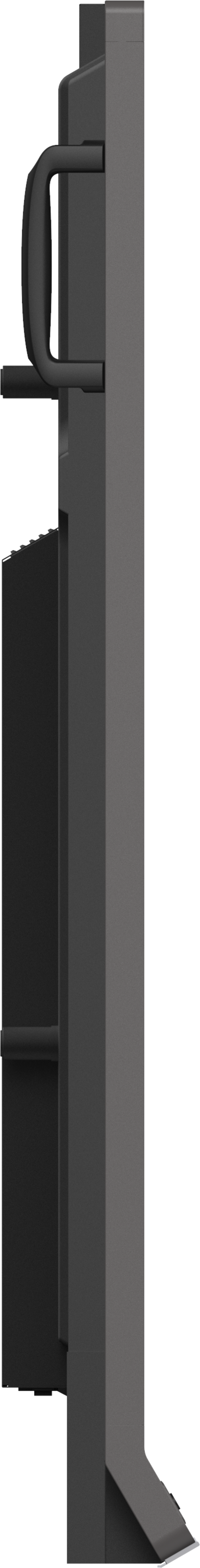

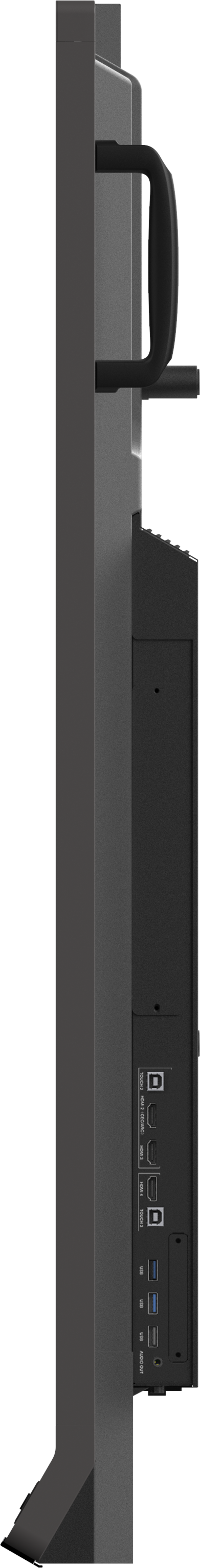

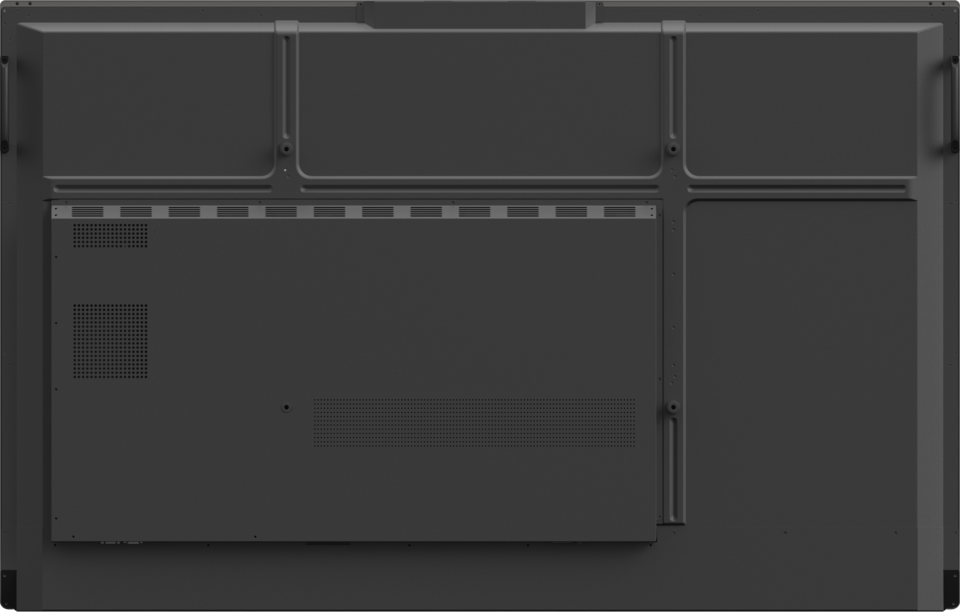

Dimensions & I/O Ports

USB Type-C
HDMI 1
TOUCH 1
USB 2.0
OPS PC Slot
TOUCH 2
HDMI 2
HDMI 3
HDMI 4
TOUCH 3
USB 3.0
Wi-Fi Slot
USB
AUDIO OUT
HDMI OUT
LAN
RS-232
VGA
TOUCH 1
SPDIF

SPECIFICATIONS

Display
Panel Size: 65"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1428.52(H) x 803.52 (V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B colors (10bit)
Brightness: 400 nits (typ)
Contrast Ratio: 1200:1 Typ. , 3000:1 Max.(DCR enable)
Response Time: 8ms
Viewing Angles: H = 178, V = 178 typ.
Backlight Life: 50,000 hrs (typ).
Surface Treatment: Hardness: 9H. Anti-glare coating
Orientation: Landscape
Platform
Processor: ARM Cortex A73*4
RAM: 4GB
Storage: 32GB
Touch
Type/ Tech: UFT (Ultra Fine Touch) Technology
Touch Resolution: 32767 x 32767
Touch Point: Windows: 33 points touch, Android: 20 points touch

INPUT
HDMI: 2.0 x4 ( 3840x2160 @60Hz ,HDCP2.2, HDMI2 with CEC/ARC )
RGB / VGA: x1 (1920x1080 @60Hz)
Audio: x1 (PC audio in)
RS232: x1
OPS: module slot x 1
WiFi: WiFi module slot x 1
OUTPUT
HDMI: x1 (3840x2160@60Hz)
Audio: x1 (Earphone out)
SPDIF: x1 (optical)
LAN
RJ45: x2
USB
Type A: USB2.0 x 3 (Front x2, Side x1 )
USB3.0 x 2 (Side x 2 )
Type B: x3(Front x1, Rear x 2)), for touch
Type C: x1 (USB2.0, DP1.2, Ethernet 100M, PD 65W)
SPEAKERS
15W x 2 front soundbar + 15W x 1 subwoofer
MICROPHONE
built-in 8-array microphone
Top Camera Plate
Yes
Embedded OS
Android 9 (Android 11 upgradable)
Bundle Software
Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display
Special Features
All-in-one USB port: USB 3.0 x 2
Simple LAN sharing between IFP and slot-in device: 10/100/1000M for Android and PC
Light Sensor: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 119.2W (Typ.) / Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ): 600 x 400
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 1488 x 948 x 120 mm / 58.6 x 37.3 x 4.7 in
Packaging (inch / mm): 1628 x 1046 x 225 mm / 64.09 x 41 x 18.85 in
WEIGHT
Net (lb / kg): 93.37 lb / 42.35 kg
Gross (lb / kg): 114.86 lb / 52.1 kg
REGULATIONS
cTUVus, FCC/ICES003, Energy star 8.0, Mexico CoC, Mexico Energy, EMC/CE, CB/LVD, EAC, UkrSEPRO, LBL, FF, Green BOM, RoHS, SCIP, WEEE , EPEAT, BSMI, ErP, REACH , TPCH, CA65, PAIA
PACKAGE CONTENTS
1.Power cable 2. Remote control 3. USB Type-C cable 4. USB Touch cable 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 11. HDMI cable 12. Eraser 13. AAA Battery x 2
Compatible Slot-in PC
VPC12-WPO/VPC2C-O/VPC25-O/VPC27-O series
Note
Disclaimer:
1.Although we endeavor to present the most accurate and comprehensive information at the time of publication, we reserve the right to make any change regarding any info herein without prior notice.
2.Unless otherwise stated, all performance claims are based on theoretical performance. Actual figures may vary in real-world situations and may depend on many factors including the processing speed of the host device, file attributes and other factors related to system configuration and your operating environment. 3.Product Specification and appearance may differ from country to country and from model to model. We recommend that you check with your local dealers for the specification and the appearance of the product model available in your country. Colors of products may not be perfectly accurate due to variations caused by photography and monitor settings.
