Key Features

EP1042T
Product Description

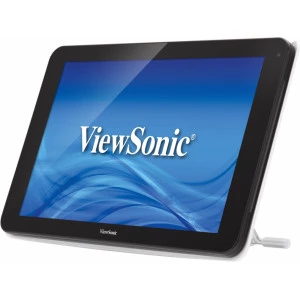

The ViewSonic EP1042T is a 10" (10.1" viewable) all-in-one interactive digital ePoster designed as a conference and meeting arrangement solution, delivering eye-catching and touch-interactive commercial messaging. Adopting the latest power-over-Ethernet (POE) technology, the display can be easily installed at high-visibility locations via one LAN cable. The EP1042T features a wireless b/g/n network and LAN connectivity for easy content loading. Multi-touch compatibility with HTML5 and SMIL formats deliver a 2-way interactive platform for dynamic, customized content. Its built-in media player, 8GB internal storage, and integrated speakers enable the playback of video clips, as well as photos and music, from a USB hard drive or SD/SDHC memory card. Bundled with Signage Manager Express software, the EP1042T effectively delivers customized messaging to target audiences. With VESA-mount compliance (75mm x 75mm), the EP1042T is installation-ready for high-visibility, high-traffic locations.
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Panel Size: 10.1"
    Type/Tech: TFT LCD Module with LED Backlight
    Display Area: 219.96(H) x 135.6(H)
    Aspect Ratio: 16:9
    Native Resolution: 1280 x 800
    Colors: 262K color by 6 bit R.G.B signal input
    Brightness: 300 nits (typ.)
    Contrast Ratio: 800:1 Typ.
    Response Time: 25ms
    Viewing Angles: H = 170, V = 170 typ.
    Backlight Life: 10,000 hrs
    Surface Treatment: HC (Hard Coating)
    Orientation: Landscape / Portrait
  • TOUCH
    Type/ Tech: Capacitive
    Touch Resolution: 1280x800
    Touch Point: 10 point for gesture
  • STORAGE
    On-board Flash: eMMC 8GB
  • INPUT
    Audio: x1 PC audio(3.5mm)
    SD/SDHC: MircoSD x1 (for expand storage, up to 32GB)
  • OUTPUT
    HDMI: x1
  • LAN
    RJ45: x1 (10M/100M BASE-T, PoE 13W)
  • USB
    Type A: x2, (for content loading, F/W upgrade, Key board, Mouse)
    Micro USB: x1 (for ADB troubleshooting)
  • OTHER
    Reserved expansion port x3 (for reserved expansion)
  • SPEAKERS
    1W x 2
  • CAMERA
    2M Pixel
  • EMBEDDED PLAYER
    4.4
  • COMPATIBILITY
    HDMI: 720@50/60Hz, 1080p@50/60Hz
  • CONTROLS
    Multimedia: MPEG-1, MPEG-2, MPEG-4, VC-1/WMV9, JPEG, PNG, MPEG L2 audio, MP3, W3C HTML5, W3C SMIL 3.0 instructions
  • BUNDLE SOFTWARE
    Signage Manager
  • POWER
    Voltage: AC: 100-240VAC +/- 10% Wide Range
  • FREQUENCY RANGE
    2400~2483 MHz for 802.11 b/g/n
  • ERGONOMICS
    Wall Mount (VESA® ): 75 x 75
  • OPERATING CONDITIONS
    Temperature (º C): 0°C to 40°C
    Humidity: 30% ~ 80% non-condensing
  • DIMENSIONS (W X H X D)
    Physical (inch / mm): 10.62 x 6.72 x 1.12 / 269.88 x 170.77 x 28.5
    Packaging (inch / mm): 13.2 x 3.93 x 8.93 / 336 x 100 x 227
  • WEIGHT
    Net (lb / kg): 1.6 / 0.727
    Gross (lb / kg): 4.95 / 2.245
  • REGULATIONS
    FCC, cTUVus, Mexico COC, ICES-003
  • PACKAGE CONTENTS
    AC Adapter / Power plug x 1 (US/EU/AU/UK) / Power and Micro SD card brackets / Display stand / Hardware Quick Start Guide / Software Quick Start Guide / Documentation CD (UG, QSG, Signage Manager software) *Actual content may differ from market to market
