Funcții esențiale
  • 10-point touch and passive pen touch
  • Swivel and flat ergonomic design
  • HDMI output to external display
  • HDBaseT connection
  • Durable 7H glass screen surface

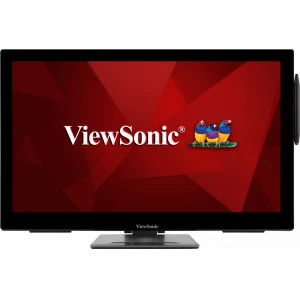

ViewBoard Mini IFP2710
Descrierea produsului
The ViewSonic ViewBoard Mini IFP2710 is a multi-touch display with finger and pen touch command capabilities that allows presenters to intuitively draw, write, and annotate directly on the display. An advanced ergonomic design allows you to swivel the display or lay it flat on a tabletop for group discussions. All annotated content on the touch display can be transferred to a larger external display or projector simultaneously via HDMI output or LAN cable from HDBaseT, creating a more engaging classroom or lecture hall environments.
Vizitează Noi
  • www.viewsonic.com
  • LCD PANEL
    Monitor Size: 27.0” / 68.58cm
    Panel Technology: ADS Type, a-si TFT Active Matrix LCD
    Rezoluție: 1920 x 1080
    Display Area: 597.888(H) x 336.312(V)
    Aspect Ratio: 16:9
    Luminozitate: 260 cd/m2 (Typ.) / 220cd/m2 (Min)
    Rată de contrast: 1000:1 (Typ) / 700:1 (Min)
    Rată de contrast dinamic: 20,000,000:1
    Unghiuri de vizualizare: 178 degrees / 178 degrees (Typ)
    Refresh Rate: 75Hz
    Timp de răspuns: 14 ms (Typ.)
    Backlight: WLED light bar
    Durată de viață sursă de lumină fundal: 30,000 Hrs (Min)
    Culori: 16.7M colors, (6-bits + Hi FRC)
    Spectru de culori: 72% NTSC Size (Typ)
    Panel Surface: Glossy type, Hard-coating (7H)
    Dimensiune Pixel: 0.3114(H) x 0.3114(V)
  • INPUT SIGNAL
    Frequency: Fh = 31 ~82 kHz ; Fv = 56 ~75 Hz
    Sync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p): Separate Sync / Composite Sync / Sync on Green, HDMI (v1.4): TMDS
  • COMPATIBILITY
    PC: PC Compatibles (up to 1920 x 1080 Non Interlaced)
    Mac®: Power Mac (up to 1920 x 1080 )
  • CONNECTOR
    Input: D-sub, HDMI1.4, DisplayPort 1.2
    Ieșire: HDMI1.4 x 1
  • AUDIO
    Difuzor: 2W x 2
  • USB
    Upstream: Type B x 1
    Downstream: Type A x 2
  • POWER
    Putere: External Power Adapter
    Voltaj: AC 100-240V (Universal); 50/60Hz
    Consum: 155W
    Optimize: 143W
    Conserve: 132W
  • ERGONOMICS
    Înclinare: -5°±1.0° (forward) , 90.0°±1.0°(backward)
    Pivotant: 177.5° / 177.5°
  • SPECIAL FEATURES
    Eye Care: Flicker free / Blue Light Filter
  • WALL MOUNT
    VESA®: 100mm x 100mm
  • OPERATING CONDITIONS
    Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
    Umiditate: 20% to 90% (no condensation)
  • DIMENSIONS (W X H X D) (MM)
    Physical with stand (mm): 653.20mm (W) x 449.07 mm (H) x 270.00 mm (D)
    Physical without stand (mm): 653.20mm (W) x 410.67mm (H) x 52.10 mm (D)
    Packaging (mm): 754.38 mm (W) x 524.76 mm (H) x 168.91 mm (D)
  • WEIGHT
    Net with stand: 12.69kg (27.98lbs)
    Net without stand: 7.97 kg (17.57 lbs)
    Greutate: 19.88 kg (43.83 lbs)
  • CONȚINUT PACHET
    LCD Display, Power Cable (cable length :1.5M), Audio Cable (3.5mm audio male to male) (cable length : 1.8M), VGA Cable (cable length :1.5M), HDMI Cable(cable length :1.5M), USB Cable (cable length :1.8M), Passive Touch Pen, Quick Start Guide
