Funcții esențiale
  • Light OS UEFI Shell Allows Scripting, File manipulation, and Obtaining System Information
  • Ideal Integrated Solution for ViewBoard® Interactive Displays & Presentation Displays
  • Powerful Intel® 11th Core Processors​ embedded TPM2.0
  • Improved System Stability, Security, & Thermal Control

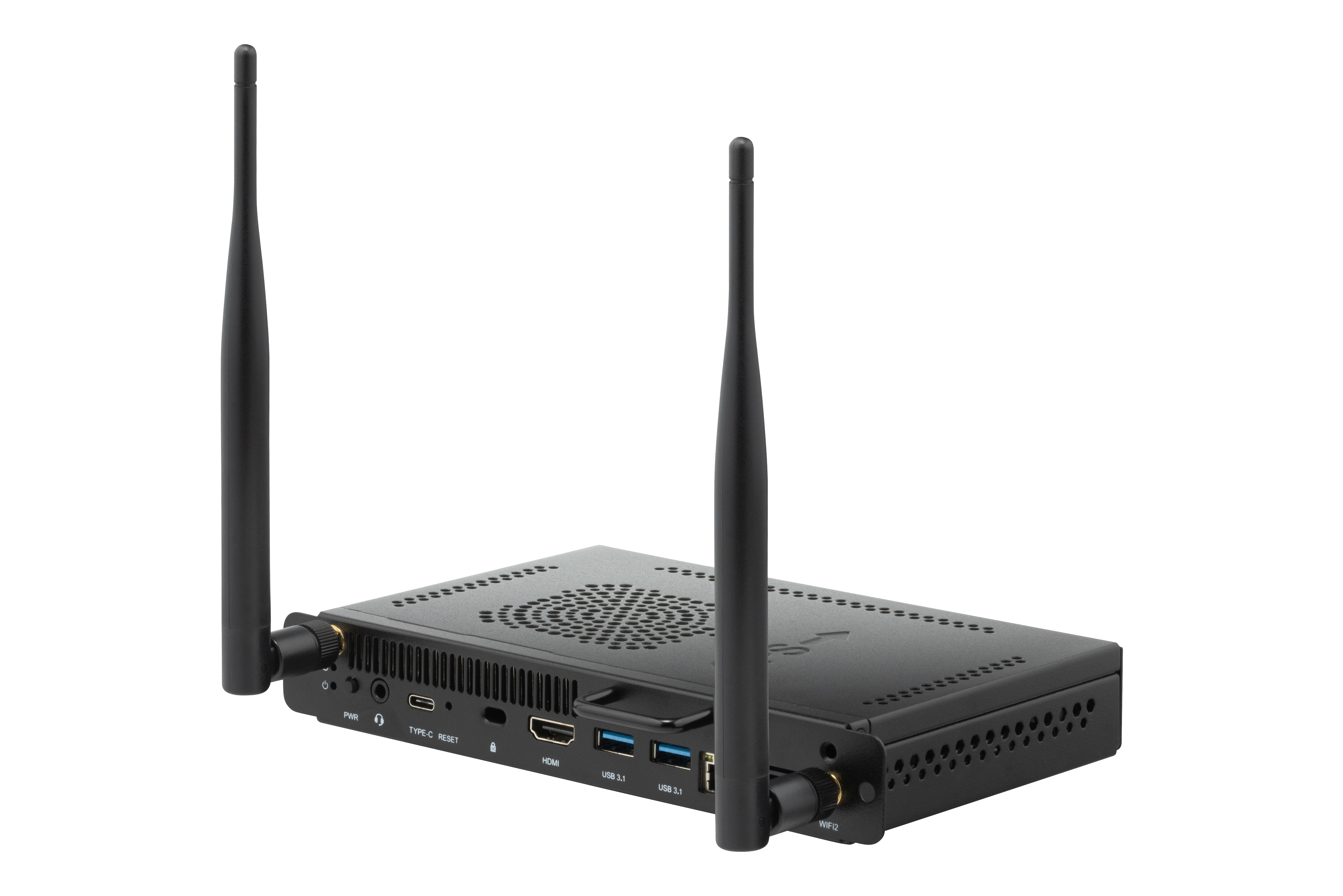

VPCF5-S33-G1
Descrierea produsului
Seize the power to get more done when you sync your ViewBoard® interactive displays and Presentation Displays with the ViewSonic VPCF5-S33-G1 slot-in PC. Integrated with exceptional performance from Intel® processors, 8GB DDR4 memory, and 256GB of SSD storage, the experience enhances computing performance to breeze through complex classes and collaborations. Plug into pure productivity with dual-band WiFi, Bluetooth 5.2, and a range of ports, including 4K HDMI, 5K DP, USB 3.1, and Gigabit LAN RJ45 for faster workflows.​
Vizitează Noi
  • www.viewsonic.com
  • SOFTWARE
    Sistem de operare: UEFI Shell
  • NUCLEU
    Procesor: Intel® Tiger Lake Mobile Processor
    Intel Gen11th core i5 CPU or later Gen. CPU
    Grafică: Integrated Intel® Iris Xe Graphics (96EU)
    Total Available Graphics Memory: 32GB
    Max Resolution up to 7680x4320@60Hz (DP)
  • MEMORIE
    Tip: DDR4
    Capacitate: 8GB
  • STOCARE
    Dimensiune: M.2 SSD
    Capacitate: 256GB
    Interfață: PCIE
  • INPUT
    MIC (Microfon): MIC-In&Line-Out two in one connector
    OPS Standard: x1(USB type A 3.1X2, USB type C 3.1 X1 (DATA ONLY), USB 2.0 x1)
  • OUTPUT
    HDMI: x1 (Max 3840x2160@30Hz)
    Audio: MIC-In&Line-Out two in one connector
  • LAN
    RJ45: x1 (10M/100M/1000M)
  • WIRELESS/ BLUETOOTH
    Wireless/ Bluetooth: Intel® Wi-Fi 6 AX201
    WIFI 6 802.11 ax + BT5.2
  • USB
    Tip A: USB 3.1 x 2 / USB 2.0 x 1
    Tip C: USB 3.1 Gen2 x 1 (Data Only)
  • PUTERE
    Voltaj: DC 12-19V/8A Max
    Consum: Max 90 W
  • OPERATING CONDITIONS
    Temperatură (º C): 0℃ ~ 40℃(working)
    Umiditate: 10% ~ 90% @ 40°C Non-condensing(working)
  • DIMENSIUNU (D X Î X A)
    Dimensiuni (inch/ mm): 7.87 x 4.68 x 1.18 in / 200 x 119 x 30 mm
    Ambalare (inch/ mm): 10.23 x 7.87 x 3.15 in / 260 x 200 x 80 mm
  • WEIGHT
    Masă (Ib/ kg): 1.54 lb / 0.7 kg
    Greutate (Ib/ kg): 2.65 lb / 1.2 kg
  • REGULATIONS
    REGULATIONS: CE EMC / LVD / CE RED / RoHS /REACH / WEEE / CB2018
  • CONȚINUT PACHET
    CONȚINUT PACHET: 1. Quick Start Guide(With Compliance Statement )
    2. Screws x 2
    3. Antenna x 2
