ViewBoard

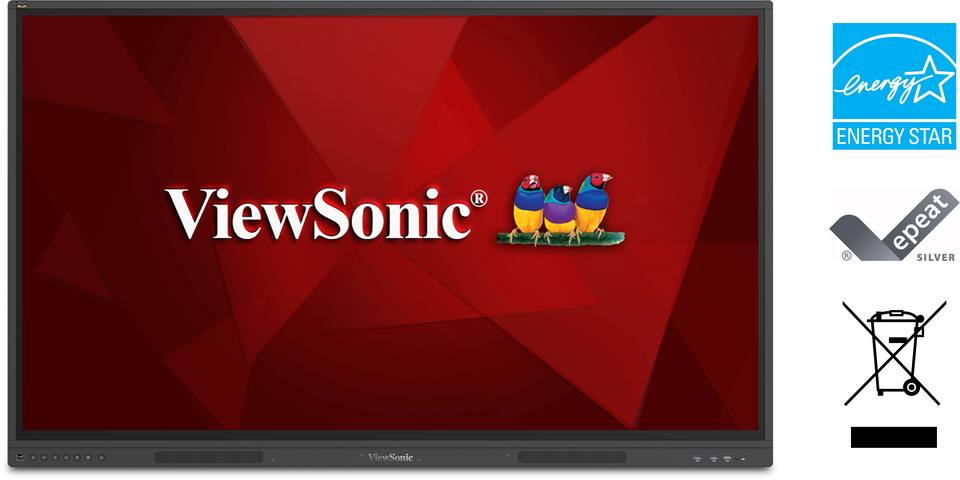

ViewBoard IFP65G1
Funcții esențiale
- Bring Your Own OS interactive flat panel for versatile use in any scenario
- Seamless USB-C plug-and-play connectivity for convenient presentations
- 65W charging of peripheral devices, ensuring uninterrupted presentations
- Flexible integration with slot-in PCs, supporting Windows, Linux, and Android OS
Descrierea produsului
Elevate collaboration and productivity with the ViewBoard IFPG1 Series. Engineered without a native OS, it effortlessly connects with laptops, desktops, and mobile devices through its USB-C port, ensuring smooth and effortless large-screen presentations. Going beyond, it adapts to a range of technological preferences by fully integrating with slot-in PCs, enabling flexible workflows across Android, Windows, and Linux operating systems. Whether your organization utilizes the Google Workspace suite or prefers Microsoft 365, its adaptability shines in any scenario, in any environment.

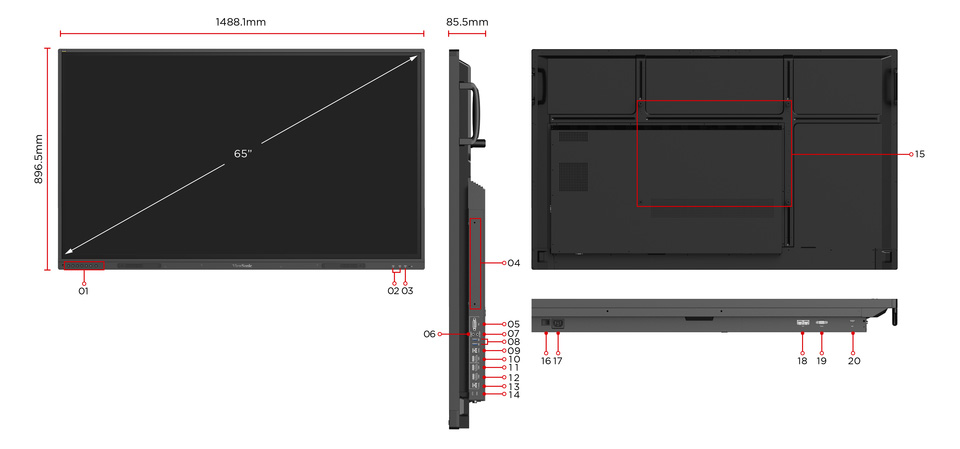

- Menu Controls
- USB 3.0 X 2
- USB 2.0
- OPS Slot
- VGA
- Audio In
- Audio Out
- USB 3.0 X 2
- Touch 1
- HDMI 1
- HDMI 2
- HDMI 3
- Touch 2
- USB Type-C
- VESA® Wall Mount 600 x 400mm
- Power On/OFF
- AC IN
- RS232
- USB 2.0(FW update)
Vizitează Noi
- www.viewsonic.com
-
DISPLAY
Dimensiune Panel: 65" Tip Panel: TFT LCD Module with DLED Backlight. Suprafață Display (mm): 1428.48 (H) x 803.52 (V) Aspect Ratio: 16:9 Rezoluție: UHD 3840x2160 Colors: 1.07B colors (8bit+FRC) Luminozitate: 450nits Rată de contrast: 5000:1 (typ.) 6000:1 (DCR) Timp de răspuns: 8ms Unghiuri de vizualizare: H = 178, V = 178 typ. Durată de viață sursă de lumină fundal: 50,000 hours (Typ) Tratament pentru protecția suprafeței: Hardness: 9H, Anti-glare coating Ramă: Slim Orientare: Landscape -
TOUCH
Tipul/ Tehnologia: Ultra Fine Touch Techology (IR Recognition) Rezoluție Touch: 32767 × 32767 Touch Point: Windows: 40 points of touch, Android : 20 points of touch -
INPUT
HDMI: Rear 2.0 x 3 (HDMI 1 & 3 Support CEC; HDMI 2 Supports CEC & ARC) RGB/ VGA: x1 Audio: x1 RS232: x1 OPS: x1 -
OUTPUT
Audio: x1 -
LAN
RJ45: 1 in 1 out -
USB
Tip A: Front x3(USB2.0x1, USB3.0x2)
Rear x3(USB3.0x2, 2.0 x1 for FW update)Tip B: Rear x2 (USB 3.0x2) Tip C: x1 ( DP 1.2, Touch, Data Sharing, PD65W, Ethernet 10M/100M) -
DIFUZOARE
15Wx2 -
TOP CAMERA PLATE
Yes -
COMPATIBILITY
HDMI: 3840x2160 @ 60Hz -
CARACTERISTICI SPECIALE
All-in-one USB port: “SmartPort™ USB” to all channels. Partajare simplă LAN între IFP și dispozitivul cu slot-in: 10/100/1000M (USB Type-C 10M/100M, OPS 1000M) Light Sensor: Yes -
PUTERE
Voltaj: 100-240VAC +/- 10% Wide Range Consum: On: 103.8W,
Off mode <0.5W -
ERGONOMICS
Montare pe perete (VESA® ): 600mm x 400 mm -
OPERATING CONDITIONS
Temperatură (º C): 0°C to 40°C Umiditate: 20% ~ 80% RH non-condensing -
DIMENSIUNU (D X Î X A)
Dimensiuni (inch/ mm): 58.6 x 35.3 x 3.4 in / 1488 x 896.5 x 85.5 mm Ambalare (inch/ mm): 64.1 x 39.6 x 8.2 in / 1628 x 1005 x 208 mm -
WEIGHT
Masă (Ib/ kg): 81.46lb/36.95kg Greutate (Ib/ kg): 107.9163lb/48.95kg -
REGULATIONS
US NRTL w/ CA,FCC/ICES003, DOE Energy Star,DOE EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE,GOST-R / EAC, FF,LBL, ErP-Eco,SCIP,Annex I,Annex II,TPCH DoC,Packing waste,CA65 DoC -
CONȚINUT PACHET
1. 3m power cable
2. HDMI 2.0 cable 3m x 1 (HDMI LA certified)
3. Remote control with AAA battery (Opt.)
4. 3m USB 2.0 touch cable x 1
5. Touch pen (Passive pen) x 2 (VB-PEN-002)
6. Quick Start Guide + Compliance Statement
7. RS232 adapter
8. Screw (wall mount 4)
9. Camera Plate -
COMPATIBIL SLOT INTRARE PC
VPC-A31-O1/VPC35-W53-G1/VPC37-W53-G1 -
NOTE
The VPC also can work with other VPC models
