TD2423

24” IR Touch Monitor

  • Intuitive 10-point touchscreen
  • Finger, stylus, and glove touch compatible
  • Magnetic pen placeholder
  • Adjustable back tilt up to 40-degrees
  • Scratch-resistant 7H hardness screen
Contactează-ne  Distribuie

PREZENTARE GENERALĂ

The ViewSonic® TD2423 is a 24” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2423 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2423 is equipped with VGA, HDMI, DVI and USB connectivity.

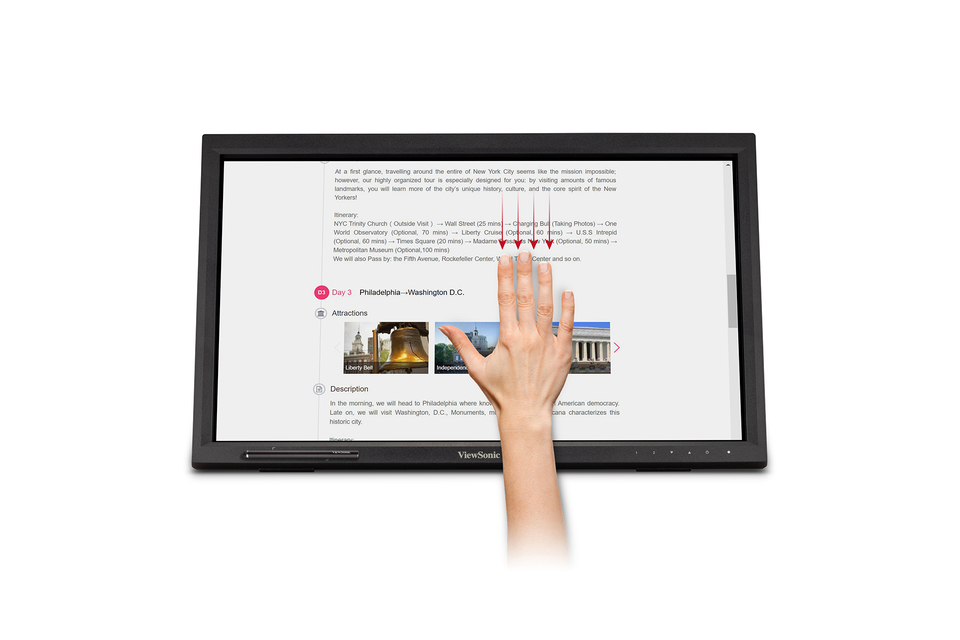

Intuitive Multi-touch Experience

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens. The TD2423 delivers an intuitive multi-touch experience with every tap, pinch, and swipe with the finger touch, gloved touch, and stylus inputs.​
*The stylus pen only shown for reference and excluded from the package.​
IR Touch Technology
Intuitive Multi-touch Experience 1

Operating System Support

This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.

*Learn more about multi touch for macOS
*TD2423 does not support USB Type-C for output video, audio, and touch feedback through mobile phone and tablet on Android OS, but it can support other Android devices.
Operating System Support 1

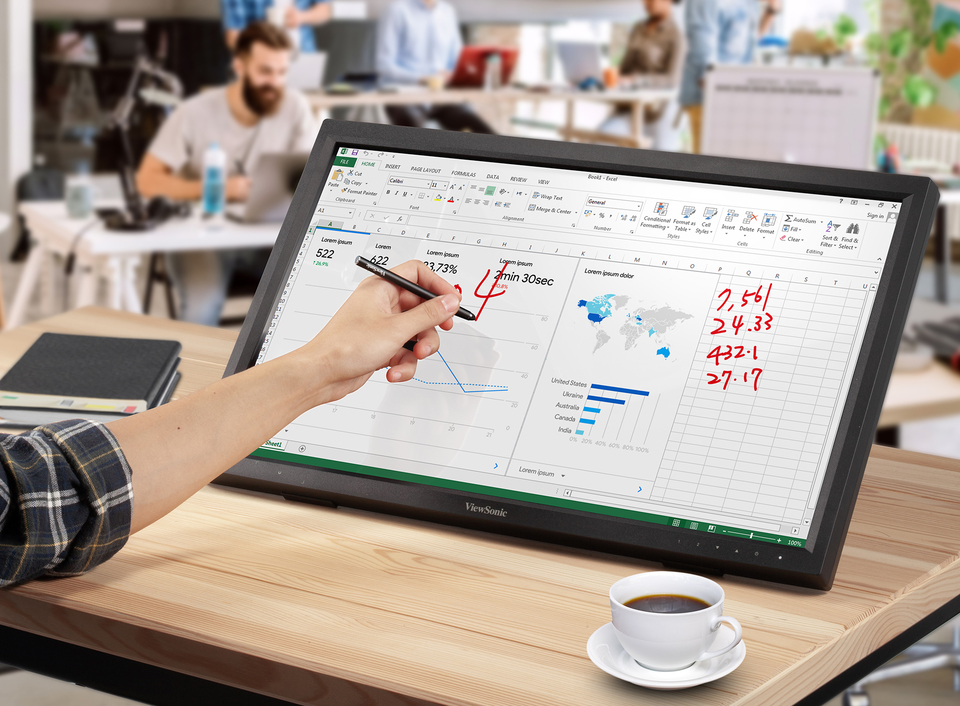

Simple and Safer Way to Interact

This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging and drawing. What’s more, there is a magnetic pen placeholder on the base.

*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.
Simple and Safer Way to Interact 1

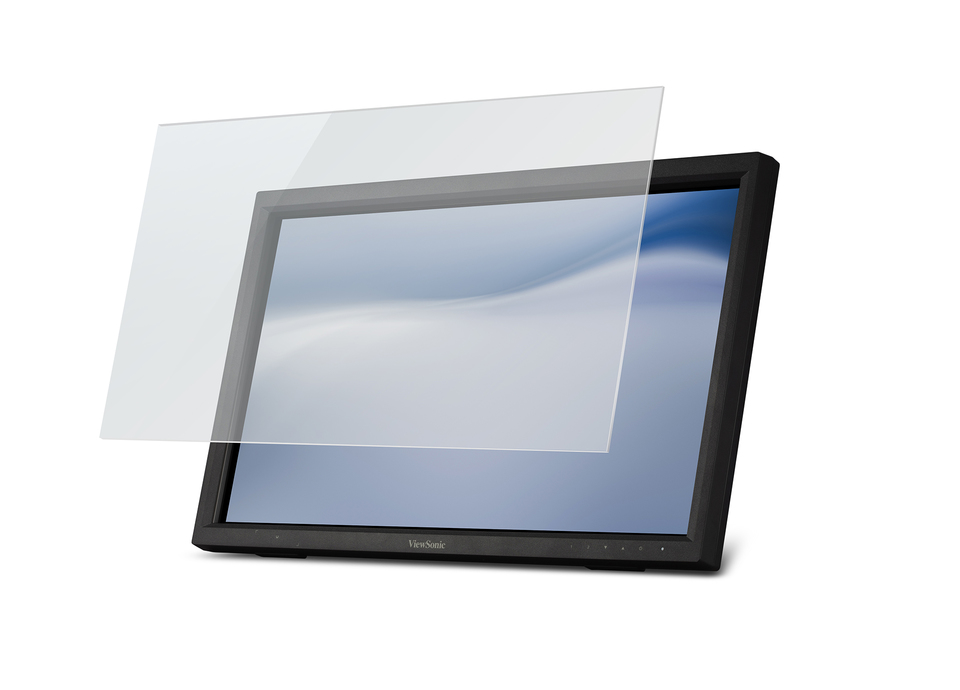

Anti-scratch Touchscreen

With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.
7H Hardness Screen
Anti-scratch Touchscreen 1

Adjustable Tilt

This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Adjustable Tilt 1

Clear Images

This monitor features Full HD 1920x1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Full HD 1080p Resolution
Clear Images 1

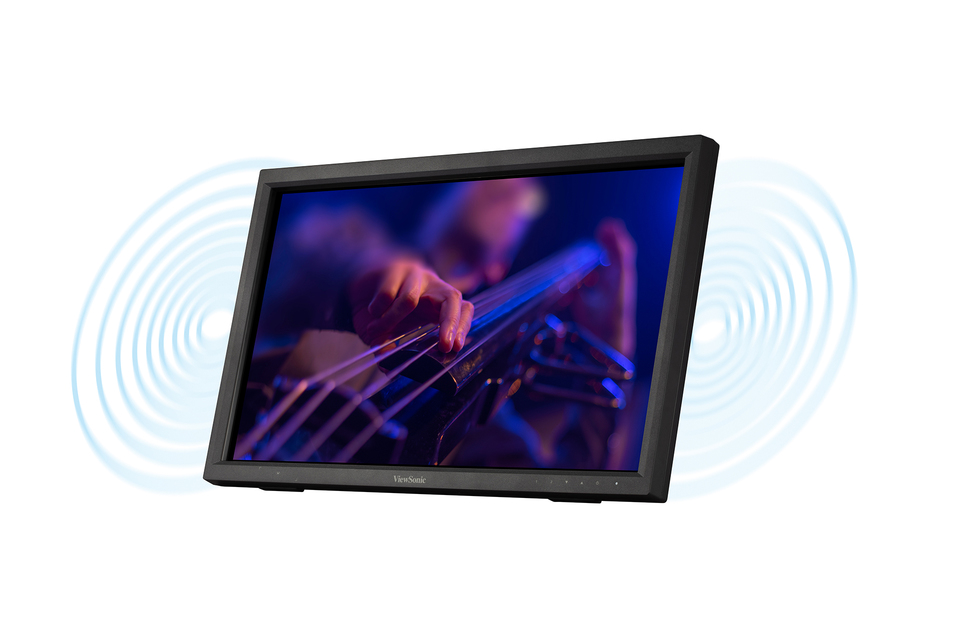

Dual Integrated Speakers

With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Dual Integrated Speakers 1

Enhanced Viewing Comfort

This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
Enhanced Viewing Comfort 1

Certified Environmental Sustainability

The TD2423 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

Dimension & I/O Ports

  1. Menu Control Panel
  2. USB Down Stream x 2
  3. USB UP Stream
  4. AC In
  5. HDMI
  6. VESA Compatible
    (Wall Mount 100 x 100mm)
  7. Earphone Out
  8. Audio In
  9. VGA
  10. DVI

SPECIFICAȚII


  • Display
    Dimensiune Display (încheiat): 24
    Suprafață de vizualizare (inch): 23.6
    Tip Panel: VA Technology
    Rezoluție: 1920 x 1080
    Tip rezoluție: FHD (Full HD)
    Rata de contrast static: 3,000:1 (typ)
    Rată de contrast dinamic: 20M:1
    Sursă de lumină: LED
    Luminozitate: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + Hi-FRC)
    Aspect Ratio: 16:9
    Timp de răspuns (GTG Tipic): 7ms
    Timp de răspuns (GTG w/OD): 7ms
    Response Time (Typical Tr+Tf): 25ms
    Unghiuri de vizualizare: 178º horizontal, 178º vertical
    Durată de viață sursă iluminare fundal (ore): 40000 Hrs (Min)
    Curbare: Flat
    Rată de refresh (Hz): 75
    Filtru de lumină albastră: Yes
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 104% size (Typ)
    Dimensiune Pixel: 0.272 mm (H) x 0.272 mm (V)
    Touch Screen: IR, 10-point multi-touch
    Tratament pentru protecția suprafeței: Glossy, Hard Coating (7H)
    Cover Glass Thickness: 1.85mm
  • Compatibilitate
    Rezoluție PC (maximă): 1920x1080
    Rezoluție Mac® (max): 1920x1080
    Sistem de operare PC: Windows 7/8.1/10/11 certified; macOS tested
    Rezoluție Mac® (min): 1920x1080
  • Conector
    VGA: 1
    USB 2.0 Type A: 2
    USB 2.0 Type B: 1
    3.5mm Audio In: 1
    Ieșire audio 3.5mm: 1
    HDMI 1.4: 1
    DVI-D: 1
    Putere intrare: 3-pin Socket (IEC C14 / CEE22)
