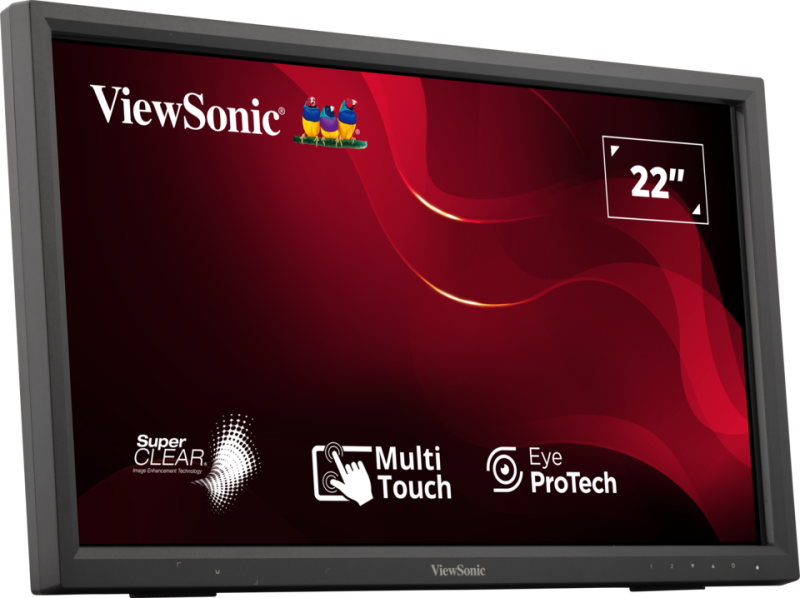

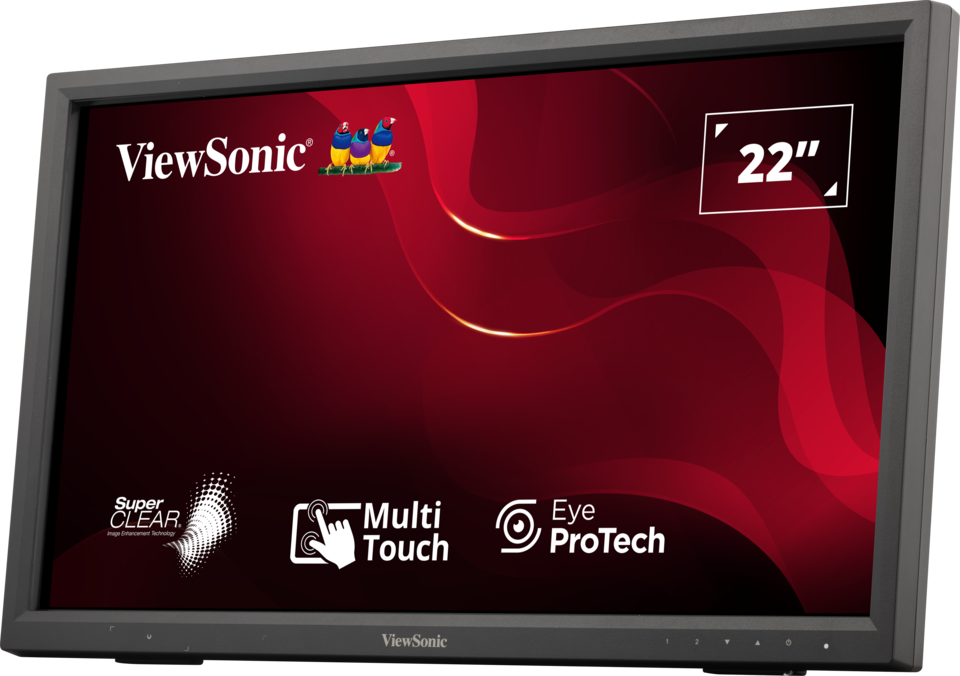

TD2223
22” IR Touch Monitor
- Intuitive 10-point touchscreen
- Finger, stylus, and glove touch compatible
- Magnetic pen placeholder
- Adjustable back tilt up to 40-degrees
- Scratch-resistant 7H hardness screen
PREZENTARE GENERALĂ

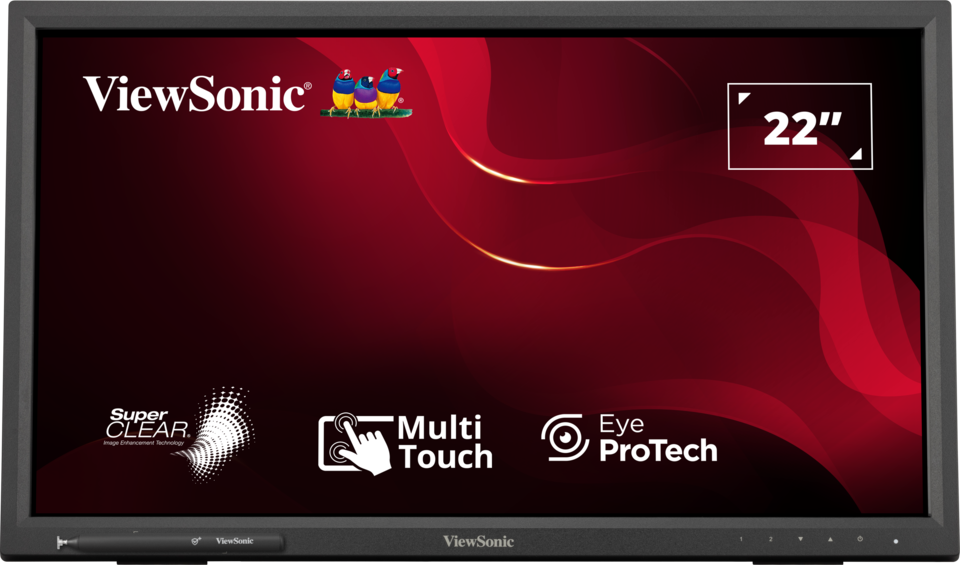

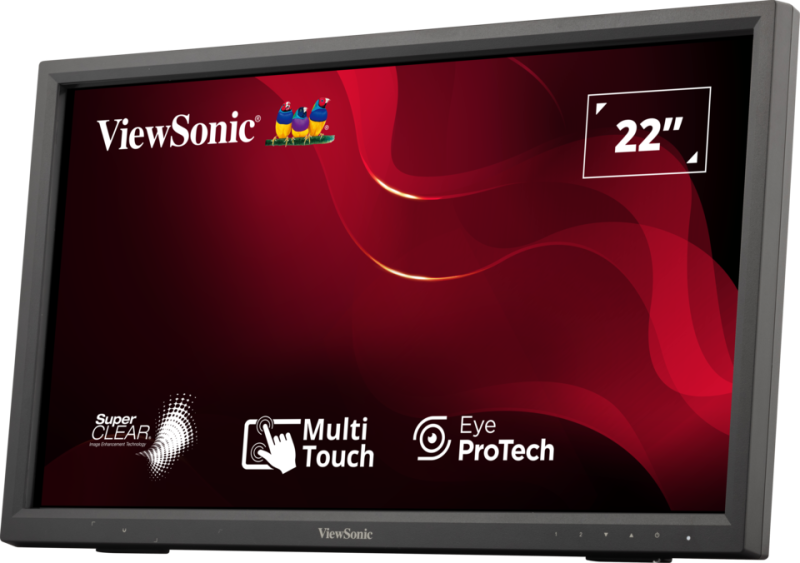

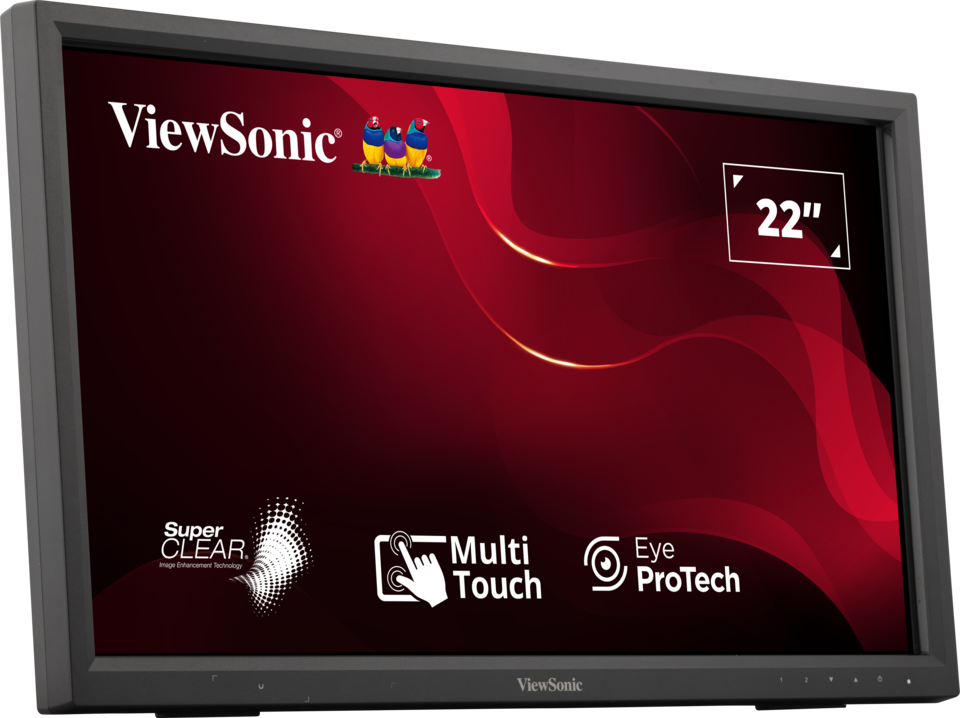

The ViewSonic® TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.Intuitive Multi-touch Experience

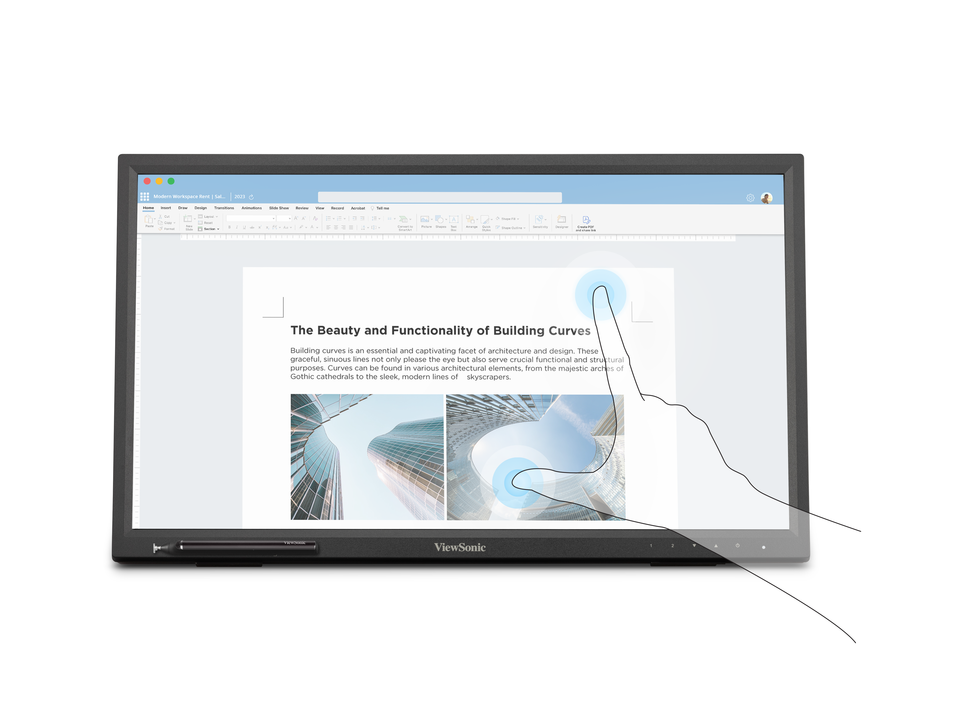

An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223-2 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.IR Touch Technology
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.*Learn more about multi touch for macOS
Simple and Safer Way to Interact
This monitor can be operated by stylus* and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.*The stylus is an optional accessory. The minimum diameter of the stylus pen tip must be at least 6mm or above.

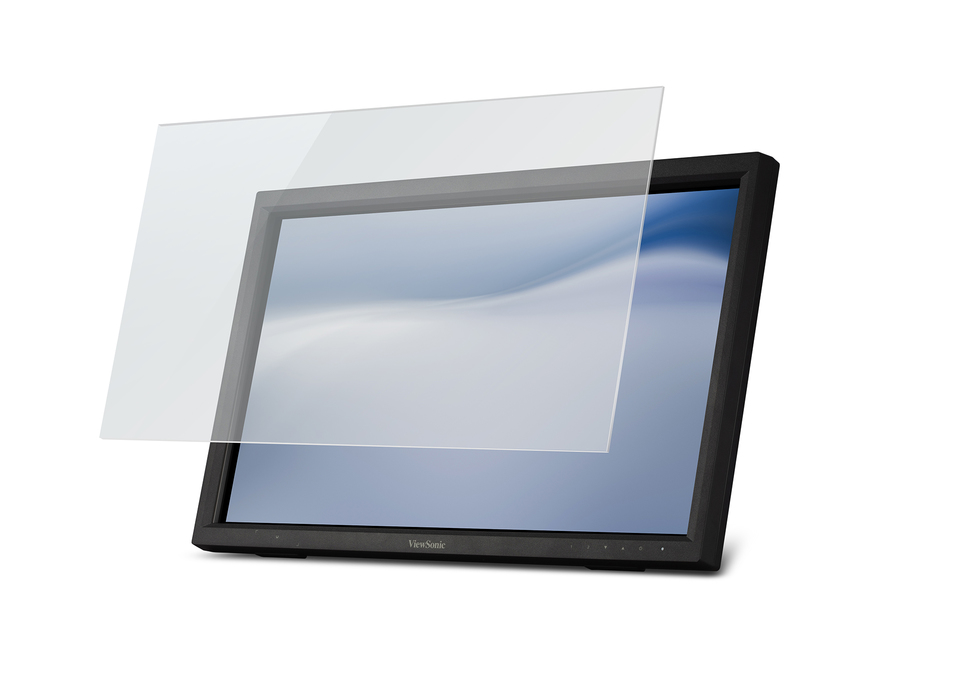

Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.7H Hardness Screen

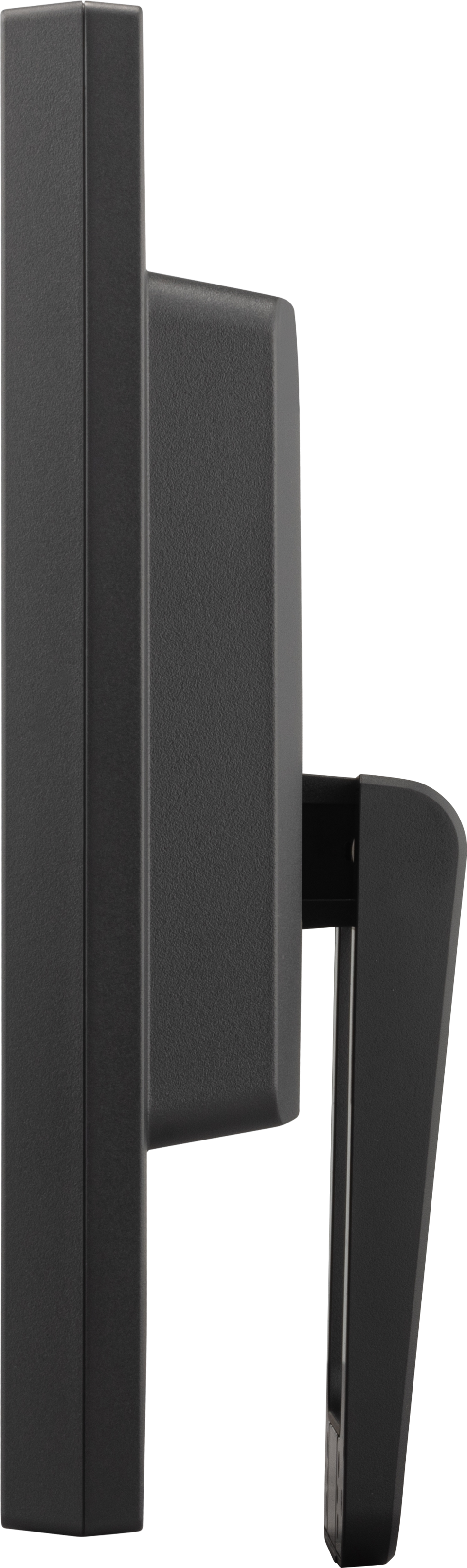

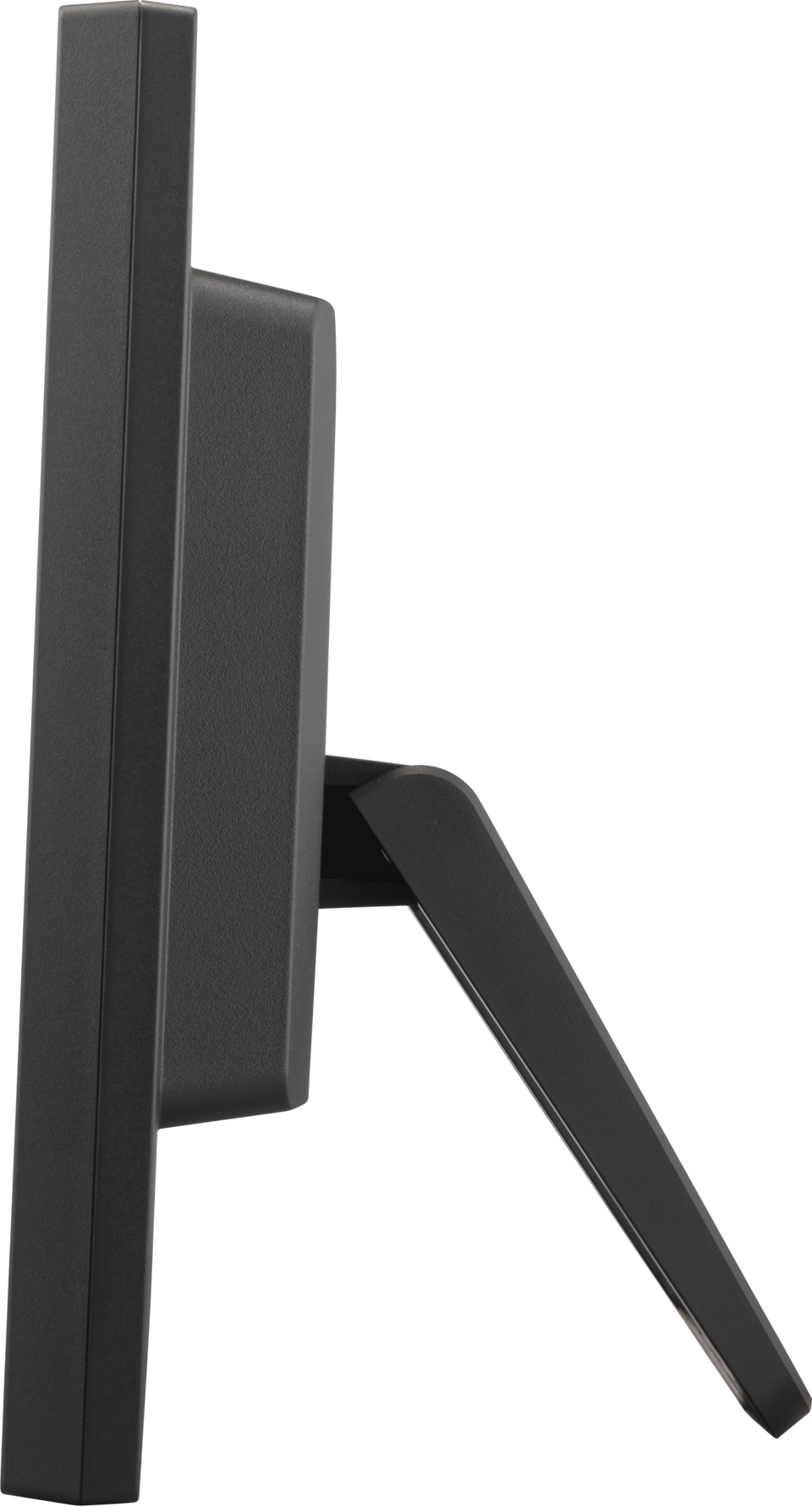

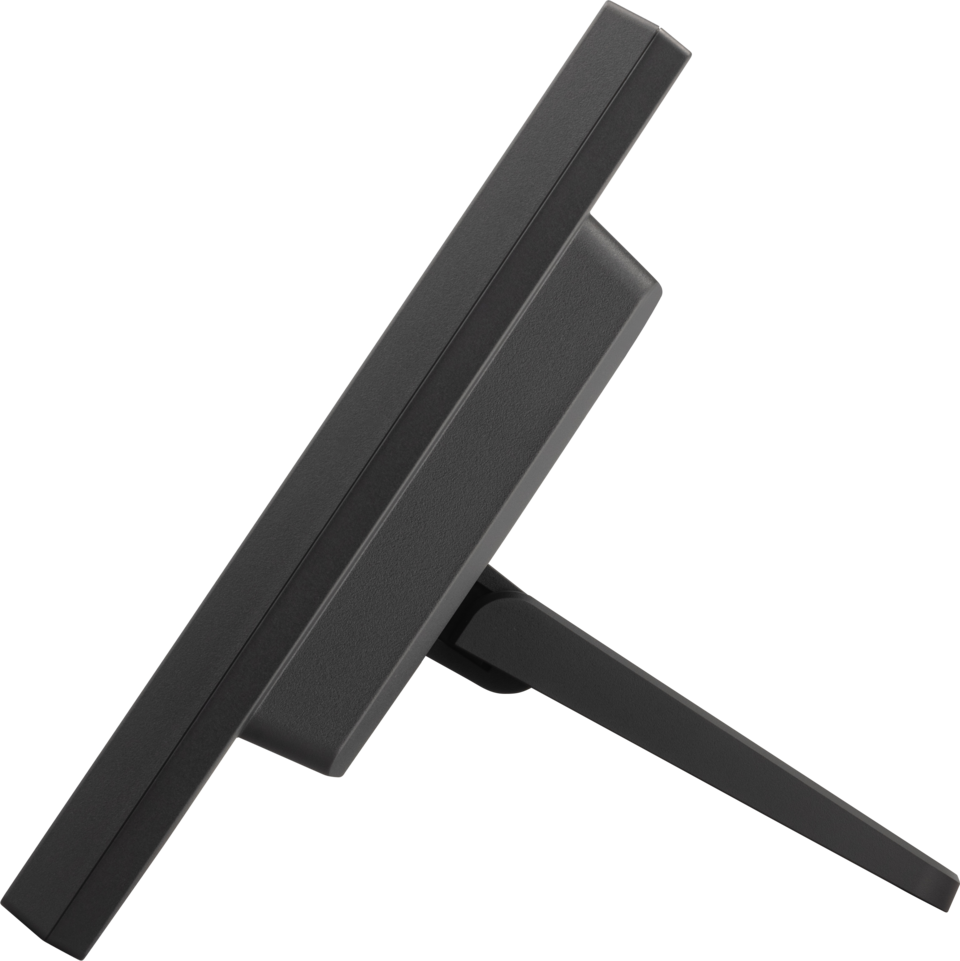

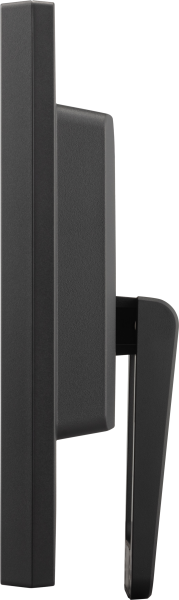

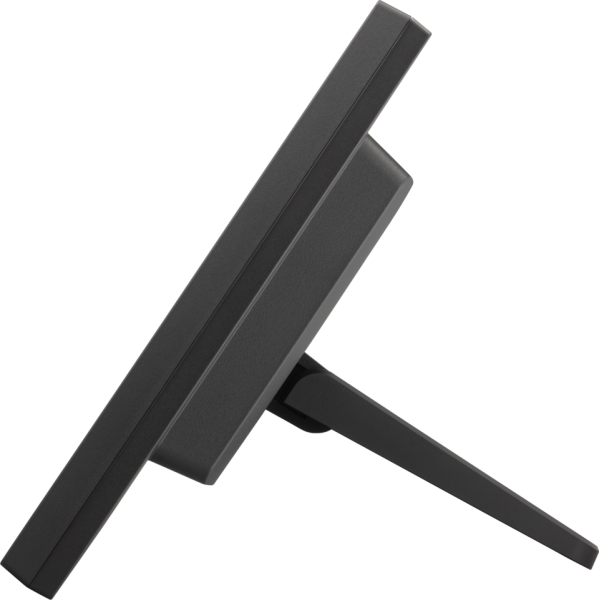

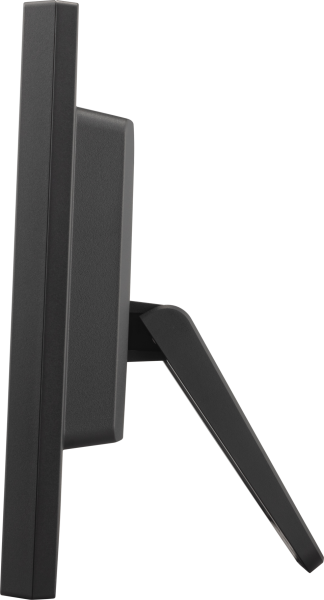

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.Full HD 1080p
Full HD 1920x1080 resolution creates unbelievably clear pixel-by-pixel image performance. Experience mind-blowing clarity and detail while working, gaming, or enjoying the latest show premieres.Full HD 1080P

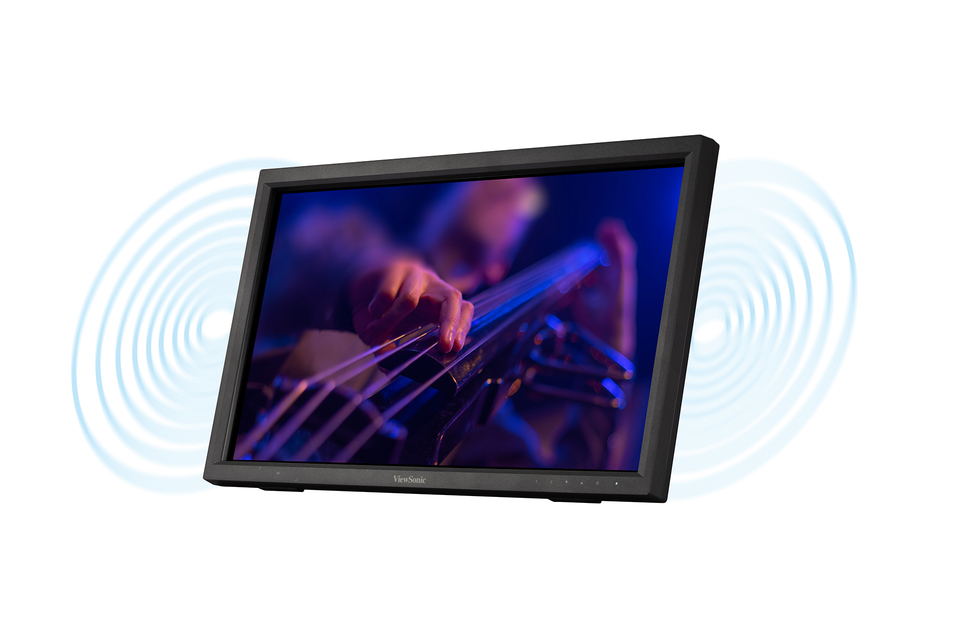

Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.Relieve your Eyes from Strain
Reduce your eye strain and keep your eyes feeling fresh. Flicker-Free technology and a Blue Light Filter eliminate screen flickering from extended viewing periods.Flicker-Free & Blue Light Filter

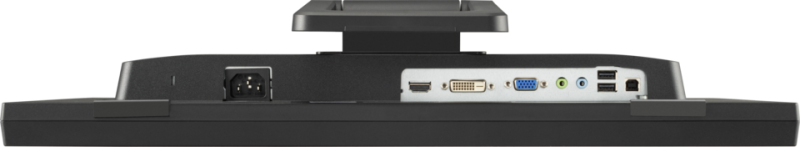

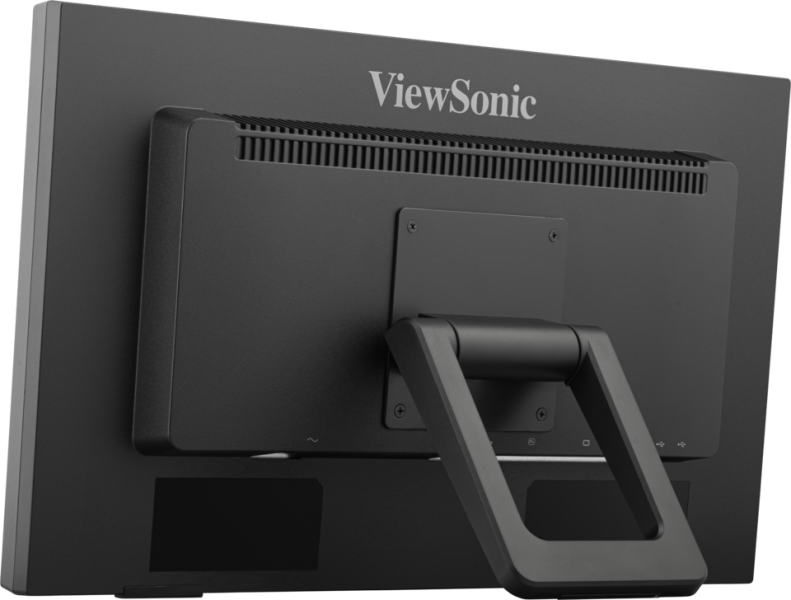

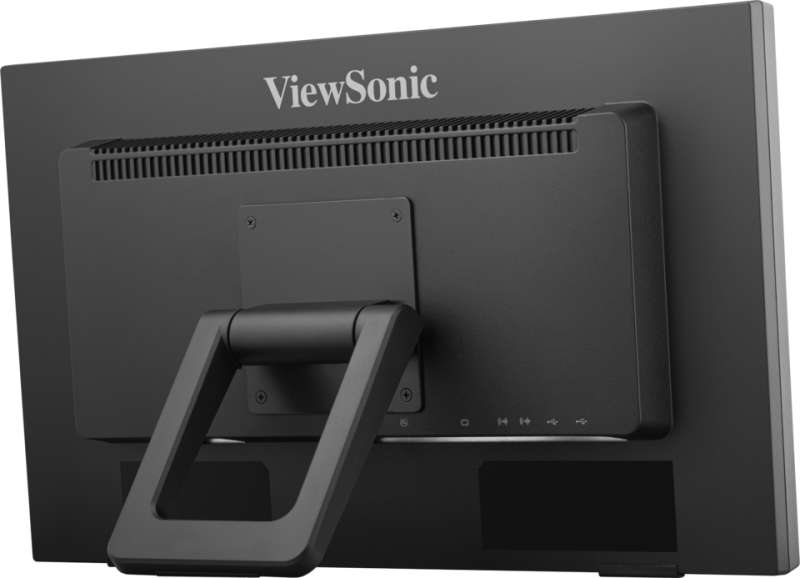

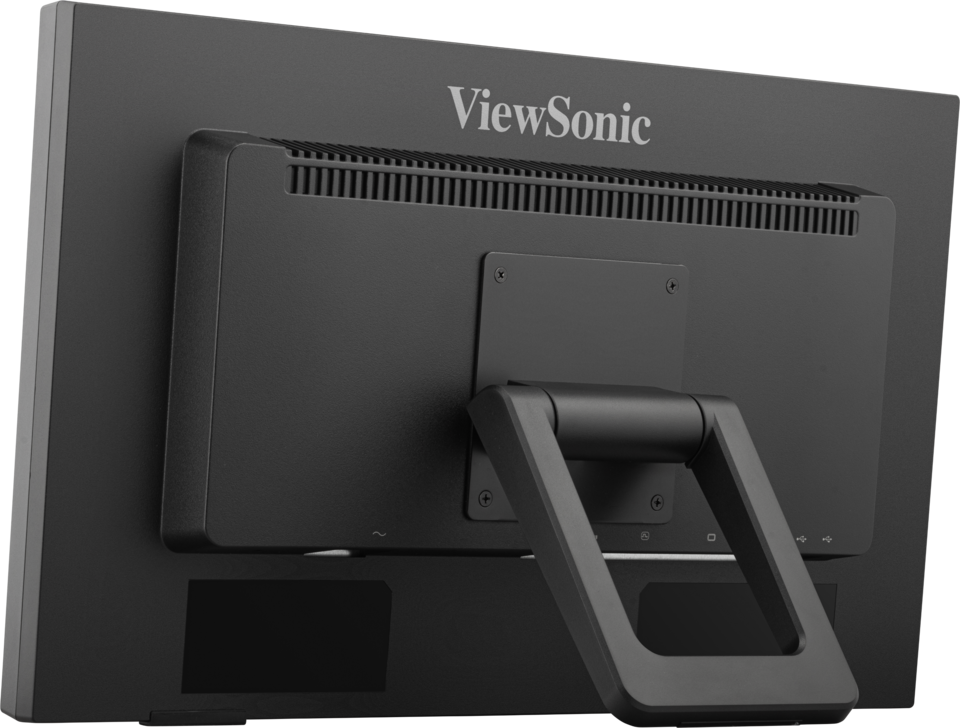

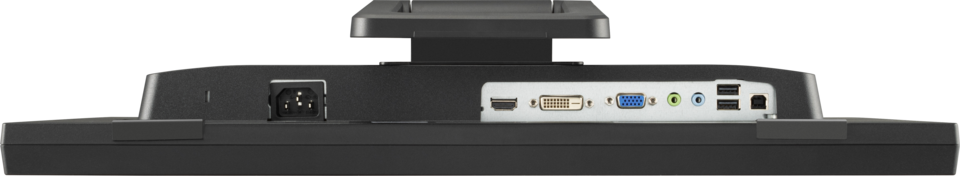

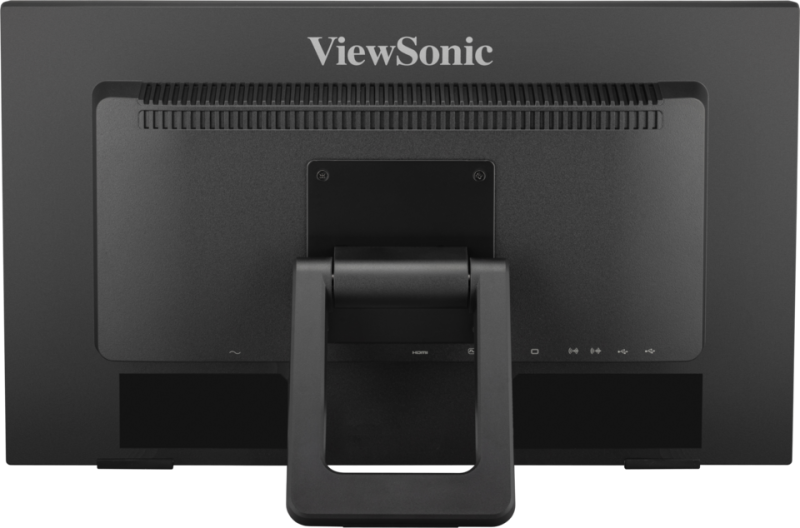

Dimension & I/O Ports

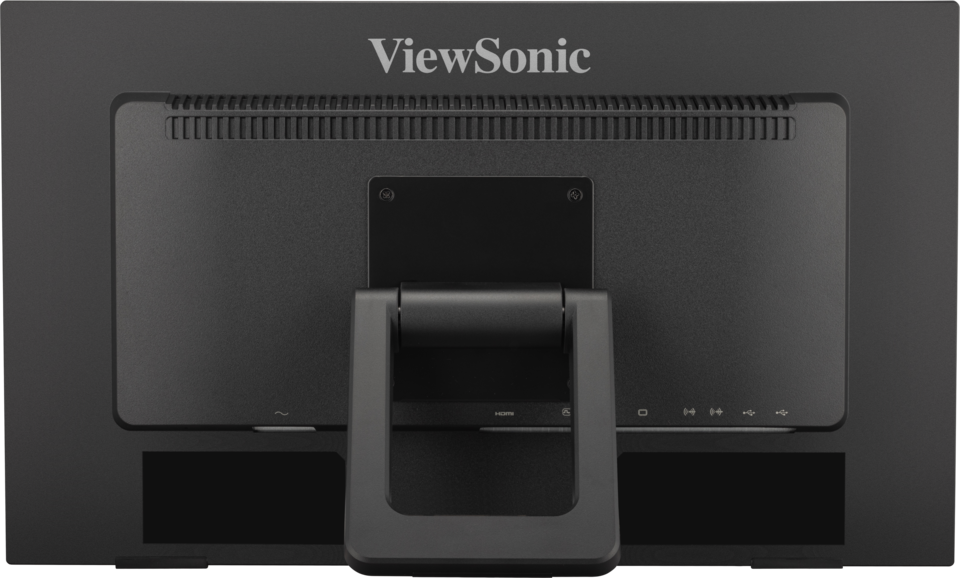

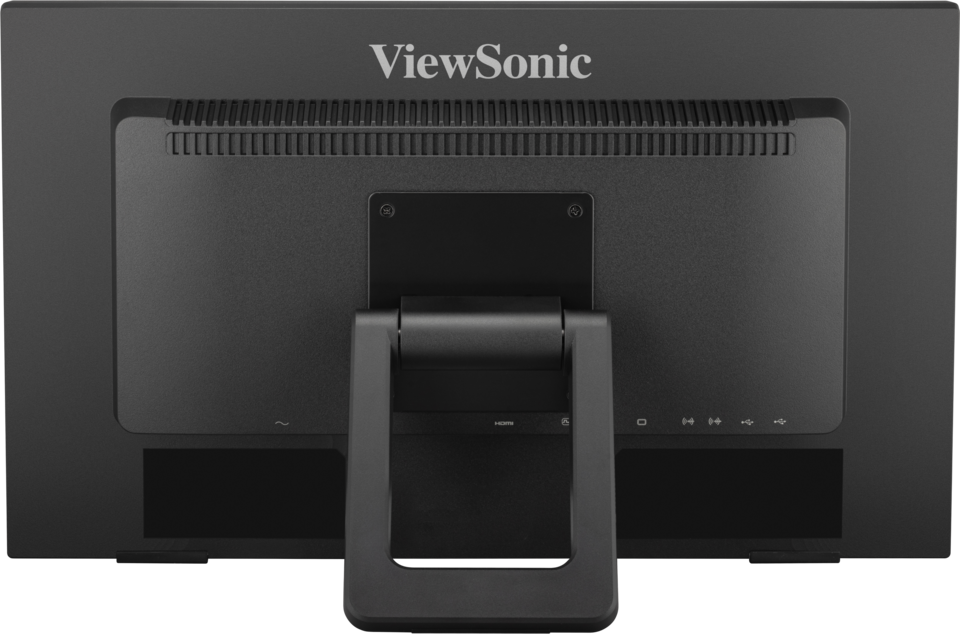

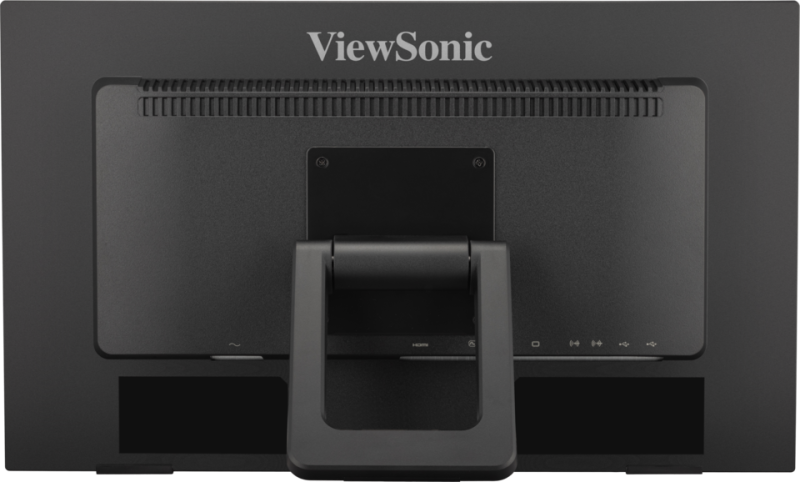

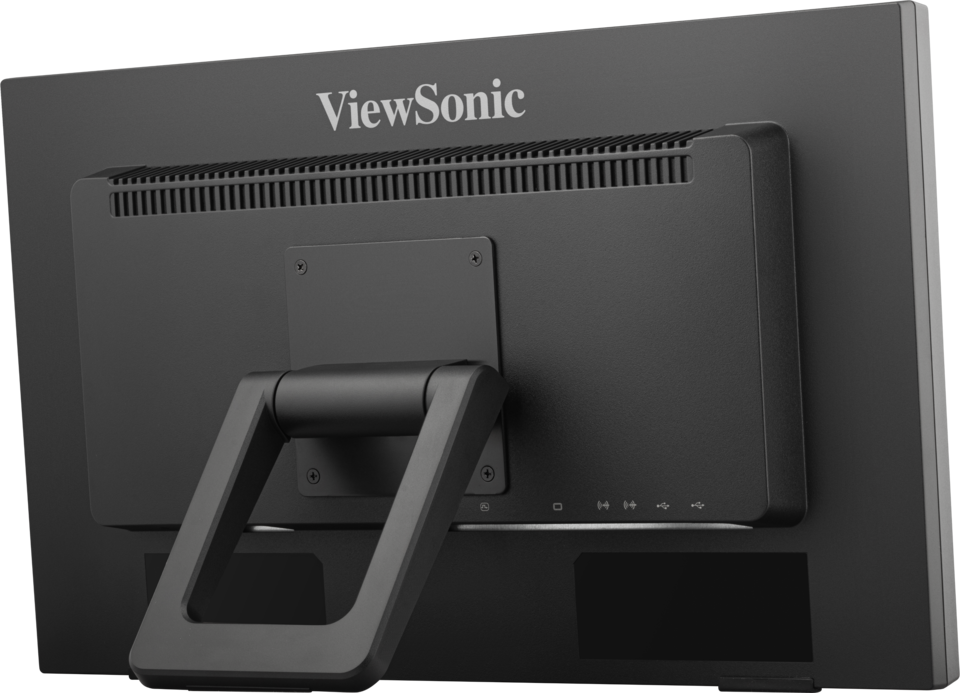

Conveniently mount the monitor to your preference by utilizing the 100mm x 100mm VESA-compatible mount design.100mm x 100mm VESA mount
- Menu Control Panel
- Power In
- VESA Compatible
(Wall Mount 100 x 100mm) - HDMI
- DVI
- VGA
- Audio In
- Audio Out
- USB Downstream
- USB Upstream
SPECIFICAȚII
- DisplayDimensiune Display (încheiat): 22
Suprafață de vizualizare (inch): 21.5
Tip Panel: VA Technology
Rezoluție: 1920 x 1080
Tip rezoluție: FHD (Full HD)
Rata de contrast static: 3,000:1 (typ)
Rată de contrast dinamic: 20M:1
Sursă de lumină: LED
Luminozitate: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit true
Aspect Ratio: 16:9
Timp de răspuns (GTG Tipic): 6.5ms
Timp de răspuns (GTG w/OD): 6.5ms
Unghiuri de vizualizare: 178º horizontal, 178º vertical
Durată de viață sursă iluminare fundal (ore): 30000 Hrs (Min)
Curbare: Flat
Rată de refresh (Hz): 75
Low Blue Light: Software solution
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 104% size (Typ)
Dimensiune Pixel: 0.249 mm (H) x 0.241 mm (V)
Touch Screen: IR, 10-point multi-touch
Tratament pentru protecția suprafeței: Glossy, Hard Coating (7H)
Cover Glass Thickness: 2mm - CompatibilitateRezoluție PC (maximă): 1920x1080
Rezoluție Mac® (max): 1920x1080
Sistem de operare PC: Windows 10/11 certified; macOS tested
Rezoluție Mac® (min): 1920x1080 - ConectorVGA: 1
USB 2.0 Type A: 2
USB 2.0 Type B: 1
3.5mm Audio In: 1
Ieșire audio 3.5mm: 1
HDMI 1.4: 1
DVI-D: 1
Putere intrare: 3-pin Socket (IEC C14 / CEE22)
- AudioDifuzoare interne: 2Watts x2
- PutereMod Eco (Menținut): 13W
Eco Mode (optimized): 16W
Consum (tipic): 18.5W
Consum (max): 21.8W
Voltaj: AC 100-240V
Stand-by: 0.5W
Sursă: Internal Power Supply - Hardware extraSlot blocaj Kensington: 1
Cable Organization: Yes - ControaleComenzi fizice: 1, 2, Up, Down, Power
On Screen Display (OSD): Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall - Condiții de funcționareTemperatură: 32°F to 104°F (0°C to 40°C)
Umiditate (lipsă condens): 20% to 90% - Wall Mount Compatibil VESA: 100 x 100 mm
- Semnal intrareFrecvență orizontală: RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz
Frecvență verticală: RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz - Intrare videoDigital Sync: TMDS - DVI-D, TMDS - HDMI (v1.4)
Analog Sync: Separate/Composite/SOG - RGB Analog - ErgonomieÎnclinare (față/spate): 20º / 40º
- Greutate (imperial)Masă (Ibs): 9.3
Greutate fără stand (Ibs): 8
Greutate (Ibs): 12.6 - Weight (metric) Masă (kg): 4.2
Greutate fără stand (kg): 3.7
Greutate (kg): 5.7 - Dimensiuni (imperial) (wxhd)Ambalare (în.): 22.8 x 15.9 x 6.4
Dimensiuni (înch): 20.4 x 12.9 x 4
Dimensiune fără stand (inch): 20.4 x 12.1 x 2.4 - Dimensiuni (metric) (wxhd)Ambalare (mm): 580 x 405 x 162
Dimensiuni (mm): 519 x 329 x 101
Dimensiune fără stand (mm): 519 x 308 x 61 - GeneralReguli: cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, BIS
CONȚINUT PACHET: TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1
Coș de gunoi: Please dispose of in accordance with local, state or federal laws.
Garanție: *Warranty offered may differ from market to market
Power Management: Energy Star standards, EPEAT
