TD1655

16” USB-C Multi-Touch Portable Monitor

  • Compact, lightweight, and portable
  • 10-point multitouch technology for a more intuitive screen control
  • USB-C one-cable solution for multimedia transfer, touch signal transmission, and power charging
  • Flexible display setup – work at any angle
  • Elegant, durable metallic design with a foldable stand
Contactează-ne  Distribuie

PREZENTARE GENERALĂ

The ViewSonic TD1655 is a portable 16” Full HD monitor with 10-point multitouch capability designed for dual-screen productivity beyond the office. Extend your display from phone, tablet, or laptop to a larger screen for seamless multitasking, personalized one-on-one presentation, or relaxed entertainment. The two universal USB-C connectors provide a one-cable solution for multimedia transfer and power charging. Tailor your work setup to your preferences with adjustable viewing angles and the option for both landscape and portrait display layouts. With a detachable magnetic anti-slip cover, metal case, and foldable aluminum stand designed for convenient mobility, enhance your mobile workstation anywhere, anytime.

Take Productivity with You

Stay productive wherever you are with an expanded screen real estate from your laptop, tablet or phone using the TD1655 portable monitor, perfect for multitasking and meetings on-the-go.
Extend Mobile Devices’ Display to a Larger 15.6” Viewable Screen
Take Productivity with You 1

Effortless Portability

Designed to be thin and lightweight, this compact monitor can be easily carried around wherever you go without adding extra burden.
Thin & Lightweight, 6.1 mm, 0.94 KG
Effortless Portability 1

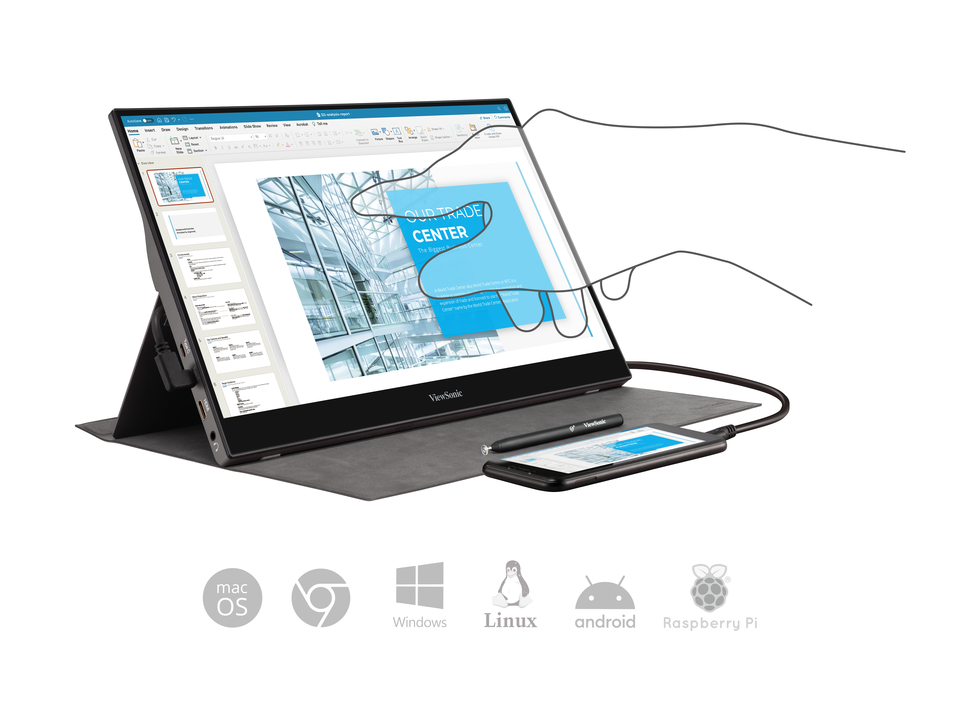

Advanced Touch Capabilities and Screen Performance

Experience intuitive screen control with an advanced capacitive touchscreen. Easily tap, pinch, and swipe on a responsive display while enjoying exceptional screen performance and stunning images.

Note:
1. Touch feedback control not applicable to iOS & iPadOS devices.
2. Download vTouch software to enable touch feedback on MacOS.
3. Ensure your mobile device's connectivity supports USB touch signal transmission for touch feedback control on our monitor.
4. Do not remove the plastic disc on the pen tip; it's crucial for touch accuracy functionality.
Touch Control with Fingers or Stylus
Advanced Touch Capabilities and Screen Performance 1

Hassle-free Connectivity

Dual USB-C ports for all your connectivity needs, enabling smooth audio, video, and touch data transfer, as well as bi-directional power charging through a single cable.
USB-C One Cable Solution
Hassle-free Connectivity 1

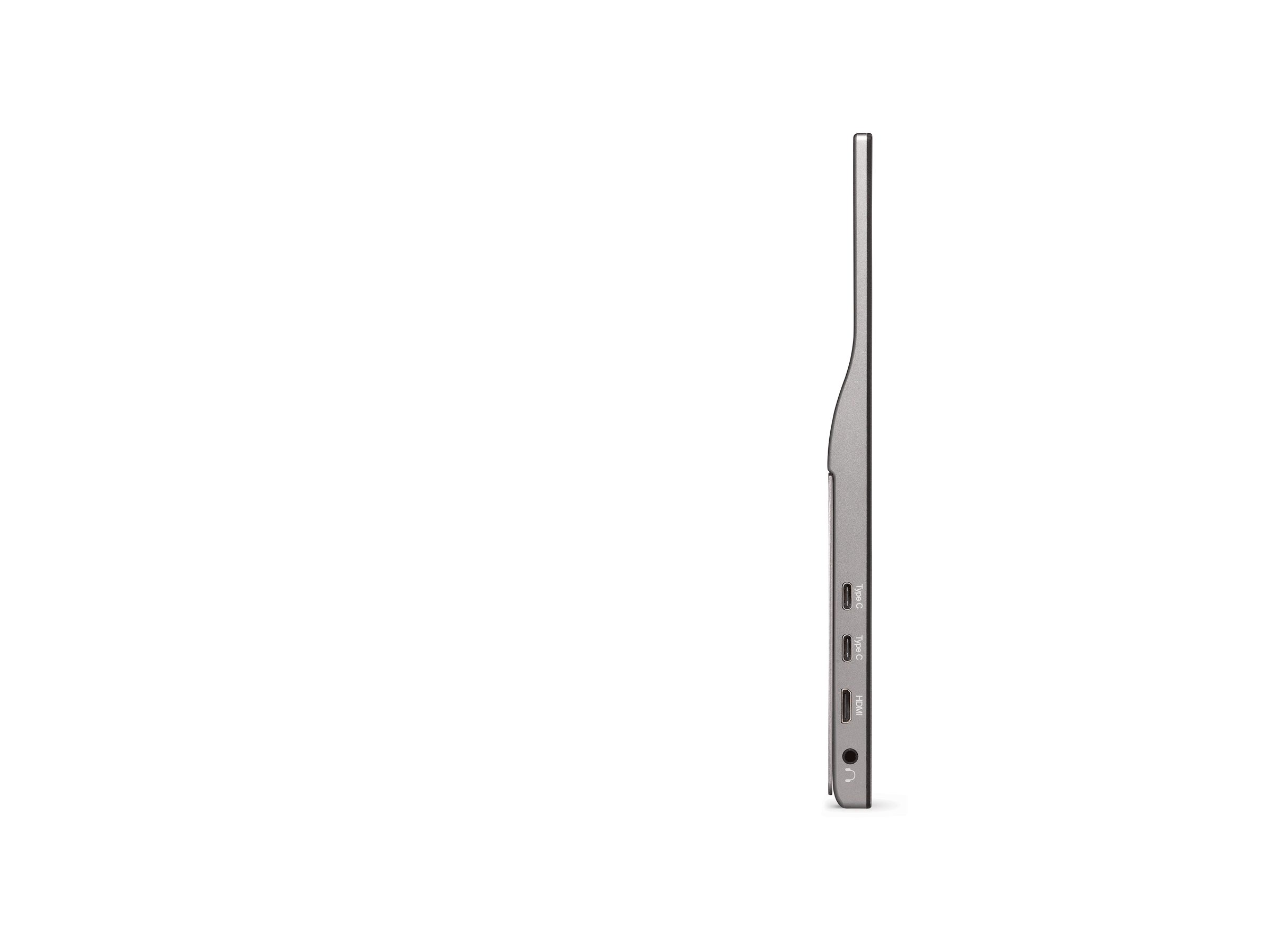

Flexible Display Setup

Work in your preferred setup – the built-in foldable aluminum stand with a durable hinge, tilts up to 60 degrees for easy adjustment of viewing angles.
Built-in Foldable Aluminum Stand with Durable Hinge
Flexible Display Setup 1

Landscape & Portrait Layout

Switch between landscape and portrait display orientations, with the portrait layout ideal for tasks like table reviewing, programming, photo editing, gaming, and more.

* To change the display orientation, go to the display setting on your device.
Pivotable Display
Landscape & Portrait Layout 1

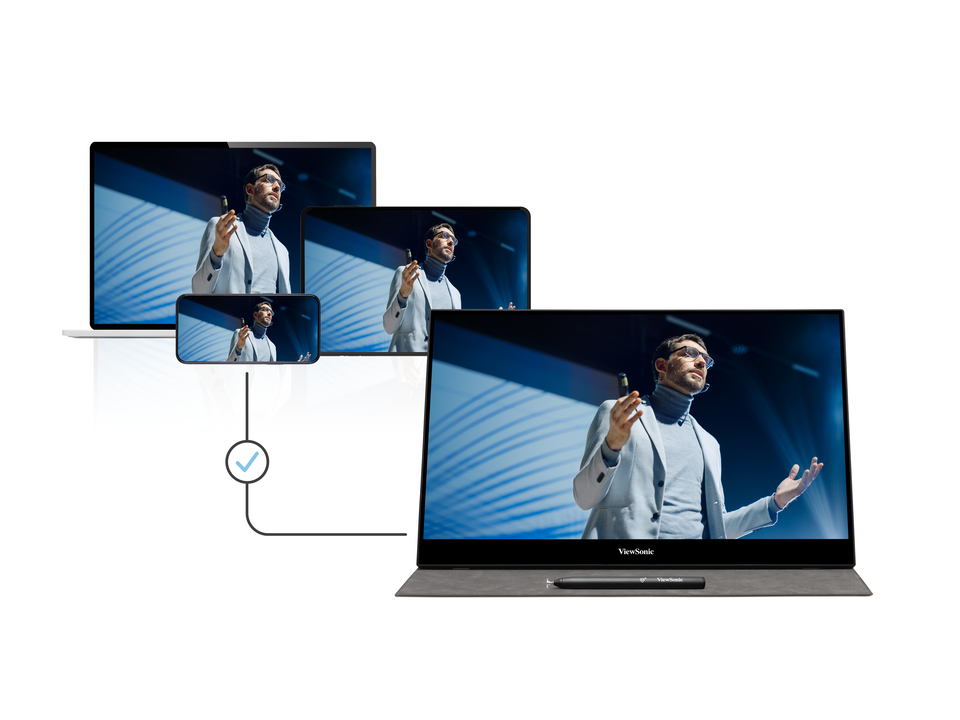

Expand your workspace to a second screen

Simply connect your laptop, smartphone or tablet to the monitor and experience a more productive work environment, easier web browsing and a more immersive viewing experience as you stream on the go.

Note:
1. Smart device must support Display Port 1.2 Alt Mode and Power Delivery via USB-C connection
2. Using an iPhone or iPad will require a Lightning to HDMI Adapter and HDMI to mini-HDMI cable (included) to connect to the monitor. It will also require an external power source such as an electrical outlet or power bank.
Audiovisual extension with laptops, tablets, and phones
Expand your workspace to a second screen 1

Extra On-Carry Protection

A robust metal case with detachable magnetic cover protects the monitor from damage during transport and prevents sliding on slippery surfaces.
Magnetic Anti-slip Cover
Extra On-Carry Protection 1

Certified Environmentally Sustainable

Environmentally conscious, this monitor adheres to the EPEAT® and ENERGY STAR® standards, saving energy cost and reducing environmental impact over its lifecycle.

*Energy savings vary based on actual usage and other factors.
EPEAT & Energy Star
Certified Environmentally Sustainable 1

Dimensions & I/O Ports

  1. USB Type C x2
  2. Mini HDMI
  3. Audio Out
  4. Joy Key

SPECIFICAȚII


  • Display
    Dimensiune Display (încheiat): 16
    Suprafață de vizualizare (inch): 15.6
    Tip Panel: IPS Technology
    Rezoluție: 1920 x 1080
    Tip rezoluție: FHD (Full HD)
    Rata de contrast static: 800:1 (typ)
    Rată de contrast dinamic: 50M:1
    Sursă de lumină: LED
    Luminozitate: 250 cd/m² (typ)
    Colors: 262K
    Color Space Support: 6 bit true
    Aspect Ratio: 16:9
    Timp de răspuns (GTG Tipic): 6.5ms
    Timp de răspuns (GTG w/OD): 6.599ms
    Response Time (Typical Tr+Tf): 30ms
    Unghiuri de vizualizare: 178º horizontal, 178º vertical, CR>5; 170º horizontal, 170º vertical, CR>10
    Durată de viață sursă iluminare fundal (ore): 15000 Hrs (Min)
    Curbare: Flat
    Rată de refresh (Hz): 60
    Filtru de lumină albastră: Yes
    Color Gamut: NTSC: 45% size (Typ)
    sRGB: 64% size (Typ)
    Dimensiune Pixel: 0.179 mm (H) x 0.179 mm (V)
    Touch Screen: Projected Capacitive, 10-point multi-touch
    Tratament pentru protecția suprafeței: Glossy w/ anti-finger print, Hard Coating (≧6H)
    Cover Glass Thickness: 0.8mm
  • Compatibilitate
    Rezoluție PC (maximă): 1920x1080
    Rezoluție Mac® (max): 1920x1080
    Sistem de operare PC: Windows 10/11 certified; macOS tested
    Rezoluție Mac® (min): 1920x1080
  • Conector
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 2 (60W power charger)
    Ieșire audio 3.5mm: 1
    Mini HDMI: 1
    Putere intrare: USB Type C (with video & data)
