Główne cechy
  • USB-C for plug-and-play connectivity via a single cable
  • Angular design with easy access shortcut keys for seamless usability
  • Dual-pen, 33-point touch with naturally smooth writing experience
  • Industry-leading audio and advanced eye-care technology
  • Centralized remote management system via myViewBoard Manager

ViewBoard IFP6552
Opis produktu
The ViewBoard® 52 Series is a 4K Ultra HD interactive whiteboard equipped with user-centric design features and best-in-class collaboration tools for today’s lessons made easy. With a single-cable solution for instant, worry-free connectivity and a unique angular design for easy access to shortcut keys and I/O ports, teachers can seamlessly connect and control for uninterrupted, flowing classes. Dual-pen capability, 33-point touch, Ultra Fine Touch and palm awareness technology combine for a naturally smooth writing experience and endless opportunities for student collaboration, supported by 2X15W front-facing speakers and a 15W subwoofer for amplified student engagement. In another industry-first feature of the display, teachers facilitating distance or hybrid learning from their personal device can easily access the 8-mic array and any connected visualizer to select the most appropriate camera and mic source. Complete with a browser-based remote management system, the ViewBoard 52 Series delivers a market-leading interactive whiteboard solution for teachers, students, and IT managers.

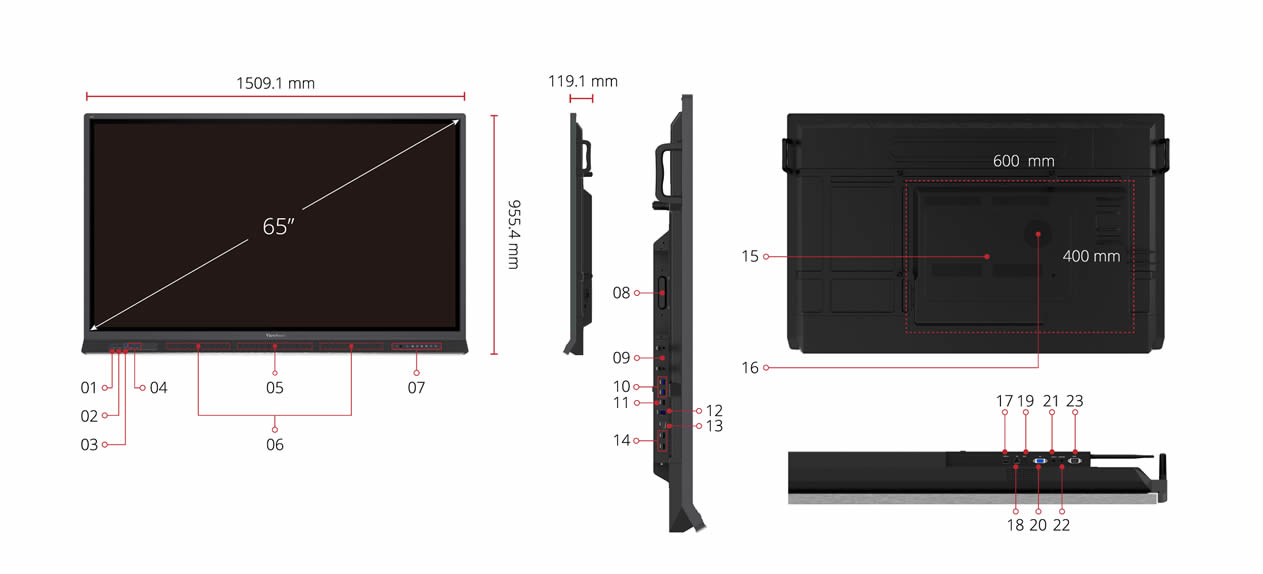

  1. Type-C
  2. HDMI In
  3. Touch
  4. USB 3.0 X 2
  5. 8-Microphone Array
  6. Front-Facing Speakers
  7. Menu Controls
  8. OPS Slot
  9. Wi-Fi Module Slot
  10. USB 3.0 X 2
  11. USB 2.0
  12. Touch
  13. DP In
  14. HDMI In X 2
  15. VESA® Wall Mount 600 x 400mm
  16. Subwoofer
  17. HDMI Out
  18. LAN
  19. SPDIF
  20. VGA
  21. Audio In
  22. Earphone
  23. RS232
Odwiedź Nas
  • www.viewsonic.com
  • WYśWIETLACZ
    Rozmiar panelu: 65"
    Typ panelu: TFT LCD Module with DLED Backlight.
    Obszar wyświetlania (mm): 1428.48(H) x 803.52(V)
    Proporcje obrazu: 16:9
    Rozdzielczość: UHD 3840x2160(Pixels)
    Colors: 1.07B colors (10bit)
    Jasność: 450 nits (typ.)
    Współczynnik kontrastu: 1200:1 Typ. , 5000:1 Max.(DCR enable)
    Czas reakcji: 8ms
    Kąty widzenia: H = 178, V = 178 typ.
    Czas pracy podświetlenia: 50,000 Hours (Typ.)
    Obróbka powierzchni: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
    Disclaimer: 50,000 hours backlight life at 8 hours of use per day
  • PLATFORMA
    Procesor: ARM Cortex A73*4
    RAM: 4GB (IFP6552-1A), 8GB (IFP6552-1B)
    Pamięć masowa: 32GB (IFP6552-1A), 64GB (IFP6552-1B)
  • TOUCH
    Rodzaj/Technologia: UFT (Ultra Fine Touch) Technology
    Czułość dotyku: 32767 x 32767
    Punkt dotyku: Windows: 33 points touch, Android: 20 points touch
  • INPUT
    HDMI: x2 (3840x2160@60Hz, HDCP2.2, CEC, Front x1, Side x1), x1 (3840x2160@60Hz, HDCP2.2, CEC, ARC, Side x 1)
    RGB / VGA: x1 (1920x1080 @60Hz)
    DisplayPort: x1 (3840x2160 @60Hz)
    Dźwięk: x1 (PC audio in)
    RS232: x1
    OPS: module slot x 1
    WiFi: module slot x 1
  • OUTPUT
    HDMI: x1 (on demand)
    Dźwięk: x1 (Earphone out)
    SPDIF: x1 (optical)
  • SIEć LOKALNA
    RJ45: x1
  • USB
    Typ A: USB 2.0 x 1(Side x1), USB 3.0 x 4 (Front x2, Side x2, SmartPort™ USB)
    Typ B: x2, for touch
    Typ C: x1 (USB3.0, DP1.2 Alt Mode, Ethernet, PD 60W)
  • GłOśNIKI
    15W x 2 + 15W x 1 subwoofer
  • MICROPHONE
    built-in 8-array microphone
  • TOP CAMERA PLATE
    Yes
  • ZINTEGROWANY SYSTEM OPERACYJNY
    Android 11
  • PAKIET OPROGRAMOWANIA
    Basic Annotation Software: myViewBoard WhiteBoard for Android
    Pro Annotation Software: myViewBoard WhiteBoard for Windows (embedded in VPC)
    Wireless Presentation: ViewBoard Cast & myViewBoard Display
  • CECHY SZCZEGóLNE
    All-in-one USB port: USB 3.0 x 4
    Proste udostępnianie LAN między IFP a urządzeniem typu "slot-in": 10/100/1000M for Android and PC
    Light Sensor: Yes
  • MOC
    Napięcie: 100-240VAC +/- 10% Wide Range
    Zużycie energii: 135.7W (Typ.) < 0.5 W (""Off"")
  • ERGONOMICS
    Uchwyt do montażu na ścianie (standard VESA®): 600 x 400
  • OPERATING CONDITIONS
    Temperatura (º C): 0°C to 40°C
    Wilgotność powietrza: 20% ~ 80% RH Non-Condensing
  • WYMIARY (S X W X G)
    Wymiary fizyczne (cale / mm): 1509.1 (W) x 955.4 (H) x 119.1 (D) mm, 59.41 (W) x 37.61 (H) x 4.69 (D) inch
    Opakowanie (cale/mm): 1660 (W) x 1045 (H) x 245 (D) mm, 65.35 (W) x 41.14 (H) x 9.65 (D) inch
  • WEIGHT
    Waga netto (lb / kg): 96.78 lb / 43.9 kg
    Brutto (Ib/kg): 122.14 lb / 55.4 kg
  • REGULATIONS
    cTUVus, FCC, EPEAT, Mexico coc, Mexico Energy, RoHS, Energy Star 8, CEC, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP. EEI, RCM, BIS, PSE, VCCI, CCC, CECP
  • ZAWARTOść OPAKOWANIA
    1. Power cable(3 meters) 2. Remote control 3. USB Type-C cable (1.5 meters) 4. USB Touch cable (3 meters, USB2.0) 5. Touch pen x 2 6. Quick Start Guide + Compliance statement 7. RS232 adapter 8. Clamp x 5 9. Camera Plate 10. Screw x 8 (camera 2+2, wall mount 4) 11. HDMI cable (3 meters) 12. Eraser 13. AAA Battery x 2
  • KOMPATYBILNY KOMPUTER TYPU SLOT-IN
    VPC12 & VPC25/27-O & VPC25/27-O-B series
