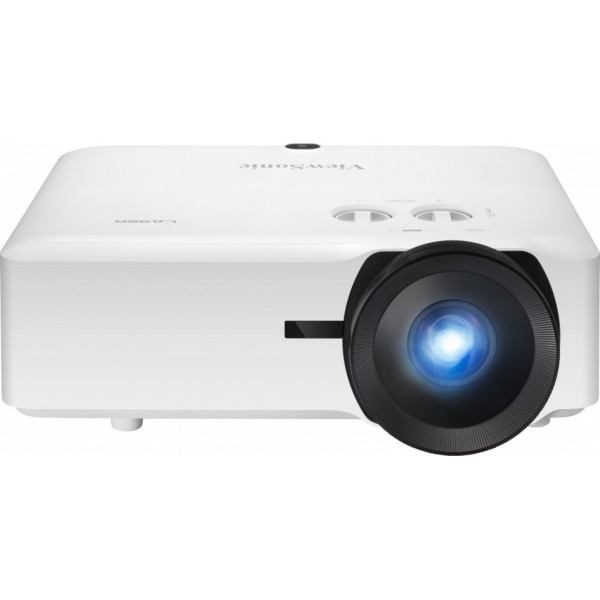

LS921WU

6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector

  • 6,000 ANSI Lumens to deliver bright images up to 200" in size
  • 2nd generation Laser Phosphor technology with a 20,000-hour lifespan
  • 0.81-0.89 short throw ratio for minimal space consumption
  • Wide H/V lens shift, 360° projection & portrait mode for flexible installation
  • Dual HDMI 2.0b supporting 4K HDR/HLG content
  • Cost-effective compact size and built-in HDBaseT
Pytanie dotyczące sprzedaży  udostępnić

PRZEGLĄD

The LS921WU is an advanced 6,000 ANSI Lumens WUXGA short throw installation projector. Adopting 2nd generation Laser Phosphor technology, the LS921WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 200". Short throw ratio, 1.1x optical zoom, wide lens shift, 360° projection, and portrait mode combine for incredible flexibility to create a truly immersive experience, especially ideal for blending projection applications in restaurants, gyms, and simulation/experience centers. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG formats supported. Add to that the compact size and built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.

High Brightness

Packed with 6,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
6,000 ANSI Lumens

2nd Generation Laser Phosphor Technology

Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.
Brighter, Smaller, Safer

Reliable Long-Term Performance

Laser technology offers a lifespan of up to 20,000 hours (4 hours per day for more than 13 years) with no degradation in brightness over time so that your installations are consistently vibrant.
20,000 hours
Lifespan

No Shadows, No Blinding Lights

With the latest projection technologies from ViewSonic, you'll enjoy all the benefits a short throw projector can offer. When projecting on to a video wall, there are no distracting shadows on the screen image, offering excellent edge blending projection. Plus, a 1.1x optical zoom provides a higher level of flexibility to fit some of the most challenging installation environments.
0.81-0.89 Short Throw
1.1x Optical Zoom

Larger Screen Size, Lower Cost-Per-Inch

Flexible installation and effortless transportation of the projector allows for an up-to-200” image size, which is much larger and easier to install than multiple commercial displays combined.

Installation Flexibility

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.
Wide H/V Lens Shift

360° Creative Applications

The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.

90° Portrait Mode

Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.

Dual HDMI 2.0b Supporting 4K/HDR/HLG

It comes with dual HDMI 2.0b / HDCP 2.2 ports, ensuring your access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and showing more picture detail.
4K/HDR/HLG Support

Lighter Weight & Compact Size

It is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.

Cost-effectively Receive AV Signal over Long Distance

With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable and is compatible with any certified HDBaseT transmitter.
HDBaseT Receiver

Non-stop 24/7 Operation

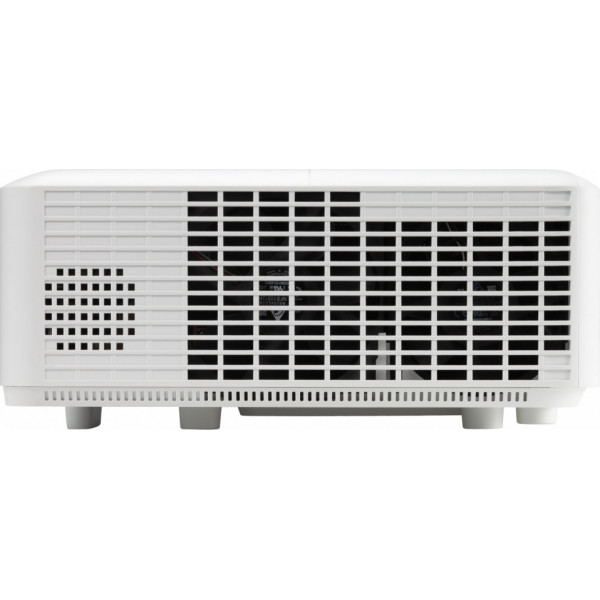

With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.

Centralized Control for Management Efficiency

This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
Comprehensive LAN Control

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.

Learn more: https://youtu.be/irlhJLpDHas
*The latest projector software update can be found in the download section at the bottom of the page when available.

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
H/V Keystone
4 Corner Adjustment

SuperColor™ Technology

ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

Sealed Optical Engine with IP5X

The advanced sealed optical engine prevents dust from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
IP5X

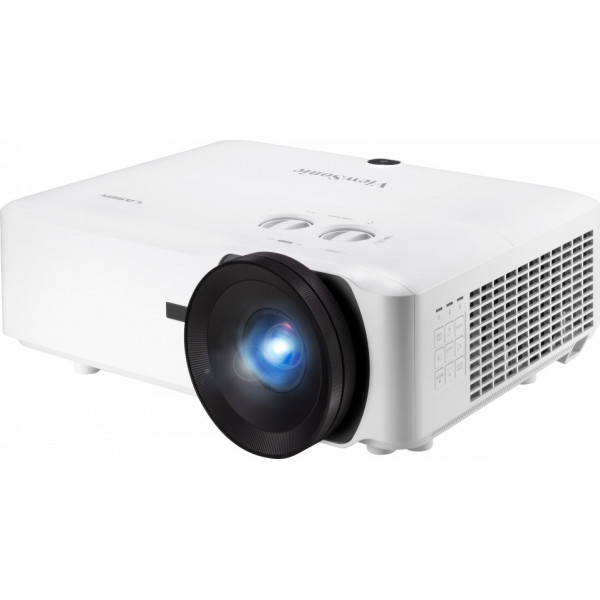

  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Lens Shift Control Knob
  5. Zoom/Focus Ring
  6. Adjustment Foot
  7. LED Indicator
  8. Keypad

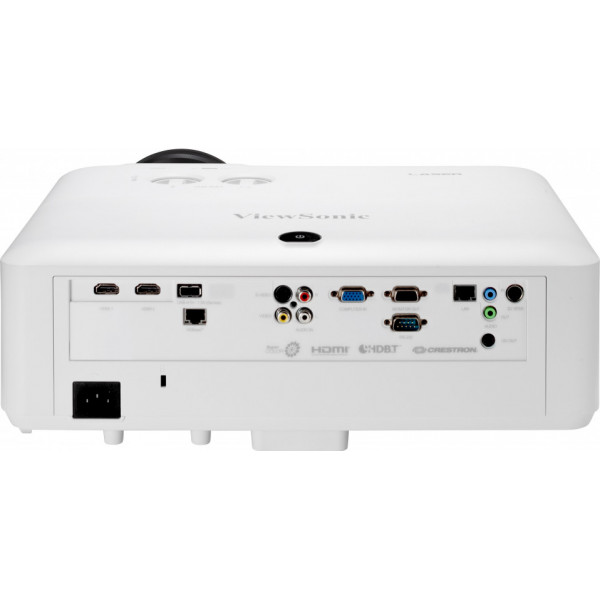

  9. Composite
  10. S-Video
  11. USB Type A(5V/1.5A)
  12. HDMI X 2
  13. HDBaseT
  14. Computer In
  15. Monitor Out
  16. LAN
  17. Audio In & Out
  18. 3D VESA
  19. 12V OUT
  20. RS-232

DANE TECHNICZNE


  • Specyfikacja
    System projekcji: 0.48" WUXGA
    Rozdzielczość Natywna: 1920x1200
    Matryca DMD: DC3
    Jasność: 6000 (ANSI Lumens)
    Współczynnik kontrastu: 3000000:1
    Display Color: 1.07 Billion Colors
    Rodzaj źródła światła: Laser Phosphor system
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Moc lampy: Nichia 74W x2
    Obiektyw: F=1.83-1.86, f=8.6-9.4mm
    Przesunięcie projekcji: 0%
    Współczynnik rzutu: 0.81-0.89
    Powiększenie optyczne: 1.1X
    powiększenie cyfrowe: 0.8x-2.0x
    Wielkość obrazu: 60"-200"
    Odległość rzutu: 1.04-3.83m
    (100"@1.74m)
    Korekcja trapezowa: H:+/-40° , V:+/-40°
    Zasięg przesunięcia obiektywu w pionie: +50%, -50%
    Zasięg przesunięcia obiektywu w poziomie: +23%, -23%
    Dźwięk (tryb normalny): 36dB
    Audible Noise (Eco): 29dB
    Opóźnienie sygnału wejściowego: 16ms
    Obsługa rozdzielczości: VGA(640 x 480) to 4K(3840 x 2160)
    Kompatybilność z HDTV: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Zgodność wideo: NTSC, PAL, SECAM
    Częstotliwość w poziomie: 15K-135KHz
    Częstotliwość skanowania pionowego: 23-120Hz
  • Wejście
    Wejście komputera (współdzielony z podzespołem): 1
    Kompozyt: 1
    S-Video: 1
    HDMI: 2
    (HDMI 2.0, HDCP 1.4/2.2)
    Wejście audio (3,5 mm): 1
    Wejście audio (RCA R/L): 1
    Synchronizacja 3D VESA: 1
    HDBaseT: 1
  • Wyjście
    Wyjście monitorowe: 1
    Audio-out (3.5mm): 1
    Głośnik: 10W x2
    USB typu A (zasilanie): 1 (5V/ 1.5A)
    Sygnał 12V (gniazdo 3,5 mm): 1

WSPARCIE I PLIKI DO POBRANIA


Arkusze danych

LS921WU Arkusz danych

Instrukcje obsługi

LS921WU User Guide (English)

Skrócona instrukcja obsługi

LS921WU Quick Start Guide

Dokument techniczny

LS921WU_2D_drawing(pdf)LS921WU_3D_drawing(stp)

Zgodność z przepisami bezpieczeństwa

LS921WU BSMI RoHS

Informacje o kodach środowiskowych FR

LS921WU Informacja (EU, English)LS921WU Informacja (Français)

Często zadawane pytania

LS921WU is not recognized nor controlled through the web browser by PJ-link
