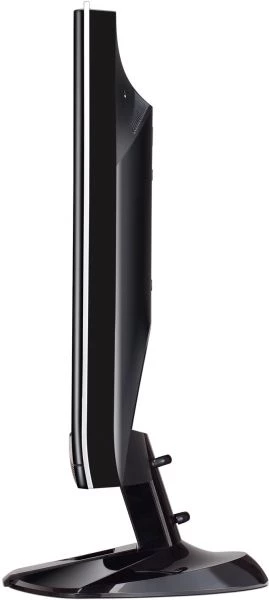

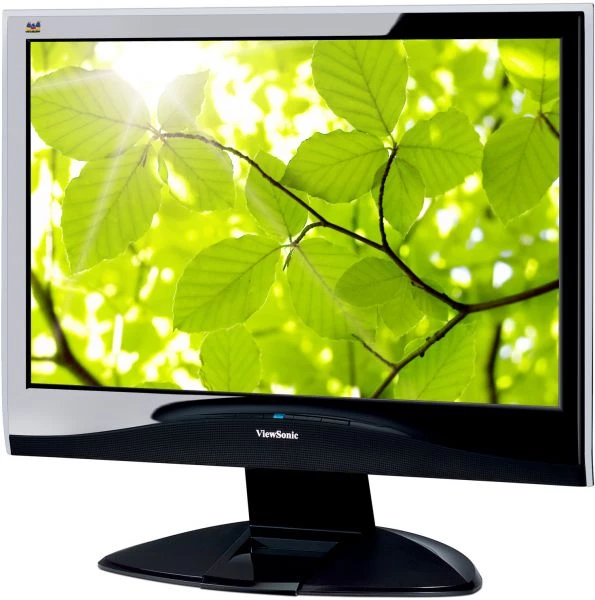

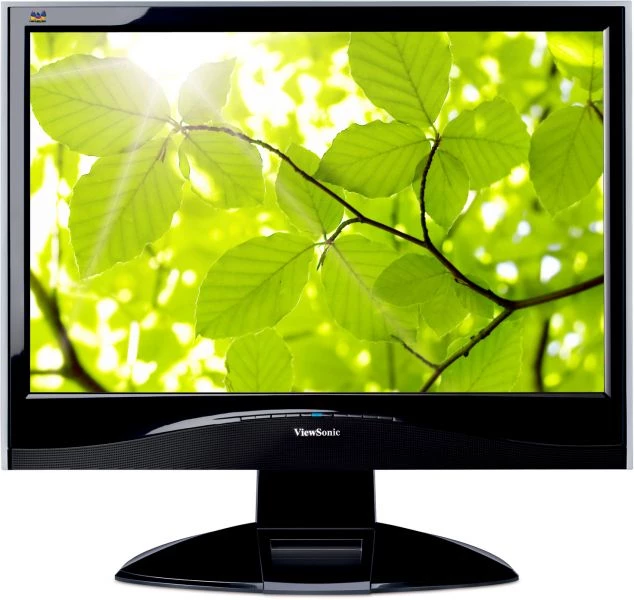

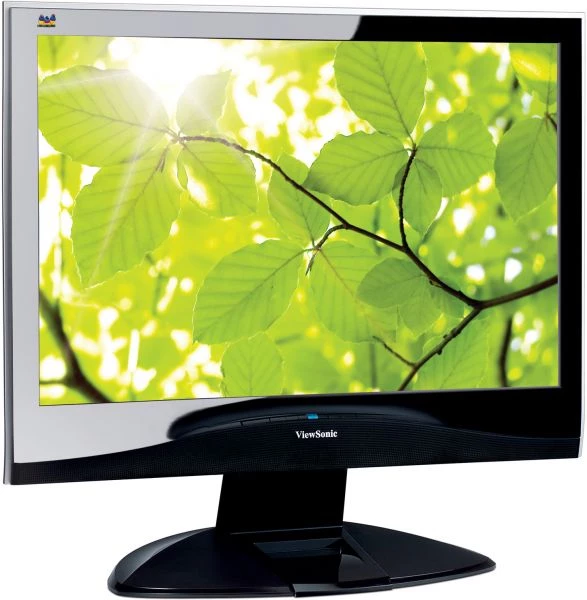

VX1932wm-LED
48cm / 19" VIEWABLE LED BACKLIGHT LCD WITH 10,000,000:1 DYNAMIC CONTRAST RATIO
DANE TECHNICZNE
- COLORSBlack
- LCDTyp: 49 cm / 19" wide Color TFT Active Matrix LCD
Współczynnik kontrastu: 1000:1 (typical)
Kąty widzenia: 170° (H), 160° (V) (CR≧10)
Display Area: 474mm(H)×296mm(V) / 18.6in(H)×11.6in(V)
Optimum Resolution: 1440 x 900
Czas reakcji: 5 ms (G to G)
Źródło Światła: 30,000 (typical) (White LED)
Panel Surface: Anti-glare
Pixel Pitch: 0.282 mm(H) x 0.282 mm(V)
Jasność: 250 cd/m² (typical)
Dynamiczny kontrast: >1,000,000:1 (Mega) - COMPATIBILITYPC: VGA up to 1440x900 Non Interlaced
Mac®: Mac OS (up to 1440x900 )
- DIMENSIONSWymiary fizyczne (szer. x wys. x gł.): 450 mm x 434 mm x 209 mm (
17.7" x 17" x 8.2") - CONNECTORDigital: DVI-D x 1
Analog: 15 pin mini D-sub x 1 - POWERNapięcie: 100-240VAC; 50/60 Hz
Zużycie energii: 15.5 W (typical) / 19.5 W (maximum) - CONTROLSBasic: [1], [2], Soft power button, Up[▲], Down[▼]
Main Menu: Auto Image Adjust, Contrast/Brightness, Input Select, Color Adjust (sRGB,
9300K, 6500K, 5400K, User Color [R, G, B]), Information,Manual Image
Adjust (Horizontal Size, H/V Position, Fine Tune, Sharpness, Aspect Ratio,
ECO Mode), Setup Menu (Language Select, Resolution Notice, OSD
Position, OSD Time Out, OSD), Background, Memory Recall - OPERATING CONDITIONSTemperatura: 0°C - 40°C (32°F - 104°F)
Wilgotność powietrza: 20% to 80% (no condensation) - WEIGHTWaga netto: 4.7 Kg (10.3 lbs)
- VIDEO INPUTFrequency: Fh: 24 – 82 kHz , Fv : 50 – 75 Hz
Sync: H/V Separated, Composite, Sync On Green(TTL)
Analogue: RGB Analogue (75 ohms, 0.7 Vp-p)
Digital: DVI-D (TMDS, 100 ohms) - VESA MOUNT COMPLIANTMeet VESA (100mm x 100mm) Standards
- ERGONOMICSNachylenie: 20 ~ -5 degrees
- AUDIOSpeakers: 2W x 2
