PJD5122

ViewSonic projector, power cable, VGA cable, remote
control with batteries, lens cap, Quick Start Guide,
ViewSonic Wizard CD (with User Guide)

Głośnik: 5Wx1

Frequency: Fh: 31-100KHz, Fv: 48-120Hz
Computer and Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SD
480i and 576i (24fps, 25fps and 30fps), ED 480p and 576p
(24fps, 25fps and 30fps), HD 720p, 1080i (24fps, 25pfs and
30fps)

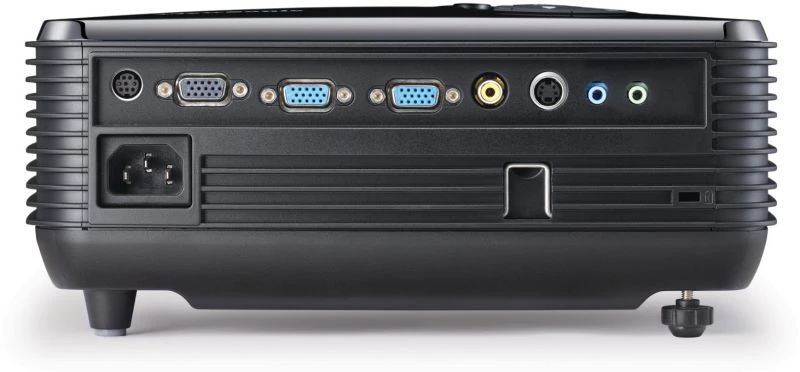

S-Video Input: 1 x 4-pin mini DIN
RGB: Input: 2×15-pin D-sub, Output: 1×15-pin D-sub
Sterowanie: 1×RS-232 (8 Pin Mini-Din)
Audio (input/output): 1 x 3.5mm mini jack / 1 x 3.5mm mini jack
Composite Input: 1 × RCA jack

Napięcie: 100~240VAC(Auto Switching), 50/60Hz (universal)
Zużycie energii: 280W (Typical) / <1W (Stand-by mode)

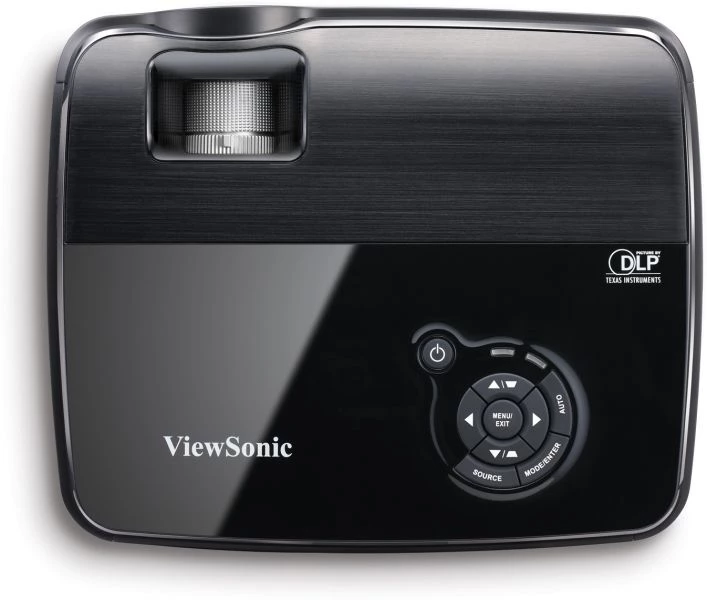

Basic: Power, keystone/arrow keys, left/blank, menu/exit,
right/panel key lock,
auto, mode/enter, source
OSD: (1) Display:Screen color/ Aspect raito/ Keystone/ Position/Phase/ H. Size/Digital Zoom/ 3D sync/ 3D sync invert/ Color
management

(2) Picture:Preset Mode/ Brightest/ Daylight/Game/
ViewMatch/Cinema/User 1/ User 2
Reference Mode: Brightest/ Daylight/
ViewMatch/Cinema/Game/Brightness /Contrast /Color
/Tint / Sharpness / Brilliant Color /Color Temp. /Save
Settings

(3) Source: Quick Auto Search / Language/ Projector
Position / Auto Power Off /Blank Timer / Panel Key lock/
Timer Controller /Splash Screen/ Message

(4) System Setup (Advanced):Quick Cooling / High
Altitude Mode /DCR /Active VGA Out/ Audio Settings
/Menu Settings / Closed Caption / Lamp Settings / Security
Setting / Reset All Settings

(5) Information

Contrast Ratio : 3000:1 (Typical)
Odległość rzutu: 1.1 - 11.3m
Współczynnik rzutu: 1.86:1-2.04:1
Lamp type: 220 watt
Jasność: 2700 Lumens
Color Wheel: 6-Seg RGBCYW / 7200rpm
Color Gamut: 81 % NTSC 1931 CIE
Lamp life ( Normal / Eco / Dynamic Eco ): 3000 / 4000* hours
Typ: 0.55" Digital Micromirror Device (DLP™)
Rozdzielczość: SVGA 800×600 (Native)
Korekcja trapezowa: Vertical digital keystone correction: ± 40 degrees
Obiektyw: 1.1× Manual optical zoom / Manual optical focus
Color Depth: 24 bits, 16.7M Colours (8+8+8)

Normal: 34dB
Eco-mode: 28dB

English/ Dutch/French/ Spanish/ Italian/ Korean/
Thai/Portuguese/ T. Chinese/ S. Chinese/ Japanese/
Russian/Germany/ Swedish/ Turkish/ Finnish /Polish/ Czech

Waga netto: 2.3 kg

Wilgotność powietrza: 10%-90% (non-condensing)
Temperatura: 0ºC-40ºC
