LCD Display
VA1630-h
Key Features
- 16:9 aspect ratio
- 50M:1 dynamic contrast ratio
- HDMI and VGA inputs
- Blue Light Filter
- VESA mountable
Product Description

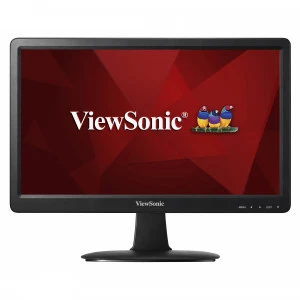

The ViewSonic VA1630-h is a 16” (15.6” Viewable) 16:9 widescreen LED monitor with a native resolution of 1366 x 768, a 50M:1 Dynamic Contrast Ratio, and HDMI input. VA1630-h’s Blue Light Filter eye care technologies help to eliminate eye strain from extended viewing periods for a comfortable overall viewing experience. The monitor’s HDMI input allows it to serve as either a primary or secondary display for your office or at home for casual web surfing. The ViewSonic VA1630-h combines great features with long-term dependability to provide a worthy investment for your viewing needs.
Visit Us
- www.viewsonic.com
-
DISPLAY
Display Size (in.): 16 Viewable Area (in.): 15.6 Panel Type: TN Technology Resolution: 1366 x 768 Resolution Type: WXGA (Wide XGA) Static Contrast Ratio: 400:1 (typ) Dynamic Contrast Ratio: 5M:1 Light Source: LED Brightness: 220 cd/m² (typ) Colors: 262K Color Space Support: 6 bit true Aspect Ratio: 16:9 Response Time (Typical Tr+Tf): 8ms Viewing Angles: 90º horizontal, 50º vertical Backlight Life (Hours): 15000 Hrs (Min) Curvature: Flat Refresh Rate (Hz): 60 Low Blue Light: Software solution Color Gamut: NTSC: 45% size (Typ) Pixel Size: 0.252 mm (H) x 0.252 mm (V) Surface Treatment: Anti-Glare, Hard Coating (3H) -
COMPATIBILITY
PC Resolution (max): 1366x768 Mac® Resolution (max): 1366x768 PC Operating System: Windows 10 tested; macOS tested Mac® Resolution (min): 1366x768 -
CONNECTOR
VGA: 1 HDMI 1.4: 1 Power in: DC Socket (Center Positive) -
POWER
Consumption (typical): 5W Consumption (max): 6W Voltage: AC 90-270V Stand-by: 0.5W Power Supply: External Power Adaptor -
CONTROLS
Physical Controls: Menu, Left, Right, Exit, Power On Screen Display: Picture, Display, Advance Color -
OPERATING CONDITIONS
Temperature: 32°F to 104°F (0°C to 40°C) Humidity (non-condensing): 20% to 90% -
WALL MOUNT
VESA Compatible: Customized, 75 x 75 mm -
INPUT SIGNAL
Frequency Horizontal: RGB Analog: 30 ~ 80KHz, HDMI (v1.4): 15 ~ 80KHz Frequency Vertical: RGB Analog: 58 ~ 62Hz, HDMI (v1.4): 58 ~ 62Hz -
VIDEO INPUT
Digital Sync: TMDS - HDMI (v1.4) Analog Sync: Separate - RGB Analog -
ERGONOMICS
Tilt (Forward/Back): -5º / 15º -
WEIGHT (IMPERIAL)
Net (lbs): 2.4 Net Without Stand (lbs): 1.8 Gross (lbs): 4.2 -
WEIGHT (METRIC)
Net (kg): 1.1 Net Without Stand (kg): 0.8 Gross (kg): 1.9 -
DIMENSIONS (IMPERIAL) (WXHXD)
Packaging (in.): 16.7 x 13.6 x 4.1 Physical (in.): 14.8 x 11.9 x 5.2 Physical Without Stand (in.): 14.8 x 9.3 x 1.5 -
DIMENSIONS (METRIC) (WXHXD)
Packaging (mm): 425 x 345 x 105 Physical (mm): 376 x 302 x 131 Physical Without Stand (mm): 376 x 235 x 38 -
GENERAL
PACKAGE CONTENTS: VA1630-H x1, VGA Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1 Recycle/Disposal: Please dispose of in accordance with local, state or federal laws. Warranty: *Warranty offered may differ from market to market
