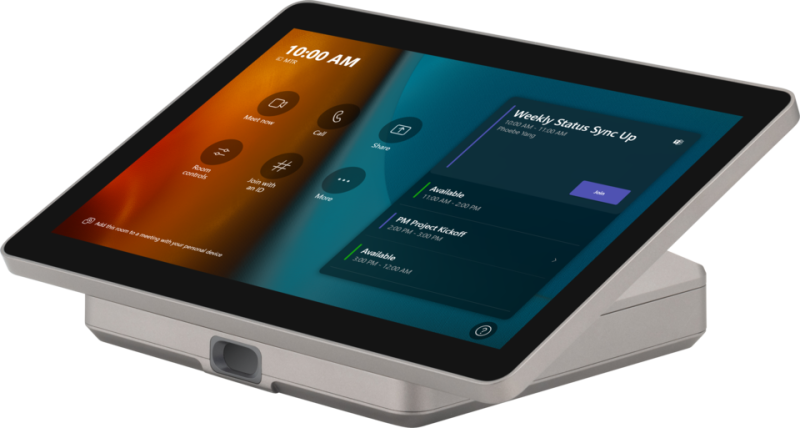

TeamJoin™ TRS10

Computing Engine and Touch Console for Microsoft Teams Rooms

12th Gen Intel Core™ Processor and TPM 2.0 ensures a stable and secure meeting environment
Pre-installed Microsoft Teams Rooms on the latest Windows 11 IoT Enterprise operating system
Seamless, instant connection to videoconferencing sessions through the10.1” Full HD Touch Console
Direct HDMI Ingest support for BYOD presentations
Auto on/off with a human presence sensor for an instant meeting start and battery saving

Sales Enquiry

GALLERY

OVERVIEW

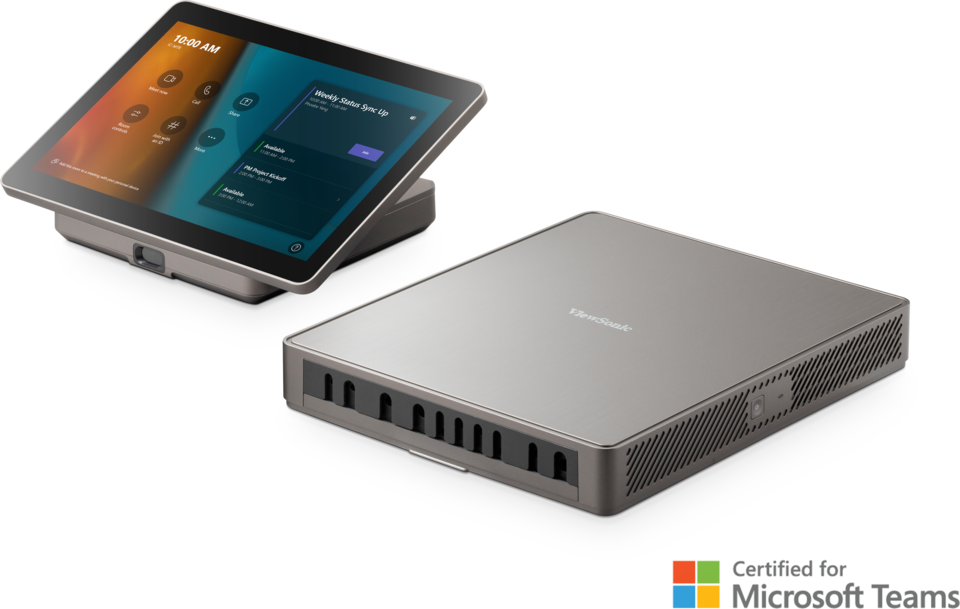

Designed to deliver instant and intuitive collaboration without a complicated setup process, ViewSonic® TeamJoin™ solutions for Microsoft Teams Rooms help to enhance communication, foster collaboration, and promote inclusivity among diverse teams, regardless their locations. The TeamJoin™ TRS10 bundle, featuring a Computing Engine (MPC310-W31-TU) and Touch Console (MRC1010-TN), offers a complete, one-stop solution that can easily scale to meet your needs and adapt to any meeting space size.

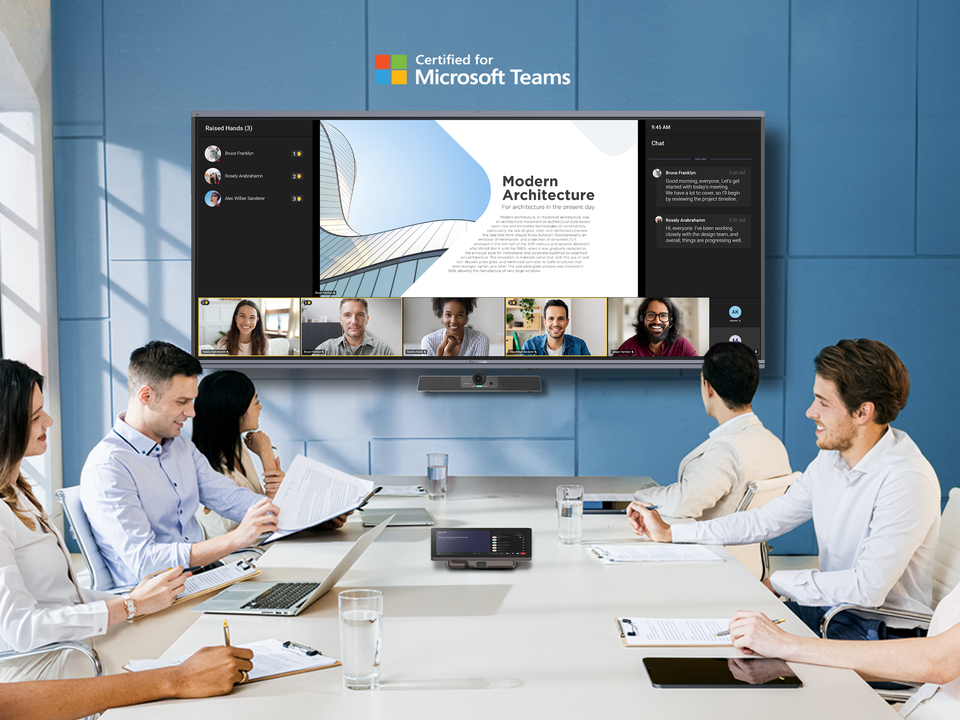

Easy-to-Deploy Microsoft Teams Rooms Solution

Featuring a nimble Computing Engine and an intuitive Touch Console, the TRS10 bundle simplifies deployment and delivers instant collaboration in meeting rooms of any size. Tailor-made for those who demand a consistent and secure Microsoft Teams Rooms experience, this solution combines reliability and affordability in one package.

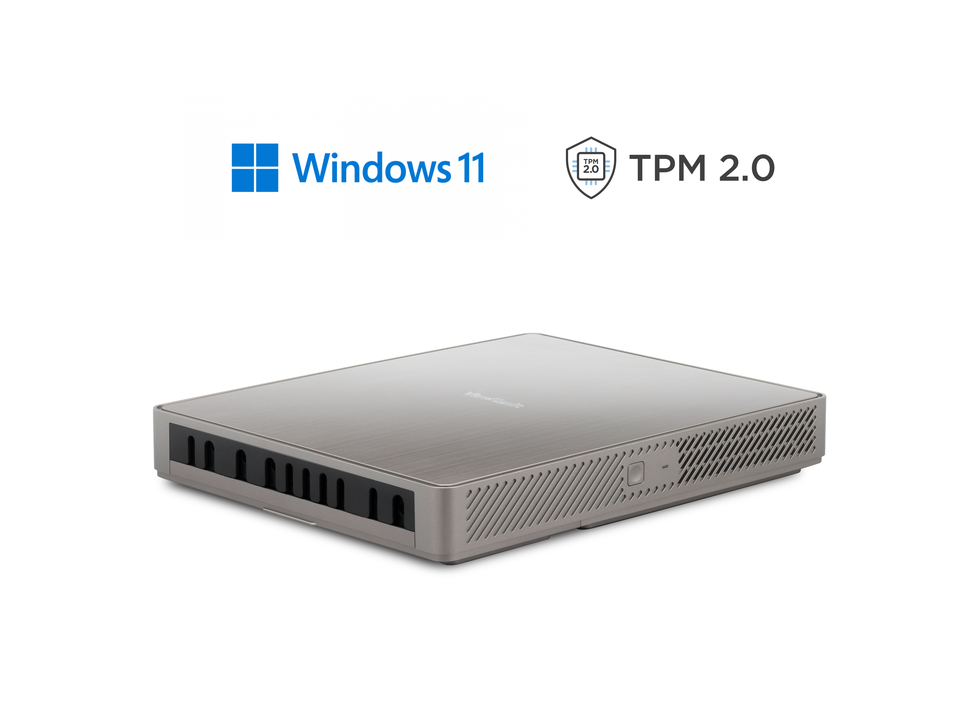

Enterprise-grade Security

An integrated Trusted Platform Module (TPM) 2.0 ensures safer, more secure computing with hardware-based authentication and tamper detection. Additionally, the 12th generation Intel processor delivers advanced security features, including Intel Threat Detection Technology and Control-Flow Enforcement. These are further complemented by the Windows 11 IoT Enterprise operating system with Smart App Control (SAC), enhancing overall device security.

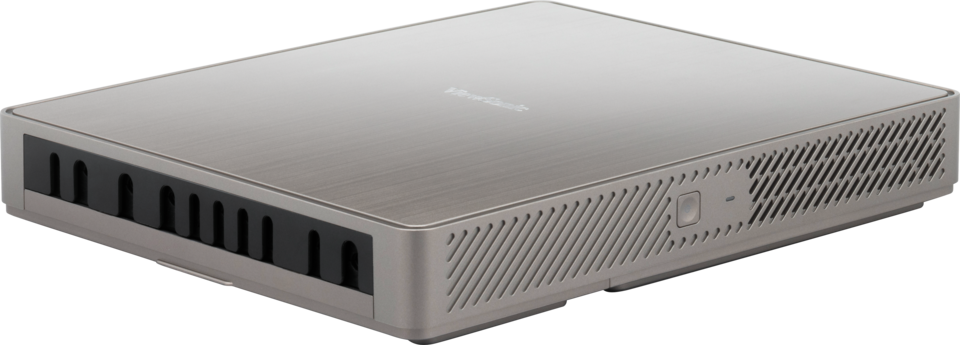

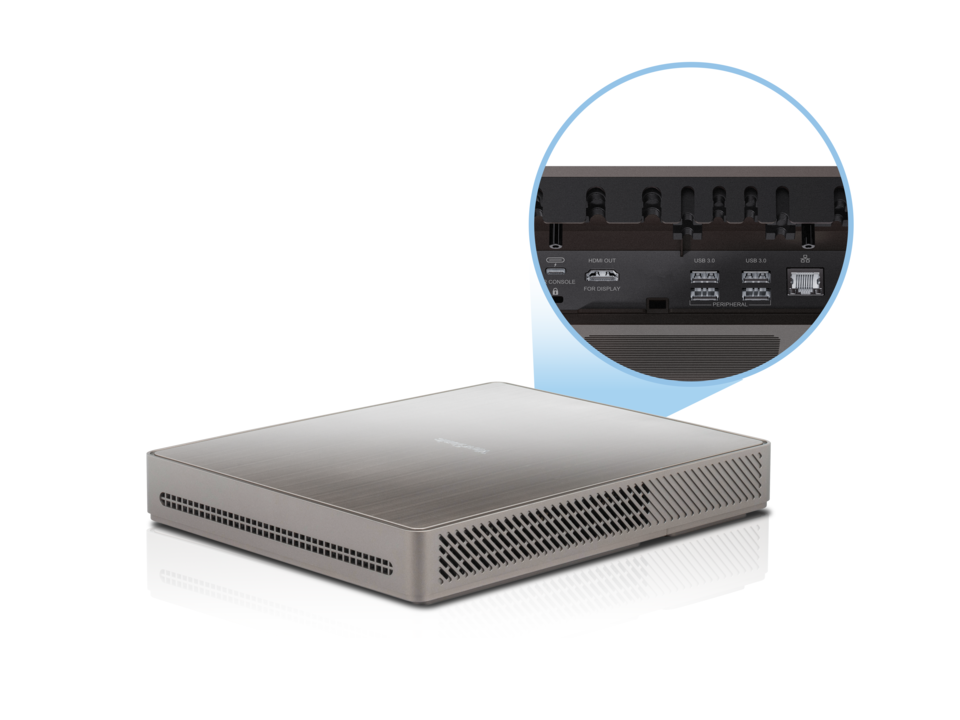

Seamless Collaboration Control Hub

The MPC310-W31-TU TeamJoin Computing Engine powered by a 12th Gen Intel® Core™ processor, optimises hybrid collaboration. With built-in Microsoft Teams Rooms software on the latest Windows 11 IoT Enterprise, it facilitates easy connection, content sharing, and collaboration in calls and meetings. The integrated cable management streamlines the setup, simplifying maintenance for IT staff.

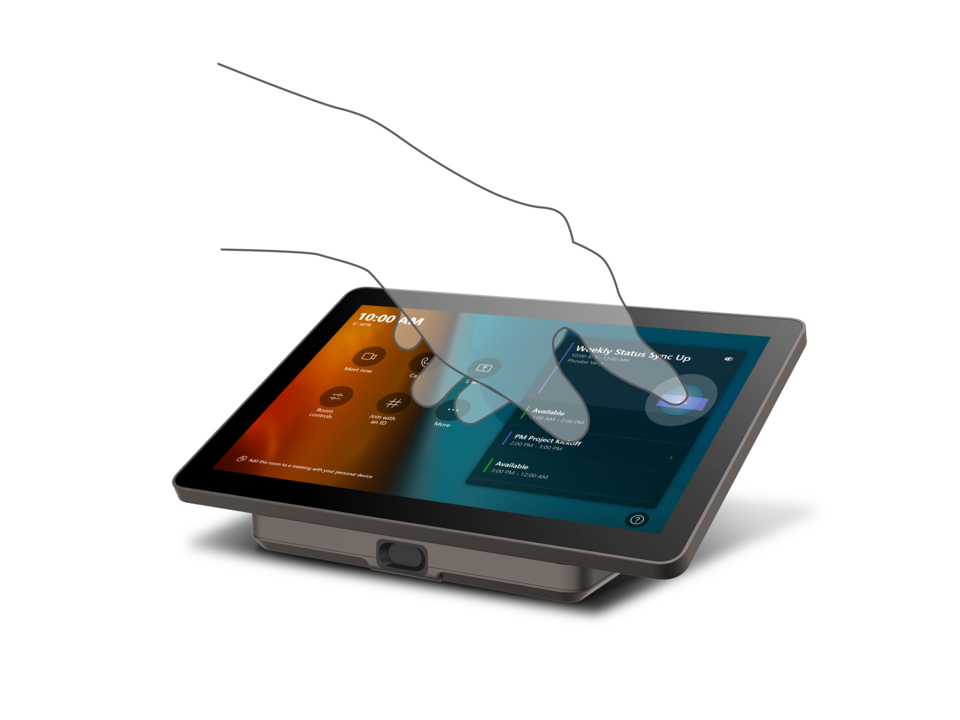

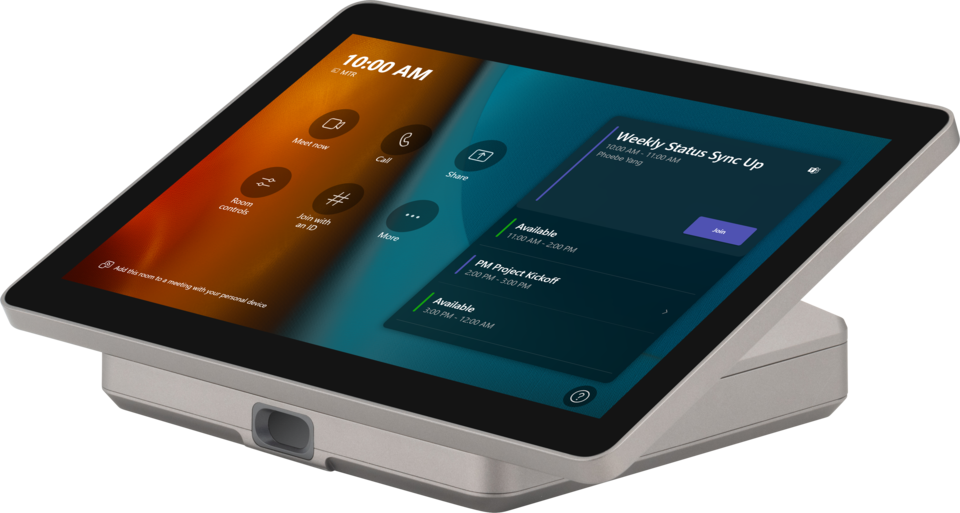

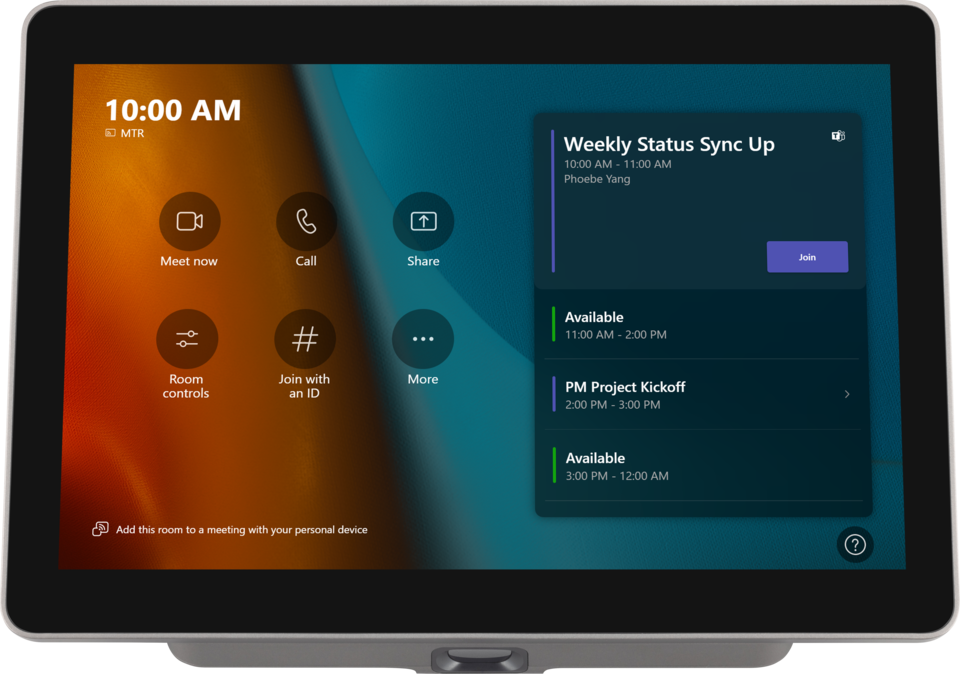

Full Meeting Control at Your Fingertips

Enjoy intuitive touch control with the MRC1010-TN TeamJoin Touch Console. Featuring Direct HDMI Ingest connectivity for BYOD presentations, this 10.1” Full HD anti-glare touch display offers an easy-to-use Microsoft Teams interface that allows you to start, join and manage meetings—all from your fingertips.

Start Meetings with a Simple Move

The MRC1010-TN TeamJoin Touch Console automatically activates the computing engine and ViewSonic display upon detecting human presence, ensuring the meeting is ready to start the moment you are.

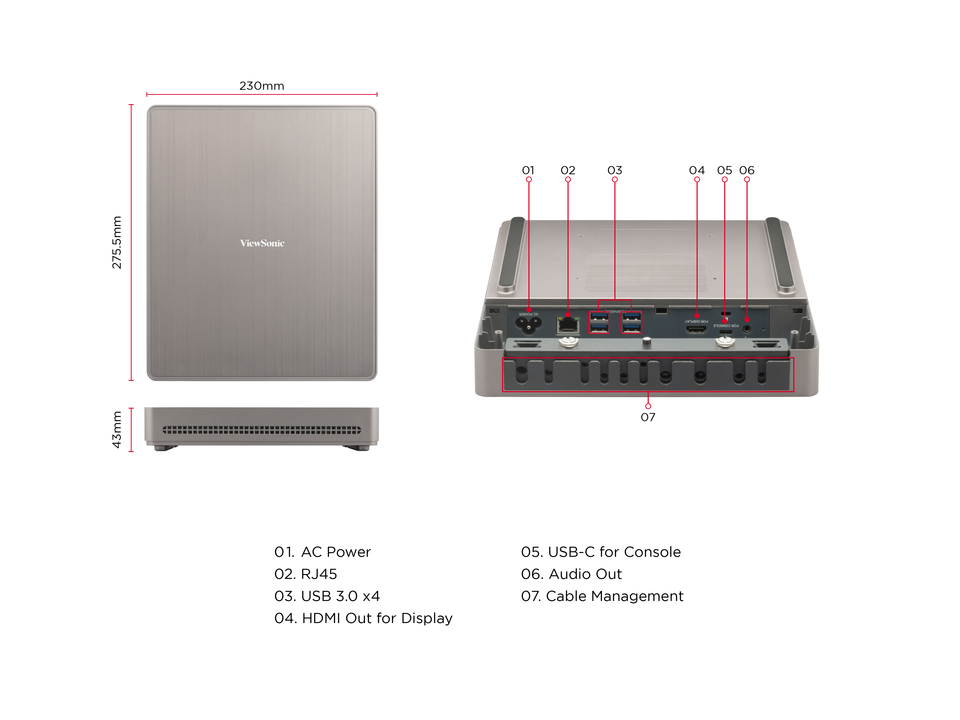

Dimension & I/O Ports

SPECIFICATIONS

Computing Engine
MPC310-W31-TU
CPU
CPU: Intel i3-1220P (1.5G)
Turbo boost 4.4G
GPU: Intel UHD
Memory
Type: Dual Channel DDR4
Interface: DDR4 SODIMM
Size: 8GB (4x2)

Storage
Type: M.2 2280 SSD
Interface: SATA
Size: 128GB
Interface
USB type-A: 4 x USB3.0
USB type-C: 1 x USB3.0
(DP out 4K@30Hz, USB3.0 upstream(In)),
12V/2A PD
Audio: 1 x Audio Combo Jack
Ethernet: 1 x RJ45 (10M/100M/1000M)
HDMI out: 1 x HDMI Video Out
(Support Video out 4K@60Hz,
CEC control - screen power on/off)
Antenna: Built-in (BT)
Power button: 1 x Power button
Power LED: 1 x Power LED
(Power on: Blue)
OS recovery: 1 x OS recovery
Kensington Security Lock: 1 x Security slot
WIFI Expansion
WLAN spec: No Wi-Fi, BT5.3
Operation System
Windows: Windows 11 IoT Enterprise (x64)
Bundled Software
Software: Microsoft Teams Rooms
Power
Supply mode: Internal power supply module
Input power: AC 100-240V 50/60Hz
Maximum power consumption: 111.9W (19V/5.89A)
Standby power consumption: 1.5W
Power Requirements: 12V/1.5A(Via TYPE-C)
Overall Power (Max.): 18W
Standyby Power: ≤0.5W
Accessory (inbox)
Quick Start Guide: x1
VESA mounting bracket: x1
Power Cord: 1.8M x1
Physical Specifications
Dimension WxHxD: 9.01 x 10.85 x 1.69 in
230 x 275.5 x 43 mm
Dimension (package) WxHxD: 14.53 x 11.85 x 4.76 in
369 x 301x121mm
Net Weight: 1.86KG (4.10lb)
Gross Weight: 3.70kg (8.16lb)
Dimension LxHxD: 9.63 x 6.3 x 3.85 (in.)
245 x 160 x 98 (mm)
Dimension (package) LxWxH: 14.53 x 9.65 x 4.76 (in)
369 x 245 x 121 (mm)
Net Weight: 0.93kg (2.05lb.)
Gross Weight: 1.95kg (4.3lb.)
Touch Console
MRC1010-TN
Display
Size: 10.1 inch
Resolution: 1920*1200
Refreshing Frequency: 60Hz
NTSC: 72%
Back Light Unit: ELED
Brightness with glass(typ): 300cd/m ²
Life Time: 20000Hrs
Operating System
System Version: Non-OS
Touch System
Sensing Type: Capacitance touch recognition
Touch Tool: Finger
Accuracy: Middle：±1 mm；Edge：≤2.5mm
Touch Point: 10 points touch
Touch down latency: <25 ms
I/O Port
USB 2.0: *1
HDMI Ingest: *1
Audio out: *1, 3.5mm interface
TYPE-C: "1
(DP in, USB downstream(3.0: HDMI signal, 2.0: Touch signal)"
Sensor
Motion Sensor: PIR *1
(Support 24/7 continuous working when screen is off)
Accessories
Quick Start Guide: *1
HDMI cable: 1 * 1.5M
Type-C cable: 1* 5M
