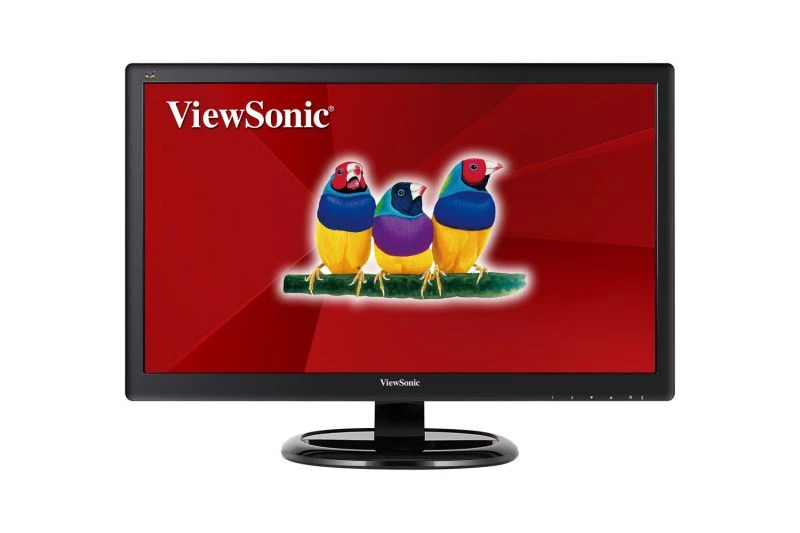

Archived
VA2465Smh
24" 16:9 Full HD Energy Saving LED Monitor with SuperClear® VA technology and both VGA/HDMI input
SPECIFICATIONS
- LCDType: 23.6" Wide Color TFT LCD
Display Area: 23.6 inch
Optimum Resolution: 1920x1080
Contrast Ratio: 3000 :1
Brightness: 250 cd/m2 (typ)
Viewing Angles: 178° / 178° (typ)
Response Time: 5.5ms（G delta）
Panel Surface: Anti-Glare type, Hardness 3H
Light Source: 40,000 Hrs (Min)
Colors: 16.7M - Video InputAnalog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Digital: HDMI (TMDS, 100ohms)
Frequency: Fh: 24-82KHz; Fv: 50-75Hz
Sync: Separate Sync - CompatibilityPC: VGA up to 1920x1080 Non Interlaced
Mac: Power Mac up to 1920x1080
- ErgonomicsTilt: 20° ~ -5°
- ConnectorAnalog: VGA x1 (DB-15)
Digital: HDMI x1
Audio: Earphone out x1 (3.5mm plug); 3.5mm Mini Phone Jack Audio In x1
Power: Internal Power Board , 3-pin plug (CEE22) x1 - AudioSpeakers: 2W x2
- PowerVoltage: AC 100-240V (Universal); 50/60 Hz
Consumption: 22W (typ); Optimize:17W (typ); Conserve:13W (typ) - Operating ConditionsTemperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% (no condensation) - DimensionsPhysical: 563.89mm (width) x 407.19mm (height) x 193.14mm (depth)
- WeightNet: 4.1 kg
- Wall MountVESA® 100x100 mm
- Package ContentsLCD Display/ Power Cable/ VGA cable/Quick Start Guide *Actual content may differ from market to market
