ViewSonic LCD Display VA2046m-LED

VA2046m-LED

19.5" LED Display. Sleek and Stylish Display.

GALLERY

SPECIFICATIONS

LCD
Type: 20” Wide
Display Area: 19.5 inch
Optimum Resolution: 1600x900
Contrast Ratio: 600:1 (typical), 10,000,000:1 (DCR)
Brightness: 200 cd/m² (typ)
Viewing Angles: 90º horizontal, 65º vertical
Response Time: 5ms
Panel Surface: Anti-glare Type, 3H Hardness
Light Source: 40,000hr (min.)
Video Input
Analog: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Digital: DVI (TMDS, 100 ohms)
Frequency: Fh: 24-82KHz; Fv: 50-75Hz
Sync: Separate Sync
Compatibility
PC: VGA up to 1600 x 900 Non-interlaced
Mac: MAC up to 1600 x 900

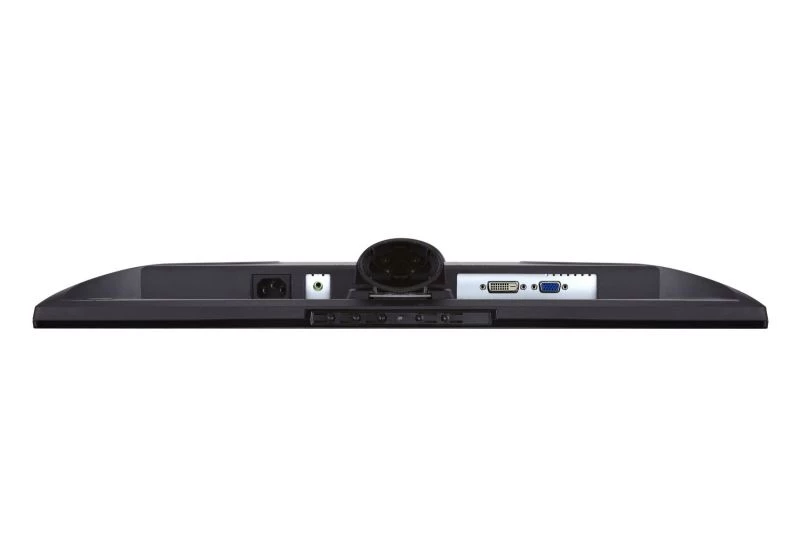

Connector
Analog: RGB Analog (75Ω, 0.7 / 1.0 Vp-p)
Digital: DVI-D x 1
Audio: 3.5mm x 1
Power: Internal Power Board , 3-pin Plug (CEE22) x 1
Audio
Speakers: 2W x 2
Power
Voltage: AC 100 - 240V (Universal); 50 / 60Hz
Consumption: 18W; Optimize: 14W; Conserve: 12W
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity: 10% to 90% (No Condensation)
Dimensions
Physical: 478.2mm (width) x 360.2mm (height) x 197.6mm (depth)
Weight
Net: 3.0 kg
Wall Mount
100mm * 100mm
Package Contents
Power Cable *1, D-Sub*1, Audio Cable *1, Quick Start Guide *1, ViewSonic CD Wizard *1
