Projector

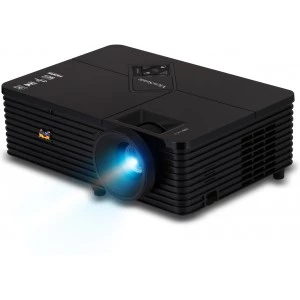

PJD6345
Key Features
Product Description
The ViewSonic® PJD6345 is an advanced networkable XGA DLP® projector that delivers vivid and brilliant images in any setting, from large classrooms to corporate boardrooms. Equipped with Crestron® LAN controller, the PJD6345 makes it easy for IT admin to remotely control and manage multiple projectors from their workstations. Built with BrilliantColor™ technology, this projector produces vibrant colors, while 3500 ANSI lumens and 15000:1 contrast ratio deliver stunning, razor-sharp images. The PJD6345 easily integrates into any size campus or enterprise. In addition, the PJD6345 is packed with advanced features including wired and wireless LAN display, USB display, a mobile app for smart phones and tablets, capability for PC-less presentations, 3D Blu-ray ready HDMI, and integrated speakers. The PJD6345 is the perfect projector for both classroom and corporate LAN environments.
Visit Us
- www.viewsonic.com
-
DISPLAY
Type: 0.55" Digital Micromirror Device (DLP™) Resolution: 1024x768 Lens: 1.1x Manual optical zoom / manual optical focus Size: 30 - 300 inch Throw Distance: 1.2m - 10.0m Lamp: 240 watt Brightness: 3500 ANSI Lumens Contrast Ratio: 15,000:1 (DCR) Keystone Correction: Vertical digital keystone correction (+/- 40º) Aspect Ratio: 4:3 (native) -
AUDIO
Speakers: 16-watt (x1) -
INPUT SIGNAL
Video: NTSC M (3.58 MHz), 4.43MHz, PAL (B, D, G, H, I, M, N, 60), SECAM (B, D, G, K, K1, L), SD 480i and 576i, ED 480p and 576p, HD 720p, 1080i, 1080p Frequency: Fh: 31-100KHz; Fv: 24-120Hz -
COMPATIBILITY
PC: VGA to 1600x1200 UXGA Mac: Up to UXGA (may require MAC adaptor) -
CONNECTOR
RGB Input: 15-pin mini D-sub (x2) RGB Output: 15-pin mini D-sub Composite Video: RCA jack S Video: 4-pin mini-DIN Component Video: 15-pin mini D-sub (x2, shared with RGB) Digital: HDMI Audio: 3.5mm mini jack (x2)
Microphone Input:3.5mm mini jack (shared with Audio 2)Control: RS-232 (DB-9) USB: Type A (card reader and wireless dongle)
Type B (mouse control and service)
Mini Type B (USB display)Network: RJ45 -
POWER
Voltage: 100~240VAC (Auto Switching), 50/60Hz (universal) Consumption: 305W (typ) / <0.5W (stand-by mode) -
OPERATING CONDITIONS
Temperature: 32ºF–104ºF (0ºC–40ºC) Humidity: 10%–90% (non-condensing) -
DIMENSIONS
Physical: 294mm (width) x 113mm (height) x 219mm (depth) -
WEIGHT
Net: 2.1 kg -
PACKAGE CONTENTS
PJD6345 projector, power cable, VGA cable, remote control with batteries, Quick Start Guide,
ViewSonic Wizard DVD (with User Guide).
